3. Canal Losses

Losses in canals reduce the effective availability of water at the outlet points. These losses include:

Canal losses refer to the reduction in usable water as it travels through a canal. These losses affect how much water reaches the end of the canal for irrigation or other uses. Understanding canal losses is critical for designing effective irrigation systems, as it helps in calculating the actual water availability for crops.

Imagine a water slide meant to deliver water from a tank to a pool. If the slide has holes, some of the water will leak out, meaning not all of it reaches the pool. Similarly, in canals, losses mean not all the water reaches its intended destination.

3.1 Types of Canal Losses

a) Seepage Losses:

• Water seeps through the bed and banks.
• Higher in unlined canals and sandy soils.
• Lining and soil compaction reduce seepage.

b) Evaporation Losses:

• Water evaporates from the surface due to heat and wind.
• Proportional to surface area, temperature, and exposure.

c) Absorption Losses:

• Initial filling of pores in dry soil during the first run.
• Prominent during the initial stages of canal operation.

d) Transpiration Losses:

• Caused by vegetation (especially aquatic weeds) around the canal.

e) Operational Losses:

• Water lost during regulation, overflow, and improper management.

Canal losses can be categorized into several types: a) Seepage losses occur when water escapes through the canal's bed and banks, which is especially common in unlined channels. Reducing seepage can be achieved through lining canals or compacting soils.

b) Evaporation losses happen when water on the surface evaporates, influenced by temperature, wind, and the area exposed to the sun.

c) Absorption losses are significant particularly when dirt or dry soil absorbs water during the initial filling stages.

d) Transpiration losses arise from plants near the canal that take up water through their roots and release it into the atmosphere.

e) Operational losses refer to water lost through management mistakes, like inefficient regulation or overflow during rains and floods.

Think of a sponge in a bathtub. If you pour water into it, some of the water will seep through the sponge and be lost. The water that evaporates from the surface of the sponge is similar to evaporation losses from a canal. Additionally, if you have a towel nearby absorbing water from the sponge, that’s like absorption losses. Each of these elements contributes to the overall loss of water available from your initial pour.

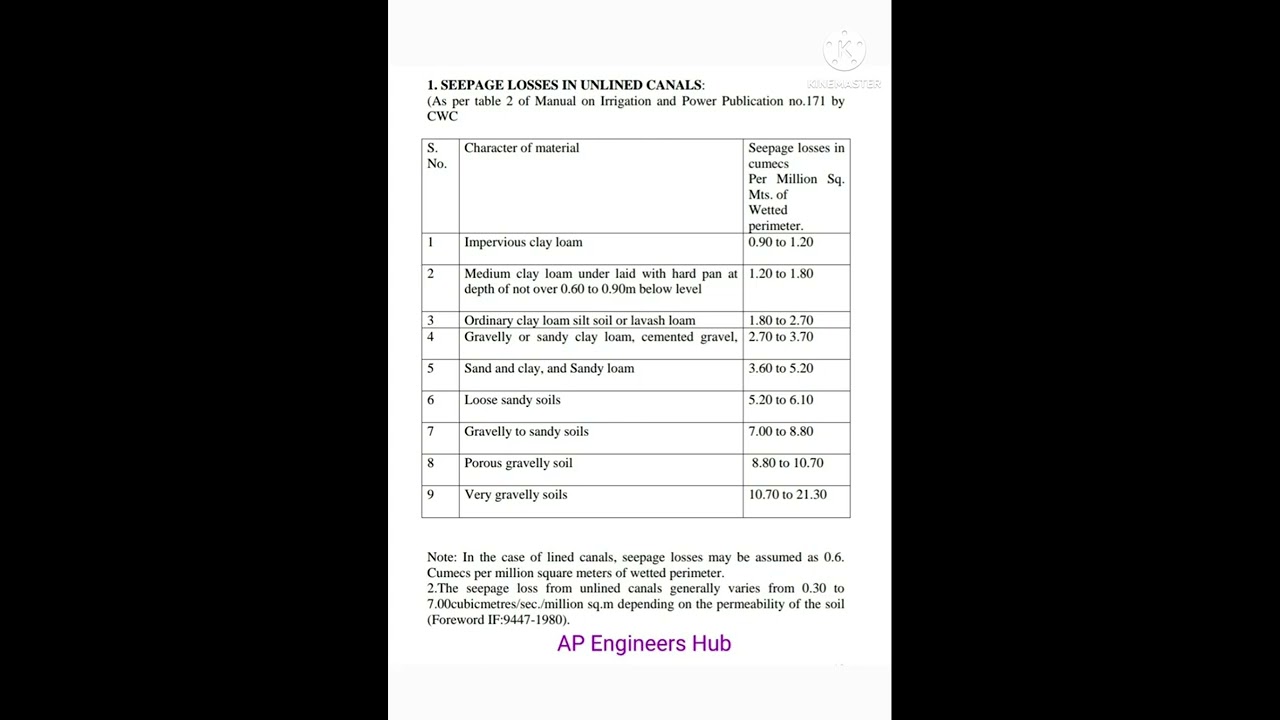

3.2 Estimation of Losses Empirical formulas are used to estimate seepage losses. Examples:

• Kostiakov’s Formula: Q=K⋅L⋅(B+D) where: Q = Seepage loss (cumecs/km) L = Length of canal (km) B = Bed width (m) D = Depth (m) K = Coefficient depending on soil type

To manage and design canals effectively, it is essential to estimate the extent of these losses accurately. One common method to estimate seepage losses is through empirical formulas, like Kostiakov’s formula. This formula quantifies seepage loss based on various factors, including the canal's length and dimensions. By inputting values into this formula, engineers can calculate how much water is being lost through seepage in a given stretch of canal.

Imagine you are trying to fill a swimming pool, but you need to know how much water is leaking out before it even reaches the pool. By measuring the pool's size and noting how much water has been lost from the source, similar to using Kostiakov’s formula, you can estimate the amount that will need to be added to achieve your desired level.

--
