4 - Estimation of Design Discharge
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Duty-Delta Relationship
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start discussing the Duty-Delta relationship. Can anyone tell me what 'duty' means in the context of irrigation?
I think it's the area that can be irrigated per unit of discharge, right?
Exactly! Duty (D) is measured in hectares per cumec. Now, who can tell me what 'delta' signifies?
Delta refers to the depth of water required for crops, which we measure in meters.
Correct! We can calculate duty using the formula: $$ D = \frac{8.64 × 10^6}{\Delta × B} $$ where B is the base period. Remembering this formula can help when we estimate design discharge.
Can you explain how you would use this formula in practice?
Certainly! If we know the delta for a crop type and the base period, we can substitute those values into the formula to find out how much area we can irrigate per cumec of water. This is essential for designing sustainable irrigation schemes.
To summarize, the Duty-Delta relationship is crucial for understanding how much water is needed for crops over a given time period and helps us optimize our canal designs.
Crop Water Requirement Method
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's talk about the Crop Water Requirement method. What do you think this method focuses on?
It must consider the total water requirement for different crops?
That's right! By assessing the total water requirement over a specified period and dividing it by the time available for irrigation, we can estimate the necessary discharge for the canal system.
How would we apply this in real scenarios?
Good question! If a farmer needs 1000 cubic meters of water per hectare and has 10 hectares to irrigate over 30 days, the total discharge can be calculated by dividing the total water required by the number of days available.
So, that's a way to ensure we provide enough water over time, correct?
Exactly! It's vital to make sure that we meet both the crops' needs and operational constraints. Can anyone summarize the importance of this method?
It helps in accurately determining how much water needs to flow through the canal to ensure sufficient irrigation.
Yes, well said! Summing it up, this method emphasizes inspecting the water needs and timeframes for effective discharge estimation.
Command Area Approach
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s shift our focus to the Command Area Approach. What elements do you think are involved in this method?
It likely considers the Gross Command Area and the Culturable Command Area among other factors.
Exactly! The formula we use is $$ Q = \frac{A × \Delta}{D} $$ where A is the area needing irrigation. Why do you think it’s important to understand the difference between GCA and CCA?
GCA includes all land within the command area, but CCA only includes land that can actually be irrigated.
Correct! This distinction allows us to implement more precise design calculations tailored to the land's actual irrigation potential.
So, it’s really about optimizing water usage for maximum agricultural benefit?
Exactly that! By understanding your command area, you can meet irrigation demands efficiently.
Empirical Formulas and Historical Data
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, let’s delve into how empirical formulas and historical data assist in estimating discharge values. What's the significance of utilizing historical data?
It allows us to refine our estimates because we can learn from previous projects.
Yes, and empirical formulas help us create estimations based on patterns observed in past data. Can anyone give an example of such a formula?
For seepage losses, we use formulas like Kostiakov’s formula.
Correct! These methods provide a researched backbone to our design process. Summarizing our session, using empirical data enhances accuracy in discharge estimation and can lead to more effective canal management.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we explore several methods for estimating design discharge in canal systems, including the Duty-Delta relationship, crop water requirement method, and empirical formulas. An understanding of these approaches is essential for optimal canal design to ensure reliable water supply to agricultural areas.
Detailed
Estimation of Design Discharge
The design discharge refers to the maximum flow rate that a canal system is designed to carry under normal working conditions. Estimating this discharge is crucial for ensuring that the canal can support the water demands of its intended use, particularly in agricultural applications.
Methods of Estimating Discharge
- Duty-Delta Relationship: This method relates the duty (D), which is the area that can be irrigated per unit of discharge, to the delta (Δ), the depth of water required for crops in meters. The formula is given as:
$$ D = \frac{8.64 × 10^6}{\Delta × B} $$
where B is the base period in days.
- Crop Water Requirement Method: This method calculates the total discharge based on the water requirement for crops over a specified period. It considers the total water requirement and the time available to deliver it.
- Command Area Approach: This method uses factors like Gross Command Area (GCA), Culturable Command Area (CCA), and irrigation intensity. The formula used is:
$$ Q = \frac{A × \Delta}{D} $$
where A is the area needing irrigation.
- Empirical Formulas and Field Data: Utilizing historical data from similar projects helps refine the calculated discharge values, increasing the reliability of the estimates.
Understanding these different methods allows engineers to make informed decisions during the design and management of canal systems, ensuring they meet agricultural and irrigation needs effectively.

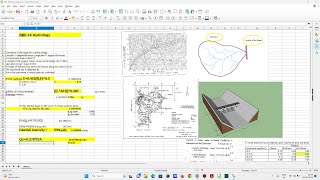

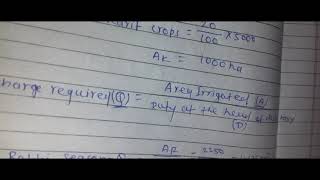

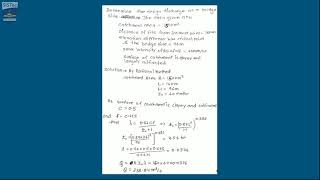

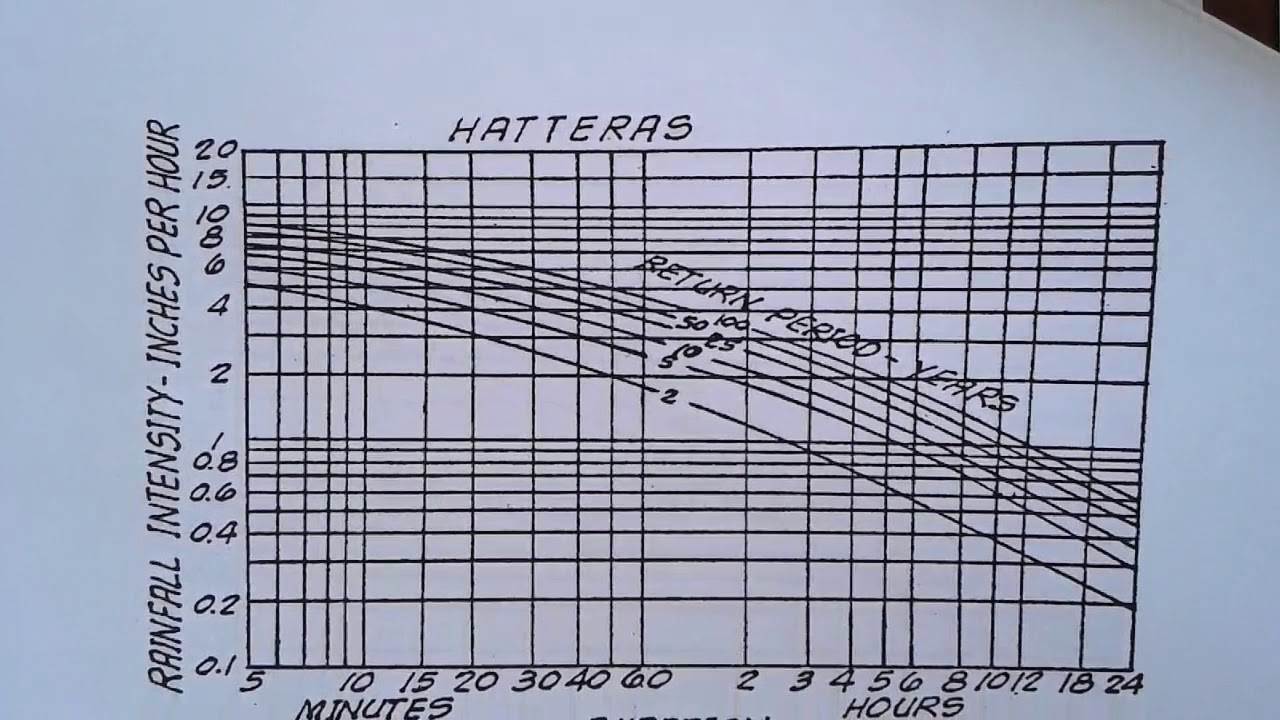

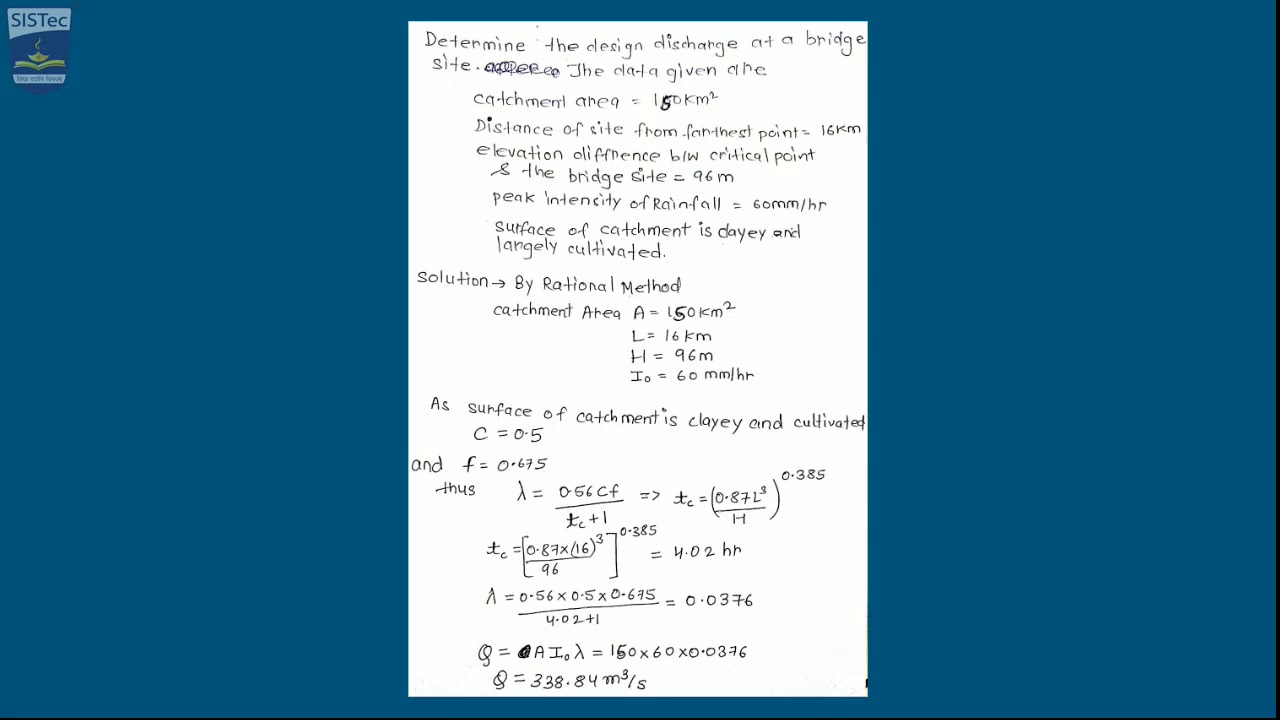

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Design Discharge
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The design discharge refers to the maximum flow rate a canal is designed to carry under normal working conditions.
Detailed Explanation
The design discharge is a critical concept in canal system engineering. It specifies the peak amount of water that a canal can handle efficiently. This allows engineers to design canals that are adequately sized to prevent overflow, which can damage the surrounding area and disrupt irrigation.
Examples & Analogies
Imagine a highway designed to handle a certain number of cars per hour. If too many cars try to use it at once, traffic jams occur. Similarly, a canal must be designed with a specific discharge to avoid flooding and ensure that it can deliver the right amount of water for irrigation.
Duty-Delta Relationship
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
a) Duty-Delta Relationship:
- Delta (Δ): Depth of water required for a crop in meters.
- Duty (D): Area irrigated per unit discharge (hectares/cumec).
8.64×106
D=
Δ⋅B
where B is base period in days.
Detailed Explanation
This relationship connects two important concepts: 'Duty' and 'Delta.' Delta is the amount of water needed for crops, while Duty indicates how much area can be irrigated with a unit of discharge. The formula shows that the higher the Delta, the more water is needed, and hence the Duty will change based on this requirement.
Examples & Analogies
Think of it like making soup. If you need a lot of soup (high Delta), you need to use a bigger pot or cook more batches (increasing Duty) to meet the demand for feeding guests (the area under irrigation).
Crop Water Requirement Method
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
b) Crop Water Requirement Method:
- Based on water requirement (WR) for different crops.
- Total discharge = Total water requirement / Time available.
Detailed Explanation
This method estimates how much water different crops need to grow effectively. By calculating the total water required for all the crops within a canal's command area and dividing by the time available for irrigation, engineers determine the discharge necessary for optimal crop health.
Examples & Analogies
Consider a farmer planning to water their garden. They know how much water each plant will need over the watering season. By dividing the total amount they need by the days they have to water, they can figure out how much water they must provide each day.
Command Area Approach
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
c) Command Area Approach:
- Based on Gross Command Area (GCA), Culturable Command Area (CCA), and intensity of irrigation.
A⋅Delta
Q=
D
where A = Area to be irrigated.
Detailed Explanation
The Command Area Approach considers the total area served by a canal, focusing on how much of that area can actually be cultivated (CCA). The given formula allows for the calculation of the required discharge by factoring in both the area needing irrigation and the depth of water necessary (Delta).
Examples & Analogies
Think of a chef preparing a feast for a party. They need to know the number of guests (Area to be irrigated) and how much food is needed per guest (Delta) to make sure there's enough food for everyone. The better they estimate both, the less waste and the more satisfied the guests will be.
Empirical Formulas and Field Data
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
d) Empirical Formulas and Field Data:
- Historical data from similar projects help refine discharge values.
Detailed Explanation
This point highlights how engineers can use past data from existing canals to estimate the design discharge more accurately. By analyzing what has worked in similar situations, adjustments can be made, leading to better engineering decisions.
Examples & Analogies
It's like a student studying for an exam. They look at past tests (historical data), understand which topics are frequently tested, and adjust their study plan accordingly. By doing so, they increase their chances of performing well on the exam.
Key Concepts
-
Design Discharge: The maximum flow rate a canal is designed to carry under normal working conditions.
-
Duty-Delta Relationship: The relationship between the irrigation duty and delta that determines how much area can be irrigated per discharge unit.
-
Crop Water Requirement: The total water needed by crops during their growth phases to yield efficiently.
-
Command Area: The area served by a canal, divided into Total Gross and Culturable Command Areas.
Examples & Applications
Using the Duty-Delta relationship, if a crop requires a delta of 0.5 meters and we have a base period of 30 days, we can use the formula to find how many hectares can be irrigated per cumec.
If the total water requirement for 10 hectares of a crop is 1000 cubic meters and it should be delivered within 10 days, we can calculate the discharge needed using the Crop Water Requirement Method.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
To know how much duty to call, the delta is key, in growing crops tall!
Stories
Imagine a farmer with a field watered by a canal. He counts on the design discharge to flow steady and true, ensuring his crops grow and no weakness ensues.
Memory Tools
D-C-C-E for remembering Duty, Crop Water Requirement, Command Area, and Empirical.
Acronyms
D for Duty Measurement, Δ for Depth, CA for Command Area measuring inflow efficiently.
Flash Cards
Glossary
- Duty
The area that can be irrigated per unit of discharge, typically measured in hectares per cumec.
- Delta (Δ)
The depth of water required for a crop, measured in meters.
- Gross Command Area (GCA)
Total area served by a canal, including non-productive land.
- Culturable Command Area (CCA)
The area that can be irrigated and cultivated effectively.
