Introduction to Recuperation Tests
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will explore recuperation tests. This method helps us understand how efficient our wells are. Can anyone tell me what happens when we pump water out of a well?
The water level goes down, right?
Exactly! That initial drop is called drawdown. Now, when we stop pumping, the water level rises again. This is what we measure during the recuperation test. What do you think we can learn from how fast it rises?
We can see how much water is available in the aquifer?
Great thought! That recovery rate helps us estimate the well's yield capacity. It tells us how much water can be reliably drawn. Remember, Yields help in our water resource planning!
Variables in Recuperation Tests
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Each recuperation test uses a specific formula. Can anyone tell me the key elements involved in calculating yield?
Isn’t there the initial drawdown and the residual drawdown?
Correct! The initial drawdown is how much the water level drops from the static level. And then we have the residual drawdown. Let's remember this using an acronym: H or Initial H for initial drawdown, and lowercase h for the residual. Can someone explain what A represents?
A is the cross-sectional area of the well.
Yes! That's crucial for our calculations. So, to calculate the well yield, we rely on those elements together.
Importance of Recuperation Tests
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we know the formula and the variables, let’s discuss why recuperation tests are so significant. Why do we think pumping tests like these are vital?
They show if a well can provide water continuously without running dry?
Exactly! And by understanding this, planners can create better water management strategies. This is especially important in areas where people heavily depend on groundwater.
So, it’s important for our sustainability too!
Right! Sustainable practices are key to conserving groundwater resources.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses recuperation tests as a method for assessing well yield capacity. It describes how the test measures water level recovery post-pumping, using variables like initial drawdown and residual drawdown to calculate discharge. The significance of these tests, especially for unconfined aquifers, is also highlighted.
Detailed

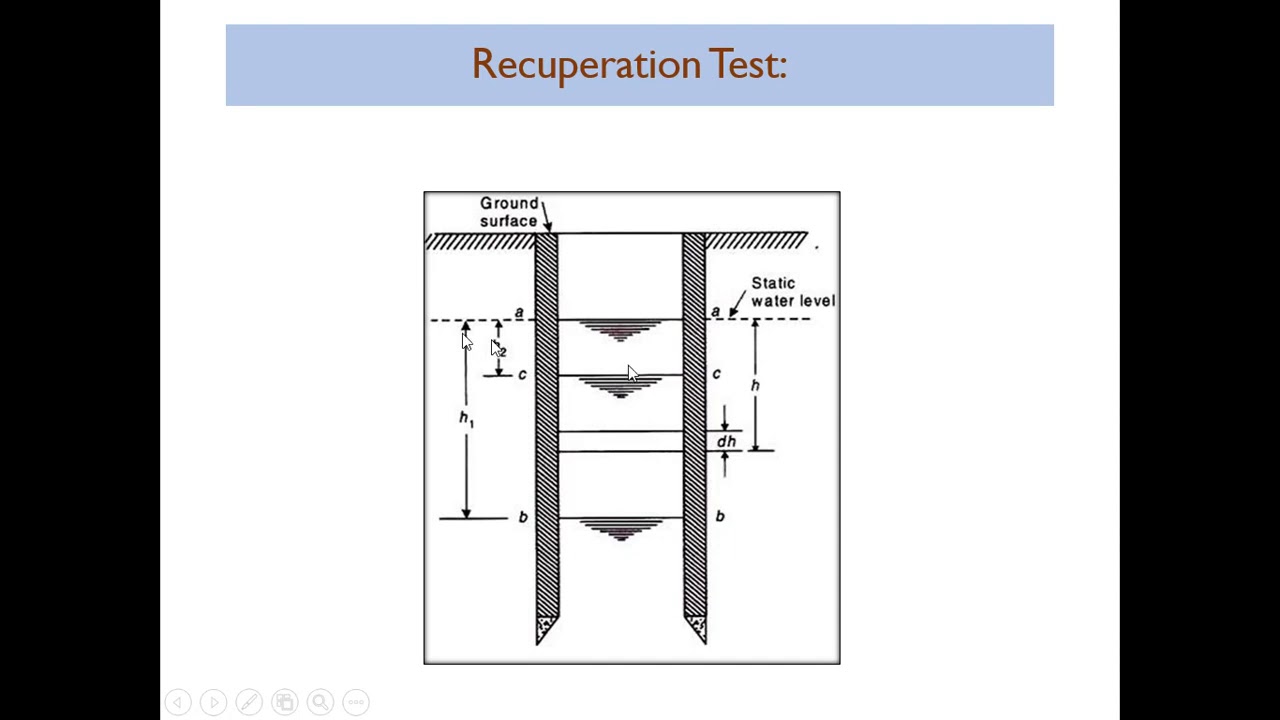

Recuperation Tests
Recuperation tests are pivotal in hydrology, specifically for assessing the yield capacity of open wells. The process begins with the pumping of water from a well to examine how quickly the water level (static level) stabilizes again, which helps in understanding the well’s efficiency and the aquifer's characteristics. The key formula used is:
Q = 2.3 * (A * H / (10^(H/h))) where:
- Q = Discharge (yield of the well)
- A = Area of the well’s cross-section
- H = Initial drawdown
- h = Residual drawdown at time t
These tests are particularly straightforward compared to more complex methods like step drawdown tests. Recovery rates during recuperation provide vital information about the aquifer's recharge potential and dynamics. Such insights are crucial for effective groundwater management, especially in regions relying heavily on wells for water supply.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Recuperation Test
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Recuperation test is used for open wells to determine their yield capacity. It involves pumping out water and observing the rate at which the water level returns (recuperates) to the static level.
Detailed Explanation
A recuperation test is a method employed to assess how much water a well can supply (its yield). This test begins by pumping water out of the well and measuring how quickly the water level rises back to its original static level after pumping stops. The speed of this recovery gives valuable insights into the well's performance and the characteristics of the aquifer.
Examples & Analogies
Imagine a sponge submerged in water. If you squeeze the sponge and let it go, it takes time for the water to seep back in. The faster it fills up after being squeezed, the more water it can hold. Similarly, a recuperation test shows how quickly a well can refill after being emptied.
Key Parameters in the Test
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Let:
- H = Initial drawdown
- h = Residual drawdown at time t
- A = Area of well
- Q = Discharge
Detailed Explanation
In a recuperation test, there are important parameters that help us understand the results:
- 'H' is the initial drawdown, which refers to how much the water level drops when pumping starts.
- 'h' is the residual drawdown, which is the remaining drop in water level after a certain amount of time has passed during the recuperation phase.
- 'A' is the area of the well, indicating how much the well can draw from the aquifer.
- 'Q' represents the discharge, or the volume of water that can be pumped out per unit time.
Examples & Analogies
Think of a balloon filled with air. When you press down on the balloon (the drawdown), the air level decreases. When you stop pressing, the air starts to return to its normal level. The initial amount of air pressed down is like 'H', while the leftover air when half-recovered is similar to 'h'.
Yield Calculation Formula
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Then, the yield of well:
Q = 2.3 AH (H) log10(t / h)
Detailed Explanation
The yield of the well, or how much water it can supply, can be calculated using the formula:
Q = 2.3 AH (H) log10(t / h). This formula combines all the parameters we discussed: the area of the well, the initial drawdown, and the recovery time to determine the discharge rate. The log term relates the time to the residual drawdown, giving a comprehensive view of how the well performs over time.
Examples & Analogies
It's like determining how fast a battery recharges based on how much power you initially used and how fast it can fill back up. Just like knowing the area of the battery affects how quickly it can recharge, knowing the well's area helps in calculating its water yield.
Application of Recuperation Tests
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
This test is particularly useful for wells in unconfined aquifers and is easier to perform compared to step drawdown tests.
Detailed Explanation
Recuperation tests are especially beneficial for open wells in unconfined aquifers, which means that the water table can fluctuate and is not confined by layers of rock. They are generally simpler and quicker to conduct than more complex tests, such as step drawdown tests. The ease of conducting recuperation tests makes them a preferred choice for preliminary assessments of well yield.
Examples & Analogies
Think of a simple way to check how a sponge absorbs water. You can simply submerge it and then lift it out. It's faster than measure every single drop over time as it drains; that's demanding and time-consuming. Similarly, recuperation tests offer a straightforward method for evaluating well performance.
Key Concepts
-
Recuperation Tests: A method used to determine well yield capacity.
-
Drawdown: The reduction in water level in a well due to pumping.
-
Yield Capacity: The amount of water that can be drawn from a well sustainably.
Examples & Applications
If a well is pumped and the water level drops from 10 meters to 5 meters, the drawdown is 5 meters. The rate of recovery observed after stopping the pump informs the well yield.
If the water level stabilizes back to its original static level of 10 meters after 30 minutes, and residual drawdown is measured at 6 meters, you would use this data to calculate the discharge.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When the well pumps down, don't wear a frown; watch it come back up, water's around!
Stories
Imagine you are a farmer relying on a well. Every time it runs dry, you check how fast it fills back up, knowing that's how you can plan for your crops!
Memory Tools
H.A.H. - H for initial drawdown, A for area of the well, and h for residual drawdown help us remember the components for yield calculation.
Acronyms
Remember 'DRY' - Drawdown, Recovery, Yield! This helps you recall the concepts behind recuperation tests.
Flash Cards
Glossary
- Recuperation Test
A method to assess the yield capacity of an open well by evaluating the recovery rate of water levels after pumping.
- Drawdown
The difference in water level from the static level after pumping has begun.
- Yield Capacity
The amount of water a well can consistently produce over time.
