36.5. Well Hydraulics

Well hydraulics involves the study of water flow towards wells, which is critical for estimating groundwater availability and designing pumping schemes.

Well hydraulics is a crucial field that focuses on understanding how water moves toward wells. This knowledge is essential for determining how much groundwater can be obtained and planning the operation of these wells to ensure sustainable water supply. Essentially, it assesses the ability of aquifers to provide water under varying conditions.

Think of well hydraulics like a straw in a drink. When you suck on the straw, the liquid moves towards it. Similarly, water moves toward the well when it is pumped, with well hydraulics helping us understand how efficiently this happens.

(i) Confined Aquifer

For steady radial flow towards a well fully penetrating a confined aquifer:

2πT(h − h ) Q = 1 2 r ( ) ln 2 r 1

Where:

• Q = Discharge
• T = Transmissibility
• h , h = Hydraulic heads at radial distances r and r 1 2

In confined aquifers, when water is drawn from a well, it does so in a radial pattern. The formula presented helps us calculate the discharge (the amount of water flowing from the well) based on the aquifer's transmissibility (how easily water moves through it) and the difference in hydraulic head (pressure) at two radial distances from the well.

Imagine a balloon filled with water. When you poke a hole in the balloon, water flows out. The rate at which the water flows out depends on how tightly the balloon is squeezed and the pressure inside. In the same way, the formula tells us how quickly water will flow out of the well based on the conditions in the aquifer.

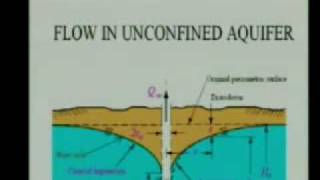

(ii) Unconfined Aquifer

In unconfined aquifers, the saturated thickness changes with drawdown:

πk(h2−h1) Q = 2 1 r ( ) ln 2 r 1

Where:

• h , h = Water table elevations 1 2

For unconfined aquifers, the situation is a bit different. As water is drawn from the well, the water table—that is, the upper surface of the saturated zone—drops, changing the amount of water available. The formula calculates the discharge based on the change in water table heights around the well and the permeability of the aquifer, which indicates how easily water can flow through it.

Think of a sponge in a bowl of water. If you take the sponge out, it starts to dry as water drains out. The level of water in the bowl drops. Similarly, when water is pumped out of an unconfined aquifer, the water table drops, and we can use this formula to predict how much water will be available to us.

Assumptions for Steady Flow:

• Aquifer is homogeneous and isotropic.
• Flow is horizontal and radial.
• Well is fully penetrating the aquifer.
• Flow is steady (inflow = outflow).

For the equations used in well hydraulics to work accurately, certain assumptions must be met. We assume the aquifer material is uniform and behaves the same in all directions (homogeneous and isotropic). We also expect that flow towards the well is not vertical, but horizontal and radial, meaning it spreads out evenly from the well. Additionally, we assume the well extends through the entire aquifer thickness and that the amount of water flowing into the well remains constant while water is being drawn out.

Imagine filling a round swimming pool from the center. The pool walls are evenly built (homogeneous) and do not change height at different points (isotropic). If water flows consistently from the center throughout the pool, we can predict how fast it will fill. If those conditions change—like if the pool's shape was uneven—the predictions we make would be less accurate.

--
