10.3 - Magnetic Field Due to a Straight Conductor

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Magnetic Fields

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're exploring how a straight conductor carrying current produces a magnetic field around it. Can anyone tell me why this phenomenon is important?

Student 1
Student 1

I think it's because it has applications in motors and generators?

Teacher
Teacher

Exactly! The ability to create a magnetic field allows us to harness and manipulate electricity. Let's move forward and learn how to determine the direction of this magnetic field using the Right-Hand Thumb Rule.

Student 2
Student 2

How do we use the Right-Hand Thumb Rule?

Teacher
Teacher

Great question! When you point your right thumb in the direction of the current, your curled fingers will show the direction of the magnetic field lines circling the wire. Remember this: 'Thumb for current, fingers for field.'

Factors Affecting Magnetic Field Strength

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand how to find the direction of the magnetic field, let's discuss what affects its strength. Who can share how current influences the magnetic field?

Student 3
Student 3

I think the more current there is, the stronger the magnetic field it creates?

Teacher
Teacher

Correct! The strength of the magnetic field is directly proportional to the current. What about distance? How does that affect the field?

Student 4
Student 4

I remember that farther away from the wire, the magnetic field gets weaker?

Teacher
Teacher

Exactly! The magnetic field strength decreases with increased distance from the wire. So, if you're closer to the wire, the field is stronger. Remember: 'More current, stronger field; further away, weaker field.' This helps in many practical applications.

Visualization of Magnetic Fields

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s visualize what a magnetic field looks like around a straight conductor. Imagine swirling circles around the wire. How would you visualize these magnetic field lines?

Student 1
Student 1

Maybe they’re concentric circles like ripples in water?

Teacher
Teacher

That's a perfect analogy! Just like ripples, the magnetic field lines create concentric circles around the straight current-carrying wire. Can you also tell me what happens if we run a higher current through that wire?

Student 2
Student 2

The circles would be larger and stronger as more current means a stronger magnetic field.

Teacher
Teacher

Exactly right! This visualization can help us understand electromagnetic applications like transformers and motors.

Review and Summary

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Before we end our session, let’s summarize what we learned about a straight conductor carrying current. Who can share the main points?

Student 3
Student 3

A straight wire creates concentric magnetic fields, and we use the Right-Hand Thumb Rule to find the direction.

Student 4
Student 4

The strength of the magnetic field depends on the amount of current and the distance from the wire.

Teacher
Teacher

Excellent recap! Remember, 'More current means stronger fields, further away means weaker fields.' Understanding these concepts is crucial in electromagnetism.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

A straight current-carrying conductor generates concentric magnetic fields whose direction can be identified using the Right-Hand Thumb Rule.

Standard

When an electric current flows through a straight conductor, it creates concentric magnetic circles around it. The strength of this magnetic field depends on the amount of current flowing through the conductor and the distance from the wire. The Right-Hand Thumb Rule is used to determine the direction of the magnetic field.

Detailed

Magnetic Field Due to a Straight Conductor

In this section, we learn that a straight wire carrying an electric current produces a magnetic field around it in the form of concentric circles. The direction of these magnetic circles can be determined using the Right-Hand Thumb Rule: if you point your thumb in the direction of the current, your curled fingers indicate the direction of the magnetic field lines. The strength of the magnetic field at any point also varies based on two factors: it is directly proportional to the current (I) flowing through the conductor and inversely proportional to the distance (r) from the wire. Thus,
- Magnetic Field Strength (B) ∝ Current (I)
- Magnetic Field Strength (B) ∝ 1/Distance (r).

This relationship is crucial for understanding how to manipulate magnetic fields in various applications, such as in electromagnets and inductors.

Youtube Videos

Magnetic Effects of Electric Current in 20 Minutes🔥| Class 10th | Rapid Revision | Prashant Kirad
Magnetic Effects of Electric Current in 20 Minutes🔥| Class 10th | Rapid Revision | Prashant Kirad
Magnetic effect of electric current⚡| CLASS 10| ONE SHOT| boards
Magnetic effect of electric current⚡| CLASS 10| ONE SHOT| boards
Electro-Magnetism Class 10 ICSE Physics | Selina Chapter 10 | Magnetic Effects of Current
Electro-Magnetism Class 10 ICSE Physics | Selina Chapter 10 | Magnetic Effects of Current

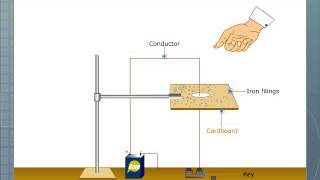

Magnetic Field Pattern due to Electric Current in a Straight Wire
