ADC Architectures
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Successive Approximation Register (SAR) ADC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start with the Successive Approximation Register ADC, or SAR ADC. This architecture is known for its moderate speed and medium-to-high resolution ranging from 8 to 18 bits. Does anyone remember what makes SAR ADCs ideal for certain applications?
I think they're great for battery-powered applications because they consume less power!
Exactly! Their low power consumption is beneficial for microcontrollers and portable devices. Why do you think low power is crucial in those scenarios?
Because battery life is essential for portable devices!
Well said! So, to remember the SAR ADC, you can think of it as the 'Smart And Resource-efficient' ADC. Keep that acronym in mind! Any questions before we move on?
Flash ADC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss the Flash ADC. It’s known for incredibly high-speed conversions. Who can tell me the typical resolution range for Flash ADCs?
I remember it's lower, around 4 to 8 bits?
That's correct! While it excels in speed, the resolution is indeed lower. What applications do you think benefit from this architecture?
RF receivers need speed, right?
Right again! The Flash ADC is often utilized in high-speed data acquisition systems. To help memorize the key features, think of 'Fast Like a Flash'—both in speed and its name! Let’s summarize this part.
Sigma-Delta ADC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, we are diving into the Sigma-Delta ADC. What can you tell me about its resolution and where it's commonly used?
It has very high resolution, like 16 to 24 bits. It's good for audio and precision instruments.
Exactly! Its strength is in providing high accuracy, especially in low bandwidth applications. How might you remember this?
Maybe using 'Sigma for Sound' since it’s great for audio?
Excellent! 'Sigma for Sound' can be a mnemonic for its applications in audio processing. Let's summarize what we've learned.
Pipeline ADC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s move on to the Pipeline ADC. What do you remember about its speed and resolution?
It offers a good trade-off, usually between 10 to 14 bits in resolution, right?
Correct! It's quite versatile. What applications can benefit from this balance?
I think it’s often used in imaging and communication technologies.
Spot on! To help you remember its versatility, think of it as 'Pipe through images and signals'. Let’s recap.
Dual Slope and Time-Interleaved ADC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, let's talk about the Dual Slope ADC and Time-Interleaved ADC. The Dual Slope ADC is known for its excellent noise rejection, but what’s a downside to its conversion rate?
It has a slower conversion rate compared to others.
Exactly! It’s perfect for precision measurements despite being slow. And what about the Time-Interleaved ADC?
It increases throughput using multiple ADCs! But it has challenges with inter-channel mismatches.
Correct! Remember 'Time Together for Speed' to capture its use of multiple ADCs. Let’s conclude our discussion.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The ADC architectures discussed include Successive Approximation Register (SAR), Flash, Sigma-Delta (ΣΔ), Pipeline, Dual Slope, and Time-Interleaved ADCs. Each architecture is suited for different applications, balancing trade-offs between speed, resolution, and power efficiency.
Detailed
ADC Architectures Overview
Analog-to-Digital Converters (ADCs) play a vital role in converting analog signals into digital data. Understanding different ADC architectures is crucial for applications that require specific performance characteristics:
1. Successive Approximation Register (SAR) ADC
- Speed & Resolution: Moderate speed, medium-to-high resolution ranging from 8 to 18 bits.
- Power Consumption: Low, making it ideal for battery-powered devices and microcontrollers.
2. Flash ADC
- Speed: Extremely high-speed conversion, capable of operating in the GHz frequency range.
- Resolution: Low resolution, typically between 4 and 8 bits.
- Use Cases: Commonly used in RF receivers and high-speed data acquisition systems.
3. Sigma-Delta (ΣΔ) ADC
- Resolution: Offers very high resolution, often between 16 to 24 bits.
- Bandwidth: Generally low bandwidth, making it suitable for audio processing and precision instrumentation.
4. Pipeline ADC
- Speed & Resolution: Provides a good trade-off between speed and resolution, typically between 10 to 14 bits.
- Applications: Widely used in imaging, video, and communication technologies.
5. Dual Slope / Integrating ADC
- Benefits: Excellent noise rejection with a slower conversion rate.
- Ideal Use: Best suited for digital voltmeters and precision DC measurements.
6. Time-Interleaved ADC
- Throughput: Utilizes multiple ADCs operating in parallel to enhance throughput.
- Challenges: While effective in high-speed applications, it may introduce inter-channel mismatches.
Understanding these architectures enables the selection of the most suitable ADC for various application needs, facilitating high-performance system design.

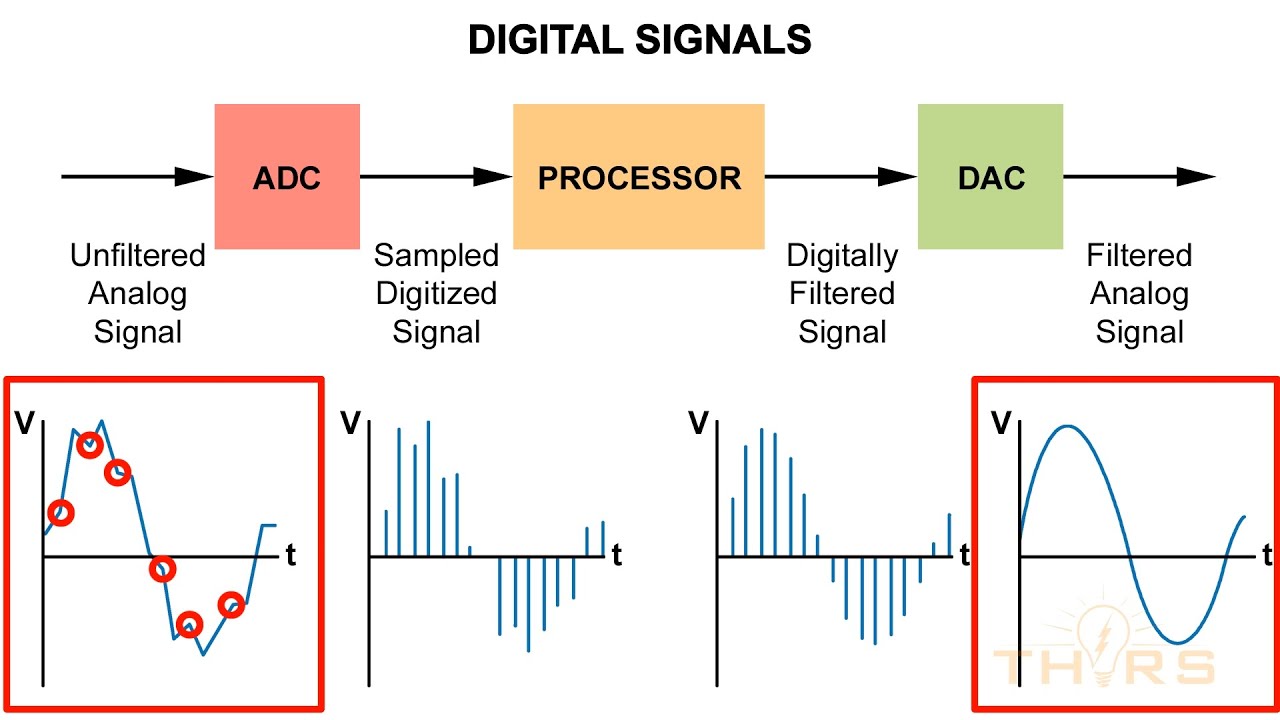

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Successive Approximation Register (SAR) ADC
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Successive Approximation Register (SAR) ADC
● Moderate speed, medium-to-high resolution (8–18 bits)
● Low power consumption
● Common in battery-powered and microcontroller applications
Detailed Explanation
The SAR ADC is a widely used type of analog-to-digital converter that works by successively approximating the input signal. It operates at a moderate speed and typically achieves a resolution between 8 and 18 bits. Its power efficiency makes it a popular choice for applications where battery life is critical, such as in portable electronics and microcontrollers. This means that while it may not convert signals as fast as some other ADC types, it is efficient and adequate for many applications.
Examples & Analogies
Imagine a person trying to guess the price of a car. They start with a guess of $20,000 and then adjust their guess upwards or downwards until they settle on the correct price after several iterations. This is similar to how a SAR ADC works, where it refines its output step by step until it approximates the input signal accurately.
Flash ADC
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Flash ADC
● Extremely high-speed conversion (GHz range)
● Low resolution (typically 4–8 bits)
● Used in RF receivers, high-speed data acquisition
Detailed Explanation
Flash ADCs are known for their ability to convert analog signals to digital form at extraordinarily high speeds, often in the gigahertz range. However, this speed comes at the cost of lower resolution, typically between 4 to 8 bits. As a result, Flash ADCs are suited for applications where quick conversion is crucial, such as in radio frequency (RF) receivers and high-speed data acquisition systems, where capturing rapid changes in signal is essential.
Examples & Analogies
Think of a Flash ADC like a high-speed camera that can take many pictures in fractions of a second. While it captures a lot of data quickly, the resolution of each image may not be as detailed as a traditional camera. It's perfect for moments where timing is everything, like catching a fast-moving object.
Sigma-Delta (ΣΔ) ADC
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Sigma-Delta (ΣΔ) ADC
● Very high resolution (16–24 bits)
● Low bandwidth
● Ideal for audio and precision instrumentation
Detailed Explanation
Sigma-Delta ADCs are designed to achieve very high resolutions, typically ranging from 16 to 24 bits. They excel at converting signals with low bandwidth, making them particularly suited for audio applications and precision instrumentation. This type of ADC oversamples the input signal and uses noise shaping techniques to improve resolution, which results in highly accurate digital representations of analog signals.
Examples & Analogies
Imagine a skilled musician recording a piece of music. They might record several takes (oversampling) and then choose the best sections to piece together a final perfect version (noise shaping). Similarly, Sigma-Delta ADCs compile multiple samples to produce a cleaner and more accurate digital output.
Pipeline ADC
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Pipeline ADC
● Good tradeoff between speed and resolution (10–14 bits)
● Widely used in video, imaging, and communications
Detailed Explanation
Pipeline ADCs provide a balanced performance in terms of both conversion speed and resolution, typically operating between 10 to 14 bits. They are commonly used in applications such as video processing, imaging, and communications, where the ability to quickly convert signals with decent fidelity is important. This architecture allows for the pipelining of data processing, which enhances throughput.
Examples & Analogies
Think of a pipeline ADC like a fast food restaurant where multiple cooks are preparing different parts of the meal simultaneously. Each cook focuses on their task—one fries, another assembles, and another plates—allowing several orders to be completed quickly and efficiently. Pipeline ADCs work in a similar manner, processing parts of the signal concurrently.
Dual Slope / Integrating ADC
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Dual Slope / Integrating ADC
● Excellent noise rejection
● Slow conversion rate
● Suitable for digital voltmeters and precision DC measurements
Detailed Explanation
Dual Slope or Integrating ADCs are particularly good at rejecting noise, which allows for more accurate measurements in noisy environments. However, this comes with a slower conversion rate compared to other ADC types. They are well-suited for applications like digital voltmeters and precision DC measurements, where accuracy is more critical than speed.
Examples & Analogies
Consider a chef preparing a delicate soufflé that requires precise measurements of ingredients to achieve the perfect rise. The slow and methodical approach ensures that every step is carefully executed for a top-quality dish, similar to how dual slope ADCs take their time to ensure accuracy despite lower speed.
Time-Interleaved ADC
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Time-Interleaved ADC
● Uses multiple ADCs in parallel to increase throughput
● Effective in high-speed systems, though it introduces inter-channel mismatches
Detailed Explanation
Time-Interleaved ADCs utilize multiple ADCs working in parallel to achieve higher throughput rates. This technique is particularly useful in high-speed systems where data needs to be processed quickly. However, using multiple ADCs can introduce mismatches between channels, which can affect the accuracy if not properly managed.
Examples & Analogies
Imagine a relay team in a race, where each member runs a segment of the track. If they coordinate well, the team can finish quickly, but if one runner is slower or faster than the others, it may impact the overall performance. Similarly, while time-interleaved ADCs can speed up data acquisition, care must be taken to ensure all channels contribute evenly.
Key Concepts
-
SAR ADC: Moderate speed and medium-to-high resolution, ideal for low-power applications.
-
Flash ADC: Extremely high-speed conversion but lower in resolution, used for rapid sampling.
-
Sigma-Delta ADC: High resolution and best for low bandwidth applications.
-
Pipeline ADC: Good tradeoff between resolution and speed, suitable for imaging.
-
Dual Slope ADC: Excellent noise rejection but slow response time, great for precision DC.
-
Time-Interleaved ADC: Enhances throughput using multiple ADCs, but may introduce mismatches.
Examples & Applications
SAR ADCs are commonly used in microcontrollers for sensor data acquisition where power efficiency is crucial.
Flash ADCs are utilized in high-speed communication systems where rapid signal sampling is required.
Sigma-Delta ADCs can be found in professional audio equipment for high-fidelity sound conversion.
Pipeline ADCs are essential in digital cameras for fast image processing.
Dual Slope ADCs are typically found in digital voltmeters ensuring high measurement accuracy.
Time-Interleaved ADCs are used in high-speed data acquisition systems for improved sampling rates.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
SAR for power, Flash for speed, Sigma-Delta for sound, that’s what you need.
Stories
A digital photographer uses a Pipeline ADC to snap pictures quickly while a voltage technician relies on a Dual Slope ADC for precise readings.
Memory Tools
SPTDS - Successive, Pipeline, Time-interleaved, Dual Slope for remembering types of ADCs.
Acronyms
SIGHT for Sigma (sound), Integration (Pipeline), GHz (Flash), and Tunes (SAR) for useful converts.
Flash Cards
Glossary
- Successive Approximation Register (SAR) ADC
An ADC architecture that provides moderate speed and medium-to-high resolution, ideal for low-power applications.
- Flash ADC
An ADC that offers extremely high-speed conversion typically used in applications requiring fast sampling rates with lower resolution.
- SigmaDelta (ΣΔ) ADC
An ADC type that provides very high resolution at low bandwidth, often used in audio and precision instrumentation.
- Pipeline ADC
An ADC that balances speed and resolution, typically used in imaging and communication applications.
- Dual Slope ADC
An ADC known for excellent noise rejection, suitable for precise DC measurements, but with a slower conversion rate.
- TimeInterleaved ADC
An ADC that uses multiple devices in parallel to enhance throughput, facing challenges with inter-channel mismatches.
