AASHTO Soil Classification System
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to AASHTO Classification
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing the AASHTO Soil Classification System, which is vital for understanding how different soil types affect pavement engineering. Can anyone tell me why soil classification is important?
Is it because it helps us choose the right materials for construction?
And it probably tells us how strong the soil is too, right?
Exactly! Soil classification helps not only in material selection but also in assessing the load-bearing capacity of the soil and predicting how it behaves under load. Let's move to the structure of AASHTO classification.
AASHTO Classification Groups
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The AASHTO system divides soils into seven groups, from A-1 to A-7. Who can summarize what we discussed about each group?
A-1 is the best for subgrade, right? It’s well-graded gravels and sands with low fines.
And A-2 includes silty or clayey gravel/sands, while A-3 is fine sand with low plasticity.
Great recall! A-4 to A-7 include clays and silts with increasingly poor load-bearing capacities. The classification helps ensure appropriate use in pavement designs.
Understanding Group Index and Atterberg Limits
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's explore how the Group Index is calculated. Who remembers the formula?
Isn’t it GI = (F - 35)[0.2 + 0.005(LL - 40)] + 0.01(F - 15)(PI - 10)?
What does each part mean?
Good question! F is the percent passing the No. 200 sieve, LL is the Liquid Limit, and PI is the Plasticity Index. Lower Group Index values are better for subgrade quality. Why do we think this is important?
Because it indicates how suitable the soil is for supporting heavy loads?
Practical Application of AASHTO Soil Classification
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, understanding how we use this classification is key! How does the AASHTO classification help in real-world scenarios?
It helps engineers determine if they need to stabilize the soil or choose alternative materials.
And it helps us design our drainage systems better too!
Absolutely! Effective drainage and appropriate material selection can significantly improve pavement performance and longevity.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Developed by the American Association of State Highway and Transportation Officials, the AASHTO system classifies soils into seven groups based on grain size distribution, Atterberg limits, and an empirical Group Index, thus aiding in the design and construction of pavements.
Detailed
The AASHTO Soil Classification System is a fundamental tool for pavement engineering, developed by the American Association of State Highway and Transportation Officials (AASHTO). This system classifies soils into seven primary groups, labeled A-1 through A-7, which can further be subdivided into subgroups. The classification is primarily based on grain size distribution (with regard to specific sieve standards) and the Atterberg limits, namely the Liquid Limit (LL) and Plasticity Index (PI). A key component is the Group Index (GI), calculated to represent the quality of the subgrade. The lower the GI value, the better the subgrade quality, which is crucial for determining the suitability of the soil for road construction and pavement support. Understanding this classification system is essential for engineers when assessing load-bearing capacities, predicting behavior under load, selecting materials, and considering drainage.

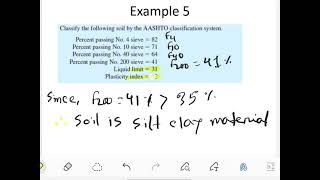

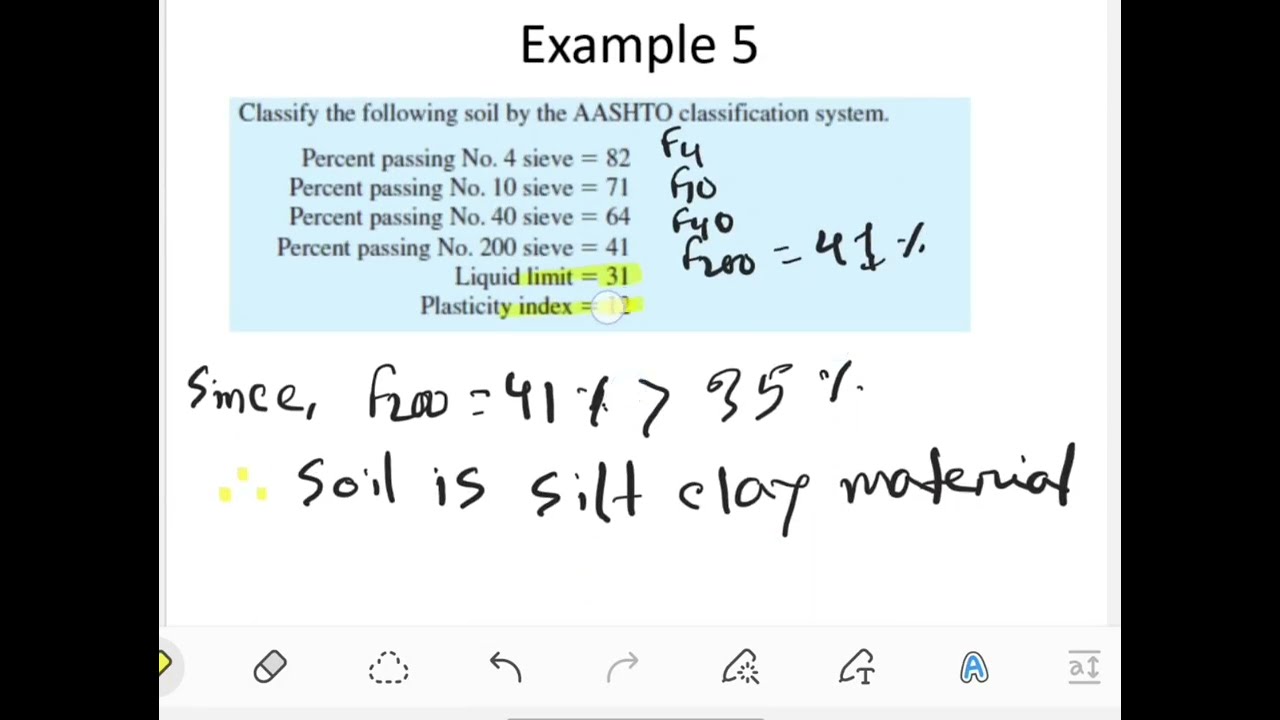

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to AASHTO Classification System
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Developed by the American Association of State Highway and Transportation Officials, the AASHTO system is widely used in highway and pavement design in India and abroad.
Detailed Explanation
The AASHTO Soil Classification System was created by a group dedicated to improving highway infrastructure. Its primary purpose is to provide a standardized method for classifying soils based on their properties so that engineers can predict how these soils will behave under roads and other structures.
Examples & Analogies
Think of the AASHTO system as a recipe guide for engineers. Just like a chef needs to know the ingredients and how they combine to create a dish, engineers need to classify soils to properly design pavement systems.
AASHTO Classification Groups
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Soils are classified into seven groups: A-1 to A-7.
• Further subgroups: A-1-a, A-1-b, A-2-4, A-2-5, A-2-6, A-2-7.
Detailed Explanation
The AASHTO classification system organizes soils into seven main groups identified by the letters A-1 through A-7. Each group has unique properties making it suited for different engineering applications. Some groups are further divided into subgroups, allowing for a more precise classification based on specific characteristics.
Examples & Analogies
This classification can be likened to a sorting machine in a factory that sorts products. Just like how items are categorized by size or type, soils are grouped by their properties which helps engineers make better decisions.
Basis of Soil Classification
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Based on:
– Grain size distribution: % passing No. 10, No. 40, and No. 200 sieves.
– Atterberg limits: Liquid Limit (LL) and Plasticity Index (PI).
– Group Index (GI): Empirical value representing subgrade quality.
Detailed Explanation
The AASHTO classification relies on specific measurements like grain size distributions and Atterberg limits, which help define the soil's behavior when wet or dry. Understanding these properties allows engineers to accurately assess how much load the soil can support and how it will react under different conditions. The Group Index quantifies these characteristics into a single value, helping classify subgrade quality.
Examples & Analogies
Imagine baking a cake; you need to know the right mix of flour, sugar, and eggs to achieve the desired texture. In soil classification, the grain sizes and Atterberg limits work similarly by providing essential information needed to determine the quality and behavior of the soil in construction.
Group Index Formula
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

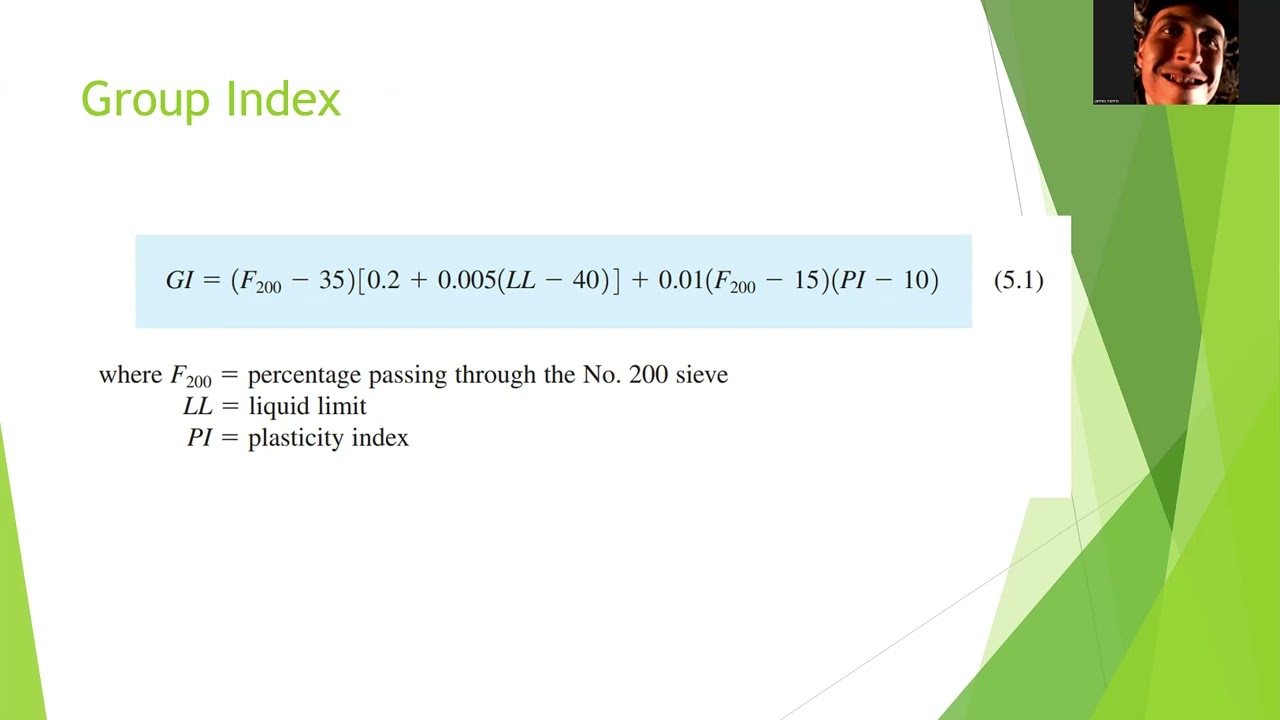

GI =(F −35)[0.2+0.005(LL−40)]+0.01(F −15)(PI−10)
Where:
• F = % passing No. 200 sieve
• LL = Liquid Limit
• PI = Plasticity Index
Lower GI values indicate better subgrade quality.
Detailed Explanation
The Group Index (GI) is calculated using the formula provided. This equation takes into account the percentage of fine particles in the soil and the soil's behavior characteristics (Liquid Limit and Plasticity Index). A lower GI value suggests a higher quality soil for supporting pavement, meaning it can handle loads better.
Examples & Analogies
Calculating the Group Index is like scoring a student’s performance. Just as lower scores indicate better performance in school, lower GI values indicate that the soil is suitable for supporting structures.
Group Descriptions
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• A-1: Best for subgrade (well-graded gravels and sands with low fines).
• A-2: Silty or clayey gravel/sands.
• A-3: Fine sand with low plasticity.
• A-4 to A-7: Increasingly clayey and silty soils with poor load-bearing capacity.
Detailed Explanation
Each classification group (A-1 to A-7) represents different soil types and their suitability for pavement subgrade. For example, A-1 group soils are the best for subgrade as they provide good drainage and support. In contrast, groups A-4 to A-7 contain soils that are not ideal for heavy loads and may require treatments for stabilization.
Examples & Analogies
Think about choosing a solid chair for a dining table. You’d want a sturdy chair (like A-1 soil) over a flimsy one (like A-7 soil). Just like some chairs are better suited for holding weight than others, some soils are much more suitable for road construction.
Key Concepts
-
Soil Classification: The process of categorizing soils based on various properties to inform engineering practices.
-
AASHTO Classification Groups: Seven main groups divided based on grain size and Atterberg limits.
-
Group Index (GI): An empirical value that indicates the quality of soil for subgrade applications.
Examples & Applications
Example of A-1 Soil: A well-graded gravel that is suitable for the structural base of a road.
Example of A-7 Soil: A highly plastic clay soil that may require treatment before construction.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
AASHTO soils, so numerous and neat, from A-1 to A-7 – the foundation’s heartbeat.
Stories
Imagine a builder at a site, questioning the soil types. He recalls how A-1 is strong for foundations while A-7 struggles in the heat!
Memory Tools
Remember to group soil types: 'A for Awesome (A-1) and A for Awkward (A-7)'!
Acronyms
Use 'PAVE' - Properties, Appropriate selection, Vegetation influence, Engineering disciplines.
Flash Cards
Glossary
- AASHTO
American Association of State Highway and Transportation Officials; the organization responsible for developing the soil classification system.
- Group Index (GI)
An empirical measure indicating the suitability of a soil for subgrade, calculated using grain size and Atterberg limits.
- Atterberg Limits
Measures of soil plasticity, primarily the Liquid Limit (LL) and Plasticity Index (PI), determining how soil behaves with moisture.
- Liquid Limit (LL)
The moisture content at which soil changes from a plastic state to a liquid state.
- Plasticity Index (PI)
The numerical difference between the Liquid Limit and the Plastic Limit of the soil.
