Overview of USCS
Unlock Audio Lesson
Today, we're going to delve into the Unified Soil Classification System, or USCS. Can anyone tell me why this system is important in geotechnical engineering?
Is it because it helps classify different types of soils?
Exactly! The USCS is essential because it categorizes soils based on their grain size and plasticity. This classification allows engineers to understand how different soils behave under load.
What are the main categories in USCS?
Great question! USCS primarily divides soils into coarse-grained and fine-grained soils. Coarse-grained soils are those retained on the No. 200 sieve—such as gravels and sands. Fine-grained soils, on the other hand, pass through the No. 200 sieve and usually include silts and clays.
How do those categories affect what we do in engineering?
They directly influence material selection and design. For instance, understanding whether you’re dealing with gravel or clay can dictate everything from drainage issues to structural load-bearing capabilities. So, keep in mind the acronym GC (Gravel with Clay) as we move forward.
That’s helpful, thanks!
To summarize, the USCS helps classify soils for better predictions of their behavior, which is crucial for all geotechnical designs.
Soil Types in USCS
Unlock Audio Lesson
Now let's discuss the specific soil types classified under USCS. Can anyone name one type of coarse-grained soil?
Gravel?
Correct! Gravels are one type under coarse-grained soils. They can be classified further into well-graded gravels, GW, and poorly graded gravels, GP. What's another kind of coarse-grained soil?
Sands?
Yes, good job! Sands are also categorized further, such as well-graded sands SW and poorly graded sands SP. Now, moving on to fine-grained soils, how are they categorized?
By their plasticity?
Right! Fine-grained soils include silts and clays, categorized as ML for low plasticity and CH for high plasticity. The distinction is important for assessing soil behavior under load. Remember the mnemonic 'Silt is Light; Clay is Heavy' to help you recall their properties.
That's clever! I’ll remember that!
Excellent! In summary, we’ve highlighted the types of coarse-grained and fine-grained soils and how their classifications affect our choices.
Plasticity Chart and Soil Symbols
Unlock Audio Lesson
Let’s discuss the plasticity chart now. Does anyone remember the purpose of the Casagrande plasticity chart?
Is it to differentiate between silts and clays?
Exactly! The chart helps determine whether a soil is more akin to silt or clay based on its plasticity index. The A-line separates these categories. Who can tell me what a soil symbol represents?
Soil symbols show the characteristics of the soil, right?
Correct! Symbols like W for well-graded and P for poorly graded help summarize the behavior of the soil quickly. A helpful tip: remember that 'W' in well-graded stands for 'We're Good!'
I like that! It's easy to remember.
To summarize, USCS incorporates a plasticity chart for soil behavior analysis and uses symbols for quick reference to soil types.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Unified Soil Classification System (USCS) is integral to geotechnical engineering, categorizing soils into coarse-grained, fine-grained, and organic soils based on grain size and plasticity. It includes specific soil symbols and utilizes a Casagrande plasticity chart to differentiate soil behavior, crucial for accurate soil analysis and engineering applications.
Detailed
Unified Soil Classification System (USCS)
The Unified Soil Classification System (USCS) is widely adopted in geotechnical engineering to enable a reliable framework for classifying soils based on their physical properties. The system primarily divides soils into two main categories: coarse-grained and fine-grained soils, further distinguished by their respective characteristics.
Major Divisions of USCS:
- Coarse-Grained Soils: Comprising more than 50% of particles retained on a No. 200 sieve;
- Gravels (G): Further classified into GW (Well-graded gravels), GP (Poorly graded gravels), GM (Gravel with silt), and GC (Gravel with clay).
- Sands (S): Subdivided into SW (Well-graded sands), SP (Poorly graded sands), SM (Sandy silts), and SC (Sandy clays).
- Fine-Grained Soils: More than 50% of particles pass through a No. 200 sieve;
- Silts and Clays: Further categorized into ML (Low plasticity silt), CL (Low plasticity clay), MH (High plasticity silt), and CH (High plasticity clay).
- Highly Organic Soils: Designated as Peat (Pt).

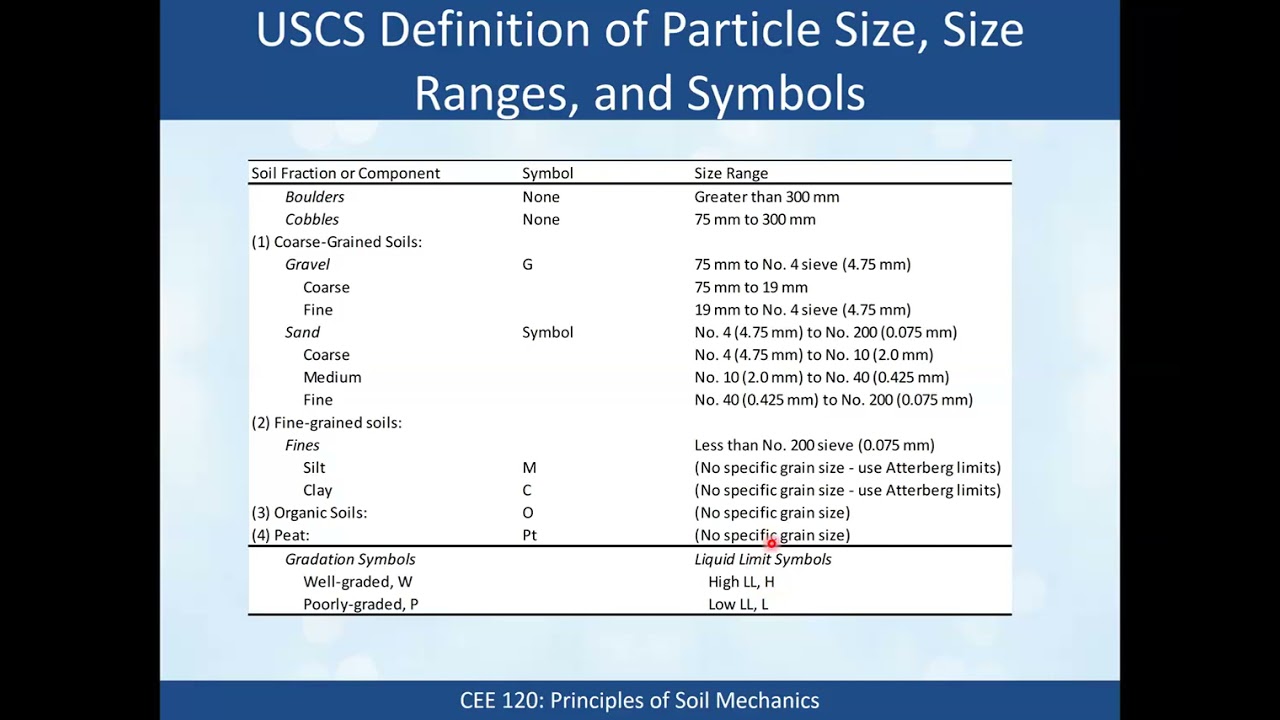

Soil Symbols:
USCS employs distinct symbols to indicate the characteristics of various soils:
- W: Well-graded
- P: Poorly graded
- M: Silt
- C: Clay
- L: Low plasticity
- H: High plasticity
The Casagrande Plasticity Chart (also known as the plasticity chart) is instrumental in differentiating between silts and clays, helping identify soil behavior crucial for engineering designs.
Understanding the nuances of the USCS allows engineers to predict soil behavior under load, select appropriate construction materials, and implement suitable design strategies in pavement engineering.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Major Divisions of USCS
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Coarse-Grained Soils (more than 50% retained on No. 200 sieve)
– Gravels (G): GW, GP, GM, GC
– Sands (S): SW, SP, SM, SC
• Fine-Grained Soils (more than 50% passing No. 200 sieve)
– Silts and Clays:
∗ Low plasticity (ML, CL)
∗ High plasticity (MH, CH)
• Highly Organic Soils: Peat (Pt)
Detailed Explanation
The Unified Soil Classification System (USCS) classifies soils into distinct categories based on their grain size and plasticity characteristics. Soils are divided into two major classifications: coarse-grained soils and fine-grained soils.
- Coarse-Grained Soils: This category includes soils where more than 50% of the material is retained on a No. 200 sieve. Subcategories include:
- Gravels (G): Further classified as GW (well-graded gravels), GP (poorly graded gravels), GM (gravels with silt), and GC (gravels with clay).
- Sands (S): Subcategories include SW (well-graded sands), SP (poorly graded sands), SM (sands with silt), and SC (sands with clay).
- Fine-Grained Soils: Comprising soils that have more than 50% of their particles passing through a No. 200 sieve. This includes:
-
Silts and Clays:
- Low plasticity (ML for low plasticity silts, CL for low plasticity clays)
- High plasticity (MH for high plasticity silts, CH for high plasticity clays).
- Highly Organic Soils: Identified specifically as peat (Pt), which consists of decomposed organic material.
Examples & Analogies
Think of soil classifications like grouping fruits. Just as you would separate apples, oranges, and berries based on their type, soil scientists categorize soils based on their grain size and plasticity. For instance, coarse soils are like large oranges that are easy to recognize, while fine soils are similar to small berries, which need more careful examination to classify correctly. Just as different fruits have different uses in cooking (e.g., apples for pies, and berries for sauces), different soil types serve distinct purposes in engineering.
Soil Symbols
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• W: Well-graded
• P: Poorly graded
• M: Silt
• C: Clay
• L: Low plasticity
• H: High plasticity
Detailed Explanation
The USCS employs a system of symbols to convey information about the suitability and characteristics of various soil types. Each symbol stands for a specific property or classification:
- W: Indicates that the soil is well-graded; this means that it has a good representation of different particle sizes, which enhances its stability.
- P: Refers to poorly graded soils; these contain a limited range of particle sizes, making them less stable.
- M: Symbolizes silt, which is fine-grained soil with moderate plasticity.
- C: Represents clay, which has a high plasticity and retains water effectively.
- L: Denotes low plasticity, indicating soil that won’t change much with moisture levels.
- H: Stands for high plasticity, which means the soil can become quite soft when wet. Understanding these symbols helps engineers quickly assess soil properties.
Examples & Analogies
Consider the symbols as labels on food packaging. Just as labels inform you whether a food product is low-fat (L), high-fat (H), or organic (W), the soil symbols provide crucial information about the properties of different soils. If you see a 'C' label, you can expect the soil will behave differently than a 'M' labeled soil, just like choosing a low-fat option may have different cooking and nutritional implications than a high-fat one.
Plasticity Chart (Casagrande Chart)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Plasticity Chart (Casagrande Chart) Used to differentiate between silts and clays:
• A-line separates clay (above the line) from silt (below the line).
Detailed Explanation
The Plasticity Chart, also known as the Casagrande Chart, is a valuable tool used in geotechnical engineering to distinguish between silts and clays based on their plasticity characteristics.
- A-line: This is a critical boundary on the chart that helps differentiate between two types of fine-grained soils: clay, which is found above the line, and silt, which is located below it. The position of a soil sample on this chart, determined by its liquid limit and plasticity index, provides insights into its behavior and engineering properties, such as how it will respond to moisture changes or loading conditions.
Examples & Analogies
Imagine a clear boundary line in a classroom separating two different learning groups—one for students who excel in mathematics (clay) and another for those who thrive in creative writing (silt). Just like you would place students in groups based on their skills and strengths, the A-line on the Plasticity Chart categorizes soils into silts and clays based on their characteristics. Understanding which 'group' a soil belongs to helps engineers design structures that can effectively manage those soils.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
USCS helps in classifying soils based on grain size and plasticity.
-
Coarse-grained soils are divided into gravels and sands.
-
Fine-grained soils include silts and clays, differentiated by plasticity.
-
Soil symbols are used for quick references to soil characteristics.
-
The Casagrande plasticity chart is crucial for distinguishing between types of soil.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A soil sample shows 60% retention on a No. 200 sieve; it is classified as coarse-grained.
-
A silt soil passing through the No. 200 sieve with a high plasticity index is classified as CH.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Silty and light, that's the ML sight; Clay is heavy, CH takes fight.
📖 Fascinating Stories
-
Once a soil called Gravel lived happily between Clay and Silt. They played together, but when the rains came, Gravel knew how to drain and keep it together while Clay just held on tight, giving them trouble!
🧠 Other Memory Gems
-
For grain size, remember 'C for Coarse' and 'F for Fine' to keep them aligned.
🎯 Super Acronyms
Remember the acronym SCG for Sandy Clays, Gravels - it will help you remember the coarse-grained classifications.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: USCS
Definition:
Unified Soil Classification System, a framework for classifying soils based on grain size and plasticity.
-
Term: CoarseGrained Soils
Definition:
Soils with more than 50% retained on a No. 200 sieve, including gravels and sands.
-
Term: FineGrained Soils
Definition:
Soils with more than 50% passing a No. 200 sieve, including silts and clays.
-
Term: Plasticity Chart
Definition:
A graphical representation for differentiating between silts and clays based on their plasticity characteristics.
-
Term: Soil Symbols
Definition:
Abbreviations used in USCS to indicate specific qualities of soils, like W for well-graded.
