AASHTO Soil Classification System
Unlock Audio Lesson
Let's start with the AASHTO Soil Classification System. Can anyone tell me what the AASHTO stands for?
It stands for the American Association of State Highway and Transportation Officials.
Correct! This system categorizes soils into seven groups: A-1 to A-7. Each has its specific properties. What do you think these properties are based on?
I think it's based on grain size distribution and other soil characteristics.
Exactly! The groups are classified based on percentages passing through certain sieves and Atterberg limits. A memory aid here is 'GAP' - Grain size, Atterberg limits, and Performance based on Group Index. What’s important about the Group Index?
A lower GI indicates better subgrade quality?
Yes, well said! Lower values mean the soil is more suitable for supporting pavements. Let's summarize: AASHTO categorizes soils based on their grading and plasticity, which directly impacts pavement design.
Unified Soil Classification System (USCS)
Unlock Audio Lesson
Now, let’s move on to the USCS. This system focuses on grain size distribution and plasticity. Can someone explain how the soil classification is divided in USCS?
It divides soils into coarse-grained and fine-grained categories, right?
Precisely! Coarse-grained soils are those where more than 50% are retained on the No. 200 sieve, while fine-grained soils are where more than 50% pass that sieve. A rhyme to remember this is 'Fine soils go through, coarse ones get stuck, choose wisely, or you're out of luck!' What are some categories for coarse-grained soils?
Gravels and sands, with subcategories like GW, GP, and SM.
Correct! And for fine-grained soils, we have silts and clays. The Casagrande chart helps us differentiate between the two based on their plasticity. Summarizing, the USCS uses both grain size and plasticity to classify soils effectively.
Comparison Between AASHTO and USCS
Unlock Audio Lesson
Let's compare AASHTO and USCS. Why is it important to understand their differences in pavement engineering?
It helps us choose the right system based on the project requirements!
Exactly! AASHTO focuses on particle size and Atterberg limits, while USCS emphasizes grain size and plasticity. Can anyone remember the grouping systems used in AASHTO?
They are classified into A-1 to A-7.
Great! And what about USCS?
They use symbols like GW, SP for gravels and sands and ML, CH for silts and clays.
Well done! The choice between AASHTO and USCS influences construction material decisions, soil behavior assessments under loading, and ultimately the durability of pavement structures. Remember, 'AASHTO for subgrade, USCS for behavior'.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section provides an overview of two pivotal soil classification systems: the AASHTO system and the Unified Soil Classification System (USCS). Emphasis is placed on their methodologies, classifications, and their importance in assessing soil suitability for pavement design.
Detailed
Soil Classification Systems in Pavement Engineering
Soil classification is critical in pavement engineering as it directly affects the design and functionality of pavement systems. This section discusses two major soil classification systems:
1. AASHTO Soil Classification System
Developed by the American Association of State Highway and Transportation Officials, the AASHTO system classifies soils into seven groups (A-1 to A-7) based on grain size distribution and Atterberg limits, including the Liquid Limit (LL) and Plasticity Index (PI). Notably, it employs the Group Index (GI) as an empirical measure representing subgrade quality. Lower GI values indicate better soil conditions for subgrade support, making A-1 the preferred category for high-quality soil types.
2. Unified Soil Classification System (USCS)
The USCS focuses more on grain size distribution and plasticity characteristics, dividing soils into coarse-grained (gravels and sands) and fine-grained (silts and clays). Each category is further defined by specific symbols (like G for gravels, S for sands) and characteristics, including plasticity levels (L for low and H for high). Notably, it utilizes the plasticity chart to differentiate silts from clays based on their consistent behavior under loading conditions.
Ultimately, understanding these systems aids engineers in making informed decisions regarding material selection, soil stabilization, and drainage considerations.

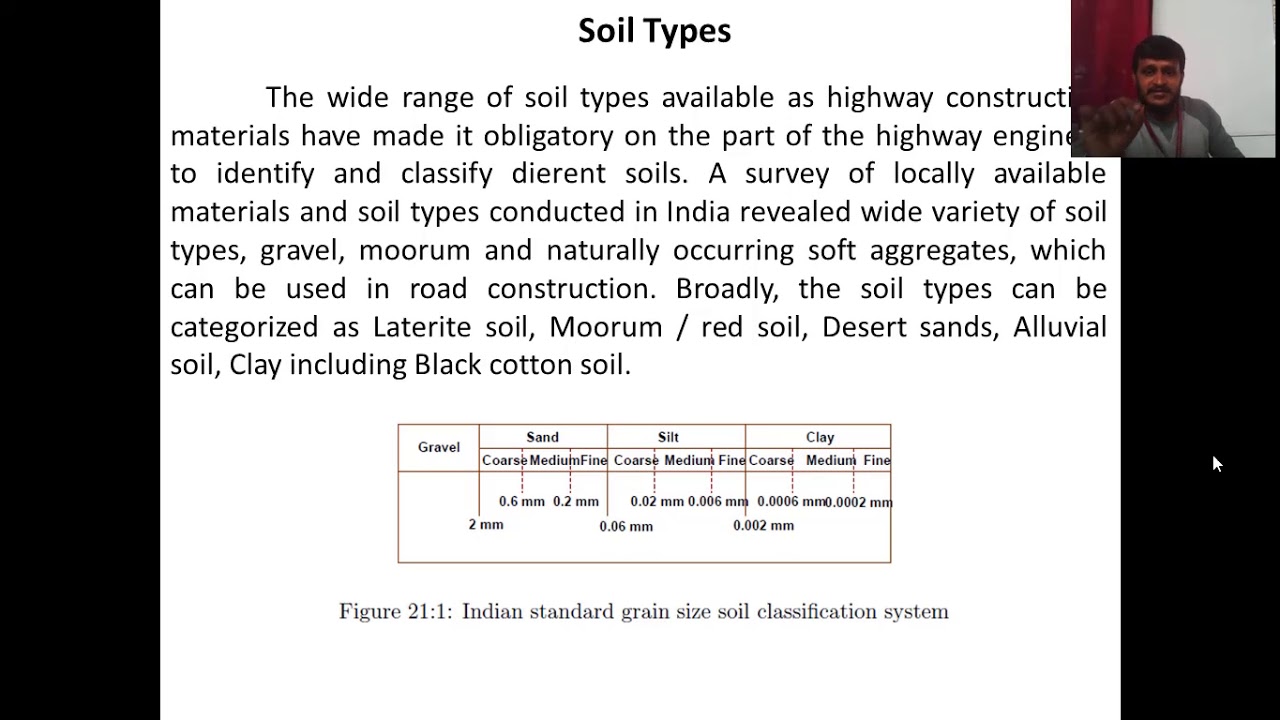

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
AASHTO Soil Classification System Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Developed by the American Association of State Highway and Transportation Officials, the AASHTO system is widely used in highway and pavement design in India and abroad.
Detailed Explanation
The AASHTO system is a classification framework created to categorize soils based on their properties, particularly for highway and pavement design. This system helps engineers identify the type of soil under a pavement system, which is crucial because soil characteristics directly affect road stability and durability. The system is prevalent in both India and other countries, highlighting its significance in civil engineering.
Examples & Analogies
Think of the AASHTO system like a library classification system. Just like books are organized by genre and subject to help readers find what they need, the AASHTO system organizes soils into groups to help engineers choose the right materials and designs for roads.
AASHTO Classification Groups
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Soils are classified into seven groups: A-1 to A-7. • Further subgroups: A-1-a, A-1-b, A-2-4, A-2-5, A-2-6, A-2-7.
Detailed Explanation
The AASHTO classification divides soils into seven main groups, labeled A-1 through A-7. Each group represents a different type of soil with specific characteristics. For example, A-1 soils are generally well-graded gravels and sands that are ideal for road foundations, whereas A-7 soils are more clay-rich and tend to have poor load-bearing capacity. Subgroups further refine these classifications for more precise engineering applications.
Examples & Analogies
Imagine sorting fruits into different categories, such as apples, oranges, and bananas. Within each category, you could have subcategories, like Granny Smith apples or naval oranges. Similarly, the AASHTO system sorts soils into groups and subgroups, making it easier for engineers to select the appropriate type for construction purposes.
Basis of AASHTO Classification
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Based on: – Grain size distribution: % passing No. 10, No. 40, and No. 200 sieves. – Atterberg limits: Liquid Limit (LL) and Plasticity Index (PI). – Group Index (GI): Empirical value representing subgrade quality.
Detailed Explanation
The AASHTO classification relies on key factors to categorize soils, including: 1. Grain Size Distribution: This looks at how much of the soil passes through specific sieves, which helps indicate whether the soil is coarse or fine. 2. Atterberg Limits: These limits measure the soil's plasticity, specifically its Liquid Limit (the moisture content at which soil changes from plastic to liquid) and Plasticity Index (the range of moisture content where soil remains plastic). 3. Group Index (GI): This formula provides a numerical value that summarizes the quality of the soil as a subgrade material, which is essential for ensuring the pavement is stable.
Examples & Analogies
Consider how a chef assesses the ingredients for a recipe. They might evaluate the size of the grains in rice (grain size), check the consistency of the sauce (Atterberg limits), and use overall taste as a measure of quality (Group Index). Similarly, engineers analyze soil characteristics to ensure the right materials are used for pavement construction.

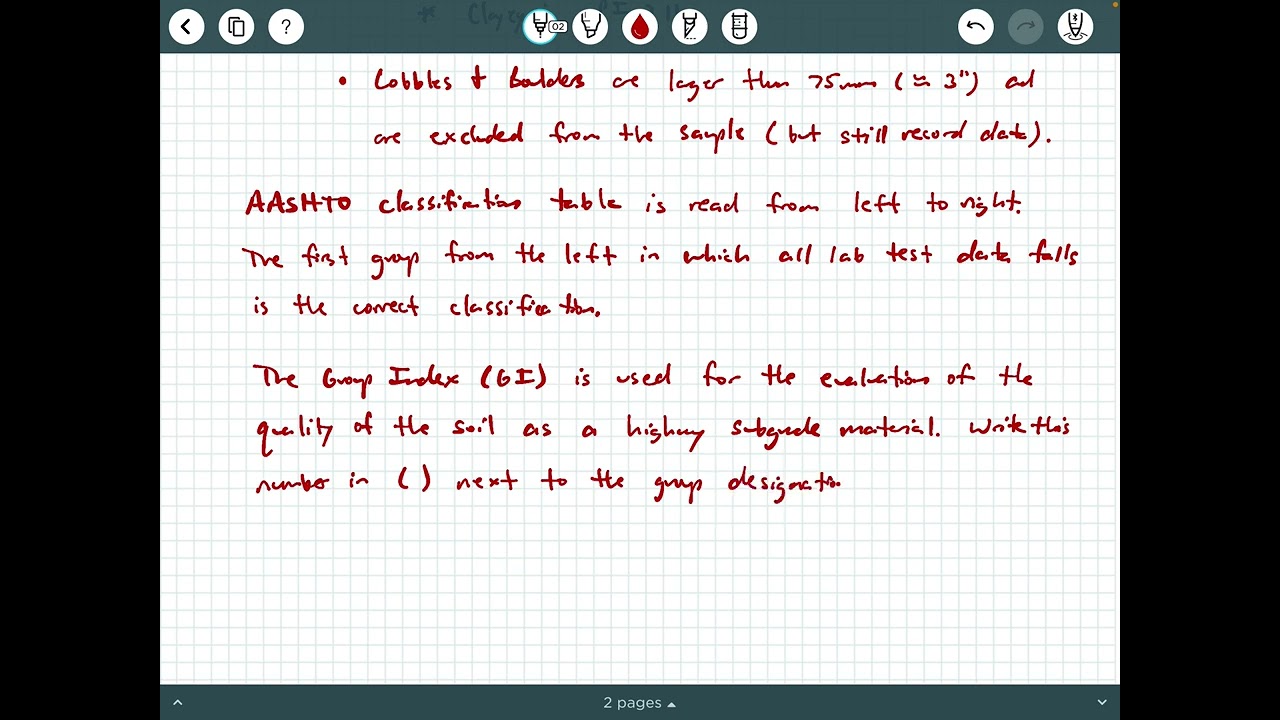

Group Index Formula
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
GI = (F − 35)[0.2 + 0.005(LL − 40)] + 0.01(F − 15)(PI − 10) Where: • F = % passing No. 200 sieve • LL = Liquid Limit • PI = Plasticity Index Lower GI values indicate better subgrade quality.
Detailed Explanation
The Group Index (GI) is calculated using a specific formula that takes into account the percentage of soil that passes through a No. 200 sieve, the Liquid Limit, and the Plasticity Index. A lower GI value indicates that a soil is of higher quality for use as a subgrade material, meaning it can support structures more effectively without failing under stress. Thus, engineers use this formula to gauge the suitability of soil for pavement construction.
Examples & Analogies
Think of the GI formula like a grading system in school. Just as a student receives a lower grade for better performance, lower GI values reflect higher soil quality. If a student scores high, they’re recognized for their strong work, just like soils with lower GI values are preferred for dependable road foundations.
Group Descriptions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

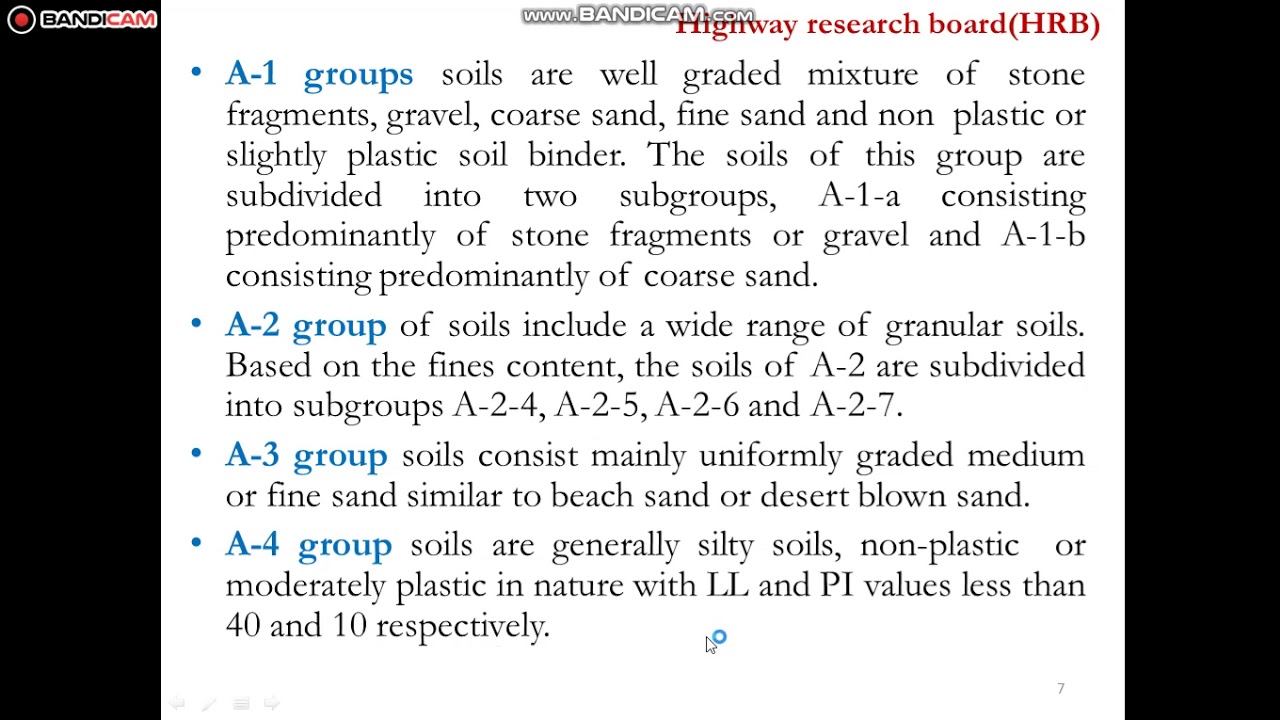

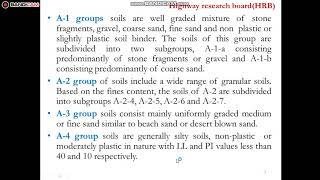

• A-1: Best for subgrade (well-graded gravels and sands with low fines). • A-2: Silty or clayey gravel/sands. • A-3: Fine sand with low plasticity. • A-4 to A-7: Increasingly clayey and silty soils with poor load-bearing capacity.
Detailed Explanation
The AASHTO classification offers specific descriptions of each group: A-1 soils are the best choice for subgrade layers because they consist of well-graded gravels and sands that provide stability. A-2 soils are composed of silty or clayey materials, while A-3 soils are fine sands. Groups A-4 through A-7 contain more clay and silt, which generally have poorer load-bearing qualities, making them less suitable for supporting road structures.
Examples & Analogies
Imagine building a foundation for a house. You wouldn’t build it on sandy or unstable ground (like A-4 to A-7 soils); instead, you’d choose a solid plot with firm and stable soil (A-1) to ensure your house stands strong. The same logic applies to road construction, where selecting the right soil group is crucial for maintaining long-lasting infrastructure.
Unified Soil Classification System (USCS)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Widely used in geotechnical engineering, the USCS system classifies soils based on grain size distribution and plasticity characteristics.
Detailed Explanation
The Unified Soil Classification System (USCS) is another popular framework, particularly in geotechnical engineering. It categorizes soils primarily according to their grain size distribution (what percentage of the soil is made of different sizes) and plasticity (how the soil behaves when wet or dry). This classification helps engineers understand how different soils will react in various construction scenarios.
Examples & Analogies
Similar to how different types of paint are categorized based on finish and base (gloss, matte, water-based, oil-based), the USCS categorizes soils so that engineers can choose the right type based on how it interacts with moisture and its cohesiveness for structural purposes.
Major Divisions in USCS
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Coarse-Grained Soils (more than 50% retained on No. 200 sieve) – Gravels (G): GW, GP, GM, GC – Sands (S): SW, SP, SM, SC • Fine-Grained Soils (more than 50% passing No. 200 sieve) – Silts and Clays: ∗ Low plasticity (ML, CL) ∗ High plasticity (MH, CH) • Highly Organic Soils: Peat (Pt)
Detailed Explanation
USCS classifies soils into two main categories: Coarse-Grained Soils and Fine-Grained Soils. Coarse-Grained Soils, which retain more than 50% of the soil on a No. 200 sieve, include various gravels and sands, each further classified into groups based on their specific properties. Fine-Grained Soils, which pass through a No. 200 sieve, comprise silts and clays, also divided by their plasticity characteristics (low or high). There are also highly organic soils like peat that have unique properties that may affect their use in construction.
Examples & Analogies
Think of sorting your laundry into different piles based on fabric type: heavy materials like towels (coarse-grained) and light, delicate items like shirts (fine-grained). Each type has specific handling needs, just as different soil types have unique characteristics that determine their use in construction.
Soil Symbols in USCS
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• W: Well-graded • P: Poorly graded • M: Silt • C: Clay • L: Low plasticity • H: High plasticity
Detailed Explanation
In the USCS, soil types have specific symbols that provide a shorthand way to identify their characteristics. For example, 'W' denotes well-graded soils that are mixed in size adequately, while 'P' indicates poorly graded soils that lack diversity in grain size. Other symbols like 'M' for silt, 'C' for clay, and 'L' or 'H' for low and high plasticity, respectively, help convey detailed information quickly and efficiently.
Examples & Analogies
Think of these symbols like a menu at a restaurant. Each dish has a code that tells you its main ingredients and whether it’s spicy or mild. Just like that menu helps you decide what to order, soil symbols help engineers quickly understand the properties of different soils.

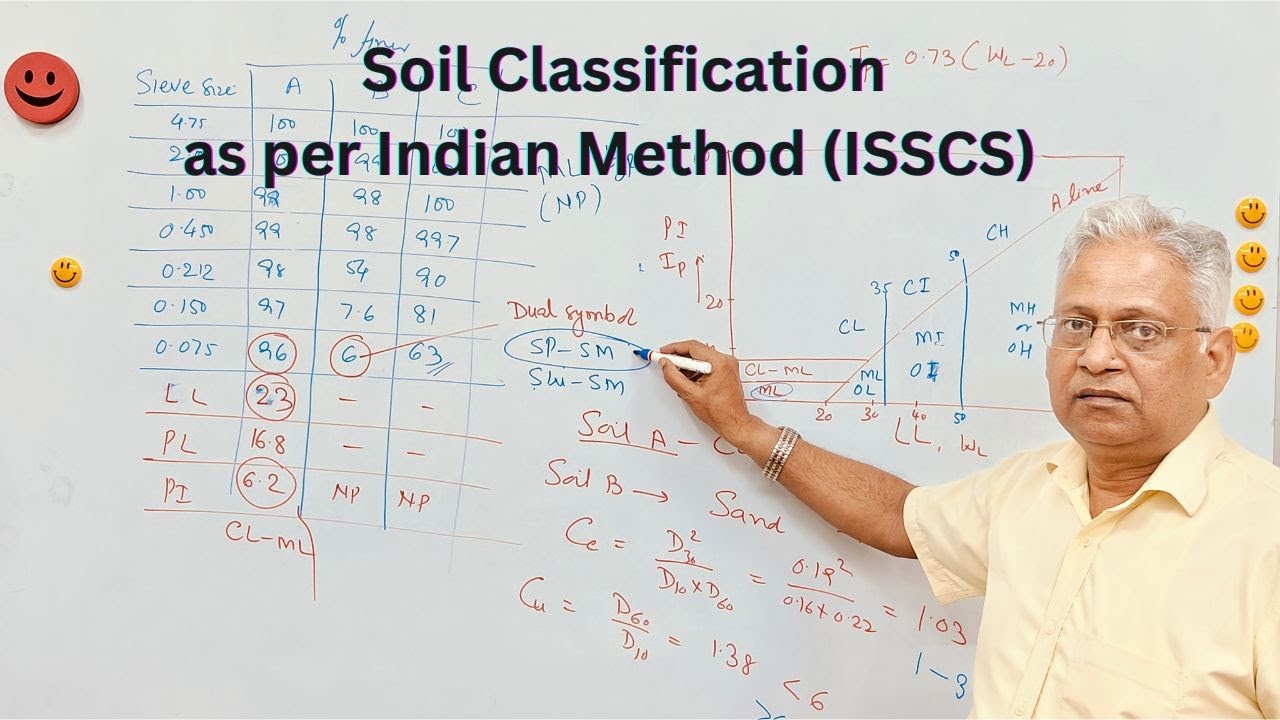

Plasticity Chart (Casagrande Chart)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Plasticity Chart (Casagrande Chart) Used to differentiate between silts and clays: • A-line separates clay (above the line) from silt (below the line).
Detailed Explanation
The Plasticity Chart, often referred to as the Casagrande Chart, is a graphical tool used to distinguish between silts and clays based on their plasticity characteristics. The A-line on the chart acts as a boundary, with soils above the line classified as clays and those below classified as silts. This differentiation is important because it influences drainage and stability in engineering applications.
Examples & Analogies
Imagine a school grading system where students are divided into groups based on their performance. The A-line works similarly, categorizing students (soils) into those who need more support (clays) and those who manage well (silts). This classification helps teachers (engineers) provide the right resources to each group.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
AASHTO Classification: A system categorizing soils based on grain size and plasticity properties, impacting pavement subgrade choices.
-
USCS: Focuses on the classification of coarse and fine-grained soils, using symbols and providing a plasticity chart for behavior analysis.
-
Group Index: An empirical measure in the AASHTO system that indicates soil quality for subgrade use.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A-1 soils are well-graded gravels and sands that provide high load-bearing capacity for subgrade.
-
An example of a fine-grained soil in the USCS is CL, indicating clay with low plasticity that would behave differently under load than sandy soils.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For soils that bear weight, just look at the GI plate; lower means stronger, a subgrade that's greater.
📖 Fascinating Stories
-
Once upon a time, soils were confused until AASHTO and USCS classified them, making the right choices for road construction clear.
🧠 Other Memory Gems
-
Remember: 'AASHTO Assess Subgrades, USCS Understands Soil Character'.
🎯 Super Acronyms
GAP - Grain Size, Atterberg limits, Performance (Group Index).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: AASHTO
Definition:
American Association of State Highway and Transportation Officials, which developed a soil classification system widely used in pavement design.
-
Term: Unified Soil Classification System (USCS)
Definition:
A system used to classify soils based on grain size distribution and plasticity characteristics.
-
Term: Group Index (GI)
Definition:
An empirical value representing soil quality for subgrade in the AASHTO system.
-
Term: Atterberg Limits
Definition:
The plasticity characteristics of soil, including Liquid Limit (LL) and Plasticity Index (PI), used to classify fine-grained soils.
-
Term: Grain Size Distribution
Definition:
The proportion of different grain sizes present in a soil sample which determines its classification.
