Sensor Calibration
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to learn about sensor calibration. Can anyone tell me why calibration is important in sensors?
It’s important to get accurate readings, right?
Exactly! Calibration ensures that the readings from our sensors are accurate. Now, what are the two types of calibration?
Static and dynamic calibration?
Correct! Static calibration establishes relationships between sensor outputs and known inputs, while dynamic calibration checks the sensor's response under operational conditions. Can someone give an example of dynamic calibration?
Like testing an accelerometer in a moving vehicle?
Great example! Dynamic calibration helps ensure performance in real-world scenarios. Let’s summarize: sensor calibration involves static and dynamic methods to ensure accuracy in measurements.
Actuator Tuning
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s shift our focus to actuator tuning, which is vital for precise control. What does PID stand for?
Proportional, Integral, and Derivative.
Correct! Adjusting these gains helps in optimizing performance. Can anyone tell me why feedforward control is useful?
It predicts the response before corrections are needed, right?
Exactly! That makes the actuator respond quicker to changes. Remember, tuning also involves ensuring the actuator's torque and speed match the load to prevent overheating. Let’s recap: actuator tuning includes PID adjustment, feedforward control, and matching torque with load.
Environmental Compensation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s talk about environmental compensation. How does temperature affect sensor performance?
It can cause readings to drift or become inaccurate.
Exactly! Calibration must account for these changes. Can anyone think of a method used for this?
Environmental compensation?
Correct! That includes adjustments for temperature, humidity, and electromagnetic shielding. Why do we use auto-calibration algorithms?
To automatically correct for any drift in sensor measurements over time!
Great job! So, remember, environmental factors must be considered in sensor calibration, and using auto-calibration can enhance accuracy.
Combining Calibration and Tuning Practices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we merge the strategies of calibration and actuator tuning. Why is it essential to consider both together?
Because they work together for accurate operation in robotic systems?
Exactly! Effective calibration ensures your sensors are accurate, while tuning optimizes responses. Can anyone explain how poor calibration might affect actuator performance?
If sensors aren't calibrated, the actuators might respond incorrectly to sensor data.
Right! Incorrect responses can lead to failures in functions. Let’s conclude: ensuring synergy between calibration and tuning enhances overall robotic performance.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section emphasizes the importance of accurate calibration and tuning of sensors and actuators in robotic systems, particularly how environmental factors can introduce errors. It explores methods like static and dynamic calibration for sensors, and tuning of PID controllers for actuators to ensure optimal performance.
Detailed
Calibration and Tuning of Sensors and Actuators
Accurate and reliable sensor and actuator performance is critical in robotic systems utilized in civil engineering. Environmental factors such as temperature, humidity, and vibrations can introduce errors that significantly affect system performance.
Key Points:
- Sensor Calibration:
- Static Calibration: Establishes a relationship between the sensor output and a known input (e.g., correlating force with voltage).
- Dynamic Calibration: Measures sensor responses under varying operational conditions, such as accelerometers in vibrating environments.
- Environmental Compensation: Adjustments made for temperature corrections, humidity tolerances, and electromagnetic shielding to minimize external interferences.
- Auto-Calibration Algorithms: Implementing routines within embedded microcontrollers that periodically recalibrate sensors based on drift trends.
- Actuator Tuning:
- PID Controller Tuning: Adjusting the proportional (P), integral (I), and derivative (D) gains to ensure smooth and precise actuator control.
- Feedforward Control: A predictive control strategy enhancing actuator performance before feedback corrections are applied.
- Torque and Speed Matching: Ensuring that motor torque aligns with load requirements to avoid overheating and mechanical failures.
- Endstop and Range Configuration: Setting limits on actuator operation to prevent damage.
The calibration and tuning processes are essential for achieving effective coordination between sensors and actuators, directly impacting the operational efficiency of robotic systems implemented in civil engineering.

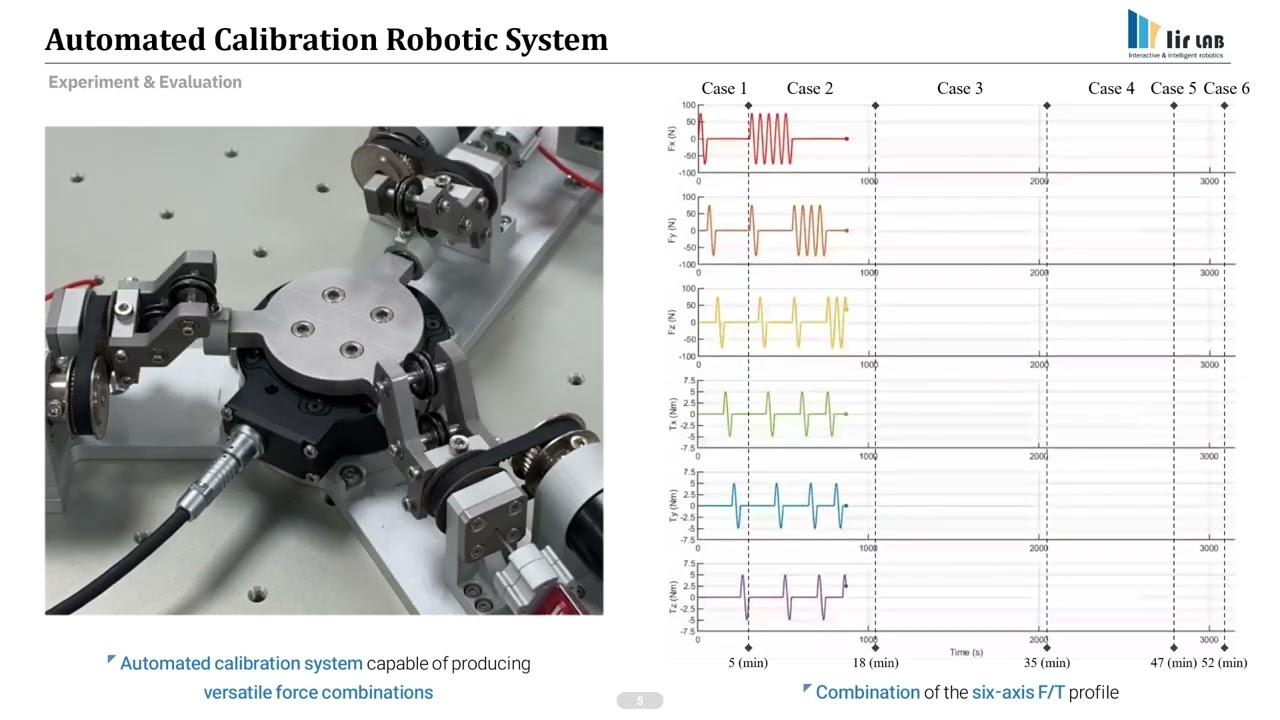

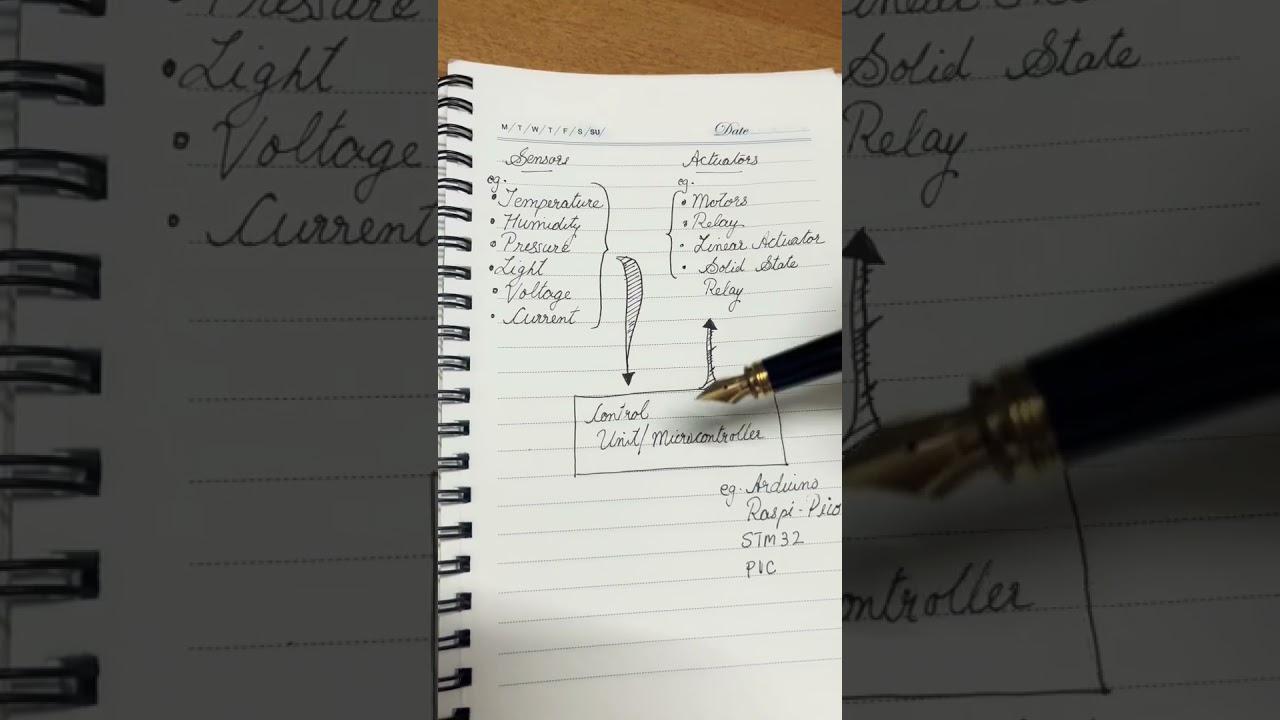

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Importance of Calibration and Tuning
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Accurate and reliable sensor and actuator performance depends heavily on proper calibration and tuning. In robotic systems used in civil engineering, environmental factors such as temperature, humidity, and vibration often introduce errors that must be minimized.
Detailed Explanation
Calibration and tuning are critical processes in ensuring that sensors and actuators function effectively. Calibration involves adjusting the sensors so that their output accurately reflects the actual measurements. This is especially important in environments where conditions can change, leading to potential inaccuracies. Tuning refers to adjusting the settings and parameters of actuators to ensure they respond correctly to control signals, providing precise movement as intended. Both processes help in minimizing errors caused by changes in environmental conditions such as temperature or humidity, which can impact sensor readings and actuator performance.
Examples & Analogies
Consider a chef adjusting the seasoning in a dish. If the chef knows that the ingredients vary in flavor strength based on the season (like tomatoes being sweeter in summer), they might calibrate the seasoning to account for that variability. Similarly, the calibration of sensors ensures they give an accurate reading, like the chef ensuring the dish tastes consistent regardless of ingredient variations.
Sensor Calibration Techniques
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
8.11.1 Sensor Calibration
- Static Calibration: Establishing a relationship between the sensor output and a known input (e.g., force vs. voltage).
- Dynamic Calibration: Measuring the sensor’s response under varying operational conditions (e.g., accelerometer in vibrating environments).
- Environmental Compensation: Temperature correction, humidity tolerance, and electromagnetic shielding.
- Auto-Calibration Algorithms: Embedded microcontroller-based routines that periodically recalibrate sensors based on drift trends.
Detailed Explanation
This section discusses several methods of calibrating sensors to ensure accurate measurements. Static calibration involves comparing the sensor's output with a known reference. For example, if measuring force, the sensor output is measured against a known weight. Dynamic calibration assesses how well the sensor performs under different conditions that it might encounter during operation, such as vibrations. Environmental compensation adjusts sensor readings based on changes in temperature or humidity, ensuring consistent output despite fluctuating conditions. Finally, auto-calibration algorithms allow devices to automatically correct their calibration periodically, adapting to any drift over time without manual input.
Examples & Analogies
Think of a smartphone's temperature sensor that needs to be accurate in different weather scenarios. Static calibration would be like checking the sensor against a reliable thermometer in a controlled environment. Dynamic calibration is testing it outdoors where it might be affected by the sun or wind, while environmental compensation would make sure that the readings stay accurate even if the phone is in a hot car. Auto-calibration would be the phone adjusting itself during different times of the day based on past temperatures recorded to ensure the readings it gives are reliable.
Actuator Tuning Methods
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
8.11.2 Actuator Tuning
- PID Controller Tuning: Tuning proportional (P), integral (I), and derivative (D) gains for smooth and precise actuator control.
- Feedforward Control: Predictive control to enhance actuator response before feedback loop correction kicks in.
- Torque and Speed Matching: For motors, matching rated torque with load requirements prevents overheating and failure.
- Endstop and Range Configuration: Defining safe operating limits to avoid mechanical or electrical damage.
Detailed Explanation
Actuator tuning is essential to ensure that actuators respond correctly based on control inputs. The PID controller tuning involves calibrating three key elements: proportional gain (P), which affects the current error; integral gain (I), which deals with accumulated error over time; and derivative gain (D), which predicts future error based on its rate of change. This fine-tuning helps in achieving a smooth and stable response. Feedforward control anticipates actuator needs based on the expected output, enhancing performance before feedback correction is necessary. Torque and speed matching ensures that motors operate within their limits, preventing failures and maintaining efficiency. It's also essential to set end stops in actuators to define their maximum operational range, preventing mechanical failures when limits are reached.
Examples & Analogies
Imagine adjusting the settings of a washing machine to better handle different types of laundry. Tuning the PID controller is like finding the right cycle time for different loads; you adjust wash time (proportional), consider how long items have been in the wash (integral), and prevent a huge spin if the load is unbalanced (derivative). Using feedforward control would mean knowing when to start the spinning cycle to avoid vibrations. Matching torque and speed is like ensuring the machine can handle heavy towels without overheating, while endstops are akin to setting a lid lock to prevent the washer from spinning with the lid open.
Key Concepts
-
Calibration: The adjustment for accuracy between sensor outputs and known inputs.
-
PID Controller: A method for controlling the behavior of systems using proportional, integral, and derivative actions.
-
Environmental Compensation: Adjusting sensor outputs to account for external factors that can affect performance.
Examples & Applications
A pressure sensor is calibrated at known pressure levels to ensure accurate readings under various conditions.
An accelerometer used in a smartphone is dynamically calibrated to ensure it accurately detects movement regardless of device orientation.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Calibrate and tune, don’t delay, to keep sensors and actuators precise every day!
Stories
Imagine a robot building a bridge; if its sensors aren't calibrated, it could miss the edge and cause swinging beams to fall, resulting in disaster!
Memory Tools
PID: 'Please Integrate Data' for remembering PID controller components - Proportional, Integral, and Derivative.
Acronyms
CATS
Calibration and Tuning for Accurate Sensors.
Flash Cards
Glossary
- Calibration
The process of adjusting a sensor's output to align with a known input value.
- Static Calibration
Establishing a fixed relationship between sensor outputs and known input conditions.
- Dynamic Calibration
Testing sensor responses under varying operational conditions.
- PID Controller
A control feedback mechanism widely used in industrial control systems, consisting of proportional, integral, and derivative components.
- Feedforward Control
A control strategy that predicts system behavior and adjusts inputs in advance to enhance response.
- Environmental Compensation
Adjustments made to account for external factors affecting sensor performance such as temperature or humidity.
- AutoCalibration Algorithms
Routines within microcontrollers that periodically recalibrate sensors based on measured drift.
- Torque and Speed Matching
Ensuring that the torque output of an actuator aligns with the load it is driving for optimal performance.
- Endstop Configuration
Defining safe operating limits for actuators to prevent mechanical or electrical damage.
