Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Curvature
Unlock Audio Lesson
Welcome class! Today we are going to delve into the intricacies of the curvature equation. Can anyone tell me what curvature means in the context of beams?
Does it relate to how much a beam bends?
Exactly! Curvature () quantifies the rate at which the slope () changes along the length of the beam. It is mathematically expressed as the inverse of the radius of curvature. If we denote the radius as r, what can we say about a beam with a small r?
It would bend more sharply!
Correct! This relationship highlights how variances in loading lead to different curvature values. Let's remember this with the acronym 'BEND' — Bending is Emphasized by the Notion of Deflection.
Mathematical Representation
Unlock Audio Lesson
Now let’s look at the basic equations that govern curvature. Recall that curvature is represented as $$ d()/ds = 1/r $$ and under small deflections, what happens to our equations?
I remember something about linear approximations.
Correct! When we make the assumption that dy is small, we arrive at $$ d^2y/dx^2 = $$ which serves as a fundamental relation in solving for deflections. Can anyone explain why these equations are significant?
They help us determine how much a beam will deflect under load, right?
Precisely! Understanding these equations is crucial for analyzing static structures. Let’s summarize this session with the phrase 'Curvature Holds the Key to Deflection.'
Application of Curvature Equation
Unlock Audio Lesson
Let's apply what we've learned with an example problem. Suppose we're dealing with a simply supported beam under a uniformly distributed load. What will happen to its curvature?
The curvature should be greater at the center where the load is applied.
Exactly! The curvature increases where the moment is highest. To encapsulate this, we can say 'Curvature Peaks with Maximum Moment.' Now, who can express this relationship mathematically using the equations we just reviewed?
We can use $$ d^2y/dx^2 = M/(EI) $$ to find the curvature at the center!
Great job! That leads us perfectly into how inertia and elastic modulus play into the deflection analysis as well.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the curvature of beams subjected to flexural loading is examined through mathematical relations that connect curvature, slope, and displacement. Key equations are presented which facilitate the understanding of how beam deflection occurs under load, emphasizing the significance of curvature in structural analysis.
Detailed
Detailed Summary
In Section 8.1.1, titled Curvature Equation, the relationship between curvature and beam deflection under flexural loading is explored. The curvature () is defined as the change in slope per unit length, noted as d()/ds, where represents the slope. This relationship is given by the curvature equation:
$$ d()/ds = 1/r $$
Additionally, for small displacements, the section outlines key approximations, resulting in simplified forms of the curvature equation that relate slope, curvature, and the displacement of a beam.
The fundamental relationship that governs the behavior of elastic curves is expressed as:
$$ = d^2y/dx^2 $$
This ties together curvature, the beam's elastic curve (y), and linear strain. The notation and equations introduced here are pivotal as they form the groundwork for further studies into deflection and are essential for evaluating the structural performance under various loading conditions. This section serves as a precursor to a more detailed discussion that follows in the chapter, focusing on energy considerations in structural analysis.

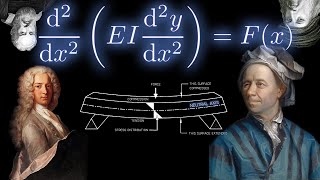

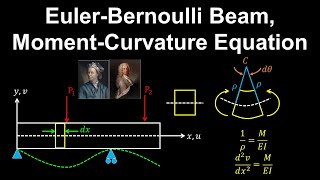

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Curvature in Beams
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

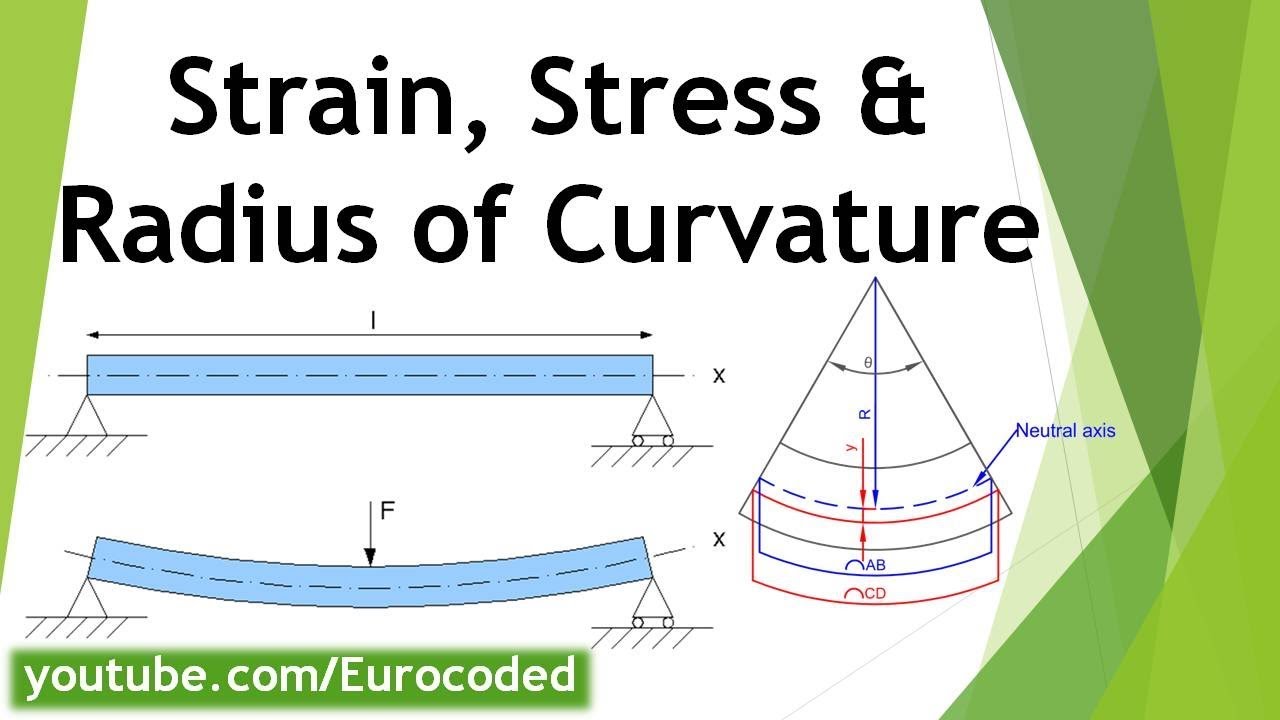

Let us consider a segment (between point 1 and point 2), Fig. 8.1 of a beam subjected to flexural loading. The slope is denoted by (θ), the change in slope per unit length is the curvature (κ), and the radius of curvature is (ρ).
Detailed Explanation
In this chunk, we introduce the basic concepts of curvature in a beam subjected to bending. The segment of the beam between two points is analyzed, where the slope (denoted by θ) indicates the angle of the beam at that point. The curvature (κ) quantifies how sharply the beam bends, reflecting the rate of change of this slope per unit length. Lastly, the radius of curvature (ρ) describes the arc's radius that best approximates the curved shape of the bent beam.
Examples & Analogies
Imagine bending a flexible straw. The angle at which you bend the straw is like the slope (θ), how sharply you bend it corresponds to the curvature (κ), and if you think of the shape the straw forms, it resembles an arc with a specific radius (ρ).
Relationship between Slope, Curvature, and Displacement
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
From Strength of Materials we have the following relations: d(θ)/ds = (1/ρ)d(θ), where ds is a small length along the beam.
Detailed Explanation
This relationship showcases how the slope (θ) changes over a small length (ds) of the beam. The equation tells us that the rate of change of the slope per unit length along the beam is equal to the curvature multiplied by the change in slope. This mathematical expression essentially captures the geometric behavior of bending in beams, linking the physical curvature to the mathematical representation of how slopes transition along the beam.
Examples & Analogies
Think about riding a bike on a curvy path. The sharper the curve (the curvature), the more you have to turn the handlebars (the slope) to follow along that path. This relationship between the handlebar position and how tight the curve is mirrors the equation relating slope and curvature.
Approximation of Equations for Small Displacements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As a first-order approximation, and with ds approximately equal to dx, dy equals θ. Eq. 8.1 becomes κ = d²y/dx².
Detailed Explanation
This chunk simplifies the earlier relationship using approximations that are valid when displacements are small. When the deformation of the beam is minimal—such that dy (the vertical displacement) is much smaller than dx (the horizontal displacement)—the equations become easier to work with. The curvature can then be approximated as the second derivative of the vertical displacement with respect to horizontal displacement, showcasing how the shape of the beam can be analyzed through its curvature.
Examples & Analogies
Imagine walking along a very gentle hill (small dy). You can easily think about how steep the hill is (the slope) simply based on how much your elevation changes as you walk (similar to θ). If the hill were to be represented mathematically, the curvature would give you a good indication of how quickly the hill steepens (κ).
Final Relationship Between Curvature and Linear Strain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

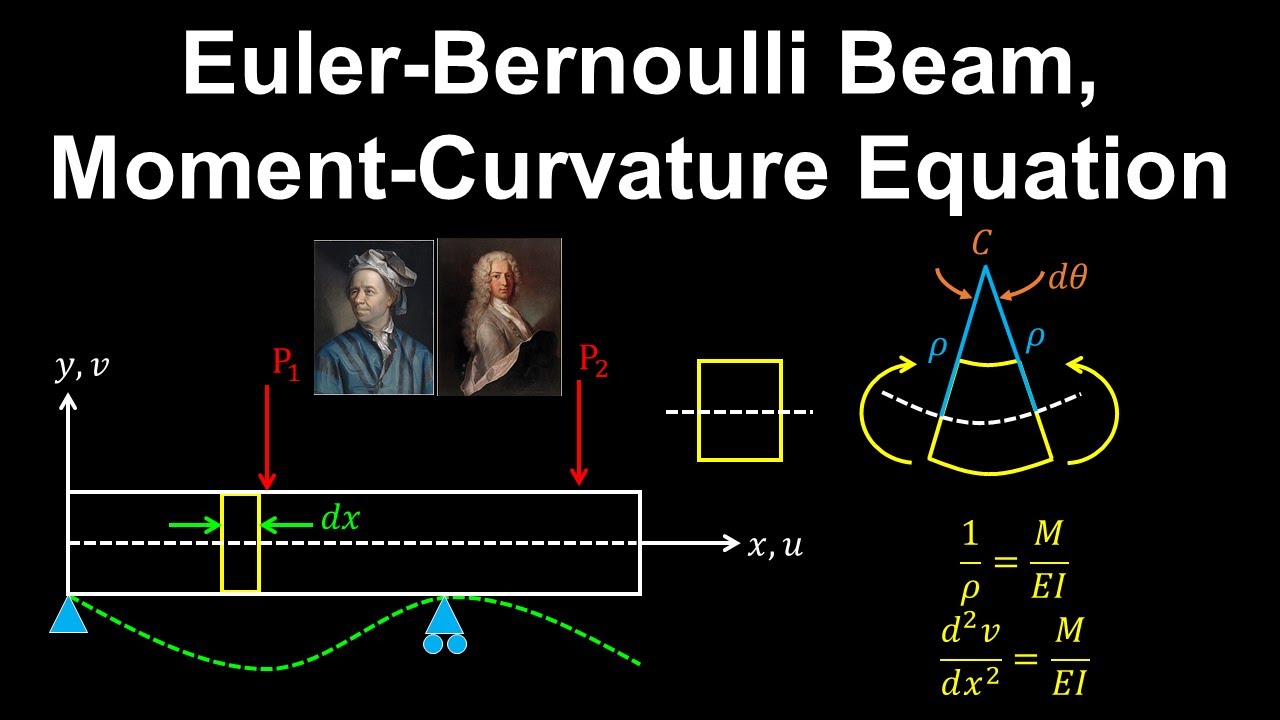

This is the fundamental relationship between curvature (κ), elastic curve (y), and linear strain (ε). For the elastic case, ε = (M*y)/EI, combining this with Eq. 8.14 yields 1/ρ = d²y/dx² = M/EI.
Detailed Explanation
This chunk presents a fundamental formula in beam theory. It establishes a direct relationship between curvature, the equation of bending moments, and material properties captured by the elastic modulus (E) and the moment of inertia (I). In essence, it indicates that the amount a beam bends (curvature) is determined not only by the applied moment (M) but also by its material characteristics and geometry. This relationship forms the foundation of flexural analysis in structural engineering.
Examples & Analogies
If we think about a rubber ruler and compare it to a metal one, both can bend under applied pressure but the metal ruler will just bend less for the same amount of pressure due to its material properties (E and I). The curvature (how much they bend at a given moment) can thus be predicted using the relationship outlined in this equation.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Curvature: The change in slope per unit length.
-
Slope: The angle at which the beam bends at a specific point.
-
Radius of Curvature: The radius of a circle that fits the curvature of the beam.
-
Deflection: The actual displacement of the beam when under load.
-
Elastic Curve: The resulting shape of the beam after deflection.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A beam with a uniform load experiences maximum curvature at the mid-point, allowing for calculated deflection.
-
Using the curvature equation, one can determine the deflection of a cantilever beam under various loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Curvature tells us how beams bend, with slope and moment, they’ll ascend.
📖 Fascinating Stories
-
Imagine a tightrope walker who is perfectly straight. As she bends down to grab a coin, her posture represents the curvature, illustrating how the beam flexes under load.
🧠 Other Memory Gems
-
Remember 'CBS' - Curvature = Bending, Slope for beam behavior.
🎯 Super Acronyms
CURV - Curvature, Understand, Represent, Vary. This helps remember how curvature varies with load.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Curvature
Definition:
The rate of change of the slope of a beam.
-
Term: Slope
Definition:
The angle of inclination of the beam at a given point, related to the vertical displacement.
-
Term: Radius of Curvature (r)
Definition:
The radius of a circular arc that approximates the curve at a point on the beam.
-
Term: Deflection
Definition:
The displacement of a beam from its original position due to applied loads.
-
Term: Elastic Curve
Definition:
The curve representing the deflected shape of a beam under loading.
