6.2. Load, Shear, Moment Relations
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we are going to delve into the relationships between load, shear, and moment in structural beams. Can someone tell me what shear and moment refer to in this context?
Shear refers to the internal force that acts perpendicular to the axis of the beam, while moment refers to the rotational effect about a point.
Exactly! And these concepts are critical when we consider how beams respond to loads. Let’s recall our equilibrium conditions for structures. What do we need to ensure for a beam under load?
The sum of forces must equal zero, and the sum of moments must also equal zero.
Correct! These conditions lead us directly to derive the fundamental relations for shear and moment. Let's start with the load on an infinitesimal segment of the beam.
What happens if the load isn’t constant along that segment?
Good question! Initially, we assume a constant load for simplicity, but we can extend these principles to varying loads later. For now, when we apply our equations of equilibrium, we can derive: dV/dx = w(x).
So, the change in shear forces relates directly to the load applied?
Exactly! And the same process leads us to dM/dx = V(x), which shows that the change in moment relates directly to the shear force. Remember these relationships; they'll be useful when we create shear and moment diagrams.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now, let's explore how we derive the relationships dV/dx and dM/dx further. What do we derive shear force from?
The load applied to the beam.
That's right. As we consider a differential segment of the beam, the relationship shows that the slope of the shear diagram is actually dictated by the load curve. Can we relate this back to how we draw these diagrams?
So, when we graph the load, we can see how the shear force responds, and then from shear, we can figure out the moment?
Absolutely! The beauty of these relations is that they allow us to sequentially establish one diagram from another. Who remembers the general shapes these diagrams typically take?
The load diagram generally looks like a step function or linear function, and the shear diagram is often triangular or rectangular, depending on the load.
Great visualization! The moment diagram will also exhibit areas under the shear curve, giving us a lot of information about bending behavior. Remember to note these shapes when you're analyzing and drawing diagrams.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now that we understand shear and moment relationships, how do we apply this knowledge practically in engineering design?
We use the diagrams to determine the maximum shear and moment that our beams will encounter, right?
Exactly! This ensures that when we design a beam, we can account for maximum stress and deflection. Let's recap how we decide which sections to analyze.
We look for points along the beam that have the highest shear and moment values from our diagrams.
That's correct! This process is crucial. As you sketch these diagrams, make sure to note the locations of reactions and loads accurately. Any other considerations for practical applications?
When we also consider factors like deflection and material limits to ensure safety.
Well said! All these factors work together in structural design, reinforcing the importance of understanding load, shear, and moment relations.
Overview
Short Summary
This section focuses on the fundamental relationships between load, shear, and moment in structural analysis, establishing the basis for drawing shear and moment diagrams.
Medium Summary
The section revisits the fundamental principles of shear and moment diagrams, emphasizing the derivation of relationships between applied loads, shear force, and bending moments in beams. These relationships are essential for structural member design and analysis.
Detailed Summary
Load, Shear, Moment Relations
In this section, we derive and analyze the essential relationships between load, shear, and moment in structural elements, particularly focusing on beams. We start with an infinitesimal segment of a beam subjected to an external load denoted by w(x). By employing the concepts of equilibrium, we can ascertain that the vertical force (shear) and the bending moment must satisfy the fundamental conditions of static equilibrium, specifically [6]F = 0 and [6]M = 0.
Assuming a constant load over a small section dx of the beam, we denote the changes in shear and moment across this infinitesimal segment as dV and dM, respectively. Through the first equilibrium equation -0 = V(x) + w(x)dx, we derive the fundamental relation for shear:
dV/dx = w(x).
This indicates that the rate of change of shear at any point along the beam is equal to the load intensity at that location. Similarly, the relationship for moments is derived using the equilibrium of moments, leading to:
dM/dx = V(x),
indicating that the rate of change of moment at any section of the beam corresponds to the shear force at that point.
These foundational relationships will enable students to create shear and moment diagrams, which are pivotal for the design of structural members.

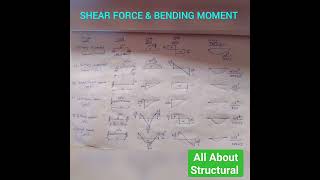

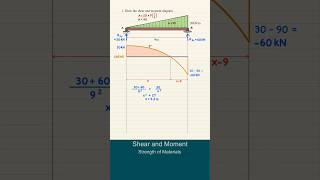

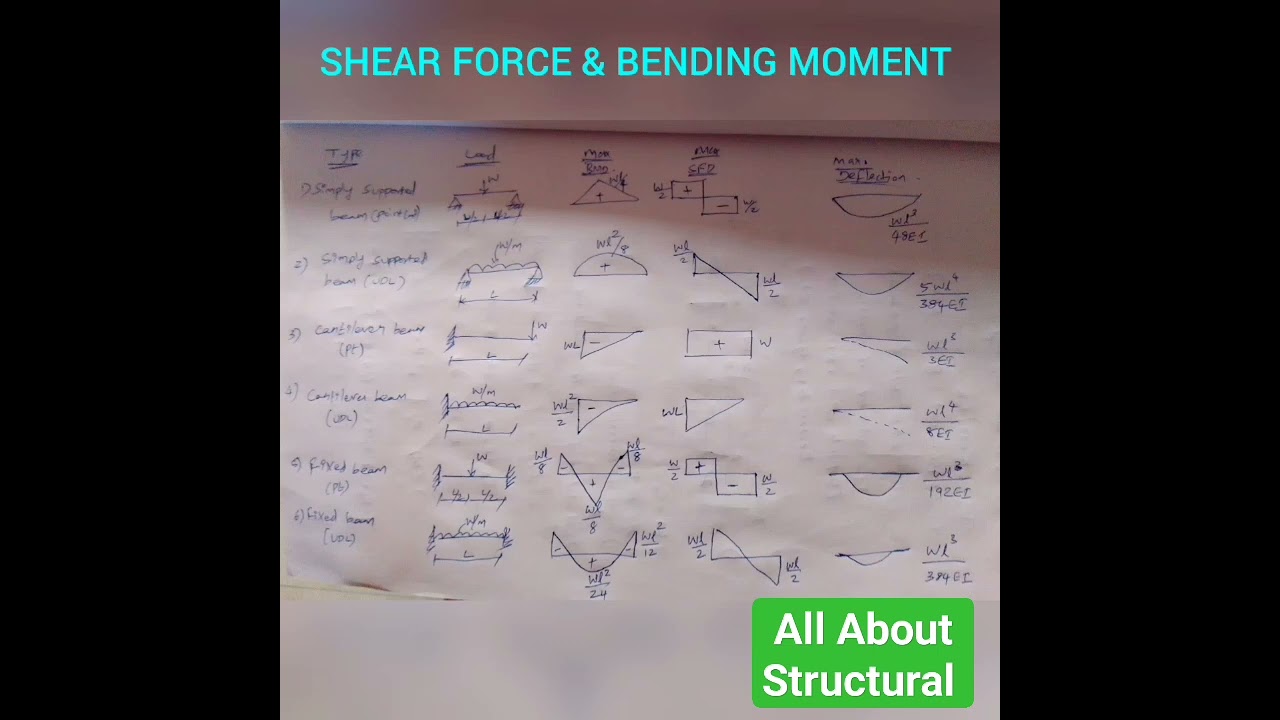

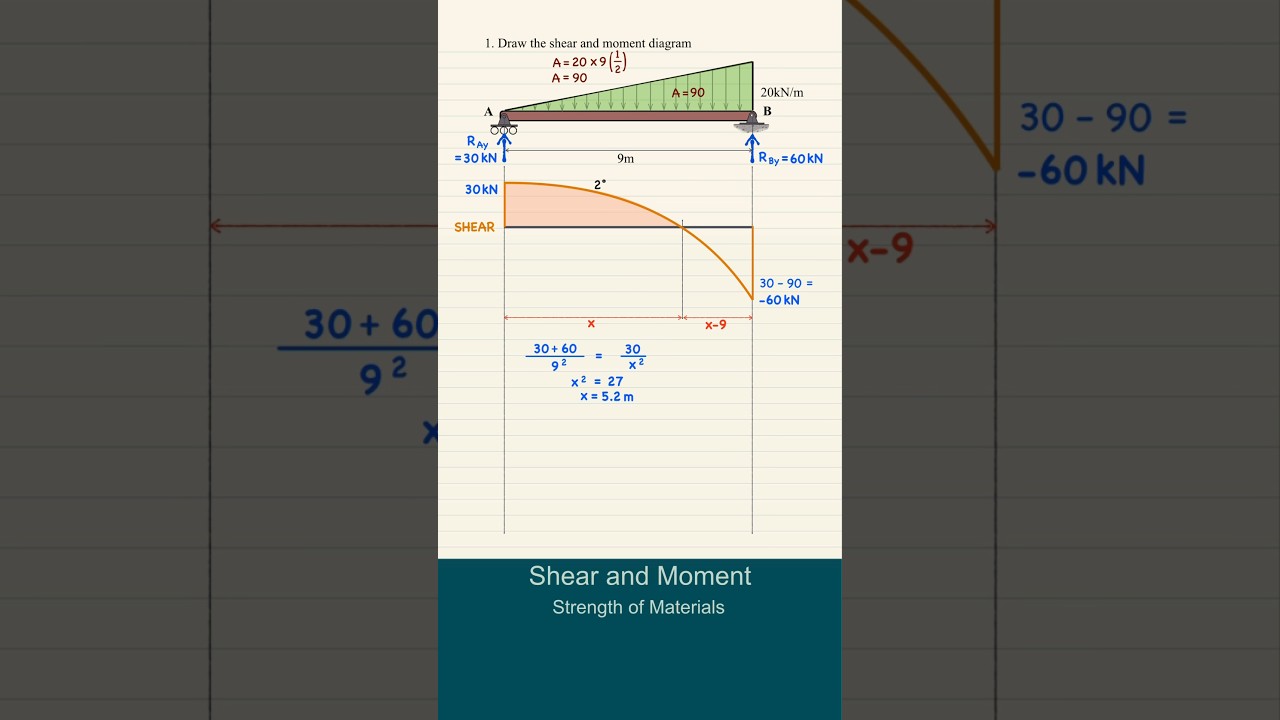

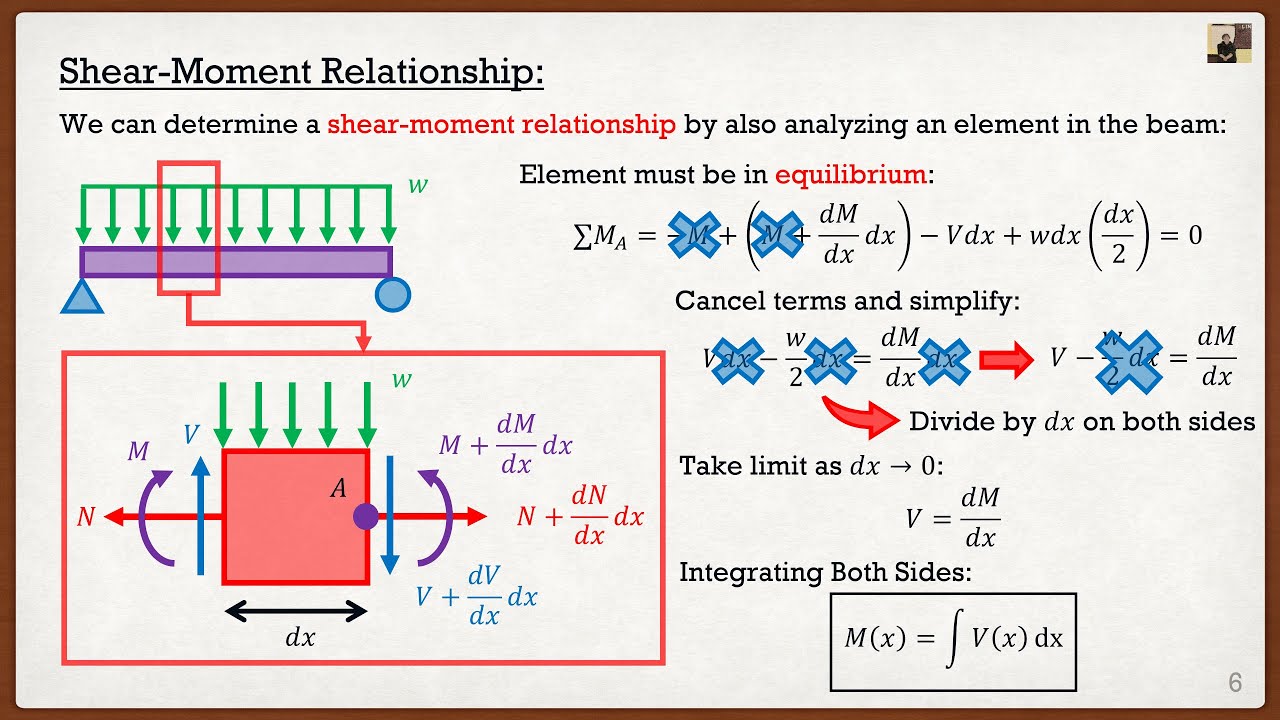

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.

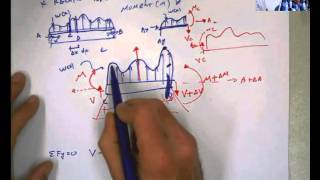

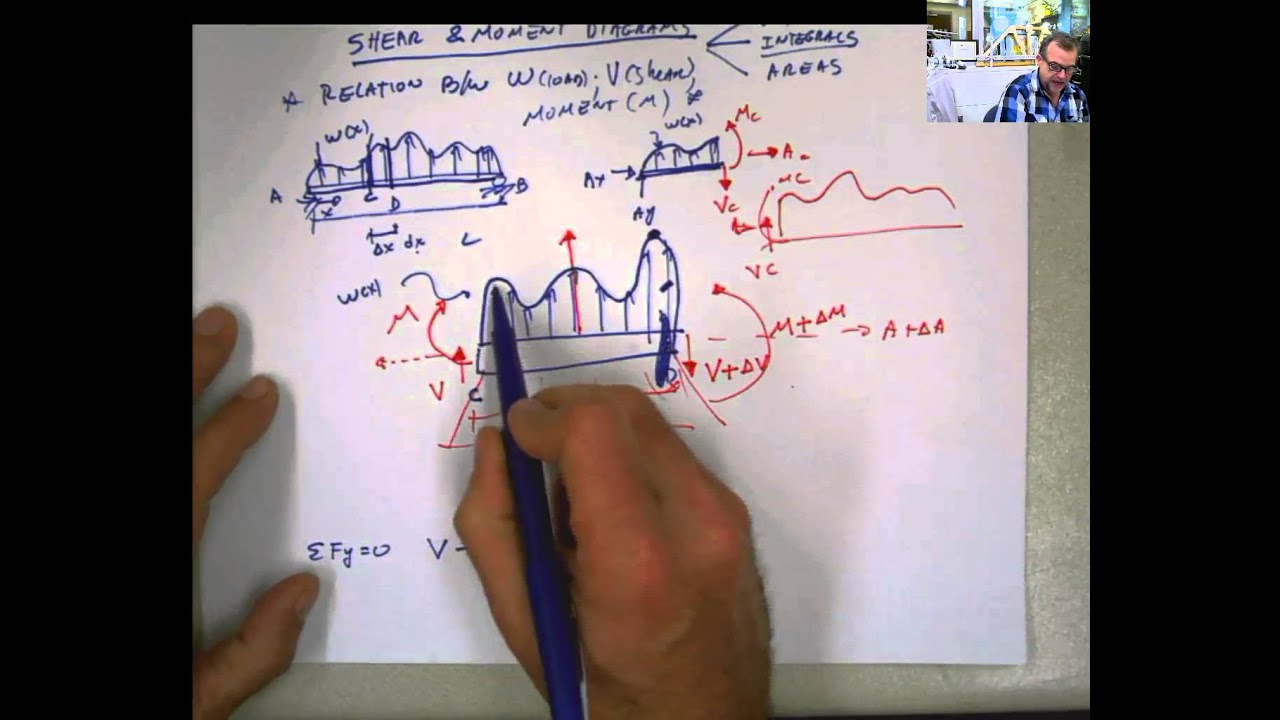

Create a free accountLet us (re)derive the basic relations between load, shear and moment. Considering an infinitesimal length dx of a beam subjected to a positive load w(x), the infinitesimal section must also be in equilibrium.
Detailed Explanation
In this section, we will explore how loads applied to beam segments relate to shear forces and bending moments. We start with an infinitesimal segment of the beam, denoted as 'dx'. A load, represented as 'w(x)', is acting on this segment. To ensure the beam is in equilibrium, we must analyze the forces and moments acting on this small length. The static equilibrium conditions dictate that the sum of vertical forces must equal zero, and the sum of moments must also equal zero. Thus, the understanding of these relations is crucial for analyzing structures.
Examples & Analogies
Imagine balancing a book on your palm. If someone places a pencil on the book (this represents our load), your palm feels a downward force (the load). To keep the book from tipping, you must adjust the angle of your palm (representing the shear and moment adjustments). This balance of forces and the reaction in your hand mirrors the concepts of load, shear, and moment in structural engineering.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThere are no axial forces, thus we only have two equations of equilibrium to satisfy: ΣFy = 0 and ΣMz = 0. Since dx is infinitesimal, the small variation in load along it can be neglected, therefore we assume w(x) to be constant along dx.
Detailed Explanation
In this step, we recognize that axial forces do not exist in our analysis, which leaves us with the necessity to satisfy two primary equilibrium conditions: the sum of vertical forces (ΣFy) must equal zero, and the sum of moments about the z-axis (ΣMz) must also equal zero. By assuming the load 'w(x)' is constant over our very small segment 'dx', we simplify our calculations. This allows us to use the following relation: dV/dx = w(x), meaning the rate of change of shear force is directly proportional to the load distribution.
Examples & Analogies
Think of it like measuring rainfall in a small bucket (our dx). If it begins to rain steadily (our constant load), the water level in the bucket (representing shear force) will rise consistently. At any moment, the rate at which the water level rises (change in shear) is directly tied to how hard it's raining (the load).
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountNext, considering the first equation of equilibrium, we can write the equation for shear force. From the equilibrium of moments: M + Vdx - wx dx = 0, neglecting the dx² term simplifies to dM = V(x) dx.
Detailed Explanation
Following the analysis of shear forces, we next consider the moment acting on our segment. By setting up our moment equilibrium equation that includes the shear force and the effect of our load, we find that the change in moment (dM) is proportional to the shear force (V) at that point. This means we have a direct relationship where the slope of the moment curve at any point along the member's axis is governed by the shear force at that point, resulting in the equation dM/dx = V(x). This is pivotal in understanding how moments are distributed along the beam.
Examples & Analogies
Picture a seesaw balanced at a pivot. If one side of the seesaw is pushed down (representing shear), the other side will naturally lift up (representing the change in moment). The relationship between how much one side pushes down and how much the other side lifts up captures the essence of how shear forces influence moments in structural systems.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe slope of the shear curve at any point along the axis of a member is given by the load curve at that point. Similarly, the slope of the moment curve at any point along the axis of a member is given by the shear at that point.
Detailed Explanation
In summary, we have established two essential relationships: the shear curve's slope is derived from the load, while the moment curve's slope is derived from the shear. This establishes a clear connection in how these parameters influence each other. Understanding these relationships enables engineers to design structures that can efficiently handle internal forces, while ensuring safety and stability.
Examples & Analogies
Consider how waves move in the ocean. The size of a wave (shear) is influenced by the wind (load). As the wind picks up or calms down, the wave's height changes. Similarly, as waves move towards the shore (moment), their heights alter in relation to the wind's intensity. This comparison illustrates how interconnected these definitions are in the context of loads, shear, and moments in engineering.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Load:
A force applied to a structural element.
- Shear:
An internal force acting parallel to the beam's cross-section due to applied loads.
- Moment:
A rotational effect caused by forces applied at a distance from an axis.
- Equilibrium:
The state where summed forces and moments equal zero.
- Diagrams:
Graphical representations of how load, shear, and moment vary along a beam.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
Example: For a uniformly loaded beam, the shear diagram typically consists of horizontal lines, while the moment diagram is a parabolic curve.
Example: In a cantilever beam subjected to a point load at the free end, the shear diagram will show a jump at the load, while the moment diagram will start from zero and increase linearly.
Memory aids
Imagine a superhero, Load, pressing down on a beam while Shear, the sidekick, pushes from the sides. Together they cause Moment, the master of rotation, to spin and sway the beam.
Flash Cards
Glossary
Shear
The internal force acting parallel to the cross-section of a structural element, often due to transverse loading.
Moment
The effect of a force that causes rotation about a point, typically evaluated in terms of bending moment in beams.
Load
The force applied to a structure, which can vary in type and distribution along the structural member.
Equilibrium
A state where the sum of forces and moments acting on a structure is zero, ensuring no acceleration occurs.
Diagram
A graphical representation of shear and moment values over the length of a beam.
