5.2.2 - Bar magnet as an equivalent solenoid

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Magnetic Poles

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we're discussing the concept of magnetic poles in bar magnets. When a bar magnet is freely suspended, what direction does it point?

Student 1
Student 1

It points north and south, right?

Teacher
Teacher

Exactly! The end pointing to the geographic north is called the north pole, and the other end is the south pole. Remember, there’s a mnemonic we can use: 'North Never Sucks' to recall that the North pole seeks north.

Student 2
Student 2

What happens if we break the magnet?

Teacher
Teacher

Great question! Cutting a bar magnet in half results in two smaller magnets, each still having north and south poles. They can't be isolated, just like electric charges!

Student 3
Student 3

So, we always have to deal with both poles?

Teacher
Teacher

Exactly! That's a unique property of magnets. Now, let’s summarize: we have north and south poles, cutting a magnet results in two magnets, and both magnets will seek alignment with the Earth’s magnetic field.

Magnetic Field Lines

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's move on to magnetic field lines. When we sprinkle iron filings around a magnet, what shape do they take?

Student 2
Student 2

They form a pattern, showing the field lines extending from one pole to another.

Teacher
Teacher

That's correct! This visual representation shows us that the lines form continuous closed loops. Remember this – no matter where you are, the lines will always connect back, unlike electric field lines.

Student 4
Student 4

And what does it mean if more lines are close together?

Teacher
Teacher

Good observation! Where the field lines are denser, that’s where the magnetic field is stronger. You can visualize this with the acronym DENSE, to remember that denser lines mean a stronger field.

Student 1
Student 1

Can we find the direction using these lines?

Teacher
Teacher

Yes, the direction of the field at any point can be found by drawing a tangent to the field line at that point. Balancing all these facts helps us understand magnetic behavior better.

Bar Magnet as an Equivalent Solenoid

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s discuss how a bar magnet can be viewed as an equivalent solenoid. What characteristics do you think they share?

Student 3
Student 3

I think both create a magnetic field?

Teacher
Teacher

Correct! A bar magnet, like a solenoid, produces a magnetic field due to currents running through it. To illustrate this, think of the acronym 'SOLENOID' as a memory aid for similarities: S for Suspended, O for Orientation, L for Loops, and E for Equivalent fields generated.

Student 2
Student 2

How can we measure or see this similarity practically?

Teacher
Teacher

By using a small compass needle around both a magnet and a solenoid, you’ll notice similar deflections in direction, hinting they have analogous field patterns.

Student 4
Student 4

Does that mean we can use equations from one to understand the other?

Teacher
Teacher

Absolutely! At large distances, the field equations for both can be directly compared. It helps solidify the understanding of how magnets and solenoids can be related.

Mathematical Relationships

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Finally, let's discuss the mathematical relationship between a bar magnet and a solenoid. What do you remember about the equations relating them?

Student 1
Student 1

There’s an equation for the magnetic field due to a solenoid?

Teacher
Teacher

Exactly! The equation is B = (μ₀ * n * I) which describes the magnetic field. When we apply this to a bar magnet, we note that both fields exhibit a similar behavior. Remember, in this case, μ₀ is the permeability of free space.

Student 3
Student 3

And this means their magnetic moments are equivalent?

Teacher
Teacher

Yes! A bar magnet’s magnetic moment is equivalent to that of a solenoid yielding the same magnetic field. This concept is pivotal in understanding their respective functional uses in real-world applications.

Student 4
Student 4

This is a lot clearer now!

Teacher
Teacher

Excellent! So to recap, we discussed magnetic poles, field lines, the analogy of solenoids and magnets, and how the mathematics ties them together. Great work today everyone!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section explains the analogy between a bar magnet and a solenoid, emphasizing that the magnetic field generated by both is fundamentally similar.

Standard

The section highlights how a bar magnet can be viewed as a collection of tiny current loops, similar to a solenoid. Various aspects such as magnetic field lines, the behavior of the bar magnet when cut, and the equation relating the magnetic field of a solenoid to that of a bar magnet are discussed.

Detailed

Detailed Summary

The section delves into the relationship between a bar magnet and a finite solenoid, highlighting their analogous behaviors in generating magnetic fields. The section begins with the observation of a bar magnet's poles, explaining their characteristics and the resultant field patterns illustrated by iron filings.

Key Points:

  1. Magnetic Field Lines: Both a bar magnet and a solenoid exhibit similar magnetic field patterns, indicating their roles as magnetic dipoles. When a magnet is freely suspended, it aligns with the Earth's magnetic field, establishing a clear north and south pole.
  2. Analogy of Current Loops: A bar magnet can be understood as being comprised of numerous tiny circulating currents, leading to a consistency in the way both magnets generate their magnetic fields.
  3. Cutting a Magnet: Cutting a bar magnet, akin to cutting a solenoid, results in two smaller magnets. This reinforces the concept that magnetic poles cannot exist in isolation, mirroring the behavior of solenoids and their field continuity.
  4. Mathematical Relationship: The section also presents mathematical equations that link the magnetic field produced by a finite solenoid to that of a bar magnet, emphasizing that their effects are analogous at large distances. Here, the magnetic moment of a bar magnet is equal to that of an equivalent solenoid generating a similar field.

This understanding is essential as it demonstrates how solenoids can mimic the properties of permanent magnets in various applications.

Youtube Videos

Bar Magnet as an Equivalent Solenoid - Magnetism and Matter | Class 12 Physics Chapter 5 (2023-24)
Bar Magnet as an Equivalent Solenoid - Magnetism and Matter | Class 12 Physics Chapter 5 (2023-24)
Class 12th Physics | Bar magnet as an equivalent solenoid | Chapter 5: Magnetism and Matter | NCERT
Class 12th Physics | Bar magnet as an equivalent solenoid | Chapter 5: Magnetism and Matter | NCERT

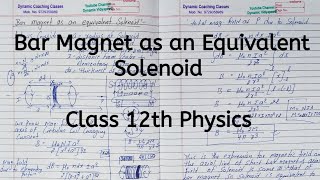

Bar Magnet as an Equivalent Solenoid, Chapter 5, Magnetism and Matter, Class 12 Physics
Bar Magnet as an Equivalent Solenoid, Chapter 5, Magnetism and Matter, Class 12 Physics

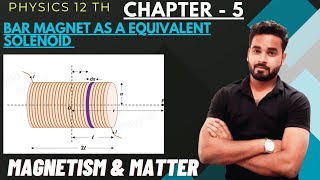

Bar Magnet as an equivalent solenoid | chapter 5 | physics 12th | NCERT
Bar Magnet as an equivalent solenoid | chapter 5 | physics 12th | NCERT
magnetic fields lines of solenoid #shorts #class10science #scienceexperiment
magnetic fields lines of solenoid #shorts #class10science #scienceexperiment

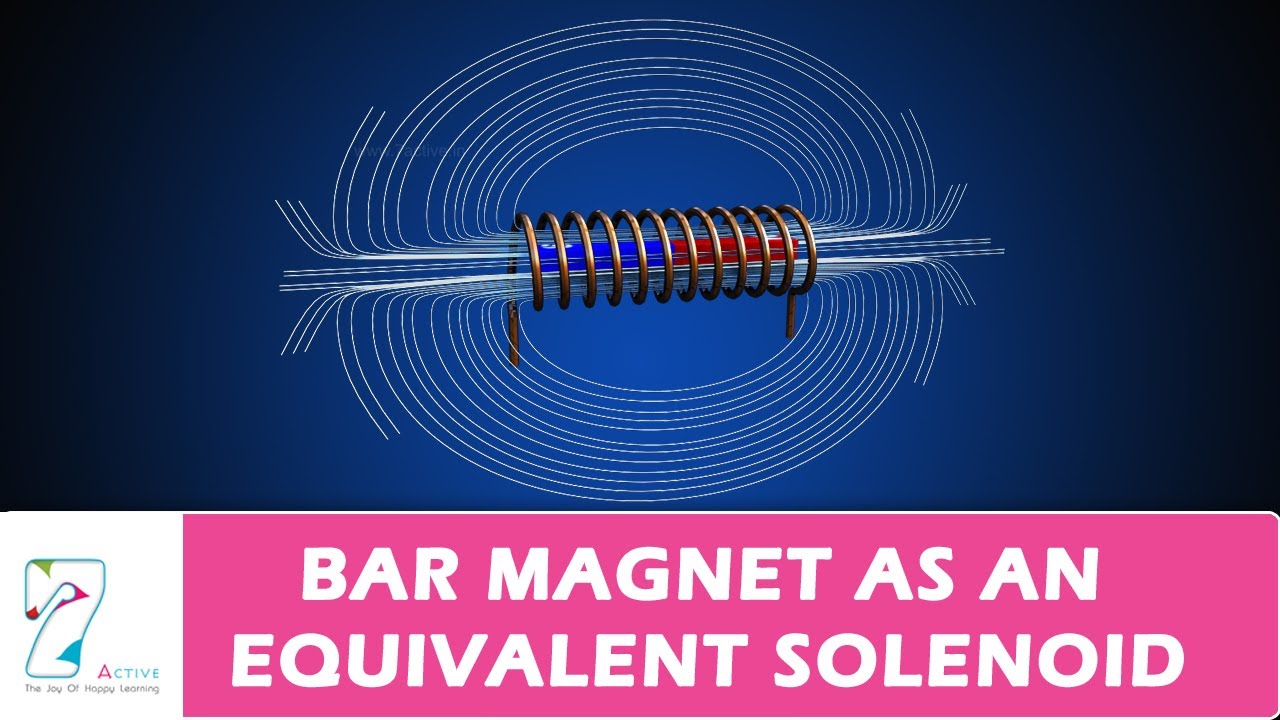

BAR MAGNET AS AN EQUIVALENT SOLENOID
BAR MAGNET AS AN EQUIVALENT SOLENOID
Magnetic fields demonstration 🧲
Magnetic fields demonstration 🧲
Bar magnet experiment #shorts #science #ytshorts
Bar magnet experiment #shorts #science #ytshorts

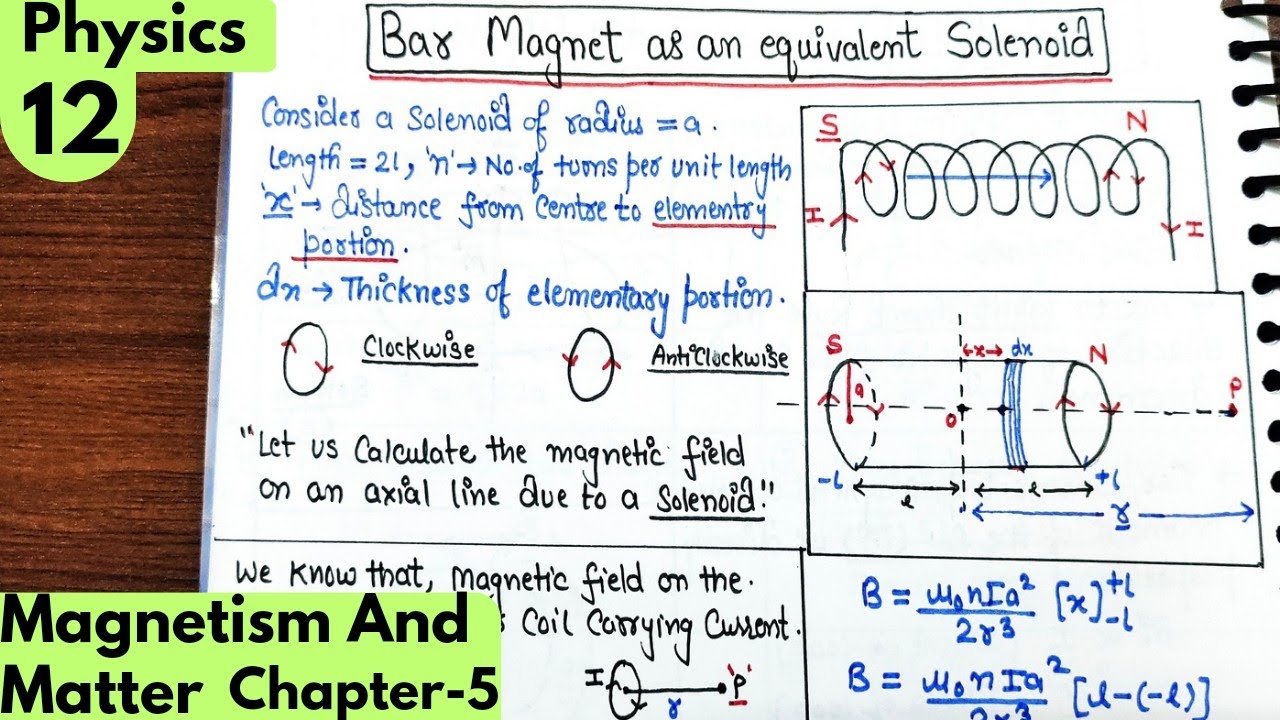

12) Bar magnet as an equivalent solenoid| Magnetism and matter class12 Physics #neet #jee #cbse
12) Bar magnet as an equivalent solenoid| Magnetism and matter class12 Physics #neet #jee #cbse

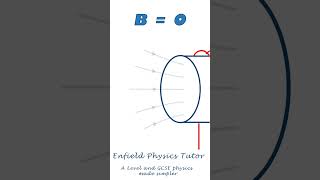

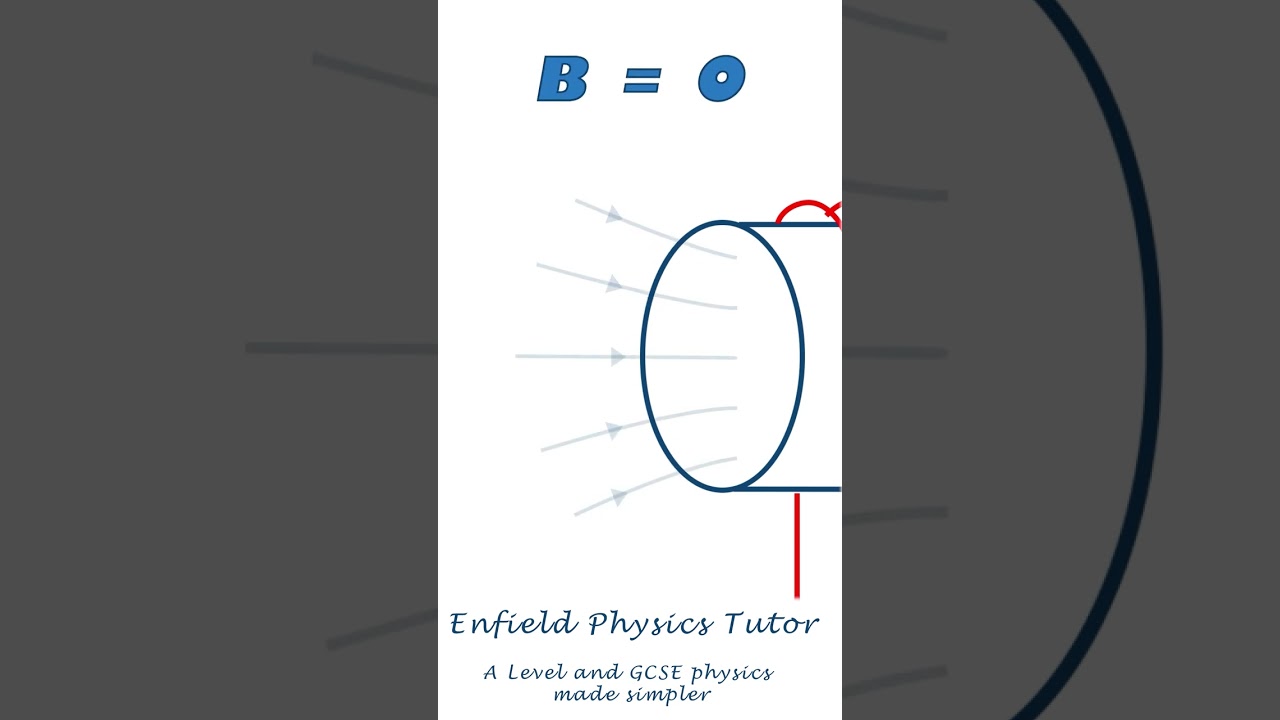

Magnetic Field Around an AC Solenoid - Help with A Level B Fields
Magnetic Field Around an AC Solenoid - Help with A Level B Fields

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Analogy Between Bar Magnets and Solenoids

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In the previous chapter, we have explained how a current loop acts as a magnetic dipole (Section 4.9). The resemblance of magnetic field lines for a bar magnet and a solenoid suggest that a bar magnet may be thought of as a large number of circulating currents in analogy with a solenoid.

Detailed Explanation

The concept here is that both bar magnets and solenoids can create a magnetic field, and they do this in similar ways. A bar magnet generates a magnetic field due to the alignment of its internal atomic magnets, while a solenoid generates a magnetic field through the flow of electric current. This comparison allows us to understand the behavior of a bar magnet as if it were made up of many small loops of current, each contributing to the overall magnetic field.

Examples & Analogies

Think of a bar magnet as a group of friends holding hands in a circle (the circulating currents). Each friend represents a small current loop, and together they create a strong magnetic force just like the bar magnet does. Similarly, when the group organizes into a line and starts moving in sync (like current in a solenoid), they produce a magnetic effect that can be seen when near a compass.

Cutting a Bar Magnet and Solenoid

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Cutting a bar magnet in half is like cutting a solenoid. We get two smaller solenoids with weaker magnetic properties. The field lines remain continuous, emerging from one face of the solenoid and entering into the other face.

Detailed Explanation

When either a bar magnet or a solenoid is cut, each resulting piece retains both a north and a south pole. This means that no matter how many times you cut the original magnet or solenoid, you will always end up with smaller versions of the original, each capable of creating a magnetic field. The continuity of the magnetic field lines is important because it signifies that the magnetic field is always present and never isolated.

Examples & Analogies

Imagine a chocolate bar that you break into pieces. No matter how small the pieces become, each piece still tastes like chocolate. Similarly, when you break a bar magnet into parts, each part still acts as a complete magnet, just smaller in size.

Compass Needle Deflection Test

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

One can test this analogy by moving a small compass needle in the neighbourhood of a bar magnet and a current-carrying finite solenoid and noting that the deflections of the needle are similar in both cases.

Detailed Explanation

By placing a compass needle near a bar magnet or a solenoid with current running through it, you can observe how the compass needle reacts. The direction the needle points reflects the direction of the magnetic field in that area. If the deflections are similar, it confirms that both a bar magnet and a solenoid create comparable magnetic environments, reinforcing our understanding of their equivalent nature.

Examples & Analogies

Consider how your phone's compass works. When you're near your fridge magnet or a wire carrying electricity, the compass tells you where north is by pointing in the direction of the magnetic field. This is similar to how both the fridge magnet and electrical wire create forces that can influence the compass.

Calculating the Magnetic Field of a Solenoid

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

To make this analogy more firm we may calculate the axial field of a finite solenoid depicted in Fig. 5.3 (a). We can demonstrate that at large distances this axial field resembles that of a bar magnet.

Detailed Explanation

By performing calculations using the appropriate equations, we can demonstrate that the magnetic field produced by a solenoid at a distance resembles that created by a bar magnet. This means that theoretically and empirically, a solenoid can be treated as the equivalent of a magnet when analyzing their properties at a distance. Hence, if we know the properties of solenoids, we can predict behaviors of bar magnets and vice versa.

Examples & Analogies

Think of using a flashlight. When you shine it close, you see the beam clearly; move it far enough away, and it looks like a glow – similar to how the detailed structure of the solenoid fades into a simple resemblance with the bar magnet as distance increases.

Magnetic Moments and Field Comparison

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The magnetic moment of a bar magnet is thus equal to the magnetic moment of an equivalent solenoid that produces the same magnetic field.

Detailed Explanation

This statement emphasizes a key point: regardless of whether we're dealing with a bar magnet or a solenoid, if both have the same magnetic moment, they will create the same effect on the surrounding magnetic field. The understanding of magnetic moment is crucial for comparing these two types of magnets, as it allows us to establish a direct relationship between them.

Examples & Analogies

Imagine two cars moving at the same speed; you can't tell which one is faster just by looking at them from a distance. The speed makes them comparable, just like having the same magnetic moment makes both the bar magnet and solenoid behave similarly.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Magnetic Poles: Each magnet has a north and south pole, which cannot be isolated when cut.

  • Field Lines: Visualize magnetic fields; they form closed loops, indicating the path of magnetic forces.

  • Magnetic Moment: Represents the strength and direction of a magnet's effect.

  • Solenoid: Acts as an equivalent to a bar magnet when carrying an electric current.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • When a current glass tube is wound with a wire and current is passed through, it behaves like a magnet—showing the behavior of a solenoid equivalent to a bar magnet.

  • Using a compass, you can observe that the magnetic field pattern around a bar magnet and a solenoid is quite similar.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Bar magnets split, still they’ll split, North and South, just can’t quit.

📖 Fascinating Stories

  • Imagine a tiny universe with a big bar magnet—the North loves the South, and when cut in half, they twirl away, finding another North and South to engage.

🧠 Other Memory Gems

  • DENSE - Remember, where you see dense lines, that's where the magnetic field's strength shines!

🎯 Super Acronyms

SOLENOID - S for Suspended, O for Orientation, L for Loops, E for Equivalent fields generated.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Bar Magnet

    Definition:

    A magnet with two distinct poles (north and south) that generates a magnetic field.

  • Term: Solenoid

    Definition:

    A coil of wire designed to create a magnetic field when an electric current passes through it.

  • Term: Magnetic Field Lines

    Definition:

    Visual representations of the magnetic field that indicate the direction and strength of the magnetic field.

  • Term: Magnetic Moment

    Definition:

    A vector quantity that represents the strength and direction of a magnet's magnetic field.

  • Term: Permeability

    Definition:

    The measure of how well a material can support the formation of a magnetic field within itself.
