5.6. SUMMARY

1. The science of magnetism is old. It has been known since ancient times that magnetic materials tend to point in the north-south direction; like magnetic poles repel and unlike ones attract; and cutting a bar magnet in two leads to two smaller magnets. Magnetic poles cannot be isolated.

Magnetism is not a modern science; it has been studied since ancient times. People have long observed that certain materials, like iron, naturally orient themselves towards the north when suspended. Similarly, magnets have two poles - north and south - that interact with each other, where like poles repel and opposite poles attract. A critical property of magnets is that you cannot isolate one pole; dividing a magnet always produces smaller magnets, each with a north and a south pole.

Imagine trying to isolate the north pole of a magnet. It's like having a toy that, when you try to split it, splits into two identical toys that both have the original features. You can't have just one feature; it always comes with the complementary one.

2. When a bar magnet of dipole moment m is placed in a uniform magnetic field B, (a) the force on it is zero, (b) the torque on it is m × B, (c) its potential energy is –m.B, where we choose the zero of energy at the orientation when m is perpendicular to B.

When a dipole, like a bar magnet, is in a uniform magnetic field, it does not feel a net force because the forces on each pole are balanced. However, it does experience a torque that tends to align the magnet with the field. This torque is given by the product of the dipole moment and the magnetic field. The potential energy is lowest when the magnet is aligned with the field and highest when it is opposite to the field. The equation –m.B shows that potential energy decreases as the magnet aligns with the field.

Think of a swing at a playground. At the highest point of the swing, you've got maximum potential energy. As you swing down and align with the direction of the swing, your potential energy decreases. Similarly, when a magnet aligns with a magnetic field, its potential energy decreases.

3. Consider a bar magnet of size l and magnetic moment m, at a distance r from its mid-point, where r >>l, the magnetic field B due to this bar is, m m B = 0 2p r3 (along axis) m m =– 0 (along equator) 4p r3

The magnetic field produced by a bar magnet can be calculated at a point far from its ends (when r is much larger than the length l). Along the axis of the magnet, the magnetic field decreases with the cube of the distance (1/r³), indicating that the closer you are, the stronger the magnetic field. Conversely, at the equator of the magnet, the magnetic field behaves similarly but has a negative value, indicating the direction of the field is different based on position.

Imagine the magnetic field of a bar magnet as the light from a lamp. The further away you stand from the lamp, the dimmer the light appears. Just like moving away from the magnet reduces the magnetic strength, moving away from the light decreases its brightness.

4. Gauss’s law for magnetism states that the net magnetic flux through any closed surface is zero.

Gauss's Law for magnetism indicates that the total magnetic field lines entering and leaving any closed surface are equal. This means that there are no magnetic 'sources' or 'sinks'. Just like electric charges can exist as positive and negative charges, magnetic fields are always generated in pairs (north and south poles). Hence, the net magnetic flux is zero.

Think of a water park associated with rafts on a river. Any time you see a raft enter the water (like magnetic field lines entering a closed surface), you have to see one leave as well. In a perfect cycle, the number of rafts that enter equals the number of rafts that leave, ensuring overall balance.

5. Consider a material placed in an external magnetic field B0. The magnetic intensity is defined as, B H= 0 m 0. The magnetisation M of the material is its dipole moment per unit volume. The magnetic field B in the material is, B = µ (H + M) 0.

In a magnetic field B₀, materials respond differently based on their properties. The magnetic intensity H helps quantify the material's response to an external field. The magnetisation M shows how much of that response results in a net dipole moment per volume. The overall magnetic field B inside the material combines contributions from both the external field H and the material's own magnetisation M.

Think of a sponge in water. The external water pressure (the magnetic field H) informs the sponge of its environment. As the sponge absorbs water (magnetisation M), it influences how much water remains inside it, creating the overall 'wetness' (the total magnetic field B) we perceive.

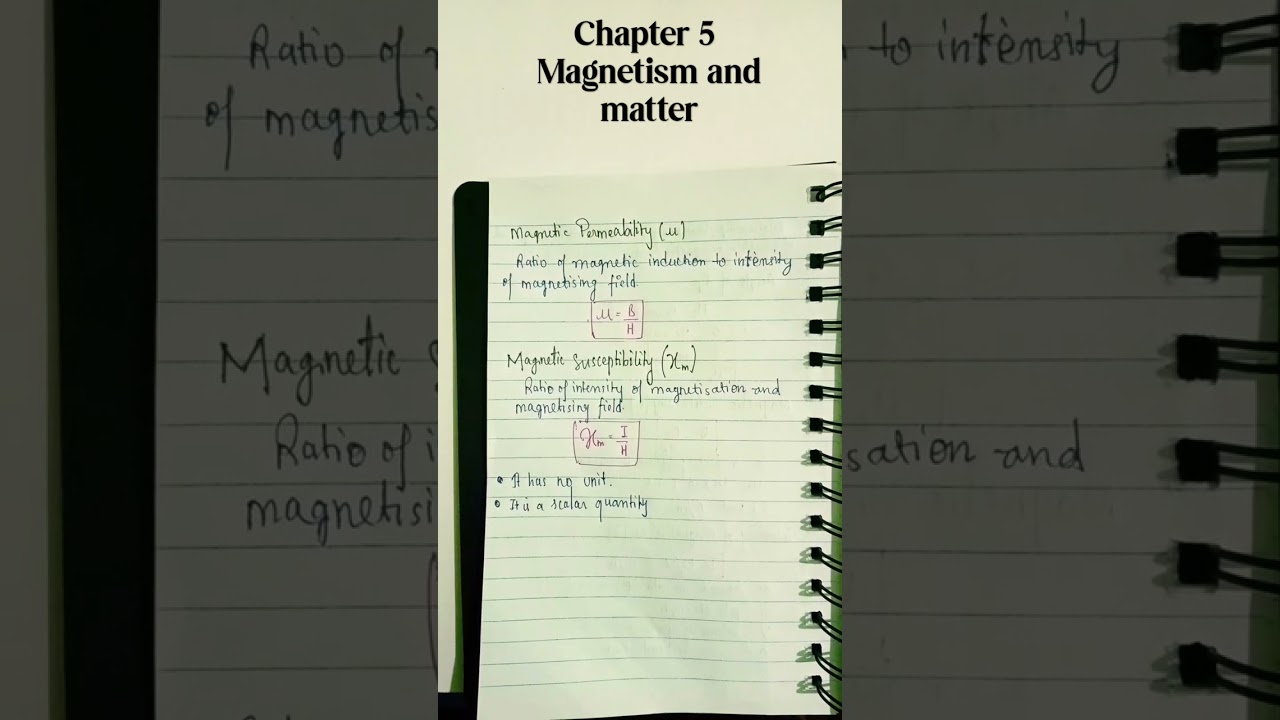

6. For a linear material M = χ H. So that B = µ H and χ is called the magnetic susceptibility of the material. The three quantities, χ, the relative magnetic permeability µ, and the magnetic permeability µ are related as follows: µ = µ µ 0 r; µ = 1+ χ.

Magnetic materials can be classified based on their susceptibility (χ), which describes how strongly a material reacts to an external magnetic field. The relationship between magnetisation (M), magnetic field intensity (H), and the resulting magnetic field (B) helps categorize materials into diamagnetic, paramagnetic, and ferromagnetic based on their unique responses to external fields.

Think of three friends playing at the park, each with different reactions to a slide. One friend (diamagnetic) avoids the slide altogether, while the second friend (paramagnetic) likes sliding down slowly, while the last friend (ferromagnetic) is so enthusiastic that they repeatedly jump on the slide! Their different interactions can help classify how these materials behave in a magnetic field.

7. Magnetic materials are broadly classified as: diamagnetic, paramagnetic, and ferromagnetic. For diamagnetic materials χ is negative and small and for paramagnetic materials it is positive and small. Ferromagnetic materials have large χ and are characterised by non-linear relation between B and H.

Diamagnetic materials weakly repel magnetic fields, paramagnetic materials weakly attract, and ferromagnetic materials strongly respond by aligning with the field and can retain magnetisation even after the external field is removed, forming permanent magnets. This classification helps in understanding how different materials can be used in various applications, from crafting small fridge magnets to industrial machinery.

Consider three types of students in a classroom: the first who dislikes group activities (diamagnetic), another who participates only occasionally (paramagnetic), and someone who thrives on teamwork and always collaborates (ferromagnetic). Just like these students' different engagements in class, materials behave differently under magnetic fields.

8. Substances, which at room temperature, retain their ferromagnetic property for a long period of time are called permanent magnets.

Permanent magnets are materials that, when magnetised, keep their magnetism even after the external magnetic field is removed. This property is essential for everyday applications, such as refrigerator magnets, speakers, and hard drives.

Think of a bookmark you use to keep your place in a book. Once you’ve marked your page (magnetised), it’ll hold that spot until you decide to change it, just like a permanent magnet retains its magnetic property over time.

--
