8.5 - Step 3: Apply the Bilinear Transform Method

Practice

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to the Bilinear Transform Method

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Today we are going to talk about the Bilinear Transform Method. This method is essential for mapping the entire s-plane to the z-plane, enabling us to create digital filters from an analog design.

Student 1
Student 1

How does this transformation work?

Teacher
Teacher

Great question! The transformation is given by the formula s = \frac{2}{T} \cdot \frac{1 - z^{-1}}{1 + z^{-1}}. This allows us to translate our filter designs effectively.

Student 2
Student 2

What does T represent in that formula?

Teacher
Teacher

T is the sampling period, which is the inverse of the sampling frequency. For example, if our sampling frequency is 10 Hz, T will be 0.1 seconds.

Student 3
Student 3

So it helps us avoid aliasing?

Teacher
Teacher

Exactly! By using this method, we can ensure that our digital filter behaves similarly to its analog counterpart without the risks of aliasing.

Teacher
Teacher

To recap, the Bilinear Transform Method is vital because it enables us to translate analog filters into digital ones while preserving their characteristics. Can anyone summarize what we've learned so far?

Student 4
Student 4

It's a method to map the s-plane to the z-plane and prevents aliasing.

Applying the Transformation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Let's apply this transformation to our first-order low-pass filter, which is represented as H(s) = \frac{1}{\tau s + 1}.

Student 1
Student 1

What do we substitute s with?

Teacher
Teacher

We substitute s using the bilinear transformation. This will provide us with the z-domain transfer function H(z).

Student 2
Student 2

What happens next after substitution?

Teacher
Teacher

We simplify the resulting expression. For example, with \tau = 0.159 seconds and T = 0.1 seconds, we proceed to derive the z-domain representation.

Student 3
Student 3

Can you show an example of the simplification process?

Teacher
Teacher

Sure! Upon applying the transformation: H(z) = \frac{1}{\tau(\frac{2}{T} \cdot \frac{1 - z^{-1}}{1 + z^{-1}}) + 1} is our initial equation. We can proceed to simplify from there to achieve our final z transfer function.

Student 4
Student 4

Does the final form depend on the cutoff frequency?

Teacher
Teacher

Yes, the final transfer function will reflect the characteristics defined by our cutoff frequency and the sampling frequency. Let's remember to document these results in our formula sheets for future reference.

Importance of Bilinear Transform in Digital Filter Design

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Why is the Bilinear Transform Method significant? It allows us to take an established analog filter, modify it, and create a functional digital filter without losing fidelity.

Student 1
Student 1

So this means the filter will maintain its original analog performance?

Teacher
Teacher

That's correct! It ensures that the frequency response is accurately depicted in the digital domain, preserving essential characteristics like cutoff frequency.

Student 2
Student 2

And this method helps us avoid issues like aliasing, right?

Teacher
Teacher

Yes! By adhering to this transformation, we minimize the distortion of signals that can result from sampling.

Student 3
Student 3

Are there scenarios where we wouldn't use this method?

Teacher
Teacher

In certain applications where time-domain characteristics matter more, another method like Impulse Invariant might be preferable. However, for general applications, the Bilinear Transform is often favored.

Teacher
Teacher

To summarize, the Bilinear Transform Method is key in digital filter design as it closely aligns the functionality of analog filters with digital counterparts while mitigating aliasing.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section covers the application of the Bilinear Transform Method to convert an analog low-pass filter design into its digital equivalent.

Standard

The Bilinear Transform Method is described as a technique for mapping the s-plane to the z-plane in digital signal processing. This section explains how to derive the digital transfer function of a first-order low-pass filter from its analog counterpart using the bilinear transformation.

Detailed

Step 3: Apply the Bilinear Transform Method

The Bilinear Transform Method is a crucial technique in digital signal processing that allows the mapping of the entire s-plane (analog filter) to the z-plane (digital filter). By applying the transformation formula:
s = \frac{2}{T} \cdot \frac{1 - z^{-1}}{1 + z^{-1}}, we can translate transfer functions from continuous-time representations to discrete-time forms.

In our case, we start with the analog transfer function of a first-order low-pass filter, defined as:
H(s) = \frac{1}{\tau s + 1}.

By substituting the bilinear transform into this equation and using values specific to our example, we derive the z-domain filter transfer function. Given that we have a sampling frequency f_s = 10 Hz and the previously computed time constant \tau = 0.159 seconds, we establish that T = 0.1 seconds. Substituting these values into our transformation equation, we simplify the expression to find the digital transfer function. This z-domain representation is essential for implementation in digital systems, ensuring that aliasing is avoided and the filter maintains its desired characteristics in the digital domain.

Youtube Videos

DSP#74 Introduction to infinite impulse response (IIR) Filter || EC Academy
DSP#74 Introduction to infinite impulse response (IIR) Filter || EC Academy
DSP#56 Different types of windows to design linear phase FIR filter in dsp || EC Academy
DSP#56 Different types of windows to design linear phase FIR filter in dsp || EC Academy

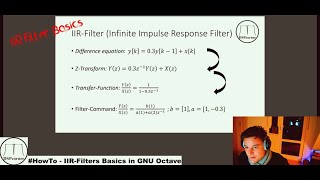

#HowTo - IIR-Filters : Basics in GNU Octave
#HowTo - IIR-Filters : Basics in GNU Octave
IIR Filter Theoretical Concepts - DIGITAL SIGNAL PROCESSING
IIR Filter Theoretical Concepts - DIGITAL SIGNAL PROCESSING

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to the Bilinear Transform Method

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The Bilinear Transform Method maps the entire s-plane to the z-plane using the transformation:
s=2Tβ‹…1βˆ’zβˆ’11+zβˆ’1s = \frac{2}{T} \cdot \frac{1 - z^{-1}}{1 + z^{-1}}

Detailed Explanation

The Bilinear Transform Method is a technique used to convert a continuous-time (analog) filter into a discrete-time (digital) filter. It does this by using a special mathematical transformation which relates the complex frequency variable 's' in the analog domain to the complex frequency variable 'z' in the digital domain. This transformation preserves the stability and frequency characteristics of the analog filter while allowing it to operate in a digital system.

Examples & Analogies

You can think of the Bilinear Transform like transforming a recipe from cooking on a stove to cooking in a microwave. Just like you adapt your cooking methods to fit the microwave's technology while keeping the essence of the recipe, the Bilinear Transform adapts the analog filter characteristics into the digital space while maintaining its fundamental behavior.

Starting with the Analog Transfer Function

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

For a 1st-order low-pass filter, we start with the same analog transfer function:
H(s)=1Ο„s+1H(s) = \frac{1}{\tau s + 1}

Detailed Explanation

In applying the Bilinear Transform, we begin with the known transfer function of a first-order low-pass filter expressed in the s-domain. The transfer function H(s) describes how the filter behaves in response to input signals in the analog realm. It essentially tells us how much of the input signal gets through the filter based on the frequency characteristics defined by the time constant 'Ο„'.

Examples & Analogies

Consider the transfer function as a set of instructions for a traffic light regulating traffic at an intersection. When the light changes to green (low frequencies), cars can pass through (the signal is allowed), while red (high frequencies) stops everything. The transfer function dictates which frequencies are passed and which are blocked, similar to how traffic lights control the flow of cars.

Substituting the Bilinear Transform

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Substitute ss from the bilinear transform equation:
H(z)=1Ο„(2Tβ‹…1βˆ’zβˆ’11+zβˆ’1)+1H(z) = \frac{1}{\tau \left( \frac{2}{T} \cdot \frac{1 - z^{-1}}{1 + z^{-1}} \right) + 1}

Detailed Explanation

In this step, we replace 's' in the original transfer function with the expression derived from the Bilinear Transform. This transformation modifies the structure of the transfer function to reflect its behavior under the new digital 'z' domain. Once we substitute, we obtain a new transfer function in the z-domain that is ready for further simplification.

Examples & Analogies

Think of this substitution as using a special tool to reformat a document for a different software. Just like the formatting changes to make a Word document compatible with Google Docs, we reformat the transfer function to make it suitable for digital signal processing.

Simplifying the Expression

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Simplify this expression to get the z-domain transfer function.
For fs=10 Hzf_s = 10 \, \text{Hz} and Ο„=0.159 secondsΟ„ = 0.159 \, \text{seconds}, we have T=0.1T = 0.1.

Detailed Explanation

After substituting, the next logical step is simplifying the expression to create a concise and usable digital filter transfer function in the z-domain. Knowing the sampling frequency 'fs' allows us to define the sampling period 'T', which is essential for the simplification process.

Examples & Analogies

Imagine you're packing a suitcase for a trip. First, you put everything in without thinking (substituting), and then you start organizing (simplifying), making sure everything fits neatly and is easy to access. Just like packing effectively makes your travel easier, simplifying the transfer function helps in implementing it efficiently in digital signal processing.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Bilinear Transform: A technique to map the s-plane to the z-plane for digital filter design.

  • Transfer Function: A mathematical representation of a system's output in relation to its input in the Laplace or z domain.

  • Sampling Frequency: The rate at which samples are taken from a continuous signal to form a discrete signal.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • An analog low-pass filter has a cutoff frequency of 1 Hz and a sampling frequency of 10 Hz. The Bilinear Transform is used to convert the transfer function from the s-domain to the z-domain.

  • Using the formula s = \frac{2}{T} \cdot \frac{1 - z^{-1}}{1 + z^{-1}}, we substitute the parameters to find the digital equivalent of the first-order low-pass filter.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎡 Rhymes Time

  • When mapping the s to z, do it right, / Bilinear Transform avoids the fright.

πŸ“– Fascinating Stories

  • Imagine a bridge connecting analog lands to digital lands, where the Bilinear Transform is the architect ensuring a smooth and safe passage, preserving the integrity of signals as they travel across.

🧠 Other Memory Gems

  • Use 'SID' to remember: 'S' for s-plane, 'I' for the frequency response is Improved, and 'D' for Digital filter creation.

🎯 Super Acronyms

BAT stands for 'Bilinear Transformation for Analog to digital' conversion.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Bilinear Transform

    Definition:

    A mathematical transformation that maps the entire s-plane to the z-plane, commonly used in digital signal processing for filter design.

  • Term: splane

    Definition:

    A complex frequency domain used for analyzing continuous-time linear systems, represented by the variable 's'.

  • Term: zplane

    Definition:

    The frequency domain for discrete-time linear systems, represented by the variable 'z'.

  • Term: Cutoff Frequency

    Definition:

    The frequency at which the output power of a filter is reduced to half of the input power, typically measured as a -3 dB point.

  • Term: Sampling Frequency

    Definition:

    The number of samples taken per second in a digital signal, inversely related to the sampling period.

  • Term: Aliasing

    Definition:

    A phenomenon that occurs when higher frequency signals are misrepresented in the sampled data, causing distortion.
