6.7 - Absolute vs Relative Motion
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Absolute Motion
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we'll start with absolute motion. Absolute motion is how far an object moves from a reference point. Can anyone tell me the formula for absolute motion?
Is it \(u_a(t) = u(t) + u_g(t)\)?
Exactly, well done! Here, \(u_g(t)\) represents the ground motion. Remember, absolute motion helps us understand total displacement.
So, does that mean absolute motion is essential during earthquakes?
Yes, particularly for evaluating equipment's safety! Great connection.
Understanding Relative Motion
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss relative motion. What do you think relative motion refers to?
Is it the movement of the mass compared to the ground?
Yes! It's crucial because it relates to how much the structure deforms during events like earthquakes. Relative displacement shows us potential structural damage.
Why do engineers focus on that more than absolute motion?
Good question! Engineers prioritize relative motion since it reflects what happens inside the structure, impacting safety.
Comparison of Absolute and Relative Motion
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s summarize the differences between absolute and relative motion. What is the key point for absolute motion?
It’s the total displacement including ground motion.
Correct! And what's the main point about relative motion?
It shows how the structure deforms, not accounting for ground motion.
Exactly! Both concepts are critical, but they serve different purposes. Understanding both can help us design safer structures.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section elucidates the concepts of absolute and relative motion, highlighting the importance of understanding relative displacements for structural deformation, while also noting the significance of absolute acceleration in assessing the force demands on non-structural components.
Detailed
Absolute vs Relative Motion
In structural dynamics, particularly during seismic analysis, it's critical to differentiate between absolute and relative motion.
- Absolute Motion is defined as the total displacement of a mass, which is represented mathematically as:
$$u_a(t) = u(t) + u_g(t)$$
where \(u_a(t)\) is the absolute displacement, \(u(t)\) is the relative displacement of the mass with respect to the ground, and \(u_g(t)\) is the ground motion. This total movement represents how far the mass moves relative to an inertial frame of reference, which in this case is the ground.
- Relative Motion is the displacement of the mass concerning the ground motion. Engineers frequently focus on relative displacement because it directly relates to the deformation within the structure itself.
Despite this, absolute acceleration must also be evaluated, particularly when determining the force demand on non-structural components, such as equipment and fixtures, which may not have the same response as the primary structure during seismic events. Accurate assessments of both concepts are crucial for the effective design and analysis of structures in earthquake-prone regions.

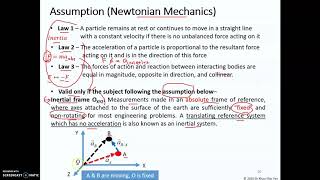

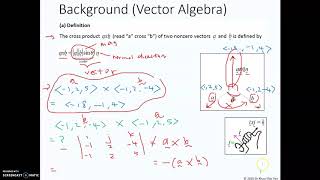

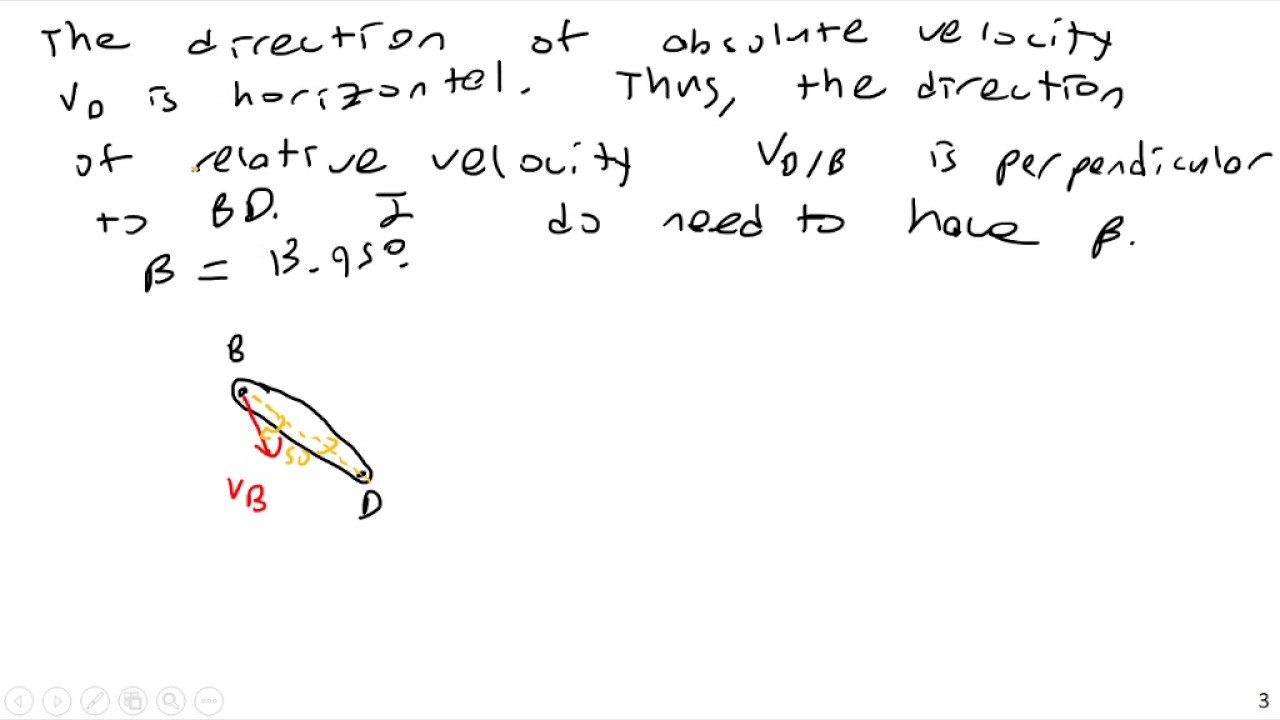

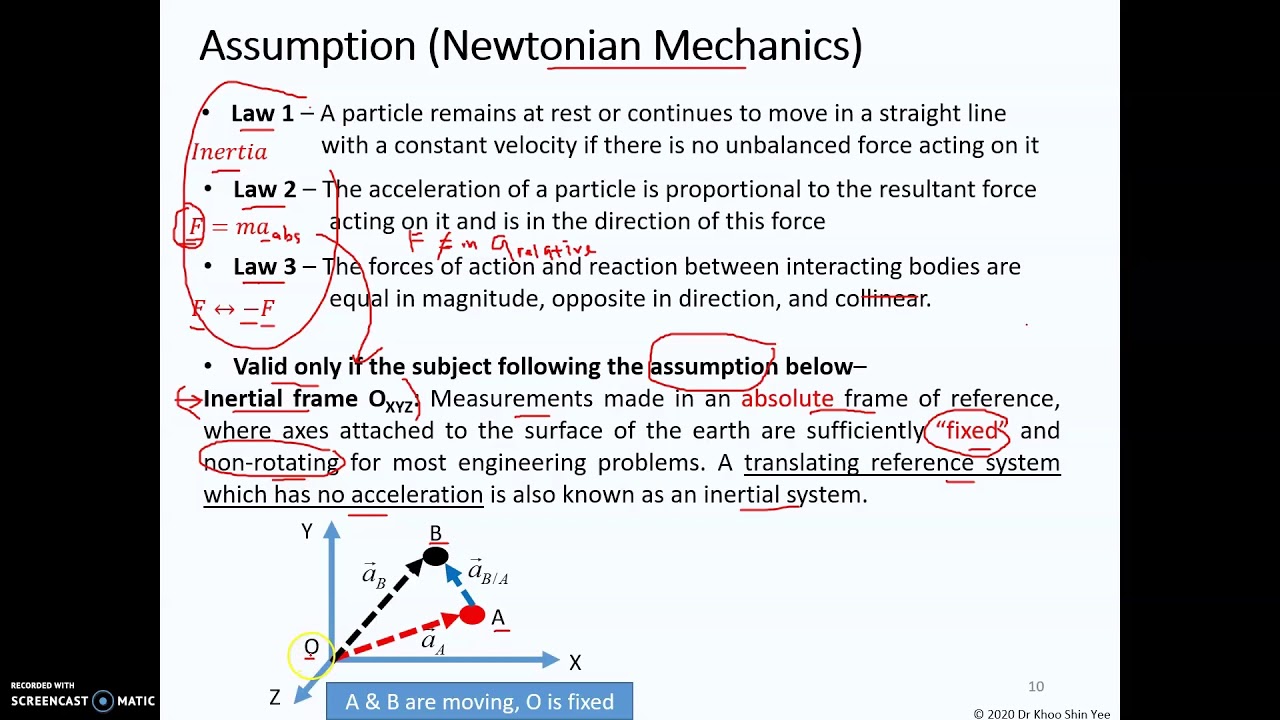

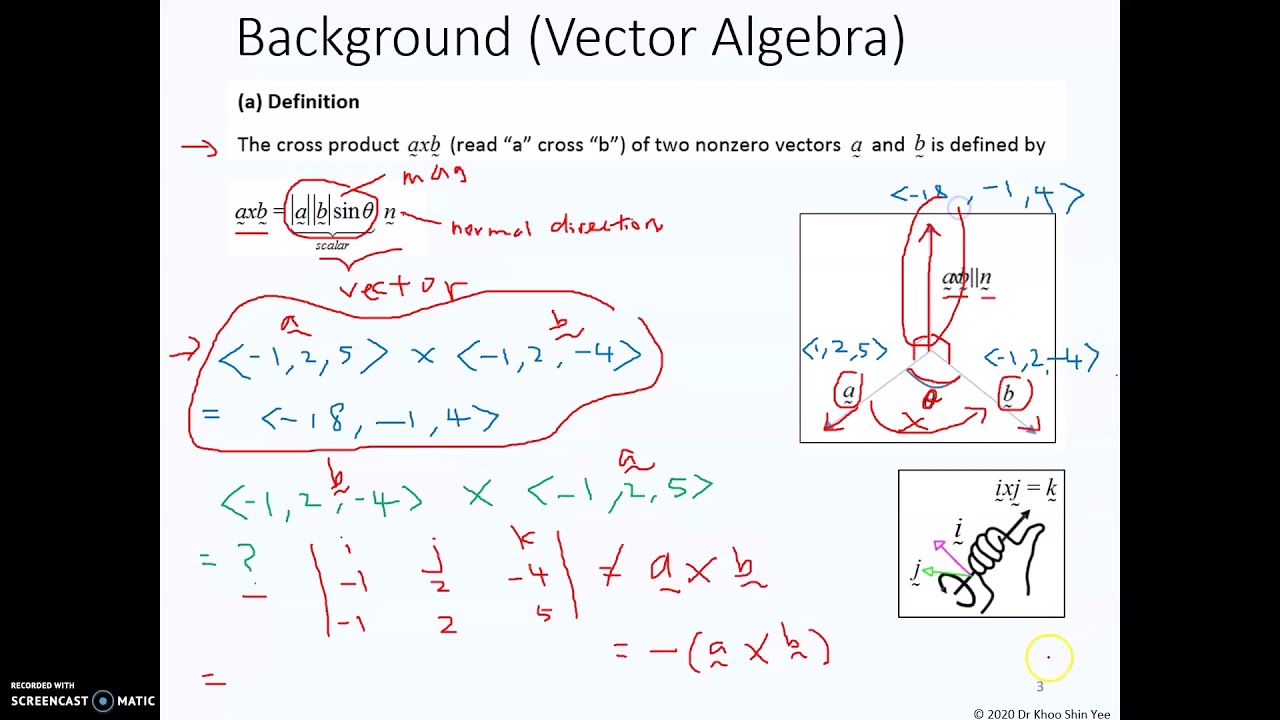

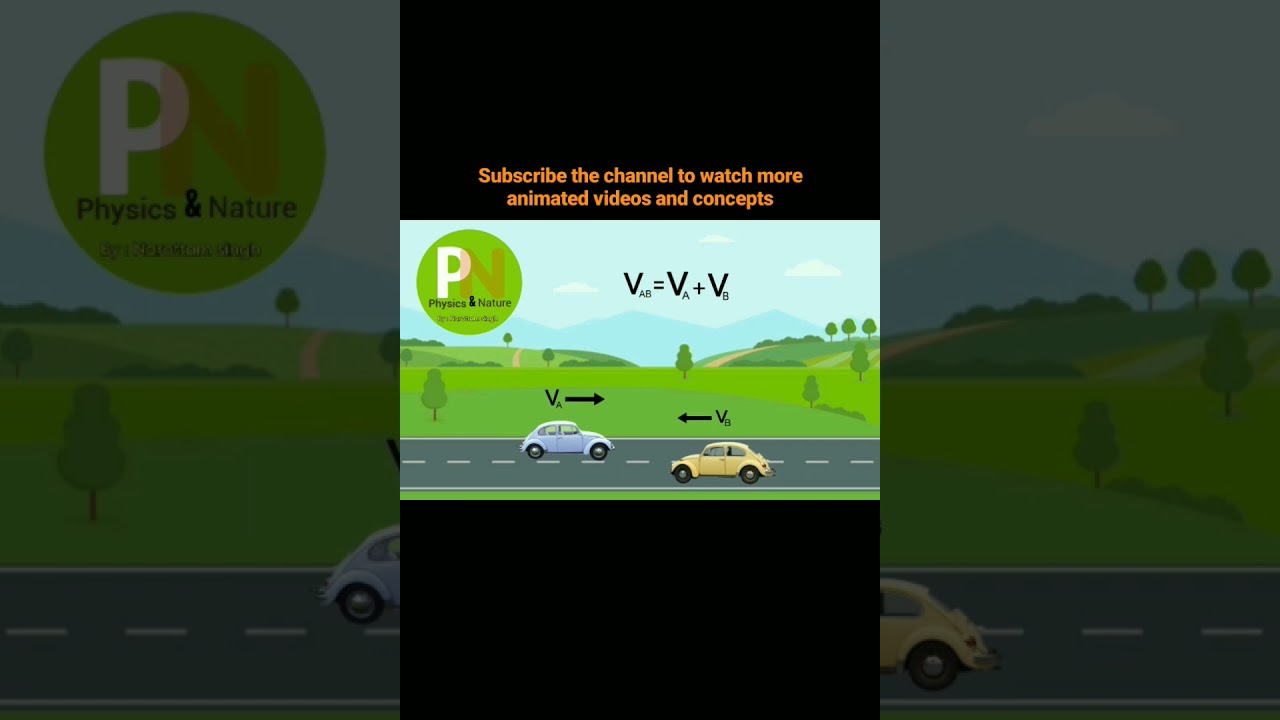

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Absolute Motion
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Absolute motion:
a(t) = u(t) + u_g(t)
Detailed Explanation
Absolute motion refers to the complete motion of an object relative to a fixed reference point. In the context of structural engineering, absolute motion (denoted as 'a(t)') is the total displacement of a mass from an initial position, calculated by adding the relative motion of the mass with respect to the ground ('u(t)') to the motion of the ground itself ('u_g(t)'). This means that if the ground moves, the building must also be considered in how far it moves from its original position.
Examples & Analogies
Think of a person standing in a moving bus. If the bus moves forward and the person walks to the front of the bus, their absolute motion is a combination of both movements — the motion of the bus plus their own movement.
Importance of Relative Displacement
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Engineers are often interested in relative displacement, as it reflects the deformation within the structure.
Detailed Explanation
Relative displacement focuses on the movement between specific points within a structure, as opposed to the overall movement of the structure itself. This is crucial for engineers because it helps them understand how the structure deforms under load. When an earthquake occurs, the deformation of various parts of the structure can indicate how safe the building is and whether it can withstand the stress of seismic forces.
Examples & Analogies
Imagine two connected cars on a roller coaster. Even if the roller coaster itself moves up and down, the relative motion would be how much one car moves in relation to the other car. Engineers want to monitor this relative motion to ensure the connection remains intact and safe.
Significance of Absolute Acceleration
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
However, absolute acceleration is important when analyzing the force demand on non-structural components (like equipment).
Detailed Explanation
Absolute acceleration refers to how quickly an object's velocity changes with time, considering both the acceleration due to ground motion and the motion of the mass itself. This is particularly important when assessing how non-structural components, such as equipment mounted on or within a building, will respond during an earthquake or dynamic loading. Understanding absolute acceleration helps ensure that these components are adequately secured and won't fail under seismic stress.
Examples & Analogies
Consider a dish placed on a table during an earthquake. The table (ground) moves, and so does the dish (the equipment on the floor). The absolute acceleration will determine whether the dish remains stable or falls off the table. Engineers need to account for this while designing to ensure all components remain secure.
Key Concepts
-
Absolute Motion: The total displacement of a mass from a reference point.
-
Relative Motion: The displacement of a mass concerning the moving ground.
-
Ground Motion: The movement of the ground as a result of seismic activity.
Examples & Applications
When analyzing a building during an earthquake, absolute motion is crucial to evaluate how far the building moves versus how its base moves.
Engineers assess the relative motion of a building's mass to determine internal stresses and deformations during seismic events.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Relative's close to the base, absolute's much more the case!
Stories
Imagine a dancer on a moving stage—her absolute movement includes both her steps and the stage's shifts. This represents how we need to view structures during an earthquake.
Memory Tools
Remember 'ARR'—Absolute is 'including ground', Relative is 'only with respect'.
Acronyms
ARM
Absolute Relies on Motion - keep Absolute and Relative in mind!
Flash Cards
Glossary
- Absolute Motion
The total motion of an object relative to a fixed point, represented as \(u_a(t) = u(t) + u_g(t)\).
- Relative Motion
The displacement of an object concerning another reference point, often the base or ground.
- Ground Motion
The movement of the earth's surface during seismic events, affecting structures.
- Structural Deformation
The change in shape or size of a structure during loading or after forces are applied.
