Understanding the Basics of Impulse Response
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we’re going to talk about impulse response functions, particularly how we can visualize them. Can anyone tell me what an impulse response function is?
Isn’t it how a system responds to an impulse force, like a quick push?
Exactly! An impulse response function gives us valuable insight into how systems behave when subjected to sudden forces. It’s like a snapshot of the system’s response. We can think of it in terms of graphs. What do you think those graphs might look like for different systems?
I imagine undamped systems would show steady oscillations, right?
That’s correct! Undamped systems exhibit a sine wave pattern. They oscillate indefinitely. Let’s visualize that with a graph.
What happens in damped systems then?
Great question! Damped systems show decaying oscillations. The rate of decay depends on the damping ratio ζ. Can anyone remember the implications of different values for ζ?
If ζ equals 1, it’s critically damped, right? So it would return to rest without oscillating.
Exactly, and if ζ is greater than 1, we call it overdamped, which means the system returns even slower to equilibrium without overshooting.
To summarize, the format of the impulse response helps us predict how structures will behave under real-world conditions, especially in earthquake engineering.
Visualizing Impulse Response Functions
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let’s discuss how we visualize these responses. What kind of graphs do we typically use?
I think we can use displacement vs. time graphs to see how far a system moves after an impulse.
And velocities can show us how quick that movement occurs, right?
Both are correct! The displacement vs. time graph will illustrate the peaks and troughs of oscillation, while the velocity vs. time graph will help us understand the changes in speed over time.
How do these graphs help in earthquake engineering?
They’re crucial! By analyzing the amplitude and duration of these responses, engineers can design structures that can withstand seismic activities without collapsing. This is important for safety and integrity during such events.
So, the visual interpretation helps guide the engineering decisions?
Exactly! Let’s take a look at some specific examples to better understand these graphs in real scenarios.
Connecting Theory to Practice
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
We've discussed theoretical concepts, but how does this apply practically? Can anyone provide examples in structural design?
I think engineers use these impulse response methods when designing skyscrapers to ensure they don’t sway too much during an earthquake.
Absolutely! It's about ensuring stability. The impulse response informs how much sway a skyscraper can safely handle.
What about bridges?
Good point! Bridges also need to maintain structural integrity during sudden seismic events. Resonance can amplify movements, which can be dangerous.
So, by controlling the oscillation patterns, we can greatly improve safety?
Exactly right! In conclusion, understanding impulse response through graphical representation is key for seeking design solutions that safeguard life and property.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The graphical interpretation of impulse response functions helps visualize the behavior of both undamped and damped systems in response to impulsive forces. The visuals illustrate the difference in system responses depending on damping conditions and provide essential insights for earthquake-resistant design.
Detailed
Summary of Graphical Interpretation of Impulse Response
Impulse response functions can be analyzed graphically to understand how different damping conditions affect a system's response to impulsive forces. In undamped systems, the response typically resembles a sine wave that starts from zero with initial velocity, while damped systems exhibit decaying oscillations where the decay rate is influenced by the damping ratio (ζ). Additionally:
- Critically Damped Systems return to equilibrium without oscillating.
- Overdamped Systems return to equilibrium slowly without overshooting.
Graphs, such as displacement vs. time and velocity vs. time, are critical in illustrating these behaviors. These visual representations are vital in earthquake-resistant design, where managing amplitude and vibration duration is essential for structural integrity during seismic events.

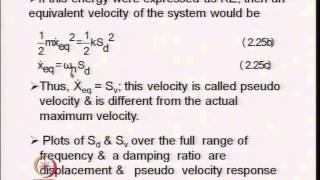

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Impulse Response in Undamped Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The impulse response function can be visualized to understand physical behavior:
- Undamped System: The response is a sine wave starting from zero with initial velocity.
Detailed Explanation
In a system with no damping, the response to an impulse input appears as a sine wave. This means that when an impulse is applied, the structure begins to vibrate with a specific frequency, displaying a smooth oscillation that continues indefinitely if no energy is lost. The oscillations start from a zero position and immediately gain velocity, reflecting the initial impact of the impulse. This clean sine wave characteristic indicates a system that can oscillate freely without any energy dissipation.
Examples & Analogies
Imagine a person jumping on a trampoline. When they jump (the impulse), they start bouncing up and down in a smooth sine wave motion. If there were no friction or air resistance, they would keep bouncing forever in a regular pattern.
Impulse Response in Damped Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Damped System: The response shows decaying oscillations. The decay rate depends on the damping ratio ζ.
Detailed Explanation
In damped systems, the response to an impulse shows oscillations that fade over time. The damping ratio ζ quantifies how quickly these oscillations decay. A higher damping ratio means the energy dissipates faster, and the system returns to rest more quickly. These decaying oscillations are crucial because they indicate that the structure will not oscillate indefinitely, which is important for safety and stability in engineering applications.
Examples & Analogies
Consider a pendulum with some friction at its pivot. After being pushed (the impulse), the pendulum swings back and forth, but each swing is smaller than the last due to energy lost to friction. Eventually, it comes to a stop, similar to how a damped system behaves.
Critically Damped Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Critically Damped: System returns to rest without oscillating.
Detailed Explanation
In a critically damped system, the system returns to its equilibrium position as quickly as possible without any oscillation. This means that after an impulse, the system doesn't overshoot its original position and settles back down smoothly. Critically damped systems are ideal in control systems because they prevent oscillation while ensuring a rapid response.
Examples & Analogies
Think of a door with a hydraulic closer. When you push it open (the impulse), it swings back and closes gently without bouncing back open again. This is similar to a critically damped response - quick and smooth return without oscillation.
Overdamped Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Overdamped: Slow return to equilibrium without overshooting.
Detailed Explanation
In overdamped systems, the return to equilibrium is very slow and occurs without any overshooting. This means that, after an impulse, the system gradually approaches a stable position, but takes longer to do so compared to critically damped systems. Overdamping is often undesirable in many engineering applications since it results in sluggish responses.
Examples & Analogies
Imagine a heavy, thick curtain on a window. When you pull it, it takes a long time to come back to the closed position due to its weight and resistance. Even though it eventually settles down without bouncing back, it reacts slowly, which could be frustrating if you needed a quick response.
Graphs Representing Impulse Response
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Graphs Typically Include:
- Displacement vs. Time
- Velocity vs. Time
- Influence of damping on amplitude and duration
Detailed Explanation
To visualize the behavior of different damping systems, engineers use graphs. The Displacement vs. Time graph shows how far the system moves from its rest position over time. The Velocity vs. Time graph depicts how quickly the system is moving at any point in time. Additionally, the graphs illustrate how the damping affects both the amplitude (the height of the oscillations) and the duration (how long the oscillations last). These graphical interpretations are vital in designing earthquake-resistant structures as they help engineers understand how buildings will respond under seismic loads.
Examples & Analogies
Think of watching a video of someone bouncing on a trampoline. The first graph shows how high they bounce over time (displacement), while the second chart shows how fast they are moving upwards and downwards (velocity). By analyzing these, you can tell how well the trampoline holds up under their jumps. Similarly, engineers analyze building responses to ensure safety during earthquakes.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Impulse Response Function: Describes how a system responds to an impulse input.
-
Undamped Systems: Oscillate indefinitely without any energy damping.
-
Damped Systems: Exhibits decay in oscillation amplitude over time.
-
Damping Ratio (ζ): A factor determining the decay rate and oscillation behavior.
-
Graphical Analysis: Visual representations such as displacement vs. time and velocity vs. time are essential for understanding system responses.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An undamped system experiencing an impulse response generates a sine wave pattern illustrating perpetual oscillation.
-
A damped system shows a steady decrease in amplitude over time, demonstrating how the system dissipates energy.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For the sine wave that’s wide and high, the undamped system reaches for the sky.
📖 Fascinating Stories
-
Imagine a swing that never stops - it swings and swings with each little hop, that’s the undamped wave, it just won’t drop!
🧠 Other Memory Gems
-
DAMP - Damping affects Amplitude and Motion Patterns.
🎯 Super Acronyms
SINE - Systems In Natural Equilibrium
- how undamped systems behave harmoniously.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Impulse Response Function
Definition:
A function that describes the output of a system when it is subjected to an impulse input.
-
Term: Damping Ratio (ζ)
Definition:
A dimensionless measure describing how oscillations in a system decay after a disturbance.
-
Term: Undamped System
Definition:
A system that experiences oscillations without any form of energy loss.
-
Term: Damped System
Definition:
A system where the oscillation amplitude decreases over time due to energy loss, such as friction.
-
Term: Critically Damped
Definition:
A condition where a system returns to equilibrium as quickly as possible without oscillating.
-
Term: Overdamped
Definition:
A state in which a system returns to equilibrium slowly and does not oscillate.
-
Term: Displacement vs. Time
Definition:
A graph plotting the position of an object over time to illustrate oscillation behavior.
-
Term: Velocity vs. Time
Definition:
A graph showing how the speed of an object changes over time, reflecting response dynamics.
