Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding the Equation of Motion
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to explore the equation of motion for a damped single degree of freedom system subjected to a unit impulse. Can anyone tell me what the general form of the equation looks like?
Isn't it something like mx¨(t) + cx˙(t) + kx(t) = F(t)?
Exactly! Here, m represents mass, c is the damping coefficient, and k signifies stiffness. Since we are considering a unit impulse, F(t) will be represented by the Dirac delta function δ(t). Can anyone explain what the delta function represents?
The delta function is a mathematical representation of an impulse, showing a force applied at a specific instant in time!
Great explanation! Now let’s discuss the damping ratio ζ. Can someone summarize its significance?
The damping ratio indicates how oscillations in the system decay over time. A ζ value less than 1 means the system is underdamped.
That's right! Remember, the behavior of our SDOF system can greatly change depending on the value of ζ. By the end of our study, you'll see why this is crucial in earthquake engineering.
Response Characteristics
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's look closely at the response of a damped SDOF system to the impulse. For ζ < 1, we can express the response as x(t) = e^{-ζω_n t}sin(ω_d t). Could anyone explain the meaning of each term in this equation?
The e^{-ζω_n t} part shows the exponential decay of the response, and sin(ω_d t) shows that it oscillates over time!
Perfect understanding! The decay affects how long the vibrations last, while the oscillation reflects how frequently they occur. Why do you think this knowledge is crucial for earthquake engineering?
It helps engineers predict how structures will behave when subjected to sudden forces like earthquakes!
Exactly! Designing buildings in earthquake-prone areas requires this knowledge to mitigate risks. Understanding the damping effects is key.
Practical Applications
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, how do we apply our understanding of the damped SDOF response to real-world scenarios?
We can use this to design structures that can withstand earthquakes!
Correct! By mathematically modeling the behavior of structures, engineers can adjust parameters to enhance stability. What key factor should engineers adjust to control vibrations?
The damping ratio! Increasing it can reduce the amplitude of oscillations.
Exactly! As we conclude, remember that the interplay between mass, damping, and stiffness profoundly influences structural dynamics. We'll delve into examples next class.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section details the equation of motion for a damped SDOF system subjected to a unit impulse, explaining the response characteristics based on the damping ratio and providing formulas for analyzing the system's decay behavior over time.
Detailed
Response of Damped SDOF System to Unit Impulse
This section focuses on the behavior of a damped single degree of freedom (SDOF) system when subjected to a unit impulse represented as a Dirac delta function. The governing equation for the motion of a damped system is expressed as:
Equation of Motion
$$mx¨(t) + cx˙(t) + kx(t) = δ(t)$$
Where:
- m: Mass
- c: Damping coefficient
- k: Stiffness
- x(t): Displacement
- F(t): External force, in this case, the impulse.
Parameters
From this equation, we define the damping ratio (ζ) and the natural frequency (ωn):
- $$ζ = \sqrt{\frac{c}{2m}}$$
- $$ωn = \sqrt{\frac{k}{m}}$$
- The damped natural frequency is given by:
$$ωd = ωn\sqrt{1 − ζ^2}$$
Assuming initial conditions of zero displacement and velocity before the impulse, and an initial velocity after the impulse, we derive the response function.
Response for Underdamped System
For the case where ζ < 1, which indicates an underdamped situation, the response of the system can be modeled as follows:
$$x(t) = e^{-ζω_n t} sin(ω_d t) ext{ for } t > 0$$
This equation reveals how the response of the system decays exponentially over time due to the effects of damping, with the oscillatory behavior governed by the damped natural frequency. This analysis is critically significant in engineering applications, particularly in earthquake engineering, where understanding the dynamic response of structures can aid in designing safer buildings that can withstand impulsive forces.

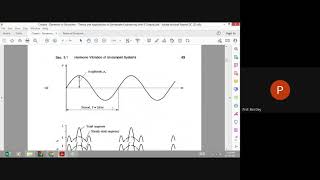

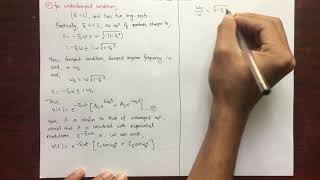

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Equation of Motion for Damped System
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For a damped system, the equation of motion is:
mx¨(t)+cx˙(t)+kx(t)=δ(t)
Detailed Explanation
In a damped single degree of freedom (SDOF) system, the equation of motion describes how the system behaves when subjected to forces over time. The equation is adapted from the basic form of motion by including damping effects, where 'm' represents mass, 'c' represents the damping coefficient, 'k' represents stiffness, and δ(t) is the unit impulse applied at time t. This equation tells us how the system will respond to that sudden input, taking into account both its mass and the resistance due to damping.
Examples & Analogies
Think of a car's suspension system. When the car hits a bump (like a unit impulse), the damping in the suspension (like the 'c' in the equation) helps to absorb the shock and prevent the car from bouncing excessively. This is similar to how the damped SDOF system reacts to an impulse.
Parameters of Damped Response
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let:
• ζ = √c
• ω n = k/m, natural frequency
• ω d = ω n √(1−ζ²), damped natural frequency
Detailed Explanation
In analyzing the response of a damped system, it's essential to introduce critical parameters: the damping ratio (ζ), natural frequency (ω_n), and damped natural frequency (ω_d). These parameters define the behavior of the system under impulsive forces. The damping ratio helps quantify how much the system's oscillations will decay over time, while both natural frequencies are important to determine how quickly the system inherently wants to oscillate versus how quickly it actually oscillates with damping present.
Examples & Analogies
Consider a pendulum. If you swing it gently (no damping), it will swing back and forth at a specific natural frequency. If you add a sponge at the pivot that absorbs energy (like damping), it will lose energy with each swing and take longer to come to rest compared to the undamped case. Here, the sponge introduces damping, which alters both the rate and style of oscillation.
Initial Conditions and Response Form
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Assuming initial conditions:
• x(0−)=0, x˙(0−)=0
• x˙(0+)= 1/m
Then for ζ <1 (underdamped case):
x(t)= e−ζω nt sin(ω d t), t>0
Detailed Explanation
For solving the response of the damped system, we first set initial conditions: both displacement (x) and velocity (x˙) are zero just before t=0, and there's an initial velocity immediately after the impulse given by 1/m. If the system is underdamped (where ζ < 1), the response can be described by a mathematical expression that combines exponential decay and sinusoidal motion, indicating oscillations that decrease in amplitude over time.
Examples & Analogies
Imagine a swing. When someone jumps off (like applying an impulse), the swing starts moving but gradually slows down and eventually stops due to friction (like the damping effect). The mathematical model describes how quickly this happens, with factors like how heavy the person was and how strong the friction is impacting the response.
Damped System Response Insights
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This describes how the response decays over time due to damping.
Detailed Explanation
The response of a damped system to an impulse is characterized by decreasing oscillations over time. This behavior is due to the energy being dissipated through damping effects, which can be represented in the form of the response equation. Such decay is crucial for engineers to design buildings, bridges, and other structures capable of withstanding impulses like earthquakes, where damped responses can prevent excessive vibrations.
Examples & Analogies
Think of pushing a child on a swing. Initially, they swing high but will gradually swing lower with each push due to air resistance and other losses - this is similar to how the damped system responds. The push is like the impulse, and the swing's decreasing height is akin to the decay in oscillation amplitude.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Damped SDOF System: A single degree of freedom system that includes a damping element, affecting its oscillatory behavior.
-
Impulse Response: The system's reaction to a force applied at a single moment in time, characterized here by the Dirac delta function.
-
Decay of Response: Describes how the amplitude of the system's response reduces over time due to damping.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A damped SDOF system can be modeled to determine how it would behave during an earthquake, allowing engineers to design safer structures.
-
By analyzing the decay rate from an impulse, engineers can predict how long it will take for a structure to stabilize after an impulsive force.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When damping is light, the waves take flight, oscillations soar, but decay with time's might.
📖 Fascinating Stories
-
Imagine a swing that moves back and forth. If someone pushes it (impulse), it swings high but slows down over time (damping).
🧠 Other Memory Gems
-
Remember: 'Damping Delivers Dynamic Decay' ensures you retain how damping affects vibration response.
🎯 Super Acronyms
DROS (Damping Ratio Oscillation Stability) helps you recall the importance of the damping ratio.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Impulse
Definition:
A force of very large magnitude acting over a very short period of time.
-
Term: Dirac Delta Function
Definition:
A mathematical representation of an impulse used in system analysis.
-
Term: Damping Ratio (ζ)
Definition:
A measure of how oscillations in a system decay over time.
-
Term: Natural Frequency (ωn)
Definition:
The frequency at which a system tends to oscillate in the absence of any driving force.
-
Term: Damped Natural Frequency (ωd)
Definition:
The frequency at which a damped system oscillates, accounting for the damping effects.
