Introduction to Experimental Techniques
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will explore how to experimentally determine mode shapes of structures. Can anyone tell me why it's important to find these mode shapes?
It's important for understanding how buildings respond to vibrations, especially during earthquakes.
Correct! We need to know how structures will behave under dynamic conditions. There are three major methods for this: ambient vibration testing, shake table testing, and impact hammer testing.
What is ambient vibration testing?
Great question! Ambient vibration testing measures the natural vibrations that occur due to environmental forces, making it a non-intrusive way to assess a structure's mode shapes.
To help remember this, think of it as listening to the whispers of nature influencing the building's response.
Shake Table Testing Explained
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's discuss shake table testing. Why do you think this method could be beneficial?
It allows us to see how structures react to strong shaking, like an earthquake!
Exactly! By simulating seismic activity, we can observe exactly how a structure behaves, which provides vital data for improving its design.
What types of structures can be tested this way?
Virtually any structure can be tested! It's especially beneficial for complex buildings or those in high-risk earthquake zones.
Remember, shake table testing is like a dance-off for buildings, showing how well they can sway without falling!
Understanding Impact Hammer Testing
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s turn our attention to impact hammer testing. Can anyone explain what this involves?
I think it's about hitting the structure to see how it vibrates.
That's right! By striking the structure with a hammer, we induce vibrations and study how those vibrations propagate through the structure.
How is the data collected?
Good question! We typically use accelerometers or laser vibrometers to capture the vibrations. It’s crucial to analyze this data with specialized modal analysis software after collecting it.
To remember this, think of it as tapping a drum - the sound and how it resonates help musicians understand the instrument's characteristics.
Data Processing and Analysis
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Once we have all the data from these tests, what do you think is the next step?
We need to analyze it using software to find the mode shapes, right?
Exactly! Modal analysis software helps us interpret the data and identify the structural mode shapes accurately.
Why is it necessary to analyze the mode shapes?
Understanding the mode shapes is essential for modifying designs to enhance the seismic performance of structures. Remember, it's all about eliminating weaknesses before they cause a disaster!
In summary, this analysis is like putting together pieces of a puzzle where each piece tells us how the structure will perform under stress.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section covers various experimental methods for determining mode shapes, primarily through ambient vibration testing, shake table testing, and impact hammer testing. It emphasizes the importance of using accelerometers or laser vibrometers to collect data, which is subsequently analyzed using modal analysis software.
Detailed
Experimental Determination of Mode Shapes
In earthquake engineering and structural dynamics, the experimental determination of mode shapes is a crucial aspect for understanding how structures behave under dynamic loads. Mode shapes can be experimentally derived using several methodologies:
- Ambient Vibration Testing: This technique involves measuring vibrations in structures caused by environmental factors such as wind or traffic, allowing insights into natural frequencies and mode shapes without the need for active excitation.
- Shake Table Testing: This method simulates seismic activity on a structure by subjecting it to controlled shaking, providing direct observation of the structure's response to dynamic loads, which helps derive accurate mode shapes.
- Impact Hammer Testing: In this method, a hammer is struck against the structure to induce vibrations, and the resultant movements are captured using sensors, allowing for the identification of mode shapes based on the frequency response functions.
Data collected from these tests is recorded using accelerometers or laser vibrometers. This data is then processed using modal analysis software to obtain precise information regarding the structure's mode shapes. Understanding these experimental results is essential for enhancing seismic resilience in architectural designs.

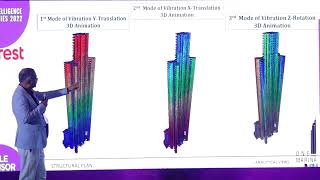

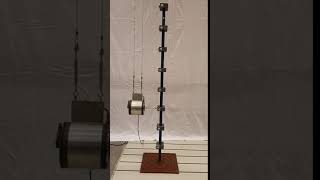

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Methods for Experimental Determination
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Mode shapes can also be found through:
- Ambient Vibration Testing
- Shake Table Testing
- Impact Hammer Testing
Detailed Explanation
This chunk introduces the experimental methods used to determine mode shapes. Each method has its own approach:
- Ambient Vibration Testing: This method involves measuring vibrations caused by natural sources such as wind or traffic, without applying any external loads to the structure.
- Shake Table Testing: Here, the structure is placed on a shake table, which simulates an earthquake by subjecting the structure to controlled vibrations.
- Impact Hammer Testing: This method uses an impact hammer to strike the structure, and the resulting vibrations are measured to determine the mode shapes.
These methods provide practical means to observe how a structure behaves under realistic conditions and help engineers verify their design assumptionsbased on theoretical models.
Examples & Analogies
Think of a musician tuning a guitar. The musician uses their ears to listen to how the strings vibrate when plucked. Similarly, engineers use these testing methods to listen to the vibrations of structures, helping them understand the natural frequencies and deformation patterns of buildings, just as a musician aims to achieve the perfect tune.
Instrumentation and Data Collection
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Data is recorded using accelerometers or laser vibrometers, and processed using modal analysis software.
Detailed Explanation
To collect data during experimental testing, specific instruments are used:
- Accelerometers: These devices measure the acceleration of the structure during vibrations. They provide detailed information about the movement experienced at various points on the structure.
- Laser Vibrometers: These non-contact instruments measure the velocity of the surface movement of the structure. They are especially useful for capturing precise vibrations without adding any mass to the system.
After data collection, the recorded vibration information is processed using modal analysis software. This software analyzes the data to identify the mode shapes and natural frequencies of the structure, allowing for detailed insights into its dynamic characteristics.
Examples & Analogies
Imagine using a radar gun to clock the speed of a race car. The radar collects data on how fast the car is going without touching it. Similar to this, accelerometers and laser vibrometers gather data on structural vibrations without interference, providing engineers a clear picture of the building's performance.
Importance of Modal Analysis Software
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Modal analysis software is crucial for processing the data collected from various testing methods.
Detailed Explanation
After data collection from tests like ambient vibration testing or shake table tests, engineers need to interpret that data. Modal analysis software aids in this process. Here's how:
- Data Interpretation: The software sorts through the raw data from sensors to find patterns in vibrations which correspond to specific mode shapes and natural frequencies.
- Visualization: It often provides visual representations of mode shapes, making it easier for engineers to understand how a structure will respond under different conditions.
- Design Validation: By comparing the experimental results with theoretical predictions, engineers can validate their models and make necessary adjustments to improve structural designs.
Examples & Analogies
Think of modal analysis software as the editor of a magazine. Just like an editor takes raw articles (data) and organizes them into a clear, comprehensible format for readers, this software transforms complex vibration data into useful information that engineers can use to assess and improve their building designs.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Testing Methods: Techniques like ambient vibration testing, shake table testing, and impact hammer testing are used to derive mode shapes.
-
Data Collection: Data is gathered through accelerometers and laser vibrometers for further analysis.
-
Modal Analysis: The collected data requires processing through software to accurately interpret mode shapes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using ambient vibration testing, engineers assessed the load-bearing capacity of a bridge under natural traffic conditions to predict its seismic behavior.
-
Shake table testing on a scaled-down model of a high-rise building demonstrated how the structure might behave in an earthquake, allowing engineers to identify potential failure points.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Shake the table, make it quake, test the structure for safety's sake!
📖 Fascinating Stories
-
Imagine a building goes to a party where the wind sings and kids dance; it sways gently to the beats of nature, revealing its strengths in harmony.
🧠 Other Memory Gems
-
Remember SHAKE: S - Simulate, H - Hammer, A - Analyze, K - Keep data, E - Enhance designs.
🎯 Super Acronyms
AVT stands for Ambient Vibration Testing, which helps find the whispers of buildings.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Ambient Vibration Testing
Definition:
A testing method that assesses structural behavior by measuring vibrations caused by environmental forces without external excitation.
-
Term: Shake Table Testing
Definition:
A method that simulates seismic activity on structures to study their dynamic responses.
-
Term: Impact Hammer Testing
Definition:
A technique in which a hammer is struck against a structure to induce vibrations, measuring the resulting frequency response.
-
Term: Modal Analysis Software
Definition:
Software used to analyze data from vibration tests and identify mode shapes and natural frequencies.
