Introduction to Damped Free Vibration
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will discuss damped free vibrations. Can anyone explain what happens to a system without damping?
The system would continue oscillating indefinitely at its natural frequency.
Correct! Now, when we introduce damping, what changes?
The amplitude of the oscillation decreases over time.
Exactly! This behavior is described by the damping ratio. Can anyone define what the damping ratio is?
Isn’t it the ratio of the damping coefficient to the critical damping?
Right! The ratio is given by ζ = c / (2√mk). This tells us whether the system is underdamped, critically damped, or overdamped. Let's take a closer look at each case.
Types of Damping
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
We have three cases to consider: underdamped, critically damped, and overdamped. What do you think happens in the critically damped case?
The system returns to the equilibrium position without oscillating.
Correct! Critical damping ensures the fastest return to equilibrium. Now, how does the overdamped case differ?
It also doesn’t oscillate, but it takes longer to return to equilibrium.
Right again! The key takeaway is that damping affects not just the presence of oscillations, but also the speed at which a system stabilizes.
Mathematical Description of Underdamped Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
For underdamped systems, we can model the vibrations mathematically. The equation of motion can be solved to give us `x(t) = e^{-ζω_n t}(A cos(ω_d t) + B sin(ω_d t))`. Can anyone explain what each part represents?
'x(t)' is the displacement at time t, while 'A' and 'B' are constants based on initial conditions.
And ‘ω_d’ is the damped natural frequency! It dictates how quickly the oscillations occur.
Excellent! Understanding these equations helps us predict how the system will behave under damped conditions.
Applications and Importance
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Why do you think it’s important for civil engineers to understand damped vibrations?
It helps in designing buildings that can survive earthquakes!
Exactly! Damping can prevent excessive vibrations during seismic events. What else can we do to enhance structural resilience?
We could incorporate damping mechanisms into the structure!
Good point! Remember, the aim is to minimize vibrations and ensure safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section explores the concept of damped free vibrations in single degree of freedom systems. It categorizes damping into underdamped, critically damped, and overdamped systems, and introduces the corresponding mathematical solutions for each case, emphasizing the significance of the damping ratio in determining the system's response.
Detailed
Damped Free Vibration
In damped free vibrations, the presence of damping forces affects the motion of the vibrating system, characterized by the equation of motion:
Equation of Motion
mx¨ + cx˙ + kx = 0
- Here, m is the mass, c is the damping coefficient, and k is the stiffness of the system.
Damping Ratio
The damping ratio ζ is defined as:
ζ = c / (2√mk)
- It determines the behavior of the system:
- Underdamped (ζ < 1): The system oscillates with a gradually decreasing amplitude.
- Critically damped (ζ = 1): The system returns to equilibrium as quickly as possible without oscillating.
- Overdamped (ζ > 1): The system returns to equilibrium without oscillating but at a slower rate.
Solution for Underdamped Systems
For systems that are underdamped, the solution to the equation of motion can be expressed as:
x(t) = e^(-ζω_n t)(A cos(ω_d t) + B sin(ω_d t))
- Where ω_d = ω_n √(1 - ζ²) is the damped natural frequency, with ω_n being the natural frequency.
This section emphasizes the importance of understanding damped free vibrations for practical applications in engineering, especially in designing structures that can withstand dynamic forces.

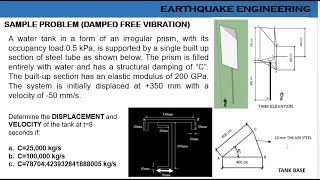

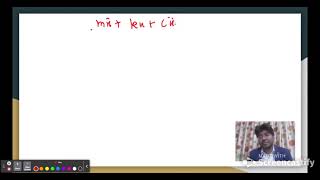

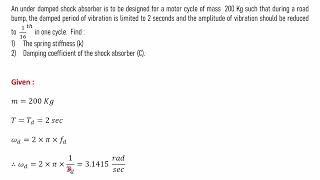

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Basics of Damped Motion
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When damping is included:
mx¨+cx˙+kx=0
The nature of the solution depends on the damping ratio:
c
ζ=
2√mk
Detailed Explanation
In a damped system, we consider the equation of motion for a vibrating body that includes a damping term. The equation mx¨ + cx˙ + kx = 0 describes the motion of the system, where 'm' is the mass, 'c' is the damping coefficient, 'k' is the stiffness, and 'x' is the displacement. The damping ratio (ζ) is a key parameter that helps determine the behavior of the system. It is calculated by dividing the damping coefficient by a critical value derived from the mass and stiffness, specifically 2√mk. This ratio helps identify how the system will respond to vibrations.
Examples & Analogies
Think of damping like the brakes on a bicycle. When you apply the brakes, they slow down the wheels (just as damping slows down oscillations), and the effectiveness of the brakes can be compared to the damping ratio. A little braking results in smooth slowing down (underdamped), while strong braking could stop the bike quickly without any swaying back and forth (critically damped), and if the brakes are stuck, the bike would merely resist motion without stopping abruptly (overdamped).
Types of Damped Vibration Cases
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cases of Damped Vibration:
- Underdamped (ζ<1): Oscillatory motion with exponential decay
- Critically damped (ζ=1): Fastest return to equilibrium without oscillation
- Overdamped (ζ>1): No oscillation; slow return to equilibrium
Detailed Explanation
Damped vibrations can be classified into three main categories based on the value of the damping ratio (ζ): 1. Underdamped (ζ < 1): The system oscillates, but the amplitude of those oscillations decreases exponentially over time. This is typical in many real-world systems where some oscillation is present before coming to rest. 2. Critically Damped (ζ = 1): This condition allows the system to return to its equilibrium position as quickly as possible without any oscillations. It is sought in applications where overshooting is undesirable. 3. Overdamped (ζ > 1): Here, the system does not oscillate at all. Instead, it returns to equilibrium slowly and smoothly, which might be suitable in situations where rapid return is not crucial.
Examples & Analogies
Imagine a swing. If a child gives the swing a gentle push (underdamped), it swings back and forth gradually coming to a stop. If the swing is given just the right amount of push (critically damped), it settles quickly without swinging past its resting position. If you push the swing too hard and it rubs against a rough surface (overdamped), it may take a long time to stop swinging entirely.
Underdamped System Response
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For underdamped systems:
x(t)=e−ζω nt (Acosω t+Bsinω t)
Where ω =ω √1−ζ² is the damped natural frequency.
Detailed Explanation
For systems identified as underdamped, the motion can be described with a specific formula for displacement over time: x(t) = e^(−ζωₙt)(Acos(ω_d t) + Bsin(ω_d t)). In this formula, e^(−ζωₙt) represents the exponential decay of the oscillation, which reduces the amplitude over time. The terms 'A' and 'B' are constants that represent the system's initial conditions. The damped natural frequency (ω_d) is also derived from the natural frequency (ωₙ) and the damping ratio, indicating how the presence of damping modifies the frequency of oscillation.
Examples & Analogies
Picture a car going over a series of speed bumps. If the shocks are properly tuned (underdamped), the car will bounce up and down several times, but each bounce will be lower than the last until the car comes to a stop. The mathematical formula helps predict exactly how high and how long it will bounce before stopping.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Underdamped systems exhibit oscillatory motion that decays over time.
-
Critically damped systems return to equilibrium as quickly as possible.
-
Overdamped systems do not oscillate and take the longest time to stabilize.
-
The damping ratio determines system behavior under vibration.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A car suspension system is designed to be underdamped for better comfort.
-
A door closer is a critically damped mechanism to ensure it shuts quickly without bouncing.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Damped systems can cease to sway, / Underdamped bounces, fades away.
📖 Fascinating Stories
-
Imagine a swing in a park. If damping is low, the swing keeps going back and forth. If it's just right, it settles quickly. But if it's too high, it will barely move.
🧠 Other Memory Gems
-
Remember the acronym 'UDO' for Underdamped, Critically damped, Overdamped to remember the types.
🎯 Super Acronyms
DAMP
- Damped systems Adjusting Motion Patterns.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Damping Ratio (ζ)
Definition:
A dimensionless measure of how oscillations in a system decay after a disturbance.
-
Term: Underdamped
Definition:
A system with a damping ratio less than 1 where oscillatory motion occurs with exponential decay.
-
Term: Critically Damped
Definition:
A system where the damping ratio equals 1, returning to equilibrium as quickly as possible without oscillation.
-
Term: Overdamped
Definition:
A system with a damping ratio greater than 1 that returns to equilibrium without oscillating but more slowly than a critically damped system.
-
Term: Damped Natural Frequency (ω_d)
Definition:
The natural frequency of a damped system, which is lower than the natural frequency of an undamped system.
