Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Resonance
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to discuss resonance in the context of earthquake engineering. Can anyone tell me what resonance is?
Isn't it when something vibrates at a certain frequency?
Exactly! Resonance occurs when the frequency of external excitation matches the natural frequency of a structure. This can lead to large amplitude oscillations.
What kind of structures are most affected by resonance during earthquakes?
Structures with poor damping that have natural frequencies within the earthquake excitation band are highly vulnerable, like tall buildings.
Why does low damping make a structure more susceptible to resonance?
Low damping means less energy is absorbed, allowing the oscillations to build up to dangerous levels.
So it's really important to consider damping when designing structures?
Absolutely! Effective damping is crucial to mitigate the risk of resonance.
To summarize: resonance is critical when the external frequency matches the natural frequency of a structure, especially under low damping conditions.
Structural Implications of Resonance
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's explore the implications of resonance. When resonance occurs, what do you think happens to the structure?
Does it start to shake a lot more?
Correct! The displacements and accelerations become amplified, which can lead to significant problems.
What kind of problems are we talking about?
We can see excessive inter-storey drift, which could cause cracks and failures in connections and joints. In some extreme cases, this might lead to total collapse.
That's pretty serious. How can we prevent this from happening?
Great question! We can shift the natural frequency, introduce damping, and avoid designing structures at resonance frequency ranges.
So planning is critical to avoid these scenarios?
Exactly! Proper design and analysis can significantly reduce these risks.
To wrap up, remember that resonance increases displacement and acceleration, leading to potential failures that we can mitigate through thoughtful engineering.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses how resonance can significantly increase the amplitude of structural vibrations during earthquakes, particularly when a structure's natural frequency aligns with the frequency of ground motion. The implications include risks of structural damage and potential collapse, alongside mitigation strategies.
Detailed
Resonance and Its Implications in Earthquake Engineering
Resonance is a crucial phenomenon in earthquake engineering, characterized by the matching of the frequency of external vibrations, such as ground motion during an earthquake, with the natural frequency of a structure. This condition leads to excessively large amplitude oscillations, intensifying the operational and structural conditions a building faces during seismic events.
Conditions for Resonance
- Occurrence: Resonance occurs if the external frequency (ω) matches the natural frequency of the structure (ω_n).
- Amplitude: At resonance, if there is low damping in the structure, the oscillations can become unbounded, leading to maximum amplitude displacements.
- Vulnerability: Structures with low inherent damping and natural frequencies that fall within the frequency range of earthquake excitations are particularly at risk.
Structural Response During Resonance
The effects of resonance can include:
- Amplified displacements and accelerations impacting the structural integrity.
- Increased inter-storey drift, resulting in:
- Cracks in structural and non-structural components.
- Failures in connections and joints, potentially leading to structural failure.
- In extreme cases, resonance can lead to total collapse of the structure.
Mitigation of Resonance Effects
Effective strategies to mitigate resonance effects on structures include:
- Adjusting the mass or stiffness of the structure to alter its natural frequency.
- Introducing adequate damping mechanisms to dissipate vibrational energy.
- During the design phase, avoiding natural frequencies that align with potential earthquake excitation frequencies to prevent resonance conditions.

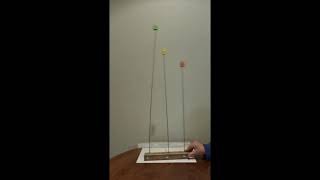

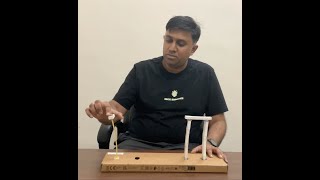

Youtube Videos
![[BCT2025 Webinar] Long Period Ground Motion in Earthquake – its Impacts, Measures and Effects 1](https://img.youtube.com/vi/0lGZlFHEbS4/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Resonance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Resonance is a critical phenomenon where the frequency of external excitation (such as ground motion) matches the natural frequency of a structure, resulting in large amplitude oscillations.
Detailed Explanation
Resonance occurs when an external force is applied to a structure at a frequency that coincides with the structure's natural frequency. Natural frequency is the frequency at which the system tends to oscillate when not subjected to continuous external forces. When these two frequencies align, it causes the structure to vibrate with greater intensity, which can lead to significant structural issues.
Examples & Analogies
You can think of pushing someone on a swing. If you push at the right moment, matching the swing's natural rhythm, the swing goes higher and higher with each push. This is similar to how resonance works—if forces are applied at the right frequency, the motion amplifies, which can be dangerous for structures during an earthquake.
Conditions for Resonance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
1.12.1 Conditions for Resonance
- Resonance occurs when:
- ω=ω_n
- At resonance, the amplitude becomes maximum if damping is low.
- Structures with poor damping and natural frequencies within the earthquake excitation band are highly vulnerable.
Detailed Explanation
For resonance to occur, the frequency of ground motion (ω) must match the structure's natural frequency (ω_n). When this happens, the oscillation amplitude—the distance from the original position—increases, especially in structures with low damping (the ability to dissipate energy). Structures that do not have effective means to absorb these vibrations become highly susceptible to damage during an earthquake.
Examples & Analogies
Imagine shaking a rope back and forth. If you shake it at a frequency that matches the rope's natural frequency, it will start to whip up and down dramatically. This is like what happens in buildings; if the earthquake shakes at just the right frequency, the building can sway precariously and potentially fail.
Structural Response During Resonance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
1.12.2 Structural Response During Resonance
- Amplified displacements and accelerations.
- Excessive inter-storey drift, leading to:
- Cracking in structural/non-structural elements.
- Failure of connections and joints.
- Total collapse in extreme cases.
Detailed Explanation
When a structure is resonating due to matching frequencies, it experiences larger-than-normal movements (displacements) and accelerations. This extreme shaking can lead to serious structural issues, such as cracks in walls or ceilings (both in load-bearing and decorative elements), weak connections failing, and in extreme cases, the total collapse of the structure. The shaking results in excessive drift between floors, which can severely undermine the integrity of a building.
Examples & Analogies
Think of a poorly supported bookshelf during an earthquake. If the quakes cause the bookshelf to sway wildly, the books can fall off, shelves can break, and in extreme cases, the entire shelf can topple over. This illustrates how critical it is for buildings to withstand the forces of an earthquake without resonating to dangerous levels.
Mitigation of Resonance Effects
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
1.12.3 Mitigation of Resonance Effects
- Shift natural frequency by changing stiffness or mass.
- Introduce sufficient damping.
- Avoid resonance frequency range during structural design.
Detailed Explanation
To prevent resonance effects, engineers can take various approaches. They can change the structure's stiffness or mass to shift the natural frequency away from the frequencies likely to be encountered during earthquakes. Additionally, introducing damping mechanisms (like shock absorbers) can help dissipate energy, reducing the likelihood of resonance. Lastly, during the design phase, engineers should aim to avoid creating structures that will resonate with potential earthquake frequencies.
Examples & Analogies
Consider a team of musicians tuning their instruments. If one instrument is out of tune with the others, it can create unwanted sounds. Similarly, by carefully tuning a building's structural properties, engineers can ensure it won't resonate dangerously during an earthquake, making it 'harmonize' with the ground motion rather than clash with it.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Resonance: A key earthquake engineering phenomenon tied to matching frequencies.
-
Damping: Essential for controlling amplitude in vibratory systems.
-
Natural Frequency: The characteristic frequency of the structure under which resonance can occur.
-
Inter-storey Drift: A significant factor affecting structural integrity during resonance.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A building designed with a natural frequency of 2Hz experiencing resonance during an earthquake that has similar frequency content, leading to structural issues.
-
Base isolation systems that adjust the natural frequency of a structure to minimize the risk of resonance.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the frequency's on the mark, our structure might face a stark, shocking arc!
📖 Fascinating Stories
-
Imagine a tall tower shaking during an earthquake because its natural frequency dances in tune with the shaking ground, causing chaos.
🧠 Other Memory Gems
-
R.E.S.O.N.A.N.C.E - 'Reverberations Emerge, Structures Oscillate, Noisy Amplifications, Natural Collapse Erupts.'
🎯 Super Acronyms
D.A.M.P - 'Dissipate Amplitude, Mitigate Pressure.'
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Resonance
Definition:
A phenomenon where the frequency of external excitation matches the natural frequency of a structure, leading to amplified oscillations.
-
Term: Damping
Definition:
The process of energy dissipation in a vibrating system, which reduces amplitude over time.
-
Term: Natural Frequency
Definition:
The frequency at which a system tends to oscillate when not subjected to a continuous external force.
-
Term: Interstorey Drift
Definition:
The relative displacement between two consecutive floor levels in a structure, important in assessing structural integrity.
