34.11 - Performance-Based Seismic Design (PBSD)
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Concept and Need
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are discussing Performance-Based Seismic Design, or PBSD. This approach focuses on not only ensuring structures don't collapse during earthquakes but also limits damage to ensure they can still operate after a seismic event.
Why is it important to limit damage? Isn't the primary goal just to prevent the structure from collapsing?
That's a great question! Limiting damage is particularly important for buildings that need to remain functional after an earthquake, like hospitals. In fact, we can categorize performance into levels such as operational, immediate occupancy, and life safety.
What does it mean to have an operational level?
An operational performance level means the building sustains no damage and can function normally right after an earthquake. Remember the acronym O for Operational!
So, if a building goes beyond that and experiences some damage that can still allow occupancy, that would be the immediate occupancy level, right?
Exactly! Immediate occupancy refers to minor non-structural damage, but the building is still safe for use. Summary: PBSD broadens our definition of safety by ensuring limited damage and continued functionality.
Performance Levels
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's explore the different performance levels within PBSD. We have four levels: operational, immediate occupancy, life safety, and collapse prevention. What do you think these levels aim to achieve?
I assume the goal is to ensure that structures can handle different earthquake intensities?
Absolutely! Each performance level corresponds to a specific response to seismic forces. For instance, 'life safety' means the structure can endure moderate damage but ensures safety for occupants. Can someone summarize the 'collapse prevention' level?
Collapse prevention means that even if the building suffers severe damage, it's designed not to collapse completely.
Spot on! We need to think of these levels as a scale that helps engineers create more resilient structures.
How many different earthquakes do we consider in this PBSD approach?
Good connection! We consider three main levels: the Service Level Earthquake (SLE), the Design Basis Earthquake (DBE), and the Maximum Considered Earthquake (MCE). Each has a specific purpose in ensuring structures meet the required performance.
Design Earthquakes for PBSD
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's delve into the earthquakes considered for PBSD. Who can tell me about the significance of Service Level Earthquake (SLE)?
The SLE is where the structure is expected to remain operational, right?
Exactly! Following SLE, we have the Design Basis Earthquake (DBE), which emphasizes life safety. What do you think happens at the Maximum Considered Earthquake (MCE) level?
That’s when the building is tested against severe conditions to prevent it from collapsing?
Right! The MCE relates to the most extreme seismic danger where the structure must still maintain significant integrity. Just to recap, remember SLE for operational capacity, DBE for life safety, and MCE for collapse prevention.
Nonlinear Analysis Requirements
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let's talk about the requirement for nonlinear analysis in PBSD. Why do you think traditional linear analysis may not suffice?
Linear analysis assumes proportional responses, right? It doesn’t account for things like material inelasticity?
Great observation! Nonlinear analysis, including pushover and time-history methods, captures more complex behaviors such as damage to building elements. Can anyone remember a key phrase related to this?
Material inelasticity and damage tracking!
Exactly! Remember, identifying how elements react under seismic forces is crucial in designing resilient structures. Summary: Nonlinear analysis is essential for accurately predicting a structure’s behavior during seismic events.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
PBSD is a modern approach in earthquake-resistant design that aims to manage not only preventable collapse but also to minimize damage and ensure functionality of structures across varying seismic intensities. It defines specific performance levels and requires detailed analysis to accommodate these goals.
Detailed
Performance-Based Seismic Design (PBSD)
Performance-Based Seismic Design (PBSD) represents a paradigm shift in how structures are designed to withstand seismic forces. Instead of only ensuring buildings do not collapse during seismic events, PBSD emphasizes the importance of functional preservation and limited damage under varying levels of earthquake intensity. This section discusses the foundational concepts of PBSD, the necessity of defining multiple performance levels, and the approach to seismic analysis required for this type of design.
Key Points Covered:
- Concept and Need: PBSD is critical for modern structures, particularly those that serve essential functions, such as hospitals and emergency facilities. It moves beyond traditional methods by integrating deformation capabilities and damage states into the design process.
- Performance Levels: PBSD categorizes performance into operational, immediate occupancy, life safety, and collapse prevention levels, ensuring defined criteria for how structures should behave under different seismic conditions.
- Design Earthquakes: PBSD involves assessing buildings against various seismic events:
- Service Level Earthquake (SLE) for operational criteria,
- Design Basis Earthquake (DBE) for life safety,
- Maximum Considered Earthquake (MCE) to ensure structures are designed to withstand extreme events without catastrophic failure.
- Nonlinear Analysis Requirements: To accurately represent building behavior, nonlinear analysis methods such as pushover analysis and time-history analysis are essential, as they account for material inelasticity and damage.
The growing use of PBSD principles directly influences building safety and resilience in earthquake-prone areas.

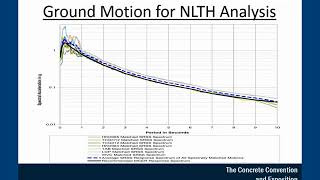

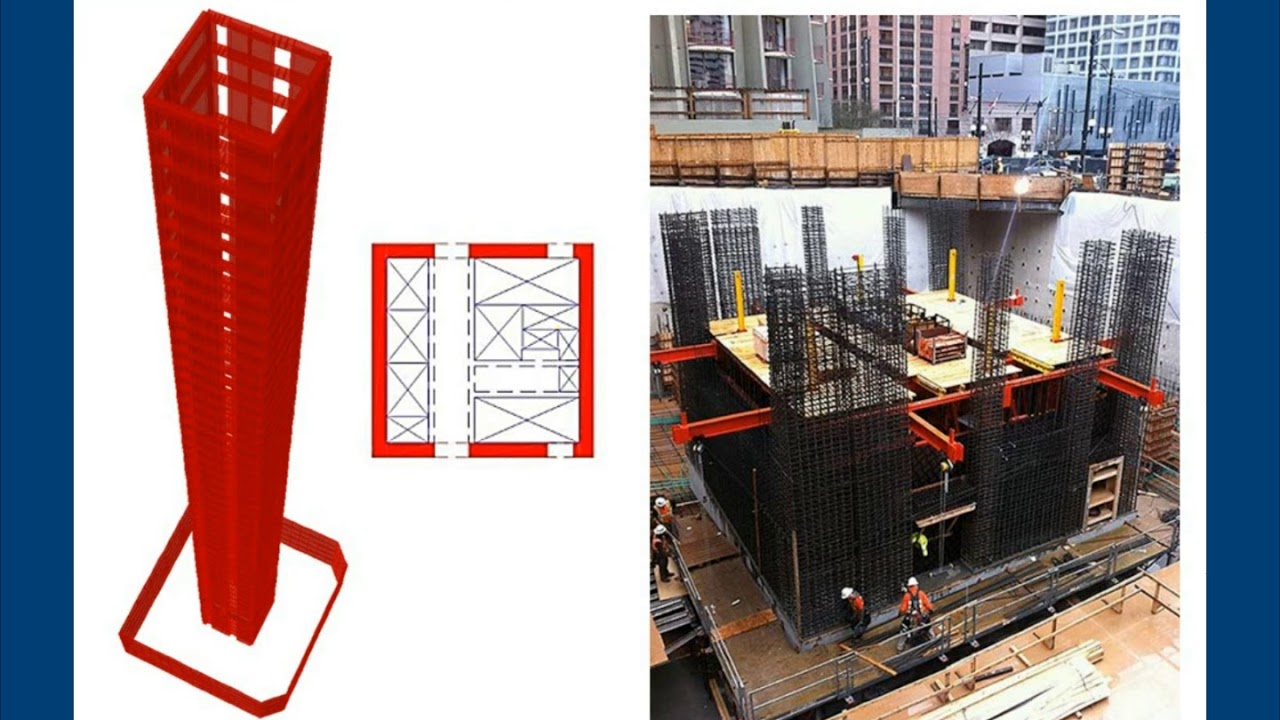

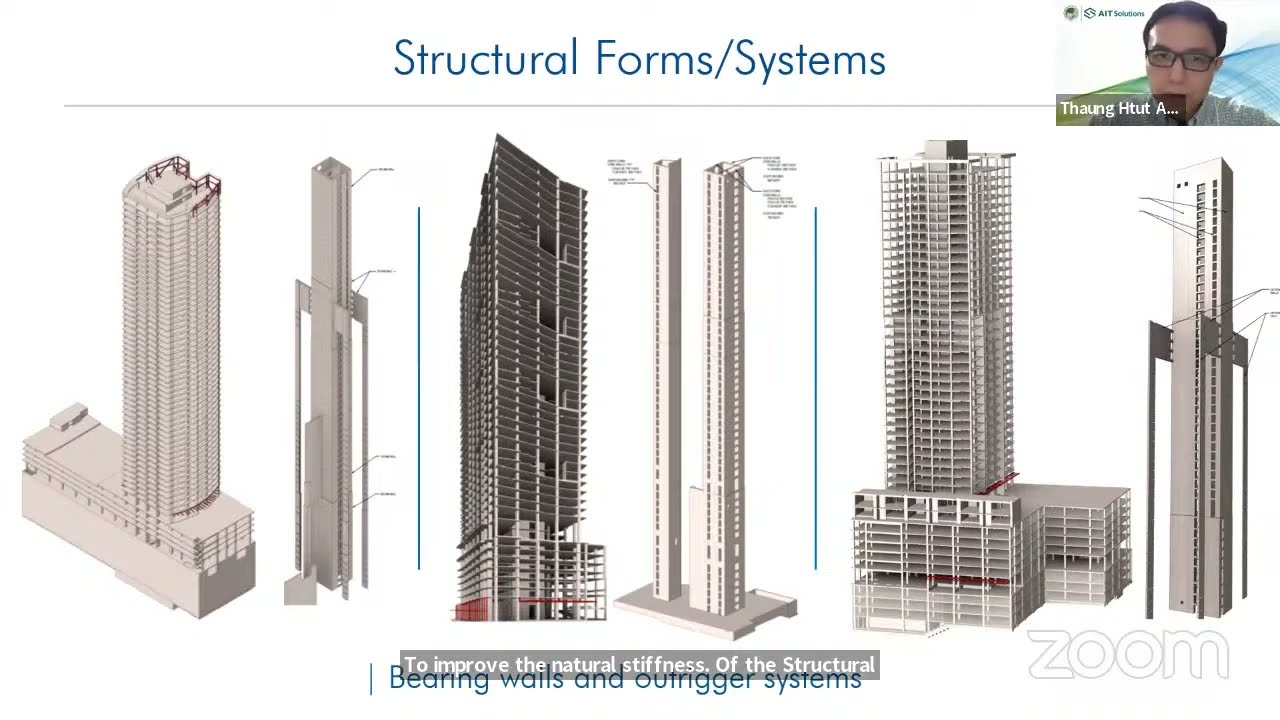

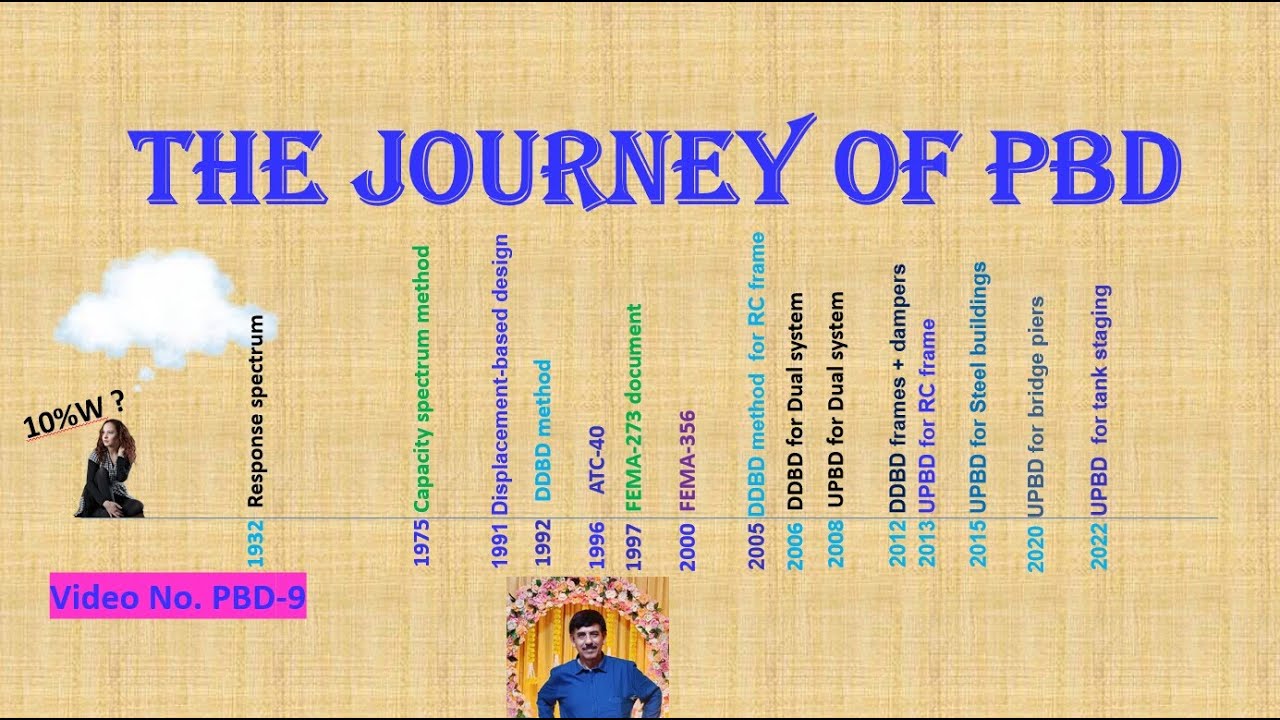

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Concept and Need
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- PBSD aims to design buildings not just to prevent collapse but to limit damage under various levels of seismic intensity.
- Goes beyond traditional force-based design by incorporating deformation and damage states.
Detailed Explanation
Performance-Based Seismic Design (PBSD) represents a modern approach to earthquake-resistant construction. The fundamental idea is to create buildings that do not simply focus on avoiding collapse during an earthquake but also ensure that they can withstand movements with minimal damage under different seismic scenarios. This approach is more comprehensive than traditional designs that primarily stress structural strength. PBSD takes into account how buildings deform and sustain damage instead of solely aiming for their survival. Thus, it provides a more practical framework for designing safer structures that can continue to function after an earthquake.
Examples & Analogies
Imagine a plastic bottle filled with water. If you squeeze it lightly, the bottle deforms but does not break. However, if you apply excessive pressure, it can crack. Similarly, PBSD allows buildings to absorb and manage stress during an earthquake, akin to how the bottle can handle some squeezing while remaining intact under regular conditions.
Performance Levels
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Operational: No damage, continues functioning (e.g., hospitals).
- Immediate Occupancy: Minor non-structural damage, safe for occupancy.
- Life Safety: Moderate structural damage, life safety ensured.
- Collapse Prevention: Severe damage but no collapse; residual capacity.
Detailed Explanation
PBSD defines specific performance levels that buildings should achieve during an earthquake. These levels help categorize the expected condition of the structure post-earthquake:
1. Operational: The building remains fully functional without any damage. This is critical for facilities like hospitals that need to operate continuously regardless of seismic activity.
2. Immediate Occupancy: Here, the building may sustain some minor damage—such as cracked walls or loose ceiling tiles—but is still safe for people to enter.
3. Life Safety: This level indicates that while the building has sustained moderate structural damage, safety measures are in place to protect lives, ensuring that there is no risk of serious injury or collapse.
4. Collapse Prevention: In this scenario, the building may suffer severe damage, but safety features prevent it from collapsing, allowing for possible evacuation or later inspection and repairs.
Examples & Analogies
Think of these performance levels like a safety net at a circus performance. The net ensures performers won't fall to their death (Collapse Prevention), while the performers themselves might stop for a moment to assess minor slips or tumbles without stopping the show (Immediate Occupancy). Just like a hospital must be ready to take care of patients right away, a building designed to the Operational level ensures ongoing function amidst risks.
Design Earthquakes for PBSD
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Two or more ground motion levels are considered:
- Service Level Earthquake (SLE): For operational/occupancy criteria.
- Design Basis Earthquake (DBE): For life safety.
- Maximum Considered Earthquake (MCE): For collapse prevention.
Detailed Explanation
In PBSD, designers take into account different earthquake scenarios to ensure a building can perform well under varying levels of ground shaking. There are typically three specific earthquake levels that guide the design process:
1. Service Level Earthquake (SLE): This is used for buildings that need to remain operational after minor earthquakes. The focus here is ensuring functionality without any significant damage.
2. Design Basis Earthquake (DBE): This level is critical for ensuring life safety. Structures must endure moderate shaking that might cause some damage but is designed to protect occupants.
3. Maximum Considered Earthquake (MCE): This encompasses the worst-case scenario that a building might experience. Structures must be able to withstand severe shaking without collapsing, even if significant damage occurs.
Examples & Analogies
Consider a family car that needs to perform well under different driving conditions. It should be reliable in light rain (SLE), safe to drive in moderate storms (DBE), and survive a severe flood or storm (MCE). Just as the car requires various features to handle these conditions, buildings under PBSD are designed for multiple earthquake scenarios to ensure safety and functionality at all levels.
Nonlinear Analysis Requirements
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Use of pushover (static nonlinear) or time-history (dynamic nonlinear) analysis.
- Material inelasticity and element damage tracked explicitly.
Detailed Explanation
To implement PBSD effectively, engineers utilize specialized analytical methods that go beyond traditional linear analysis. These methods allow them to account for the nonlinear behavior of materials under stress.
1. Pushover Analysis: This static method systematically increases lateral forces on a structure until it reaches its strength limit, allowing engineers to observe how it will likely perform as loads increase.
2. Time-History Analysis: This dynamic method examines how a structure reacts over time to actual earthquake ground motions. It effectively captures the varying responses of a structure during seismic events.
These analyses provide crucial insights into how materials may behave under extreme conditions, which supports better design choices.
Examples & Analogies
Imagine a teenager learning to ride a bicycle. Initially, they may practice in a straight line (linear behavior), but as their skill grows, they encounter varied terrain and learn to navigate dips and hills (nonlinear behavior). Similarly, engineers study buildings under predictable loads before accounting for unexpected forces from an earthquake, adopting dynamic, realistic assessment methods to ensure robustness and safety.
Key Concepts
-
Performance Levels: Categories defined in PBSD ensuring specific responses to seismic forces.
-
Operational: Performance level indicating no damage and ongoing functionality after an earthquake.
-
Nonlinear Analysis: Essential methodologies that consider inelastic material behavior for more accurate seismic response predictions.
Examples & Applications
A hospital designed for operational performance post-earthquake ensures no damage to critical equipment.
A residential building designed with life safety in mind may experience minor structural damage but still protects its occupants.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When an earthquake shakes the ground, PBSD keeps stability found.
Stories
A doctor in a hospital designed under PBSD experiences no damage after a quake, enabling continued care, illustrating the importance of operational capability.
Memory Tools
P-B-S-D: Prevent Collapse, Balance Damage, Stay Functional, Design Resilient.
Acronyms
P for Performance, B for Based, S for Seismic, D for Design.
Flash Cards
Glossary
- PerformanceBased Seismic Design (PBSD)
An approach to seismic design that focuses on limiting damage and ensuring functionality for structures during earthquakes.
- Service Level Earthquake (SLE)
Earthquake level for which a structure is designed to remain operational without significant damage.
- Design Basis Earthquake (DBE)
Earthquake level for which life safety is ensured, allowing for minor structural damage but preventing collapse.
- Maximum Considered Earthquake (MCE)
The most severe earthquake level a building must withstand to ensure that it does not collapse.
- Nonlinear Analysis
Analytical methods, including pushover and time-history analysis, that account for material inelasticity and track damage during seismic events.
