Smooth Wheeled Steel Drum Rollers
Unlock Audio Lesson
Let's start with smooth wheeled steel drum rollers. These rollers have a capacity ranging from 20 kN to 200 kN. Can anyone tell me what this capacity means in practical terms?
Does it refer to how much weight they can compact?
Exactly! A higher capacity indicates they can compact more material efficiently. They are self-propelled or towed. However, they are unsuitable for uniform sand, silty sand, and soft clay. Remember the acronym ‘GWS’ for Good with Sand – they work best with well-graded materials like sand and gravel.
Is there a specific type of soil they aren't good at?
Correct! They should not be used on loose sands or soft clays. Understanding the terrain is crucial for effective compaction.
So, if I want to compact a parking lot ground, would this be a good choice?
Yes, as long as the soil conditions are suitable. Remember to assess the soil type first!
In summary, smooth wheeled steel drum rollers are effective for compacting well-graded soils but not suitable for loose or soft soils.
Pneumatic Tyred Rollers
Unlock Audio Lesson
Next, let's explore pneumatic tyred rollers. These rollers usually have two axles and carry rubber tyres. What might be the benefit of using tyres instead of solid drums?
I think they might provide better flexibility and adaptability over uneven surfaces.
Good point! They do provide better adaptability and can compact a range of soils, from coarse to fine. They require additional dead load, usually water, to reach between 100 to 400 kN in weight. This makes them effective across many soil types.
But what about when they're not effective? What kind of soils are they unsuited for?
They aren't effective on very soft clay and highly variable soils. Remember this – ‘CVS’ stands for Coarse, Variability and Soft clay.
Could you give an example of where to use these rollers?
Certainly! They would be ideal for compacting the base of a road before paving.
So, to recap, pneumatic tyred rollers are versatile and suitable for a variety of soils, but avoid using them on very soft clay.
Sheepsfoot Rollers
Unlock Audio Lesson
Let's look at sheepsfoot rollers. What distinguishes these from the other types we’ve discussed?
They have those club-shaped feet, right?
Correct! The feet provide a kneading action, making them particularly effective for fine-grained soils. They can weigh between 50 to 80 kN. Do you recall which soils are best for them?
I think they are better for fine-grained and sandy materials with fines.
Exactly! They work well with fine-grained soil, sand, and gravel. However, specifics on their limitations are under revision. Always check the soil type before use.
When would I use a sheepsfoot roller in a project?
For applications such as road building where dense, fine soils are common. Just remember the term ‘FGB’ for Fine-Grained Benefits!
To summarize, sheepsfoot rollers are designed for kneading fine-grained soils and are very effective when compacting sand and gravel that contains fines.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines six different types of field compaction equipment, such as smooth wheeled steel drum rollers and pneumatic tyred rollers, explaining their capacities, uses, and limitations in soil types. Understanding these types is crucial for effective soil compaction in construction projects.
Detailed
Types of Field Compaction Equipment
In this section, we explore different types of field compaction equipment, each designed for specific soil types and compaction needs. The equipment includes:
- Smooth Wheeled Steel Drum Rollers - Typically used for compacting well-graded sand, gravel, and low plasticity silt. They operate with a capacity ranging from 20 kN to 200 kN and can be self-propelled or towed. However, they are ineffective on uniform sand, silty sand, and soft clay.
- Pneumatic Tyred Rollers - Characterized by two axles equipped with rubber tyred wheels, these rollers are loaded with water to achieve weights between 100 to 400 kN. They are versatile in working with both coarse and fine soils but are not suitable for very soft clay and highly variable soil.
- Sheepsfoot Rollers - These rollers are either self-propelled or towed and feature a drum with projecting, club-shaped feet for kneading action. Weighing between 50 to 80 kN, they are effective for compacting fine-grained soils, sand, and gravel with fine components, but specifics about performance in other soil types are under revision.
- Impact Rollers - Generally used for compacting very granular soils, these rollers utilize a dynamic force to densify the ground.
- Vibrating Rollers - These operate using vibration to enhance compaction; ideal for various soil types, they are known for providing more thorough density in granular soils.
- Hand Operated Vibrating Plate & Rammer Compactors - These compactors are used for small areas, suitable for footpaths and heavy manhole covers, making them essential for precise, localized compaction tasks.
Understanding the specifications and best applications of these types of compaction equipment helps in choosing the right tools for effective soil stabilization in construction projects.

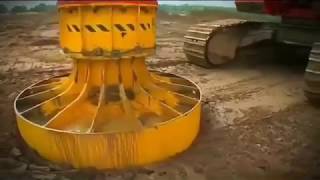

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Smooth Wheeled Steel Drum Rollers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Capacity 20 kN to 200 kN
- Self propelled or towed
- Suitable for well graded sand, gravel, silt of low plasticity
- Unsuitable for uniform sand, silty sand and soft clay
Detailed Explanation
Smooth wheeled steel drum rollers are large machines used to compact soil and aggregate. They have a capacity ranging from 20 kN to 200 kN, indicating the force they can apply to the ground. These rollers can either be self-propelled, meaning they have their own engine, or towed by another vehicle. They work best on well-graded materials like sand, gravel, and silt that have low plasticity, meaning they behave somewhat uniformly under stress. However, they are not suitable for uniform sand, silty sand, or soft clay, as these materials may not provide the stable base needed for effective compaction.
Examples & Analogies
Think of smooth wheeled steel drum rollers like a rolling pin used in baking. Just as you would use a rolling pin to flatten dough evenly, these rollers flatten and compact asphalt or soil surfaces. They’re perfect for firm soils but won't work well on dough that’s too sticky or too soft.
Pneumatic Tyred Rollers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Usually two axles carrying rubber tyred wheels for full width of track.
- Dead load (water) is added to give a weight of 100 to 400 kN.
- Suitable for most coarse & fine soils
- Unsuitable for very soft clay and highly variable soil.
Detailed Explanation
Pneumatic tyred rollers operate using two axles with rubber tyres that cover the full width of the track. To increase their compaction weight, they often have a 'dead load' added, typically water, resulting in a total weight between 100 to 400 kN. This design allows them to effectively compact a wide range of coarse and fine soils. However, they struggle with very soft clay and highly variable soil conditions, where the tyres may not provide enough compaction force.
Examples & Analogies
Imagine riding a bicycle over different surfaces. A bike with wide tyres can smoothly ride across gravel but may sink into soft mud. Similarly, pneumatic tyred rollers are designed for stability on firm ground but can topple or sink in soft, uneven terrain.
Sheepsfoot Rollers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Self propelled or towed
- Drum fitted with projecting club shaped feet to provide kneading action.
- Weight of 50 to 80 kN
- Suitable for fine grained soil, sand & gravel with considerable fines.
Detailed Explanation
Sheepsfoot rollers can also be self-propelled or towed and feature a unique drum that has club-shaped feet sticking out. This design allows them to knead the soil effectively, making them particularly suitable for fine-grained materials like sand and gravel that contain a good amount of fine particles. With a weight between 50 to 80 kN, they apply significant downward pressure, creating a well-compacted surface.
Examples & Analogies
Think of how a chef kneads dough with their hands. The way the chef pushes and presses the dough together until it's smooth is similar to how sheepsfoot rollers knead the soil, making it denser and more stable for construction.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Smooth Wheeled Steel Drum Rollers: Effective for well-graded sands and gravels; unsuitable for soft clays.
-
Pneumatic Tyred Rollers: Versatile for various soils; not effective on very soft clays.
-
Sheepsfoot Rollers: Unique kneading action ideal for fine-grained soils.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using a smooth wheeled steel drum roller to compact a gravel base for a road.
-
Employing a pneumatic tyred roller for preparing a parking area on sandy soil.
-
Utilizing a sheepsfoot roller during the construction of an embankment with clay and gravel.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When rolling fine soil, use sheepsfoot, it helps to knead, not just to root.
📖 Fascinating Stories
-
Imagine a construction site where the roller with club feet dances on soft clay, kneading it gently like a baker. It's a sheepsfoot roller, perfect for that fine-grained soil.
🧠 Other Memory Gems
-
Remember 'PSB' for Pneumatic Suitable for Both coarse and fine soils.
🎯 Super Acronyms
GWS
- Good with Sand for smooth wheeled steel drum rollers.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Smooth Wheeled Steel Drum Roller
Definition:
A type of compacting equipment that uses smooth steel drums to compact well-graded soils.
-
Term: Pneumatic Tyred Roller
Definition:
A compact tool that features rubber tyres providing flexibility and adaptability for soil compaction.
-
Term: Sheepsfoot Roller
Definition:
A roller equipped with club-shaped feet to knead soil and provide effective compaction, especially in fine-grained soils.
-
Term: Impact Roller
Definition:
A type of compaction equipment that uses a dynamic force to compact granular soils.
-
Term: Vibrating Roller
Definition:
A roller that utilizes vibrations to achieve effective soil compaction.
-
Term: Hand Operated Vibrating Plate Compactor
Definition:
A smaller, manual compaction device used for compacting small areas.
-
Term: Rammer Compactors
Definition:
Heavy-duty compaction tools used for compacting soil in localized areas.
