13. Maximum Intensity / Depth-Duration-Frequency Relationship

In the field of hydrology, particularly in design hydrology and water resources planning, understanding the behavior of rainfall over varying durations and return periods is critical. The Maximum Intensity / Depth-Duration-Frequency (IDF/DDF) relationship provides a scientific and statistical basis for estimating rainfall values for different storm durations and return periods. These relationships are widely used in the design of drainage systems, flood control structures, culverts, stormwater management systems, and urban sewer designs.

This introduction discusses the importance of understanding how rainfall behaves over different periods and intensity levels. The IDF/DDF relationship is essential for estimating how much rainfall to expect, which helps in designing infrastructures like drainage systems and flood control measures. Knowing the maximum intensity of rainfall and how it relates to duration and frequency helps engineers plan effectively for potential flooding.

Think of it like preparing for a storm. Just as a person might check the weather forecast to know whether to bring an umbrella, engineers use the IDF/DDF relationship to prepare urban areas for heavy rain. This preparation helps prevent flooding, just like an umbrella keeps you dry.

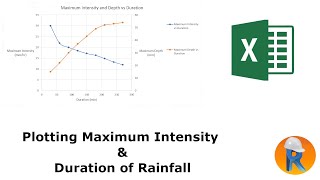

• Rainfall intensity refers to the rate at which rain falls, usually expressed in mm/hr or inches/hr. • It is a function of both depth and duration of rainfall. • High rainfall intensity over a short period can result in flash floods, hence it is a crucial parameter in hydrological design.

Rainfall intensity is a measurement of how quickly rain falls. It is crucial because a high intensity over a short time can lead to sudden and severe flooding (flash floods). Engineers need to consider rainfall intensity when designing drainage systems to ensure they can effectively handle heavy rainfall and prevent flooding disasters.

Imagine a sponge: if you pour water onto it slowly, it absorbs it without overflowing. But if you dump a bucket of water quickly, it overflows. Similarly, high rainfall intensity can overwhelm drainage systems, much like an overloaded sponge. Engineers work to ensure that drainage systems can handle such rapid rainfall.

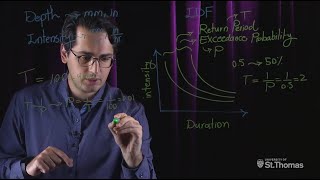

• The IDF relationship correlates rainfall intensity with storm duration for a given return period. • It helps determine the maximum expected rainfall intensity for a specified duration and frequency.

The IDF relationship provides a way to relate how intense the rainfall will be, depending on how long it lasts and how often such rainfall occurs. Return period means the expected frequency of the event, like a '1 in 10-year' storm, which could be expected to happen once every decade, on average.

Think of it like planning for a big party. If you know your friends often visit for movie nights every month (the interval), you can prepare snacks for their usual appetite (intensity) based on how many friends you expect (duration). Similarly, IDF helps planners prepare for heavy rains based on history and likelihood.

• The DDF relationship provides rainfall depth instead of intensity, useful in catchment modeling and water balance studies. • It is more suitable when rainfall volume (depth) over time is critical rather than just the intensity.

While IDF focuses on intensity, the DDF relationship looks at how much rain falls over a certain period, making it useful for studies that assess how water collects and flows through an area. This is critical for understanding water resources and managing how much water is available over time.

Imagine filling a bathtub (the catchment) with a hose (the rainfall). Knowing the depth of water in the bathtub after a set time helps you understand how much water you have without needing to check the flow rate of the hose constantly. Similarly, DDF helps understand total rainfall volume over time.

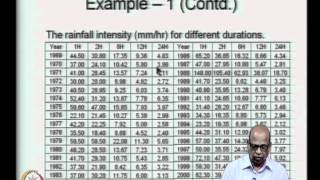

• Data Requirements:

• Long-term rainfall records from reliable meteorological stations.
• Hourly or sub-hourly rainfall data for short durations (e.g., 5-min, 15-min).
• Annual maximum series or partial duration series are used.

Creating IDF and DDF curves requires collecting extensive and reliable rainfall data over long periods. This data enables researchers and engineers to analyze patterns in rainfall intensity and depth, which are critical for developing accurate and meaningful curves for design and planning.

This is akin to a scientist collecting data by observing weather changes over years before drawing conclusions. Just like a long-term study helps establish trends in climate, long-term rainfall records help develop dependable curves that forecast future rain events.

• Gumbel Distribution (most commonly used) • Log-Pearson Type III • General Extreme Value (GEV) Distribution The data is statistically fitted to these distributions to derive rainfall values for different return periods.

Frequency analysis involves using statistical methods to fit rainfall data to specific distributions. The Gumbel Distribution is one of the popular methods for this analysis, helping predict how often extreme rainfall events might occur based on historical data.

Imagine trying to predict how many times you'd win a game (like tossing a coin). You'd look at past games to create a pattern or trend. Similarly, statistical methods help hydrologists predict future rainfall patterns by analyzing past data.

Several empirical formulas have been developed to represent the IDF relationship.

General Form of IDF Equation: K·Tm I = (D+C)n Where: • I = Rainfall intensity (mm/hr) • D = Duration (minutes or hours) • T = Return period (years) • K,C,m,n = Empirical constants determined from local rainfall data.

To mathematically express the IDF relationship, various empirical formulas are used, which contain constants derived from specific local data. This general form allows engineers to calculate rainfall intensities based on the duration and return period, making it easier to apply in real scenarios.

Think of a recipe for baking a cake where the specific amounts of ingredients (the constants like K and C) change based on the size of the cake you're making (duration and frequency). Just like adjusting a recipe, adjusting these constants allows engineers to get the correct calculations for local rain patterns.

--
