32.4. SCS-CN Method of Estimating Runoff

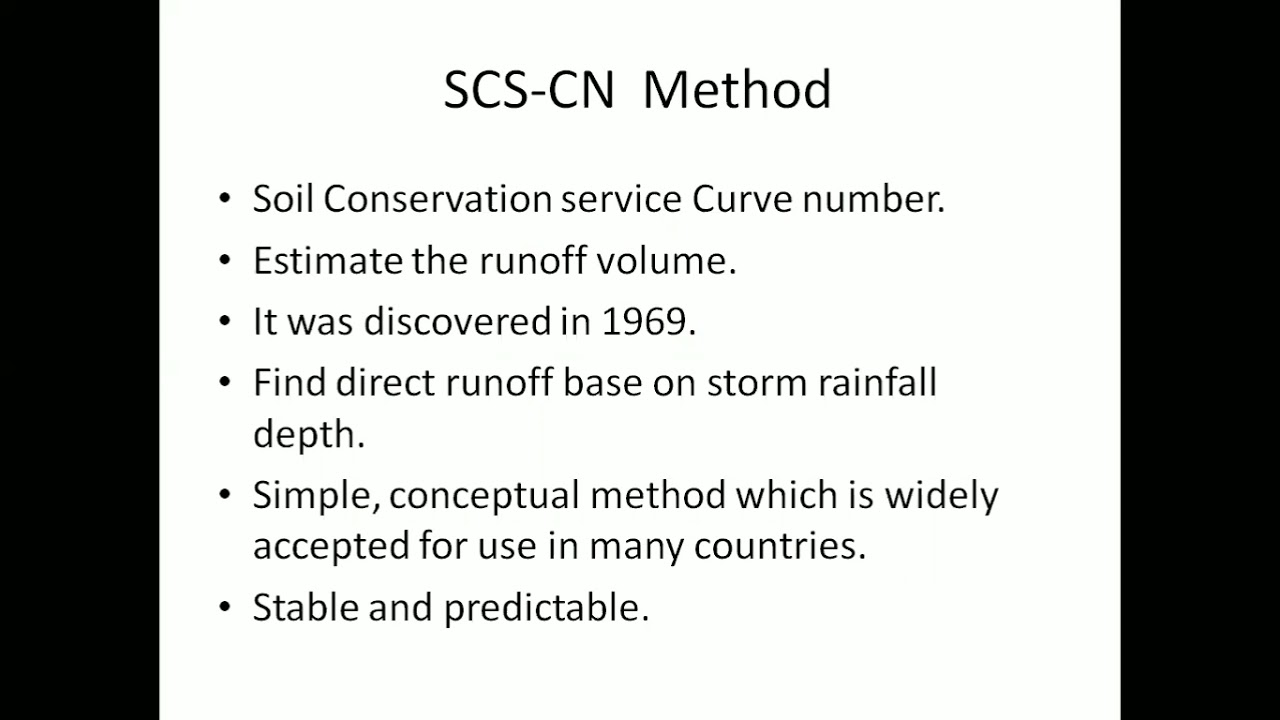

The Soil Conservation Service Curve Number (SCS-CN) method, developed by the USDA, is widely used for estimating direct runoff from rainfall events in small catchments.

The SCS-CN method is a widely accepted approach for estimating how much rainfall will result in runoff. It was created by the United States Department of Agriculture (USDA) and is especially useful for smaller areas or watersheds. The method simplifies the complex relationship between rainfall and runoff into a manageable calculation, helping engineers, hydrologists, and land planners make important water management decisions.

Imagine you're planning a small picnic in a park after a rainfall. You want to know if the ground will be too wet for your activities. The SCS-CN method is like using a reliable guidebook that helps you estimate how wet the ground will be based on the recent rain, taking into account factors like the type of soil and how much water the earth can soak up.

Assumptions • A fixed relationship between rainfall, retention, and runoff. • Based on antecedent moisture condition, land use, and hydrologic soil group.

The SCS-CN method is based on a few important assumptions. Firstly, it assumes a consistent relationship between the amount of rain that falls, the amount of water that the soil can absorb (retention), and the amount of water that ends up flowing away as runoff. Secondly, it considers previous moisture conditions in the soil, how the land is being used (like urban versus rural), and the type of soil present. This makes the method more accurate for predicting runoff under different scenarios.

Think of filling a sponge with water. The SCS-CN method is like understanding that if the sponge is already wet (antecedent moisture), it will absorb less water when you pour more in, leading to more runoff. Similarly, different sponges (soils) will absorb water differently based on their characteristics.

Key Equations

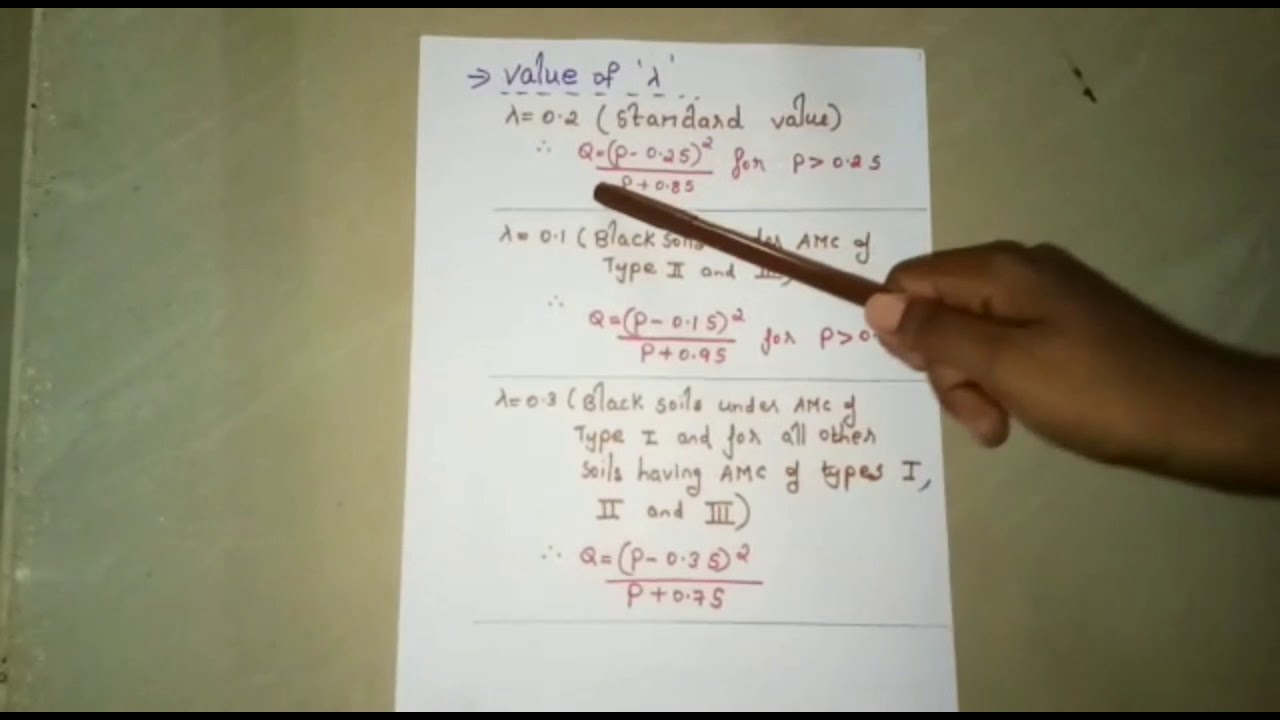

1. Runoff Depth (Q): (P − I)�2 Q= a for P > I (P − I + S)�a • Where: – Q = runoff depth (mm) – P = rainfall depth (mm) – I = initial abstraction (mm), typically 0.2S a – S = potential maximum retention (mm)

The method involves specific formulas to calculate runoff depth. The first equation shows that runoff occurs when the rainfall depth (P) exceeds initial abstraction (I), which accounts for the water that is initially absorbed or lost to evaporation before generating runoff. The available storage in the soil (S) is also considered when calculating how much water will flow away as runoff. By plugging in values for rainfall and soil characteristics, one can determine how much water will runoff into streams and rivers.

Imagine you’re filling a bucket with holes (the ground) under a drip from a leaky roof. If the bucket is dry (no initial abstraction), it can hold a certain amount of water before it starts overflowing (runoff). But if it’s already somewhat wet from a prior rain (initial abstraction), it will take less water before you see a spill over the sides.

2. Curve Number (CN) and Storage (S): 25400 S = −254 CN Curve Number (CN) • Ranges from 30 to 100. • Depends on land use, soil type, and AMC. • Tables are available from USDA handbooks.

The Curve Number (CN) is a crucial part of the SCS-CN method. It is a number that ranges from 30 to 100 and indicates how much runoff can be expected from a specific area based on its land use, soil type, and moisture conditions. A lower CN means less runoff and more water retention, while a higher CN indicates that a larger amount of rainfall will result in runoff. Various tables are available that provide average CN values for different scenarios, aiding users in estimating runoff efficiently.

Think of Curve Number like a grading system for different types of land. A park with grass (low CN, high retention) gets a different grade than a parking lot (high CN, low retention) when it rains. Just as teachers use grades to predict student performance, hydrologists use Curve Numbers to predict water runoff from different landscapes.

Advantages • Simple and easy to apply. • Requires limited data. • Widely accepted in watershed and drainage projects. Limitations • Best suited for small to medium watersheds. • Sensitive to CN value; errors in CN selection can lead to significant errors.

The SCS-CN method has several advantages, including its simplicity and the minimal amount of data it requires, which makes it accessible for many projects. It's widely accepted, making it a reliable choice for estimating runoff in small to medium watersheds. However, it does have limitations; for larger watersheds, the method may not provide accurate results. Additionally, the estimated runoff is sensitive to the accuracy of the Curve Number used; slight mistakes in selecting this value can lead to significant errors in predicting runoff.

Using the SCS-CN method is like using a simple recipe to bake cookies—it’s straightforward and doesn’t require fancy ingredients. But if you mistakenly add too much salt (incorrect CN value), the cookies won’t turn out right. Likewise, if you miscalculate the CN for a large watershed, your runoff estimates can be way off.

--
