5.2 - Important Terms Related to a Lens
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Principal Axis and Optical Centre
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Alright class, today we’re diving into the important terms related to lenses. Let’s start with the 'Principal Axis.' Does anyone know what it is?
Is it the line in the middle of the lens?
Great start! Yes, the principal axis is a straight line that passes through the optical center and the centers of curvature of the lens. It helps us track how light behaves as it passes through the lens. Can anyone tell me what the optical center is?
Is it where all the light rays go through without bending?
Exactly! The optical center, or 'O,' is the point at which light rays pass straight through without deviation. Remember this — we can think of 'O' like an open door for light! What’s the importance of knowing these two points?
It helps us understand how lenses work!
Exactly! Understanding these foundational points will help as we get into more complex topics around image formation and ray diagrams. Great job, everyone!
Principal Focus and Focal Length
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss the 'Principal Focus.' What do you think this term means?
Isn't it where the light rays meet after passing through the lens?
Yes, correct! The principal focus 'F' is the point where parallel light rays converge after passing through a convex lens, or where they seem to diverge from in a concave lens. Now, what about 'Focal Length?'
Is it the distance from the optical center to the principal focus?
Absolutely! The focal length 'f' measures how strongly a lens converges or diverges light rays. A shorter focal length results in a stronger lens. Can anyone summarize why understanding these points is significant in optics?
It helps with predicting where the image will form!
Exactly right! Knowing the focal length and focus allows us to determine image formation in future lessons. Well done, everyone!
Center of Curvature
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s touch on the 'Center of Curvature.' What does this term refer to?
Is it the center of the sphere that the lens is part of?
Exactly! The centers of curvature 'C1 and C2' are the centers of the spheres that form the lens’s surfaces. Understanding these centers is key to grasping the lens's shape, which in turn affects light refraction. Can anyone suggest why the shape is important?
It affects how much the light bends!
Right on! The curvature will dictate not just the quality of images produced but also their size and distance from the lens. Excellent discussion today, class!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section provides essential definitions of terms related to lenses, which are crucial for understanding how light interacts with optical devices. Key concepts include the principal axis, the optical centre, the principal focus, the focal length, and centers of curvature. These terms lay the foundation for grasping the principles of refraction and image formation.
Detailed
Important Terms Related to a Lens
This section delves into vital terminology associated with lenses that are crucial for both theoretical understanding and practical application in optics. The key terms include:
- Principal Axis: A straight line that runs through the optical center of the lens and the centers of curvature of its refracting surfaces, aiding in determining how light interacts with the lens.
- Optical Centre (O): identified as the point at the geometric core of the lens, through which light rays pass without deviation. This point is critical in understanding the paths taken by rays as they pass through the lens.
- Principal Focus (F): This refers to the point on the principal axis where light rays that are parallel to the principal axis converge (in the case of a convex lens) or appear to diverge from (in the case of a concave lens) after refraction. It is vital in understanding image formation as light rays converge or diverge at this point post-refraction.
- Focal Length (f): Defined as the distance from the optical center to the principal focus, the focal length is an important measurement that influences the lens's capability to converge or diverge light rays.
- Centre of Curvature (C1, C2): These are the centers of the spherical surfaces that form the lens and play a crucial role in determining how the lens bends light. Understanding these centers is essential for analyzing the lens's shape and its impact on optical performance.
Grasping these concepts not only enhances the understanding of lens behavior but also lays the groundwork for further exploration of ray diagrams and image formation in later sections.

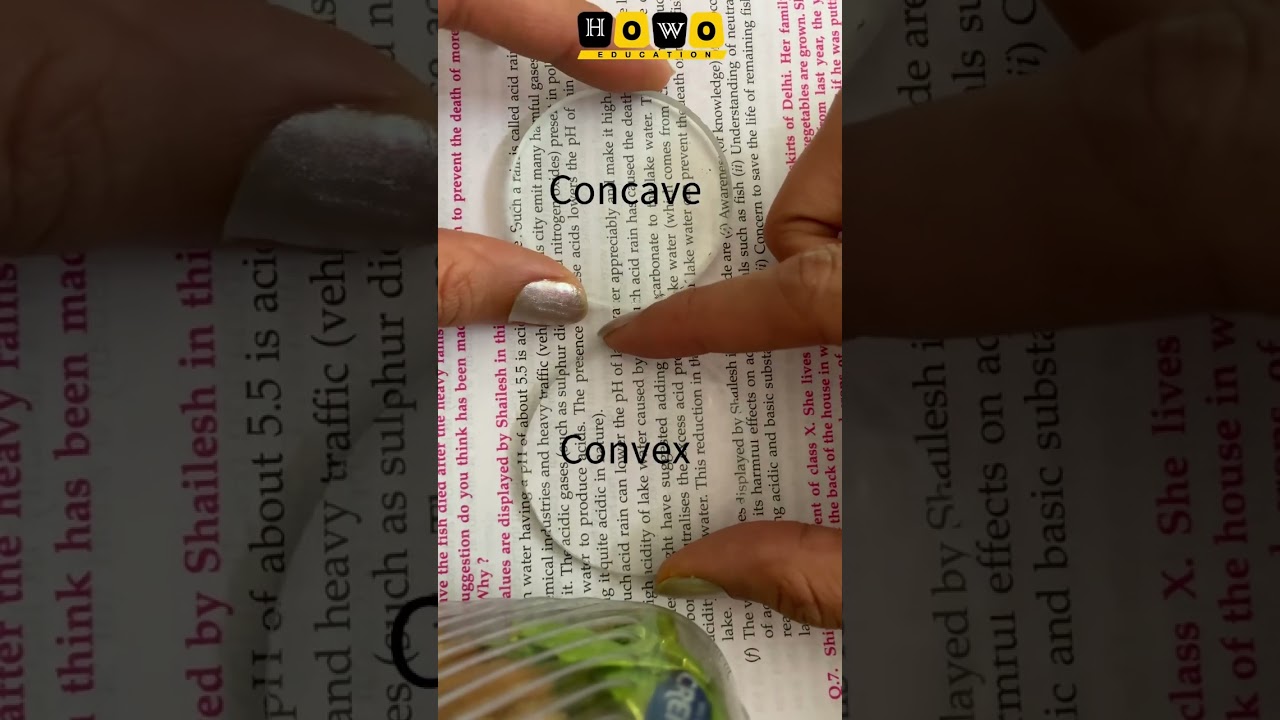

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Principal Axis
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Principal Axis: A straight line passing through the optical centre and the centres of curvature of both spherical surfaces.
Detailed Explanation
The principal axis is an essential concept in optics relating to lenses. It refers to a straight line that goes through the optical center of the lens, as well as through the centers of curvature of the lens's surfaces. This line is crucial because it serves as a reference for measuring angles of incidence and refraction when light passes through the lens.
Examples & Analogies
Think of the principal axis as the spine of a book. Just as the spine holds the pages (or the content) together and provides structure to the book, the principal axis provides structure to the optical properties of the lens, guiding how light behaves when it interacts with the lens.
Optical Centre (O)
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Optical Centre (O): A point at the geometric centre of the lens through which a ray passes undeviated.
Detailed Explanation
The optical centre is a specific point located at the geometric center of a lens. When light rays pass through this point, they do not bend or change direction as they traverse the lens. This property is vital for understanding how lenses focus or disperse light, as it represents the point through which light travels straight.
Examples & Analogies
Imagine the optical center as a freeway intersection where no turns are made. Vehicles (light rays) passing through this intersection continue along their original path without any deviation. This is similar to light traveling through the optical center of a lens.
Principal Focus (F)
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Principal Focus (F): Point on the principal axis where light rays parallel to the axis converge (convex) or appear to diverge from (concave) after refraction.
Detailed Explanation
The principal focus is a key point for understanding lenses. For a convex lens, it is where incoming light rays that are parallel to the principal axis come together, or converge, after passing through the lens. Conversely, for a concave lens, the principal focus is a virtual point from which the light rays appear to diverge after they refract through the lens. This distinction is essential for predicting where images will form, especially in various applications like magnifying glasses or cameras.
Examples & Analogies
Consider a magnifying glass (a type of convex lens). When you hold it above an object, the light rays coming from the object are initially parallel, and they converge at the principal focus, allowing you to see a magnified image. In contrast, if you imagine standing in front of a concave lens, the light appears to come from a source behind the lens, almost like an illusion of light diverging from a point in space.
Focal Length (f)
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Focal Length (f): Distance between the optical centre and the principal focus.
Detailed Explanation
Focal length is the measure of how strongly a lens converges or diverges light. It is defined as the distance from the optical center to the principal focus. A shorter focal length means that the lens bends light more sharply and focuses it closer to the lens, while a longer focal length indicates a gentler bending of light and a focus that is further away. Understanding focal length is vital for applications in optics, photography, and designing lenses for specific purposes.
Examples & Analogies
Think of focal length like the reach of a powerful flashlight. A flashlight with a shorter reach (shorter focal length) illuminates a smaller area brightly right in front of it, while one with a longer reach (longer focal length) casts light over a larger distance, but may not be as bright right away. This analogy helps to visualize how different focal lengths affect the light convergence of a lens.
Centre of Curvature (C1, C2)
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Centre of Curvature (C1, C2): Centres of the spheres from which the two surfaces of the lens are a part.
Detailed Explanation
The centers of curvature are crucial to understanding the geometry of lenses. Each surface of a lens can be thought of as part of a sphere. The centers of these spheres are referred to as the centers of curvature. For a double-convex lens, there are two centers of curvature, one for each lens surface. Knowledge of these centers helps in calculating other properties of the lens, such as focal length and image formation.
Examples & Analogies
Imagine the lens as being formed from two balloons. The center of each balloon represents the center of curvature. Just like how the surface of the balloon curves outward from its center, the surfaces of the lens curve from their respective centers of curvature. Understanding these centers makes it easier to predict how lenses will bend light, similar to how the shape of a balloon influences how air flows around it.
Key Concepts
-
Principal Axis: A crucial line through which light rays travel and helps in understanding their behavior through the lens.
-
Optical Centre: The point where light rays pass through a lens unchanged, significant in ray tracing.
-
Principal Focus: Marks where light converges or diverges; essential for image formation.
-
Focal Length: Determines how strongly a lens can bend light; reflects the lens's power.
-
Centre of Curvature: Relates to the spherical nature of the lens surfaces, influencing light behavior.
Examples & Applications
In a convex lens, rays parallel to the principal axis converge at the principal focus after passing through the lens.
In a concave lens, parallel rays appear to diverge from the principal focus.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Light through the center flows straight, the axis guides its fate.
Stories
Imagine a road leading straight to a magical lens town, where every ray finds its way without deviation, thanks to the optical center guiding them.
Memory Tools
To remember lens terms: 'A Center Focuses Light' (A for Axes, C for Center, F for Focus, L for Length).
Acronyms
LOCF - Lenses, Optical Center, Focus, Principal axis.
Flash Cards
Glossary
- Principal Axis
A straight line passing through the optical centre and the centers of curvature of the lens's surfaces.
- Optical Centre (O)
The point in a lens where light passes straight through without deviating.
- Principal Focus (F)
The point on the principal axis where parallel light rays converge (in convex) or appear to diverge from (in concave).
- Focal Length (f)
The distance from the optical centre to the principal focus.
- Centre of Curvature (C1, C2)
The centers of the spheres from which the lens surfaces are formed.
