5.3 - Ray Diagrams for Convex and Concave Lenses

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Ray Diagrams

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to discuss ray diagrams. Ray diagrams are essential for visualizing how light passes through lenses. Can someone tell me what they think a ray diagram represents?

Student 1
Student 1

It shows how light travels through a lens.

Teacher
Teacher

Exactly! The diagram helps us understand how the lens shapes the light. There are key rules for drawing these diagrams. Let's dive into them.

Rules for Convex Lenses

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

For a convex lens, we follow three main rules. First, a ray parallel to the principal axis passes through the focus after refraction. Can anyone illustrate that?

Student 2
Student 2

So the light converges at a point, right?

Teacher
Teacher

Correct! Secondly, a ray passing through the optical center of the lens continues in a straight line. Any questions on that?

Student 3
Student 3

What happens to a ray that goes through the focus?

Teacher
Teacher

Great question! If it passes through the focus, it will emerge parallel to the principal axis. Remember the acronym 'PFO': Parallel to Focus, Optical Center, Focus to Parallel.

Rules for Concave Lenses

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s talk about concave lenses. The rules are slightly different. Can someone recall the first rule?

Student 4
Student 4

A ray parallel to the principal axis diverges as if it came from the focus?

Teacher
Teacher

That’s right! Next, a ray through the optical center continues straight without deviation. And finally, a ray directed towards the focus emerges parallel to the principal axis—do we all agree on that?

Student 1
Student 1

Yes! It helps us draw how concave lenses work.

Application of Ray Diagrams

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Understanding ray diagrams not only helps us in exams but is practical too! Can anyone give an example of this?

Student 2
Student 2

In designing cameras or eye glasses?

Teacher
Teacher

Exactly! Ray diagrams aid in optics for designing lenses for different applications. It is essential for engineers and designers to visualize how lenses will interact with light.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section provides key rules for constructing ray diagrams for convex and concave lenses.

Standard

In this section, we outline the fundamental rules for constructing ray diagrams for convex and concave lenses. These diagrams help visualize how light behaves when it passes through different types of lenses, providing important insights into image formation.

Detailed

Ray Diagrams for Convex and Concave Lenses

This section is crucial for understanding how light interacts with different types of lenses—specifically, convex and concave lenses. Ray diagrams offer a visual tool for predicting the behaviors of rays of light as they refract through lenses.

Key Points:

  1. Ray Construction Rules:
  2. A ray parallel to the principal axis will either pass through the principal focus (F) after passing through a convex lens or appear to diverge from the focus when using a concave lens.
  3. A ray passing through the optical center (O) of the lens travels straight without deviation.
  4. A ray passing through the focus will emerge parallel to the principal axis.

Understanding these rules aids in effectively drawing ray diagrams, which can illustrate the location, size, and nature of the images formed by either type of lens. This section serves as a foundational building block to explore further image formation and applications of lenses.

Youtube Videos

Convex and Concave Lenses
Convex and Concave Lenses
LENSES :CLASS 10 : CBSE & ICSE : CONVEX AND CONCAVE LENS: Characteristic of IMAGE :REFRACTION:
LENSES :CLASS 10 : CBSE & ICSE : CONVEX AND CONCAVE LENS: Characteristic of IMAGE :REFRACTION:
Refraction Through a Lens Class 10 ICSE | Light Physics ICSE Class 10 | @sirtarunrupani
Refraction Through a Lens Class 10 ICSE | Light Physics ICSE Class 10 | @sirtarunrupani
ICSE AND CBSE CH 5 REFRACTION THROUGH A LENS/CLASS 10/ACCORDING TO THE REDUCED SYLLABUS/2021 BOARDS
ICSE AND CBSE CH 5 REFRACTION THROUGH A LENS/CLASS 10/ACCORDING TO THE REDUCED SYLLABUS/2021 BOARDS

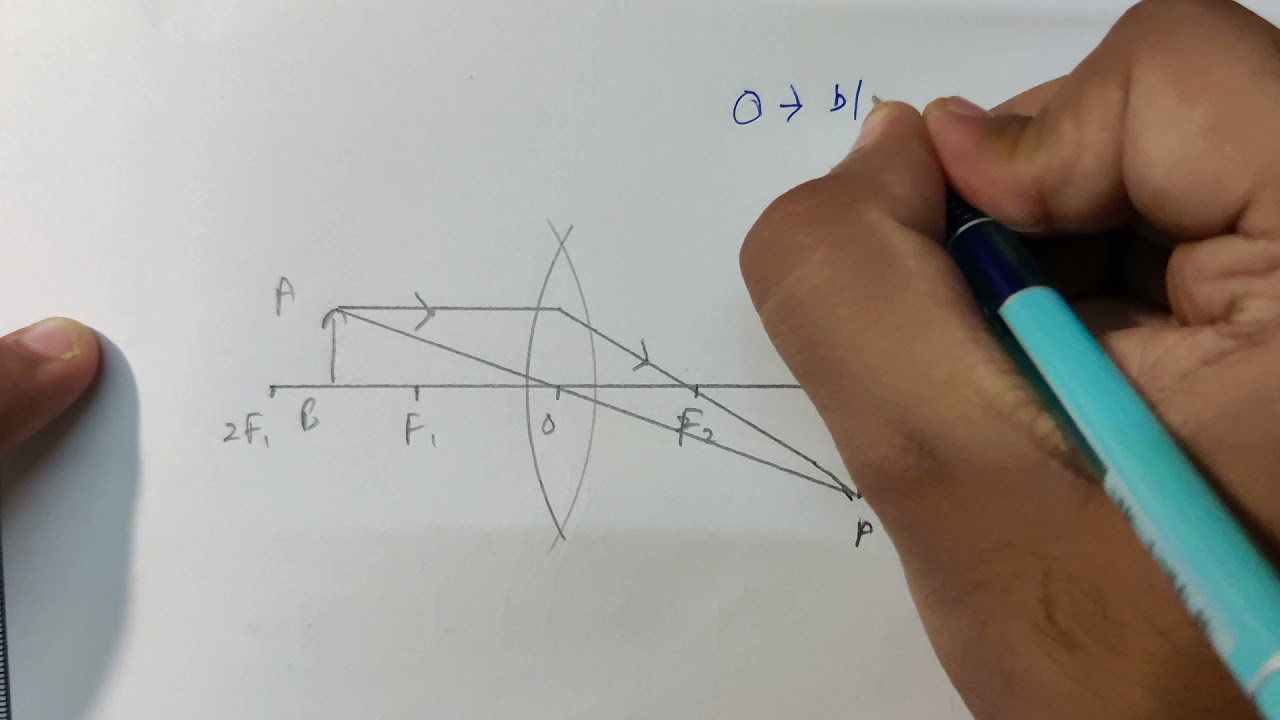

Convex Lens Ray Diagrams | Light | Class 10
Convex Lens Ray Diagrams | Light | Class 10
Refraction through a Lens Class 10 ICSE Physics |Selina Chapter 5| Formation of image by a lens
Refraction through a Lens Class 10 ICSE Physics |Selina Chapter 5| Formation of image by a lens
Why Does Light Bend? | Concave & Convex Lenses | The Dr Binocs Show | Peekaboo Kidz
Why Does Light Bend? | Concave & Convex Lenses | The Dr Binocs Show | Peekaboo Kidz
Lenses Class 10 physics chapter 2 English medium Kerala syllabus, New syllabus 2025-2026/ Part 4
Lenses Class 10 physics chapter 2 English medium Kerala syllabus, New syllabus 2025-2026/ Part 4
Image formation by CONVEX LENS animation | All 6 cases explained | Professor Phi
Image formation by CONVEX LENS animation | All 6 cases explained | Professor Phi
Refraction through a Lens | 1 Shot | Physics Class 10
Refraction through a Lens | 1 Shot | Physics Class 10

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Rules for Ray Construction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. A ray parallel to the principal axis passes through (convex) or appears to come from (concave) the focus after refraction.
  2. A ray passing through the optical centre travels straight without deviation.
  3. A ray passing through the focus emerges parallel to the principal axis.

Detailed Explanation

In this chunk, we describe three fundamental rules that help us construct ray diagrams for convex and concave lenses.

  • Rule 1: When a ray of light travels parallel to the principal axis of a lens, it will converge at the focal point on the other side for a convex lens. In contrast, for a concave lens, it will seem to originate from the focal point behind the lens.
  • Rule 2: If a ray passes directly through the optical centre of the lens, it will maintain its path and not bend. This property allows us to lay down the path the light takes as it interacts with the lens.
  • Rule 3: A ray that passes through the focal point of a convex lens will exit parallel to the principal axis. In the case of a concave lens, this rule helps us understand how light diverges after hitting the lens.

Examples & Analogies

Think of standing at a pond. When you throw a stone (the ray of light) into the water (the lens), the way it bounces off (refracts) shows how light travels through lenses. When you throw the stone parallel to the shore (Rule 1), it sinks down and spreads out (focuses to a point for the convex lens or diverges for the concave). If you drop it directly down (Rule 2), it goes straight in without changing direction. Finally, if you threw the stone directly towards the center of the pond (Rule 3), it would create rings (diverging rays) that spread out but started from one point.

Application of Ray Diagrams

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Constructing ray diagrams helps us understand how images are formed by lenses based on the object’s position relative to the lens.

Detailed Explanation

Ray diagrams visually represent how light interacts with lenses and helps us predict where images will form based on the position of the object. By applying the rules stated earlier, we can draw ray diagrams for both convex and concave lenses and see how light rays change their paths, allowing us to categorize the images formed (real or virtual, upright or inverted). Understanding these diagrams is crucial for applications in various optical devices such as cameras and eyeglasses.

Examples & Analogies

Consider how a camera captures an image. The camera lens uses these principles to focus light from the object onto a sensor, just like drawing ray diagrams. If you were to draw the rays from a scenic view passing through the camera lens, you'd be modeling how each light ray enters, bends, and ultimately meets at the focus to create a clear image of what you see in real life.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Ray Diagram: A visual representation of how light behaves when passing through a lens.

  • Convex Lens: A lens that converges light rays to a point.

  • Concave Lens: A lens that diverges light rays.

  • The Principal Axis: The central line around which a lens is designed, guiding the path of light.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

    1. Drawing a ray diagram for a convex lens showing how light converges to form a real image.
    1. Illustrating a concave lens diagram demonstrating how light diverges and forms a virtual image.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Convex lens, converging light, makes images clear and bright.

📖 Fascinating Stories

  • Once upon a time, in the land of lenses, a sunny ray met a convex lens and merged into a bright focus, creating beautiful images for all!

🧠 Other Memory Gems

  • For ray diagrams: 'POF' - Parallel to Focus, Optical center straight, Focus to Parallel.

🎯 Super Acronyms

FOP - For Optical Paths in lenses.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Convex Lens

    Definition:

    A lens that is thicker in the middle than at the edges and converges parallel rays to a point.

  • Term: Concave Lens

    Definition:

    A lens that is thinner in the middle and thicker at the edges, diverging parallel rays.

  • Term: Principal Axis

    Definition:

    A straight line passing through the optical center and the centers of curvature of both spherical surfaces.

  • Term: Optical Center

    Definition:

    The point at the geometric center of the lens through which a ray passes undeviated.

  • Term: Principal Focus

    Definition:

    Point where light rays parallel to the axis converge (convex) or appear to diverge from (concave) after refraction.

  • Term: Focal Length

    Definition:

    The distance between the optical center and the principal focus.
