5.7 - Magnification

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Magnification

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we will explore the concept of magnification. Can anyone tell me what magnification means?

Student 1
Student 1

Is it how much bigger an image appears than the actual object?

Teacher
Teacher

Exactly! Magnification is defined as the ratio of the height of the image to the height of the object. It's also expressed as the ratio of the image distance to the object distance, M = v/u. Can anyone recall what the symbols stand for?

Student 2
Student 2

I think 'v' is image distance and 'u' is object distance.

Teacher
Teacher

That's correct! Now let’s look at how magnification affects how we see images through different types of lenses.

Magnification in Convex Lenses

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

For convex lenses, we have different scenarios for magnification. Can anyone share one of those?

Student 3
Student 3

If the image is larger than the object, M will be greater than 1?

Teacher
Teacher

Correct! If M > 1, it means the image is enlarged. And what happens if the image is smaller than the object?

Student 4
Student 4

Then M will be less than 1, so it’s diminished.

Teacher
Teacher

Exactly! What about the orientation of the image? How can we determine if it’s real or virtual?

Student 1
Student 1

If M is less than 0, the image is real and inverted. And if it's greater than 0, it's virtual and erect!

Teacher
Teacher

Great job! Let’s summarize: Convex lenses can produce images that are enlarged, diminished, real, or virtual based on the distance of the object.

Magnification in Concave Lenses

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s discuss concave lenses. What can someone tell me about their magnification?

Student 2
Student 2

Concave lenses always have a magnification less than 1?

Teacher
Teacher

That's right! With concave lenses, the image is always diminished and virtual, so we can say M < 1 and M > 0. Why do you think this is important?

Student 3
Student 3

Because it makes them useful for things like glasses for nearsighted people.

Teacher
Teacher

Exactly! Invisible rays diverge, and our brain interprets it as coming from a point. So, it's essential to know how magnification works in different lenses to apply it practically.

Real-Life Applications of Magnification

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Can anyone give examples of where we might find magnification in our daily lives?

Student 4
Student 4

Cameras use convex lenses to capture enlarged images!

Student 1
Student 1

And microscopes too!

Teacher
Teacher

Right! Magnification helps us see details that are otherwise invisible. Let's recap: Convex lenses create a variety of image types whereas concave lenses always create diminished, virtual, erect images. This is crucial for applications in cameras, eyeglasses, and microscopes.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Magnification is the ratio of the height of the image to the height of the object, influencing image size and orientation based on lens type.

Standard

In this section, we cover magnification, defined as the ratio of image height to object height. We differentiate behaviors of convex and concave lenses regarding image size and orientation, establishing the conditions under which images are enlarged, diminished, real, or virtual.

Detailed

Magnification

Magnification (M) is a crucial concept in optics that describes the relationship between the dimensions of an image and the dimensions of the object. Mathematically, magnification is defined as the ratio of the image height (h2) to the object height (h1), expressed as:

\[ M = \frac{h_2}{h_1} = \frac{v}{u} \]

Where:
- M is the magnification,
- h1 is the height of the object,
- h2 is the height of the image,
- v is the image distance from the lens,
- u is the object distance from the lens.

The sign and value of magnification help determine the nature of the image:
- For convex lenses:
- M > 1: The image is enlarged.
- M < 1: The image is diminished.
- M > 0: The image is virtual and erect.
- M < 0: The image is real and inverted.

  • For concave lenses:
  • Images are always diminished, virtual, and erect: M < 1 and M > 0.

Understanding these principles of magnification is essential for applications in lenses, such as in cameras, eyeglasses, and microscopes.

Youtube Videos

Refraction Through a Lens Class 10 ICSE | Light Physics ICSE Class 10 | @sirtarunrupani
Refraction Through a Lens Class 10 ICSE | Light Physics ICSE Class 10 | @sirtarunrupani
Physics Chapter 5 Refraction Through Lenses One Shot - in 13 Minutes || ICSE Class 10 | ICSE Physics
Physics Chapter 5 Refraction Through Lenses One Shot - in 13 Minutes || ICSE Class 10 | ICSE Physics
Refraction through a Lens | 1 Shot | Physics Class 10
Refraction through a Lens | 1 Shot | Physics Class 10

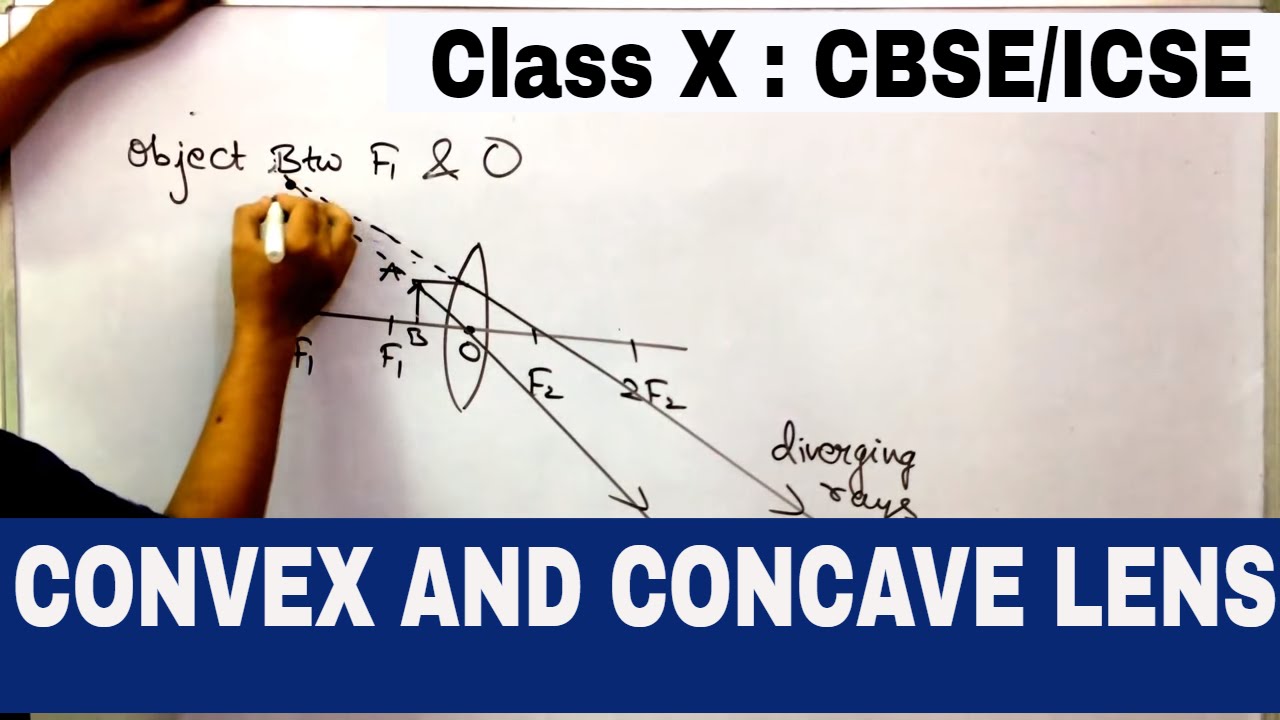

LENSES :CLASS 10 : CBSE & ICSE : CONVEX AND CONCAVE LENS: Characteristic of IMAGE :REFRACTION:
