Step 4: Python-Based Power Estimation Tool
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Power Estimation Tool
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re going to discuss how we can use a Python script to visualize power consumption in CMOS and FinFET. Why do you think it's important to visualize power consumption?
It helps us understand how changes in voltage affect power consumption for different technologies!
And it allows us to optimize designs better!
Exactly! We’ll look at the concept of dynamic power and how it varies with supply voltage using this script. Let's start by looking at the code itself.
Understanding Dynamic Power
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Dynamic power in circuits, especially in CMOS, is described by the formula P_dyn = αCLV_dd²f. Can anyone explain what each component represents?
α is the activity factor, right? It indicates how often the circuit is switching.
C_L is the load capacitance, and the f is the clock frequency!
Great! And remember, V_dd is the supply voltage. This relationship helps us understand why varying the voltage will affect our dynamic power outputs. Now, let’s see how this is reflected in our Python script.
Visualizing Power Consumption
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we've defined our parameters and calculated power for both CMOS and FinFET, we can plot these values. What do you think we might observe in the power consumption graphs?
I think we’ll see that FinFET should have lower power consumption for the same voltage!
And perhaps the rise in power consumption is more pronounced in CMOS as we increase the supply voltage?
Exactly! The distinct architectures lead to varied dynamic power profiles as voltage changes. Let's run the script and discuss our findings based on the output plots.
Interpreting the Results
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Looking at the plotted graph, what can you infer about the interaction between V_dd and dynamic power for both technologies?
The FinFET consumes less dynamic power than the CMOS across the voltage range!
And it looks like the increase in power becomes significant for CMOS as we approach the higher voltage values.
Right! These visualizations aid in understanding how design choices may impact energy efficiency. Let’s summarize what we’ve learned today.
Practical Applications of the Tool
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
So, how can you see using this power estimation tool in practical applications? Any ideas?
I think it would be essential for optimizing designs in IoT devices where power efficiency is critical.
Yeah! And possibly for high-performance computing, where you want to maximize performance without expending too much power.
Food for thought! This script can serve as a foundation for more complex analysis regarding power consumption. Remember, efficient power management is key in modern electronics. Great work today!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section discusses the creation of a simple Python-based tool that calculates and visualizes dynamic power consumption for CMOS and FinFET technologies. By varying the supply voltage, the script illustrates how these technologies behave differently in terms of power consumption, aiding in understanding the trade-offs involved.
Detailed
Step 5: Python-Based Power Estimation Tool
In this section, we present a Python script aimed at visualizing the dynamic power consumption trade-offs for CMOS and FinFET technologies under different supply voltages. A critical aspect of modern electronics design involves understanding how power consumption varies with supply voltage, especially as devices become more compact and power-efficient. The chapter outlines a straightforward approach using the matplotlib and numpy libraries to plot dynamic power against voltage levels.
The script defines constants such as load capacitance and switching frequency, followed by the computation of dynamic power for both technologies with distinct parameters. Importantly, the FinFET technology is assumed to exhibit a lower effective capacitance, reflecting its advanced architecture. This comparative analysis not only assists in grasping the concepts of dynamic power and efficiency metrics but also serves as a practical tool for engineers and students alike, facilitating a deeper understanding of how supply voltage impacts power consumption.

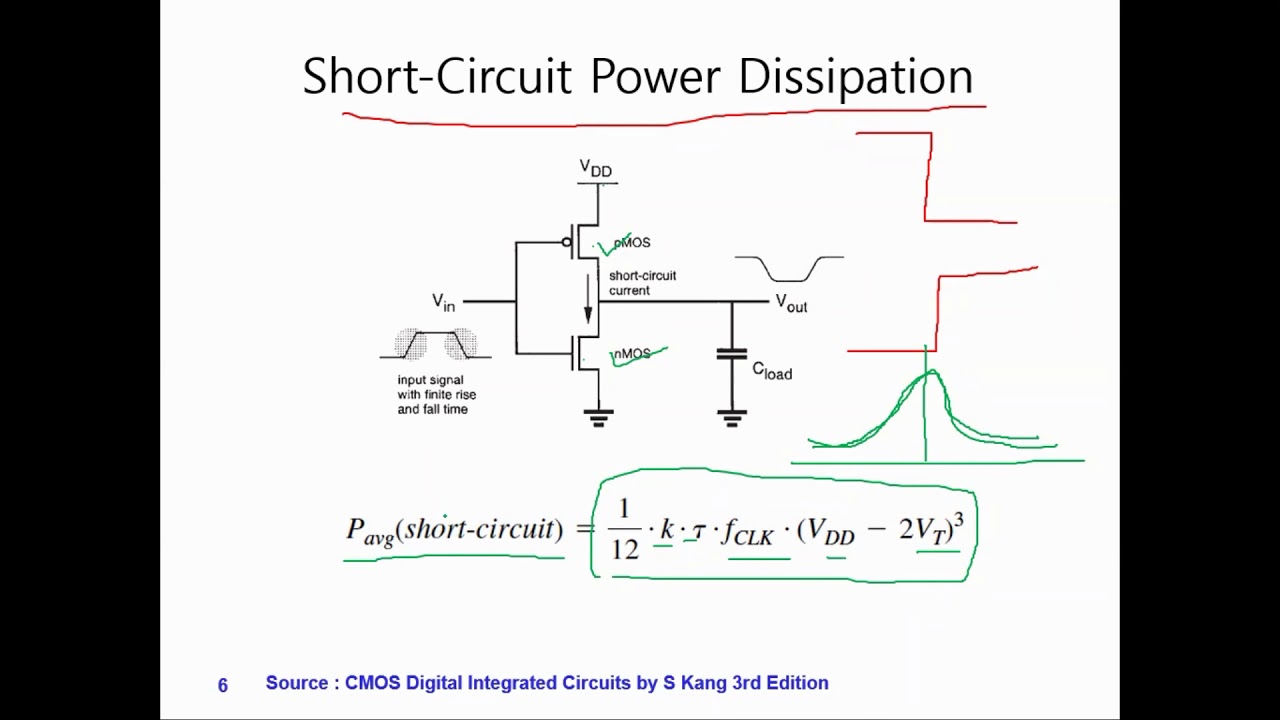

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Power Estimation Tool
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Here’s a simple script to visualize power consumption trade-offs for CMOS and FinFET under varying supply voltages:
Detailed Explanation
This chunk introduces the purpose of the Python script, which is designed to help visualize how power consumption changes for both CMOS and FinFET technologies as the supply voltage varies. The script serves as a hands-on tool for understanding the impact of voltage on power dissipation in different technologies.
Examples & Analogies
Think of this like monitoring fuel consumption in a car. Just as a car uses more fuel at higher speeds, these technologies consume more power at higher voltages. The script is a way to see that relationship visually.
Setting Up Parameters
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
import numpy as np import matplotlib.pyplot as plt # Constants C = 1e-15 # Load capacitance (F) f = 1e9 # 1 GHz switching frequency alpha = 0.5
Detailed Explanation
In this chunk, we import necessary libraries (numpy and matplotlib) that will allow us to handle numerical calculations and create plots. Then, we define some constants: C represents load capacitance in Farads, f is set to 1 GHz indicating the switching frequency, and alpha denotes the activity factor, which shows how often the circuit switches states. These parameters are foundational for calculating power consumption.
Examples & Analogies
Imagine you're baking cookies. Just like you need the right ingredients (flour, sugar, etc.) measured out correctly, this code sets up the essential parameters we need to understand how power consumption works.
Defining Voltage Range
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
# Voltage range Vdd = np.linspace(0.5, 1.2, 100)
Detailed Explanation
This code snippet generates a range of supply voltages (Vdd) from 0.5 to 1.2 volts, creating an array with 100 evenly spaced values. This breadth in voltage allows us to analyze how both CMOS and FinFET technologies behave as the voltage increases within this range.
Examples & Analogies
Think of this as setting the thermostat in your home anywhere from 0.5 to 1.2 degrees; this wide selection helps us see how energy consumption changes with temperature (in this case, voltage).
Calculating Dynamic Power
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
# Dynamic power for CMOS and FinFET P_cmos = alpha * C * (Vdd ** 2) * f P_finfet = alpha * (0.8 * C) * (Vdd ** 2) * f # assume 20% lower capacitance in FinFET
Detailed Explanation
Here, we calculate the dynamic power for both technologies. For CMOS, dynamic power (P_cmos) is calculated using the activity factor, capacitance, supply voltage squared, and frequency. For FinFET, we assume a 20% reduction in capacitance due to its design advantages and calculate that power (P_finfet) similarly. This comparison highlights the efficiencies of FinFET's design.
Examples & Analogies
Imagine measuring how much energy different cars use while driving on the same stretch of road. Just like cars' fuel efficiency varies based on engine type and design, here, we see how power consumption differs between CMOS and FinFET at varying voltages.
Plotting Results
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
# Plot
plt.plot(Vdd, P_cmos * 1e6, label='CMOS', linestyle='--')
plt.plot(Vdd, P_finfet * 1e6, label='FinFET')
plt.xlabel('Vdd (Volts)')
plt.ylabel('Dynamic Power (µW)')
plt.title('Dynamic Power vs Vdd')
plt.legend()
plt.grid(True)
plt.show()
Detailed Explanation
In this part of the script, we use matplotlib to plot the dynamic power consumption for both technologies against the varying supply voltages. We label the axes and create a grid for better visualization, helping us compare how power consumption differs between CMOS and FinFET as Vdd changes. Finally, the plot is displayed to illustrate these differences.
Examples & Analogies
This is like setting up a visual display of how two different types of cars perform on a race track, showing speed against various lap times. The graph makes it easy to see which car is more efficient at different speeds.
Key Concepts
-
Dynamic Power: Power consumed during the switching of electronic states in a circuit, calculated based on voltage and load capacitance.
-
Power Visualization: The process of graphically representing power consumption data to reveal trends and insights.
-
V_dd: The supply voltage that influences the power levels in circuits.
Examples & Applications
A practical example of using the Python script would be using it to visualize power consumption across different supply voltages in a design review meeting.
Another example is adapting the script to include additional parameters, such as temperature effects on power consumption, enhancing its utility for more rigorous analyses.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For power that's dynamic, Vdd needs a climb, keep your capacitance low, to save energy in time.
Stories
Imagine two chefs, CMOS and FinFET, baking cakes in varying ovens (supply voltages). FinFET uses less energy as it doesn't need a high temperature (Vdd) to bake perfectly, showing how it saves power.
Memory Tools
To remember the power dependencies, think 'A-C-F-V' - Activity, Capacitance, Frequency, Voltage.
Acronyms
PoweR
Power output with voltage
optimal capacitance
resistive losses minimized.
Flash Cards
Glossary
- Dynamic Power
Power consumed in a CMOS or FinFET circuit during switching transitions, dependent on load capacitance, voltage, frequency, and activity.
- V_dd
The voltage at which a circuit operates, essential for calculating dynamic power.
- Load Capacitance (C_L)
The capacitance that a switching circuit drives, affecting energy consumption.
- Activity Factor (α)
The fraction of the circuit that is actively switching, influencing dynamic power calculations.
