Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Transmission Line Basics
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, weβll learn about transmission lines and how they represent distributed elements in circuits. Can anyone tell me what distributed elements are?
Are they the components that are spread out over a distance, like inductance and capacitance?
Exactly! As frequency increases, the length of the transmission line becomes comparable to the wavelength of the signal, requiring us to consider these distributed properties. Let's break it down β can you remember the components we look at?
Series resistance, series inductance, shunt capacitance, and shunt conductance!
Great job! We can use the acronym RSIL for remembering those. Now, who can explain what the characteristic impedance Z0 represents?
I think itβs how voltage relates to current in a traveling wave?
That's correct! It's defined as Z0 = sqrt(L/C). This is vital for matching and optimizing our circuits. Who can tell me why matching is so important?
Because it reduces signal reflection!
Exactly! Reflections can lead to interference and losses in signal quality. Letβs take a quick moment to summarize: Remember RSIL for the four components of transmission lines, and Z0 is our key to understanding how voltage and current behave. Any questions?
Signal Reflection and Impedance Mismatch
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we understand transmission lines, let's dive into how impedance mismatch affects their performance. Who can explain what happens when we have a mismatch?
Part of the signal gets reflected back?
Right! This is quantified using the reflection coefficient, Ξ. Whatβs the formula for Ξ?
Ξ = (Zload - Z0) / (Zload + Z0)?
Perfect! Understanding this reflection coefficient helps us identify how much of our signal is being lost. Who can tell me about the Standing Wave Ratio, or SWR?
SWR measures how well impedances are matched β an ideal SWR is 1:1, right?
Exactly! A 1:1 SWR means perfect matching with no reflections. Remembering that is vital! Letβs recap today's lesson: Impedance mismatch can result in reflections that reduce signal integrity, and understanding Ξ and SWR will help us design better systems. Questions?
Propagation Delay
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Our last topic for today is propagation delay. Who can explain what this means?
It's the time it takes for a signal to travel down the line?
Absolutely! And we calculate it with the formula Ο = 1/vp = sqrt(LC). Can anyone tell me what vp is?
Is it the phase velocity of the signal?
Yes! And remember, the phase velocity can differ from the group velocity, which is the speed that the actual information travels. So, we need to consider this for high-speed data. Recap: Propagation delay gives us insight into how signal timing affects performance and is dependent on L and C. Any questions?
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Transmission lines are essential for signal propagation in RF and HF circuits, presenting distributed inductance, capacitance, and resistance that must be managed to ensure reliable performance. Key concepts include characteristic impedance, propagation delay, and issues related to signal reflection.
Detailed
Detailed Summary
In high-frequency circuits, such as RF and HF applications, the behavior of transmission lines deviates from that of traditional lumped circuit elements. This section highlights the role of distributed elements within transmission lines, discussing how these elements influence signal integrity and overall circuit performance.
Key subtopics include:
1. Transmission Line Basics: Here, we introduce the fundamental transmission line model, illustrating how inductance (
L), capacitance (C), resistance (R), and conductance (G) are distributed along the length of the line:
- Series resistance (RR): Represents conductor resistance.
- Series inductance (LL): Indicates inductance per unit length.
- Shunt capacitance (CC): Accounts for capacitance between conductors.
- Shunt conductance (GG): Refers to leakage current.
- Characteristic Impedance (Z0): This is defined as the ratio of voltage to current for traveling waves along the transmission line:
Z0 = sqrt(L/C)
-
Propagation Delay (Ο): This describes the time a signal takes to travel down the transmission line, given by
Ο = 1/vp = sqrt(LC). - Signal Reflection and Impedance Mismatch: When impedances do not match, signals are partially reflected back, leading to losses. This includes concepts like the reflection coefficient (Ξ) and the Standing Wave Ratio (SWR), which measures the effectiveness of impedance matching.
The understanding of these topics is crucial for optimizing high-frequency circuit designs and ensuring effective transmission of signals.

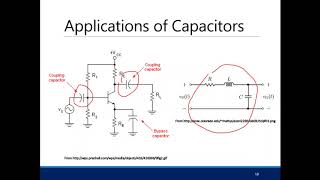

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Transmission Lines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At RF and HF frequencies, transmission lines play a crucial role in the propagation of signals. These transmission lines exhibit distributed inductance, capacitance, and resistance, which affect the performance of the circuit.
Detailed Explanation
Transmission lines are essential for sending signals over distances in high-frequency applications, such as RF (radio frequency) and HF (high frequency). Unlike simple wires, transmission lines have certain properties that can alter how signals behave. Those properties are known as distributed inductance, capacitance, and resistance. When signals travel through a transmission line, these distributed elements interact and can cause changes in how the signal is transmitted, potentially affecting the circuit's performance.
Examples & Analogies
Think of a transmission line like a highway. Just as a highway has lanes (inductance, capacitance, and resistance) that dictate how smoothly cars (signals) can travel, transmission lines have properties that determine how well signals can propagate. If there are bumps or obstacles on the road (impedance mismatch), cars might have a bumpy ride (signal degradation).
Transmission Line Model
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A transmission line can be represented by distributed elements: a series of inductance and resistance, and a parallel capacitance and conductance, distributed along the length of the line.
- Series resistance (RR): Accounts for the resistance of the conductors.
- Series inductance (LL): Represents the inductance of the transmission line per unit length.
- Shunt capacitance (CC): Represents the capacitance between the conductors of the transmission line.
- Shunt conductance (GG): Represents leakage current along the transmission line.
Detailed Explanation
The transmission line can be modeled using four key elements: series resistance (RR), series inductance (LL), shunt capacitance (CC), and shunt conductance (GG). Each represents a different aspect of how the transmission line behaves. Series resistance accounts for energy loss due to the resistance in the wires, while series inductance affects how the voltage changes over time due to the current flow. Shunt capacitance reflects the capacity for charge storage between the conductors, and shunt conductance denotes any unintended current flow away from the line.
Examples & Analogies
Imagine a garden hose. The series resistance is like the friction inside the hose that slows down the water flow. The series inductance can be thought of as how hard it is to start or stop the flow of water in the hose. The shunt capacitance represents the small puddles that might form if the hose is left partially full of water. Finally, the shunt conductance is like water leaking out of small holes in the hose.
Characteristic Impedance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The characteristic impedance of a transmission line is the ratio of voltage to current for a traveling wave along the line and is given by:
Z0 = β(L/C)
Where:
- LL is the inductance per unit length,
- CC is the capacitance per unit length.
Detailed Explanation
Characteristic impedance (Z0) is a crucial parameter of transmission lines. It indicates how much voltage and current interact as a wave travels along the line. This ratio is determined by the inductance (L) and capacitance (C) per unit length of the transmission line. If the load at the end of the line matches this impedance, the signal can travel without reflecting back, which is ideal for system performance.
Examples & Analogies
Think of characteristic impedance as the width of a river. If you have a wide river (high impedance), boats (signals) can flow through easily. If the river narrows (low impedance), boats might get stuck or go back upstream (reflect), which disrupts the flow. Matching the width of the river to whatβs needed downstream is crucial for smooth travel.
Propagation Delay
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The propagation delay of a signal traveling along the transmission line is:
Ο = 1/vp = β(LC)
Where vp is the phase velocity of the signal.
Detailed Explanation
Propagation delay (Ο) refers to the time it takes for a signal to travel from one end of the transmission line to the other. This delay is influenced by the properties of the transmission line, specifically its inductance (L) and capacitance (C). The phase velocity (vp) indicates how fast the wave propagates through the line. Understanding this delay is crucial in high-frequency designs, as it affects signal timing and can lead to performance issues if not accounted for.
Examples & Analogies
Imagine sending a message down a long tube. The speed at which the message reaches the other end depends on how wide the tube is and whether it has any bends (inductance and capacitance). If the message takes too long to arrive, it could get confusing at the receiving end, just like a delayed signal can cause issues in a circuit.
Signal Reflection and Impedance Mismatch
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When a signal encounters an impedance mismatch along a transmission line, part of the signal is reflected back. This reflection occurs when the impedance of the source, transmission line, and load are not equal, causing energy to be lost and creating standing waves.
Detailed Explanation
Impedance mismatch happens when the characteristic impedance of the transmission line does not match the impedance of either the source or the load. This mismatch leads to reflections of the signal, which means some of the energy is sent back instead of being absorbed by the load. This reflection can create standing waves in the transmission line, which can interfere with signal integrity and reduce performance.
Examples & Analogies
Think of it as trying to fit a square peg in a round hole. If the peg doesn't fit (impedance mismatch), some of the force applied pushes the peg back (reflection). This not only wastes energy but also creates chaotic movements that might affect other toys (signals) around it.
Reflection Coefficient
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The reflection coefficient Ξ at a transmission line is given by:
Ξ = (Zload - Z0) / (Zload + Z0)
Where Zload is the load impedance, and Z0 is the characteristic impedance of the transmission line.
Detailed Explanation
The reflection coefficient (Ξ) quantifies how much of the signal is reflected due to impedance mismatch. It is calculated using the load impedance and the characteristic impedance. A reflection coefficient of 0 means no reflection (perfect match), while a coefficient of 1 means total reflection (complete mismatch). Understanding this coefficient is vital for assessing how well a transmission line transmits signals.
Examples & Analogies
Imagine a bouncy ball thrown at a wall. If it's a soft wall (perfect match), the ball will not bounce back (Ξ = 0). If itβs a hard wall (mismatch), the ball will bounce back hard (Ξ = 1). This bouncing back reflects how much energy is lost and can affect nearby play (other signals).
Standing Wave Ratio (SWR)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Standing Wave Ratio (SWR) is used to quantify the severity of impedance mismatch. An ideal SWR is 1:1, indicating perfect impedance matching.
Detailed Explanation
Standing Wave Ratio (SWR) measures how well matched the impedances are along a transmission line. A SWR of 1:1 indicates perfect impedance and means all the signal power is transmitted without reflections. The higher the SWR, the more mismatch and signal loss occurs. Monitoring SWR is essential in RF applications to ensure efficient signal transmission.
Examples & Analogies
Picture a concert hall. If everyone is sitting properly in their seats (perfect impedance matching), the music travels smoothly without interruptions (SWR = 1:1). If some people stand up (mismatch), it causes confusion and noise which can be disruptive (higher SWR).
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Transmission Lines represent distributed elements essential for RF and HF applications.
-
Characteristic impedance (Z0) relates voltage and current in transmission lines.
-
Signal reflection occurs when there is an impedance mismatch, quantified by the reflection coefficient (Ξ).
-
Propagation delay (Ο) indicates the time it takes for a signal to travel through a transmission line.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In designing a microwave circuit, engineers must account for both Z0 and Ξ to optimize signal transmission and reduce losses.
-
PCB design for high-speed data transfer requires careful layout to minimize impedance mismatches and ensure signals propagate with minimal reflections.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
If waves are to flow, match impedances, oh! For losses you see, reflections run free!
π Fascinating Stories
-
Imagine a boat sailing smoothly across still waters. This is like a signal traveling down a well-matched transmission line. But drop an anchor β thatβs an impedance mismatch causing waves!
π§ Other Memory Gems
-
Remember the acronyms RSIL (Resistance, Series Inductance, Shunt Capacitance, Shunt Conductance) as the components of transmission lines!
π― Super Acronyms
Use 'ZPR' for remembering the key properties
- Z0 (Characteristic Impedance)
- P: (Propagation Delay)
- R: (Reflection Coefficient).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Transmission Line
Definition:
A conductor or group of conductors designed to carry electric energy from one point to another, characterized by distributed impedance elements.
-
Term: Characteristic Impedance (Z0)
Definition:
The impedance that a transmission line presents to a sinusoidal steady-state signal, calculated as Z0 = sqrt(L/C).
-
Term: Propagation Delay (Ο)
Definition:
The time required for a signal to propagate through a transmission line.
-
Term: Reflection Coefficient (Ξ)
Definition:
A measure of how much of a signal is reflected at an impedance mismatch, calculated as Ξ = (Zload - Z0)/(Zload + Z0).
-
Term: Standing Wave Ratio (SWR)
Definition:
A measure of the effectiveness of impedance matching in a transmission line, ideally equal to 1:1.
