21.2 - Principles of Soil Sampling
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Types of Soil Sampling
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start with the types of soil sampling. Can anyone tell me what 'disturbed samples' mean?
I think it means samples where the soil structure isn't kept intact?
Correct! Disturbed samples are collected when soil structure isn't crucial to the analysis and are often used for classification tests. Now, who can explain undisturbed samples?
Undisturbed samples keep the soil's natural state, right? They're important for strength tests.
Exactly! Remember: 'Undisturbed for strength, disturbed for classification.' Great job!
Sampling Methods
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss the different sampling methods. What do you know about auger sampling?
Isn’t that used for soft soils to collect disturbed samples?
Spot on! Auger sampling is effective in soft soils. How about core sampling?
Core sampling collects undisturbed samples, which are important for tests requiring intact soil structure.
Correct! Core sampling is vital for measuring soil strength. When do we use a split spoon sampler?
A split spoon sampler is used when drilling boreholes to take samples in a specific way.
Excellent! Remember: 'Auger for disturbance; core for purity!'
Sampling Depths and Intervals
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s talk about sampling depths and intervals. Why do you think these vary depending on projects?
Different projects have varying soil types and purposes, which affect how deep we need to sample.
Exactly! Sampling intervals of 0.5 to 3 meters are common for construction. Why is this important?
It helps ensure we get a good representation of the soil to make informed decisions.
Well said! Remember, depth equals data quality. Great discussions today!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section discusses key principles of soil sampling, including the distinction between disturbed and undisturbed samples, various sampling methods such as auger sampling and core sampling, and the crucial aspects of sampling depths and intervals tailored to specific projects. Understanding these principles is essential for accurate soil analysis in civil engineering and environmental science.
Detailed
Principles of Soil Sampling
Soil sampling is integral to soil analysis, influencing decisions in civil engineering, agriculture, and environmental management. This section outlines several core principles:
21.2.1 Types of Soil Sampling
- Disturbed Samples: These are taken when the structure of the soil is not critical to the analysis, typically used for classification tests like grain size analysis and Atterberg limits.
- Undisturbed Samples: Essential for tests where the soil's natural condition is crucial, such as those measuring strength and consolidation.

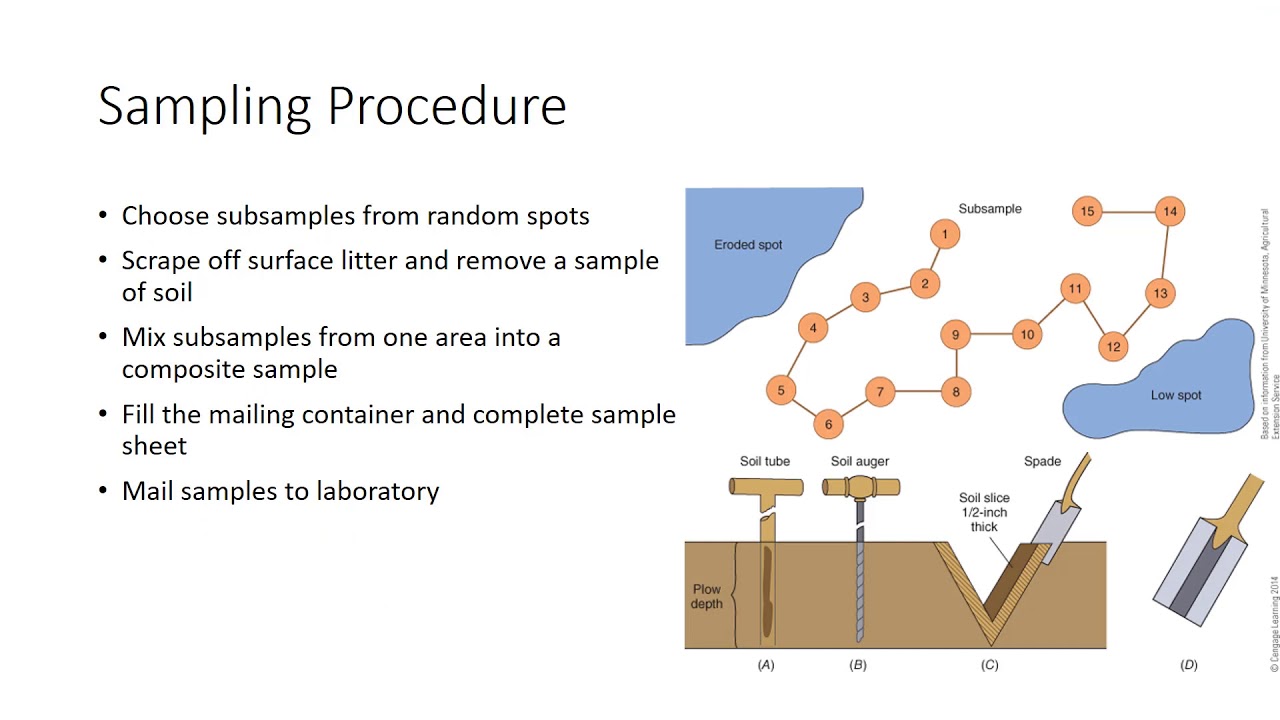

21.2.2 Sampling Methods
Various techniques are employed in soil sampling, including:
- Auger Sampling: Suitable for soft soils and provides disturbed samples.
- Core Sampling: Used to obtain undisturbed samples, ideal for strength and consolidation tests.
- Split Spoon Sampling: A method that retrieves a sample using a specific type of tool ideal for borehole drilling.
- Shelby Tube Sampling: This method retains undisturbed samples in a cylindrical tube, minimizing disturbance.
- Drive Cylinder Sampling: A technique used for sampling in cohesive soils where a cylindrical sample is extracted.
21.2.3 Sampling Depths and Intervals
Sampling depths and intervals depend greatly on the specific requirements of the project and the stratification of the soil. Typically, the intervals range from 0.5 m to 3 m for construction projects. Understanding these depths helps in ensuring adequate data quality and relevance for analysis.
These principles drive effective soil analysis, enabling accurate assessments critical in various fields.
Youtube Videos
![[W-FR 25] Towards Autonomous In-situ Soil Sampling and Mapping in Large-Scale Ag Environments](https://img.youtube.com/vi/J3KGjyFtA5Y/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Types of Soil Sampling
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Types of Soil Sampling
- Disturbed Samples: For classification tests like grain size and Atterberg limits
- Undisturbed Samples: For strength and consolidation tests
Detailed Explanation
Soil sampling can be broadly categorized into two types: disturbed and undisturbed samples. Disturbed samples are taken from the soil and altered during collection, making them suitable for tests that classify soil properties, such as grain size or Atterberg limits. Meanwhile, undisturbed samples maintain the original structure of the soil, which is crucial for tests related to the strength and consolidation of the soil under various pressures.
To determine soil characteristics effectively, it's vital to choose the right type of sample based on the intended analysis.
Examples & Analogies
Imagine you have a sponge full of water. If you squish it and take a piece out, the sponge's structure is changed—this is like a disturbed sample. However, if you carefully cut a piece out without changing its shape, that's similar to an undisturbed sample. The first sample is good for certain tests, just as the second is better for others.
Sampling Methods
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Sampling Methods
- Auger Sampling
- Core Sampling
- Split Spoon Sampling
- Shelby Tube Sampling
- Drive Cylinder Sampling
Detailed Explanation
There are various methods to collect soil samples, each with its unique approach.
- Auger Sampling involves using a tool that screws into the ground to collect soil.

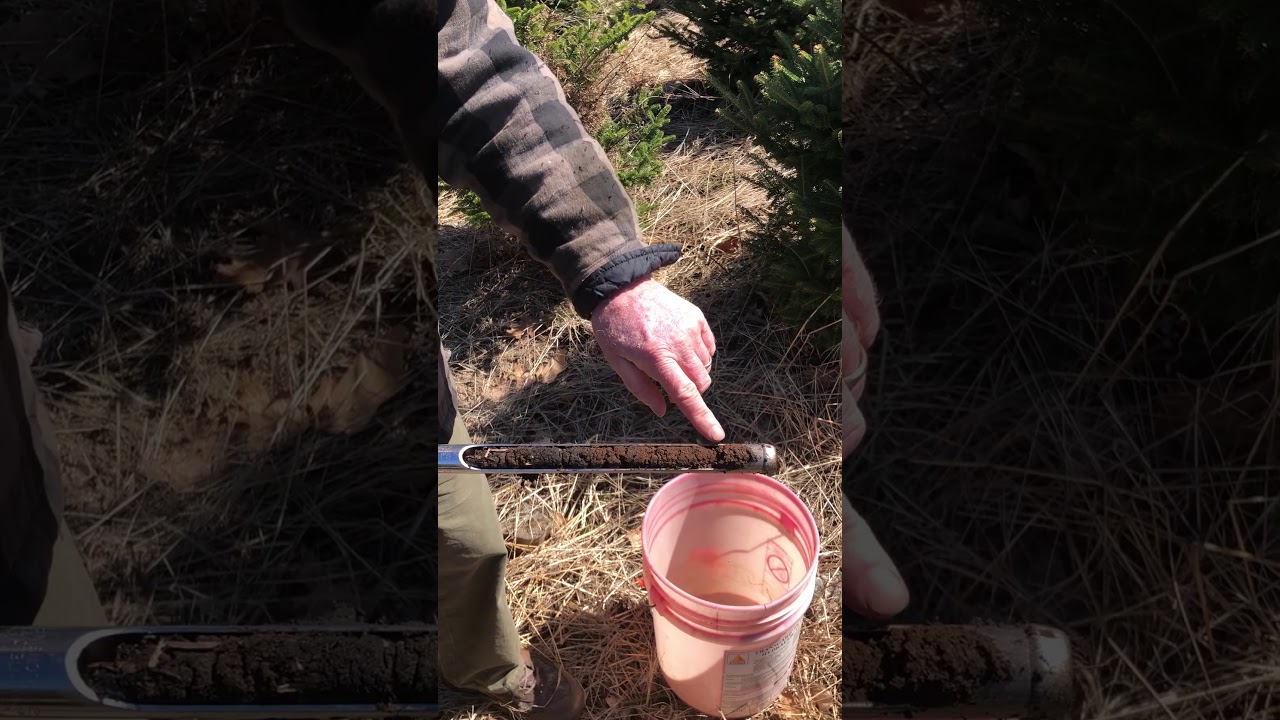

- Core Sampling extracts a cylindrical piece of soil, preserving its layers.
- Split Spoon Sampling utilizes a hollow metal tube to capture soil; when split, it allows examination of the structure.
- Shelby Tube Sampling collects undisturbed samples using a tube that preserves the soil's integrity as it is extracted.
- Drive Cylinder Sampling uses weight to drive a cylinder into the soil and collect a sample.
Each method has its strengths depending on the soil type and the required analysis.
Examples & Analogies
Think about different ways to scoop ice cream: using a spoon is like auger sampling, taking a whole scoop without damaging it is core sampling. Each method serves its purpose depending on whether you want to enjoy your ice cream immediately or save it for later—just as different soil sampling methods are used depending on the test required.
Sampling Depths and Intervals
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Sampling Depths and Intervals
- Varies depending on project type and soil stratigraphy
- Typically between 0.5 m to 3 m intervals for construction projects
Detailed Explanation
The depth and spacing of soil samples depend on the specific requirements of the project and the type of soil present. For construction projects, samples are usually taken at intervals ranging from 0.5 meters to 3 meters. This ensures a comprehensive understanding of the soil layers and supports accurate analysis for structures like foundations or pavements. Understanding the soil stratigraphy, or the various layers of soil and their properties, is vital to determine the appropriate sampling depths.
Examples & Analogies
Imagine digging a well. If you dig too shallow, you might miss the water table, while digging too deep may be unnecessary. Similarly, soil sampling requires careful planning regarding depth and spacing to gather the most informative data without oversampling.
Key Concepts
-
Disturbed Samples: Soil samples collected with altered structure for classification tests.
-
Undisturbed Samples: Intact soil samples essential for measuring strength and consolidation.
-
Sampling Methods: Techniques like auger, core, split spoon, and others utilized for soil sampling.
-
Sampling Depths: The specified depths from which soil samples are taken, typically ranging between 0.5 m to 3 m.
Examples & Applications
When conducting a road construction project, engineers may choose to take undisturbed samples to understand the soil's load-bearing capacity.
In agricultural applications, disturbed samples might be sufficient to analyze nutrient content.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Disturbed for tests that don't need the structure's best, undisturbed for strength, that's the whole quest!
Stories
Imagine a scientist collecting soil samples. For an important strength test, they choose undisturbed samples, but for a basic classification, they pick disturbed ones without a second thought.
Memory Tools
DUC: Disturbed for use in Classifications; Undisturbed keeps its Configuration.
Acronyms
SAD
Sampling Methods Are Distinct!
Flash Cards
Glossary
- Disturbed Samples
Soil samples taken where the natural structure is altered, used mainly for classification tests.
- Undisturbed Samples
Soil samples collected without altering the natural structure, crucial for strength and consolidation tests.
- Auger Sampling
A method of soil sampling that uses a rotating helical screw to penetrate the soil.
- Core Sampling
A technique that retrieves a cylindrical undisturbed sample of soil for analysis.
- Sampling Depths
The depth at which soil samples are collected, determined by project specifications.
