11.7. Details of a Simply Supported Two Way Slab

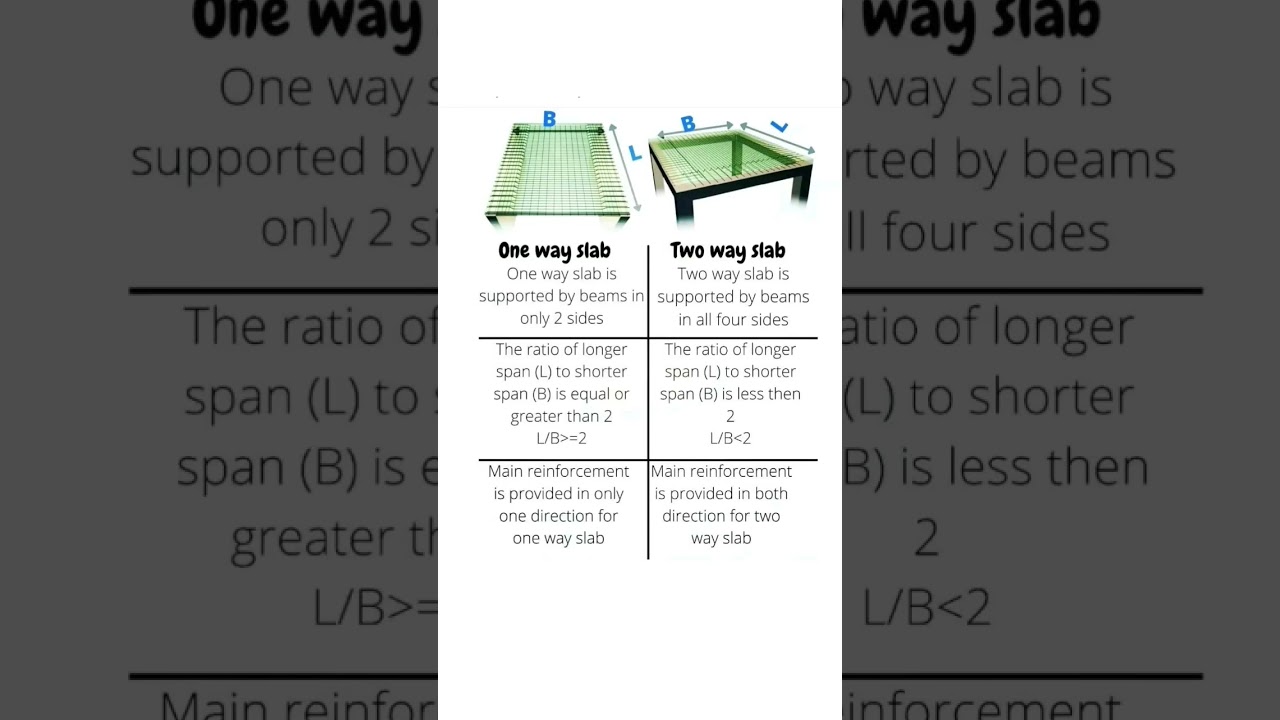

A simply supported two way slab is supported on all sides by using 230mm thick wall. The dimension of two-way slab is 3m x 4m (Clear).

This section introduces the dimensions and the support structure of a simply supported two-way slab. The term 'simply supported' means that the slab is supported at its edges and can flex without any fixed moments at its supports. The slab has clear dimensions of 3 meters by 4 meters, which determines how much load it can support and how it will behave under loads. Additionally, the supporting walls are 230 mm thick, which provides adequate strength and stability for the slab.

Imagine a large table (the slab) resting on four legs (the walls). The legs are solid (230mm thick walls), providing stable support. The size of the table determines how many people can sit around it and how much food it can hold without collapsing.

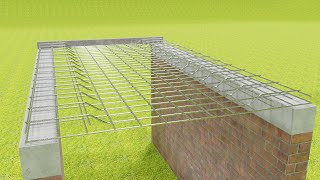

Following are the reinforcement details: Along shorter span: 10ϕ @125 c/c, Along longer span: 10ϕ @150 c/c.

Reinforcement bars, commonly referred to as rebar, are essential for providing tensile strength to concrete slabs, which are inherently weak in tension. In this section, the reinforcement is specified for both spans of the slab. The shorter span will have 10 mm bars spaced at 125 mm on center (c/c), while the longer span will have 10 mm bars spaced at 150 mm c/c. This means for every 125 mm along the shorter span, there will be one 10 mm bar, and every 150 mm along the longer span will also have one 10 mm bar.

Think of the reinforcement bars like the ribs in a structure. Just as ribs provide strength and support to an umbrella, the rebar helps the slab resist bending and cracking under loads.

Negative steel for shorterspan:10ϕ@250c/c, Negativesteelforlongerspan:10ϕ@300c/c.

Negative reinforcement refers to the additional bars placed in the areas where the slab will experience tension due to moments created at the supports. The negative steel for the shorter span uses 10 mm bars spaced at 250 mm c/c, while for the longer span, the spacing is 300 mm c/c. This reinforcement is crucial in preventing cracking at the support points where the slab tends to sag.

Consider negative reinforcement like the extra supports under a bridge where it bends downwards. Just as those supports help balance the weight and prevent collapse, the negative steel ensures the slab remains stable and intact.

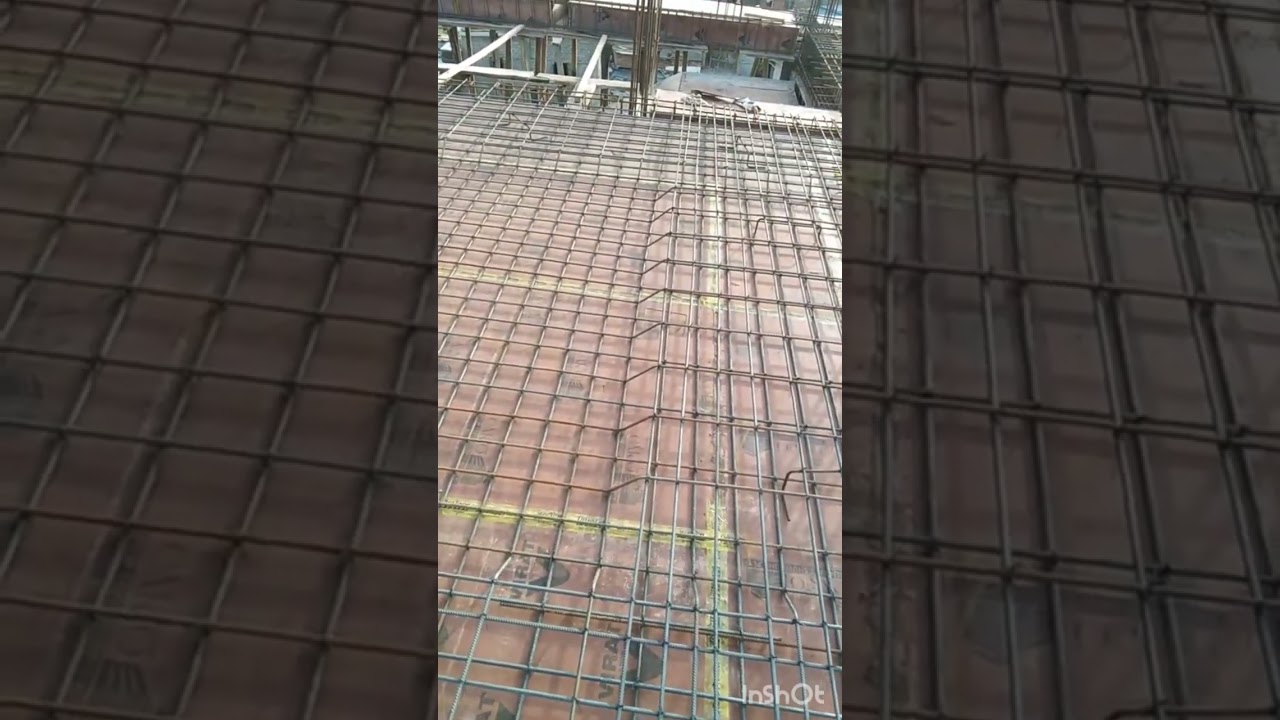

Alternative bars are cranked, Corner mats are 8ϕ@150c/c alongshorterspan and 8ϕ @200 c/c along long span.

Cranked bars are bent at a specific angle to provide extra support in tension zones, particularly in areas where moments are high, such as over supports. Additionally, corner mats, which are specialized rebar layouts at the corners, are utilized here. The corner reinforcement bars are 8 mm in diameter with spacing of 150 mm along the shorter span and 200 mm along the longer span, further distributing the stresses effectively and preventing any cracking or failure in these critical areas.

Imagine how a well-structured roof uses angled supports to keep the whole structure up. A cranked bar is like that angle; it directs forces in a way to maintain stability. The corner mats can be seen as the extra beams placed at the corners of a room to ensure that the walls and ceiling don’t sag at their weakest points.

Thickness of slab is 150mm.

The thickness of the slab plays a significant role in its load-bearing capacity and overall stability. In this case, the slab is 150 mm thick, a common thickness for residential and light commercial constructions. A thicker slab generally offers better resistance against bending and deflection, making it suitable for a range of load conditions.

Think about a book. The thicker the book, the more pages it can hold without bending or breaking. Similarly, the thickness of the slab determines how much load it can support without deforming or failing.

Draw plan showing reinforcement and cross section along longer & shorter span.

A crucial part of constructing any structure is documenting the design accurately through drawings. Here, the requirement is to create a plan view of the slab that includes the layout of the reinforcing steel, as well as cross-sectional views through both the longer and shorter spans. These drawings will serve as a guide for construction and ensure that all reinforcement is placed correctly according to the specifications.

Think of a treasure map. Just like the treasure map shows where to dig, the construction drawings show where to place the reinforcement. If you follow the map correctly, you’ll find the treasure; if the builders follow the drawings, they’ll construct a safe and stable slab.

--
