Introduction to Slab Types
Unlock Audio Lesson
Today, we are going to explore different types of slabs in construction! Can anyone tell me what a one-way slab is?
Isn't it a slab that only spans in one direction?
Correct! One-way slabs are designed to carry loads in one direction. They are commonly used for shorter spans. Can someone describe what a two-way slab is?
A two-way slab spans in both directions, right?
Exactly! Two-way slabs are typically used for square spaces. Remember: one-way slabs are 'one-directional' and two-way slabs are 'two-directional.' An easy way to remember is the acronym 'OW' for One-way and 'TW' for Two-way.
In summary, one-way slabs are good for narrow areas, while two-way slabs are suited for wider spans.
Reinforcement in Slabs
Unlock Audio Lesson
Now, let’s discuss reinforcements. For a one-way slab, can anyone tell me what the main reinforcement types are?
I think it's the main and distribution steel?
Exactly! The main steel handles the existing loads, while the distribution steel helps to manage shrinkage and temperature changes. For the one-way slab mentioned, we have 12ϕ bars at 250 c/c and 8ϕ bars at 200 c/c.
What does 'c/c' mean?
'c/c' stands for 'center to center.' It describes the spacing between bars. Always keep that in mind when detailing reinforcements!
To summarize, in reinforcement we use both main and distribution steel to maintain structural integrity. One-way slab reinforcement utilizes a specific pattern which can impact the load-bearing capacity.
Drawing Techniques for Slabs
Unlock Audio Lesson
Who can tell me the steps involved in drawing a standard section for a slab?
We need to start by measuring the overall dimensions, right?
Correct! Begin with the overall dimensions and then mark the thickness of the slab. How do we show the reinforcement in our drawings?
We should include lines to represent the position and type of reinforcement?
Exactly! When you are drawing various bars, be sure to denote them clearly in your diagrams. Each type of bar should be labeled with its diameter and spacing as we've discussed.
In conclusion, drawing requires accuracy in dimensions and clarity in representing reinforcements. Always refer back to the specifications we've learned.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, students learn to draw detailed cross-sections and plans of various types of slabs including one-way and two-way slabs. Essential reinforcement details such as sizes, spacing, and types of steel reinforcement are also outlined.
Detailed
Drawing Standard Sections for Slabs
This section focuses on the technical aspects of drawing standard sections for slabs, a crucial component in civil engineering. Students will be instructed on how to create precise cross-sectional and plan views of one-way and two-way slabs, underlining critical reinforcement details necessary for structural integrity.
Key Topics
- One-Way Slab: Reinforcement requirements for a clear span of 4m and a length of 10m, with specific thickness and bearing specifications.
- Two-Way Slab: Details of reinforcement for slabs supported on all sides, including length and width constraints.
Understanding these concepts is intrinsic to ensuring quality in design and implementation in building planning.

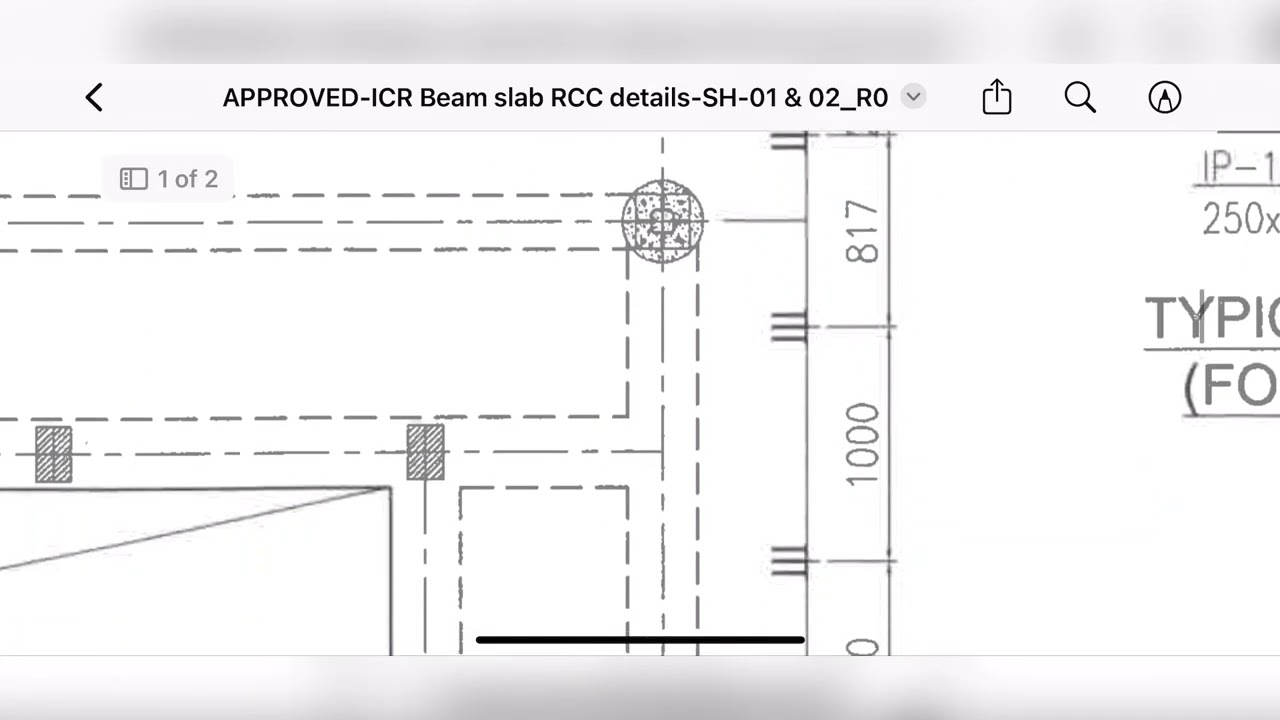

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Slab Dimensions and Specifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Draw cross section and plan of one-way roof slab showing the details of reinforcement for the following data:
- Clear span = 4m,
- Length of slab = 10m
- Thickness of slab = 130mm,
- Bearing wall = 200mm.
Detailed Explanation
In this chunk, we define the dimensions and specifications of a one-way roof slab. The clear span of the slab is its unsupported length, which is specified as 4 meters. The overall length of the slab is given as 10 meters. The thickness of the slab, which affects its strength and load-bearing capacity, is 130mm. The bearing wall, which supports the slab, has a thickness of 200mm. This information is crucial for ensuring that the slab is designed to handle the expected loads while fitting within the building's overall structure.
Examples & Analogies
Think of a one-way slab like a large table. The 'clear span' is how far the table stretches between its legs without any additional support underneath, while the 'thickness' is akin to the thickness of the tabletop, affecting how much weight it can hold before bending or breaking.
Reinforcement Details
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Main reinforcement: 12ϕ @ 250 c/c with alternate bars bent up.
Distribution reinforcement: 8ϕ @ 200c/c.
Detailed Explanation
This chunk addresses the reinforcement details of the slab. The main reinforcement consists of 12mm diameter bars placed at intervals of 250mm from center to center (c/c), with some bars bent upwards to improve load distribution. Additionally, there is distribution reinforcement made up of 8mm diameter bars positioned at 200mm c/c. This setup helps to enhance the tensile strength of the slab, making it capable of withstanding various loads without cracking or failing.
Examples & Analogies
Imagine trying to support a heavy load on a flat, thin piece of plywood. If the plywood is just flat, it may bend easily when weight is applied. However, if you insert metal rods (reinforcement bars) in it at strategic positions, it becomes much more durable and stable under pressure, just like our slab when reinforced properly.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
One-way slabs carry loads in one direction and are suitable for narrower spans.
-
Two-way slabs can distribute loads across two dimensions and are beneficial for wider spaces.
-
Reinforcement details such as bar size and spacing are critical for structural integrity.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A one-way slab with a clear span of 4m and a thickness of 130mm can support a specific load due to its reinforcement pattern.
-
Two-way slabs in a hall of dimensions 8mx14.25m require careful planning regarding support and reinforcement to ensure balance and safety.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
One-way span, two-way dance, slabs must have their right balance.
📖 Fascinating Stories
-
Imagine a room where a heavy chandelier hangs; in one corner, a one-way slab holds it tight, while the other end needs support in two ways to stand right.
🧠 Other Memory Gems
-
OW for One-way, it holds one way strong; TW for Two-way, spreading loads along.
🎯 Super Acronyms
R.S.D. (Reinforcement, Span, Direction) helps remember key slab concepts.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Oneway slab
Definition:
A slab that spans in one direction and is primarily supported on two edges.
-
Term: Twoway slab
Definition:
A slab that spans in both directions and is supported on all four edges.
-
Term: Reinforcement
Definition:
Steel bars added to concrete to improve its tensile strength.
-
Term: c/c
Definition:
Center to center; a term used to denote spacing between reinforcement bars.
