Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to RCC Beams
Unlock Audio Lesson
Welcome everyone! Today, we're discussing RCC beams. Can anyone tell me what RCC stands for?
Reinforced Cement Concrete!
Great! RCC beams are crucial for construction because they support loads. Why is reinforcement necessary?
Because it enhances tensile strength!
Exactly! Remember, concrete is strong in compression but weak in tension. Reinforcement counteracts that weakness. A mnemonic to remember is CRISP: Concrete Reinforcement Is Super Important Pressure.
That's a fun way to remember it!
Let’s summarize: RCC is essential in construction, and reinforcement is key for tensile strength.
Details of a Singly Reinforced Beam
Unlock Audio Lesson
Next, let's focus on a singly reinforced beam. Can anyone share what dimensions we typically start with?
We start with the clear span and the size of the beam.
Correct! For example, a clear span can be 4.8m with a width of 300mm. We also need to decide how much main reinforcement—how do we determine that?
By calculating the loads and using design codes.
Perfect! It's all about ensuring we don’t exceed the load capacity. HINT: Use design tables from structural engineering manuals for reinforcement specs.
We'll also need stirrups for shear, right?
Absolutely! Let’s conclude: a singly reinforced beam needs careful planning from dimensions to reinforcement selection.
Doubly Reinforced Beams
Unlock Audio Lesson
Now, let’s shift gears to doubly reinforced beams. Why might we use a doubly reinforced beam instead of a singly reinforced one?
When the beam needs more strength?
Exactly! It provides additional compression strength. Remember the acronym DC: 'Doubly Compressive' beam. What do the reinforcements look like?
We have compression reinforcement at the top and tension reinforcement at the bottom.
Yes! You also use spacers for even distribution. HINT: Always check spacing for shear reinforcements as well!
Cantilever Beams
Unlock Audio Lesson
Let’s talk about cantilever beams! What distinguishes them from regular beams?
They extend out and are supported at one end only.
Exactly right. What reinforcement considerations must we remember for cantilevers?
We need to curtail some bars to prevent over-reinforcement at the end.
Good memory! Think of the tip: SC- Shorten Connect. Summarizing our key points: cantilevers need special care in design, especially for reinforcement placement.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, students learn to draw detailed longitudinal and cross sections of different types of RCC beams, including singly reinforced, doubly reinforced, and cantilever beams. It includes specific dimensions, reinforcement detailing, and the characteristics of various beams suitable for structural integrity.
Detailed
Drawing Standard Sections for RCC Beams
This section delves into the specifics of drawing Reinforced Cement Concrete (RCC) beams, a fundamental aspect of civil engineering. RCC beams provide the necessary load-bearing support in construction and require precise detailing in their design and drawings to ensure structural safety and integrity.
Key Exercises Covered:
- Singly Reinforced Beams: This involves drawing a rectangular RCC beam with specified dimensions and reinforcement detailing, including main and anchor bars, and stirrups distributed at given intervals.
- Doubly Reinforced Beams: Students are instructed to provide comprehensive details on both tensile and compression reinforcement, as well as shear reinforcement at different intervals from the supports to the mid-span.
- Cantilever Beams: Focuses on the design of cantilever beams, emphasizing the critical aspects of curtailment of bars, which is essential for optimizing material use while maintaining safety standards.
- One-Way and Two-Way Slabs: Although primarily dealing with beams, exercises also touch on one-way and two-way slabs that are supported by beams, reinforcing the connection between different components of structural design.
Understanding these drawing practices is crucial as they lay the groundwork for ensuring that structural elements function effectively under various load conditions, ultimately contributing to the resilience of buildings.

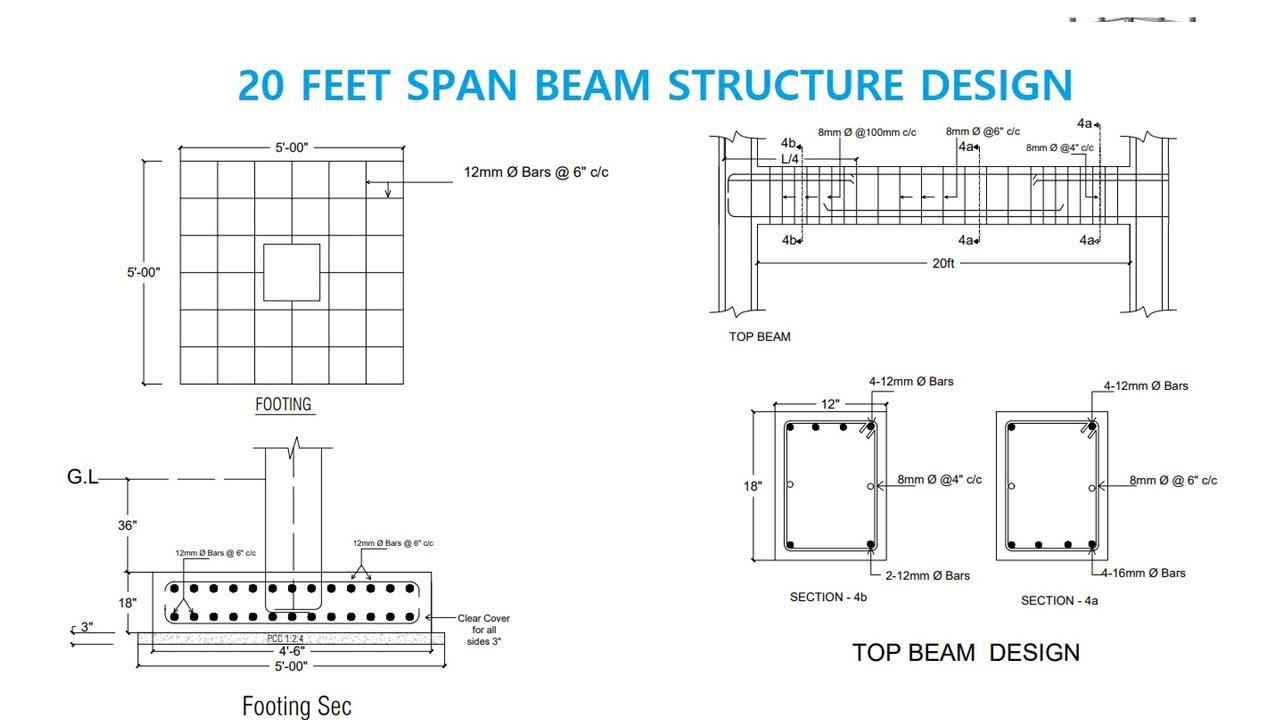

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Beam Specifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Draw the longitudinal section and cross section of a rectangular RCC beam simply supported Singly Reinforced Beam with the following data:
Clear span = 4.8m, Bearing at the supports = 300mm, Width of beam = 300mm, Overall depth of beam = 500mm.
Detailed Explanation
In this chunk, we are introduced to the specifications of a rectangular Reinforced Cement Concrete (RCC) beam that we will be drawing. The clear span is the distance between the supports, which is crucial as it determines how much load the beam will carry. The bearing is the part of the beam that rests on the supports; in this case, it is 300mm. The width and overall depth are also specified, which impacts the beam's strength and rigidity. The width is 300mm and the overall depth (the total height from the bottom to the top) is 500mm.
Examples & Analogies
You can think of the beam like a bridge between two points. Just as the distance between the two ends of a bridge needs to be properly measured to ensure it supports cars, the clear span of an RCC beam needs to be accurate to ensure it can support the load above it.
Reinforcement Details
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Main reinforcement consists of #5 - 20ϕ bars in two layers, Provide #2 - 12ϕ as anchor bars.
Stirrups: 2L 8ϕ @ 180 c/c near the supports up to 1.20m and @ 220 c/c in the remaining portion.
Detailed Explanation
This chunk outlines the reinforcement detailing for the beam. Main reinforcement refers to the primary bars that bear the tensile loads, which are specified as #5 bars of 20mm diameter in two layers. Additionally, #2 bars of 12mm diameter are provided as anchor bars to enhance the connectivity of the reinforcement. Stirrups, which are closed loops of rebar providing lateral support, are specified to be 8mm in diameter, with different spacing near the supports and in the middle portion of the beam. The spacing refers to the distance between each stirrup along the length of the beam.
Examples & Analogies
Imagine reinforcement bars as the skeleton of a body. Just like bones give structure and support to our body, the reinforcement bars provide strength to the RCC beam, allowing it to carry heavy loads without bending or cracking.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
RCC Beams: Beams reinforced with steel for added strength, particularly against tensile forces.
-
Reinforcement Types: Using different steel bars for tensile and compressive strength based on beam designs.
-
Loading Conditions: Understanding how beams respond to loads and stresses during their service life.
-
Beam Variations: Recognizing the differences between singly, doubly, and cantilever beams and their applications.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A singly reinforced beam might have a size of 300mm x 500mm, with 4 bars of 20ϕ in tension and 2 stirrups at 180mm spacing.
-
A cantilever beam extending 2.5 meters from a wall might use 5 bars of 20ϕ, relying on well-distributed stirrups to manage shear forces.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In beams that stand tall, with strength to withstand all, reinforcement's the call, to prevent a fall.
📖 Fascinating Stories
-
Once upon a time, a beam named Canti stood boldly on one end, jutting out to explore. With some clever shortening of its bars, it kept its cool and stood the test of load.
🧠 Other Memory Gems
-
To remember the types of beams: S for Singly, D for Doubly, and C for Cantilever!
🎯 Super Acronyms
RCC
- Reliable Concrete Construction for building strong structures.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Reinforced Cement Concrete (RCC)
Definition:
Concrete that is reinforced with steel bars to enhance its tensile strength.
-
Term: Singly Reinforced Beam
Definition:
A concrete beam that has reinforcement only on the tension side.
-
Term: Doubly Reinforced Beam
Definition:
A concrete beam that has reinforcement on both the tension and compression sides.
-
Term: Cantilever Beam
Definition:
A beam that is fixed at one end and free at the other end, projecting beyond its support.
-
Term: Curtailment
Definition:
The practice of shortening the length of reinforcement bars in certain areas of a beam.
-
Term: Stirrups
Definition:
Lateral ties used to hold the main reinforcing bars in position and assist in resisting shear forces.
