11.1 - Electric Current and Circuits
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Electric Current
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to explore electric current. Can anyone tell me what they think electric current means?
I think it's some kind of energy that flows through wires!
That's a good start! Electric current is indeed the flow of electric charge through a conductor. We measure this flow in amperes, or A. For a more technical definition, it's the amount of charge passing through a specific area over time.
So how do we define one ampere?
Excellent question! One ampere is defined as one coulomb of charge flowing per second. Remember this acronym: 'A for Ampere, A for Amount of charge per second!'.
What drives the electric current?
Great question! It’s driven by a potential difference, caused by batteries. Does anyone know what potential difference is?
Isn't it the energy needed to move the charges?
Exactly! Potential difference, or voltage, is the energy per unit charge. We measure it in volts. So remember, V for Voltage, V for 'Vital energy to move charges'!
To recap, electric current is the flow of charge driven by a potential difference, measured in amperes. Next, let’s see how current actually flows through a circuit.
Electric Circuits
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand current and voltage, let's talk about circuits. Can anyone tell me what an electric circuit is?
I think it's a path for the electric current to flow!
That's right! An electric circuit is a closed path through which current can flow. If the path is broken, what happens to the current?
The current stops!
Exactly! And to complete this circuit, we need key components like a power source, conductors, and a load, like a light bulb. Does anyone know what an ammeter is used for?
It measures the current!
Correct! An ammeter measures current and is always connected in series to ensure it measures the entire flow. Remember, 'Ammeter Always in the Ample Flow!'
And what about measuring voltage?
Great follow-up! We use a voltmeter for that, and it's connected in parallel across the points where we want to measure the voltage. To summarize, electric circuits allow current to flow, and we have specific instruments to measure current and voltage.
Ohm's Law
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s connect our knowledge of current and voltage through Ohm’s Law. Does anyone know what Ohm’s Law states?
Something about current and voltage being related?
Correct! Ohm’s Law states that the voltage across a conductor is directly proportional to the current flowing through it, provided the temperature remains constant. This can be expressed as V = IR. Can anyone recall what R stands for?
It stands for resistance, right?
That's right! Higher resistance means less current for the same voltage. Think of it as 'resistance resists the rush of charge!'
So if we have a higher resistance, we need a higher voltage?
Exactly! To ensure the current stays the same, higher resistance requires higher voltage. Let’s see an example to make this clearer.
Applications of Electric Current
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand the fundamentals, let’s explore how electric current is used practically. What are some applications you can think of?
I know about light bulbs!
Yes, light bulbs use electric current to produce light through heating the filament inside. This heating effect is vital in many devices. Can anyone name more?
What about electric heaters?
Exactly! Electric heaters convert electrical energy to heat. Remember: 'Electric Current Heats!' This is also crucial for appliances designed for cooking.
So, electric current is also for motors?
Correct! Current powers electric motors for fans, refrigerators, and more. Always keep in mind that current not only flows but serves vital functions in our daily lives.
Summary and Review
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s summarize what we’ve learned today about electric current and circuits. Can anyone recap what electric current is?
It’s the flow of electric charge through a conductor!
Right! And how do we measure it?
In amperes! And voltage is measured in volts.
Fantastic! Ohm’s Law relates current, voltage, and resistance. When looking at circuits, remember that an ammeter is to measure current and a voltmeter measures voltage. Remember: 'Rules of Measurement Must Be Followed!'
And electric current is used in many applications, like lights and heaters.
Excellent summary! You've all done a great job understanding these concepts today.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section elaborates on electric current, defining it in terms of charge flow, and explores its relationship with potential difference and resistance. It further explains closed circuits, the use of ammeters for measuring current, and Ohm’s law.
Detailed
Electric Current and Circuits
Understanding electric current is essential for grasping electricity's role in modern society. At its core, electric current refers to the flow of electric charge through a conductor. This flow is driven by a potential difference created by sources like batteries or electrical cells. In an electric circuit, which is defined as a continuous and closed path for current to flow, several crucial concepts come into play:
Key definitions include:
- Electric Current (I): The rate of charge flow, measured in amperes (A), where 1 A equals 1 coulomb of charge flowing per second.
- Potential Difference (V): The work done in moving a unit charge between two points, measured in volts (V).
- Resistance (R): A material's opposition to current flow, influenced by its length, area of cross-section, and material type, with units measured in ohms (Ω).
Moreover, the relationship between these concepts is encapsulated by Ohm’s Law, given as V = IR, which suggests that current is directly proportional to voltage and inversely proportional to resistance. In practical applications, tools like ammeters and voltmeters are used to measure current and potential difference, respectively. Understanding these fundamental principles is critical as they underpin much of contemporary electrical design and application.

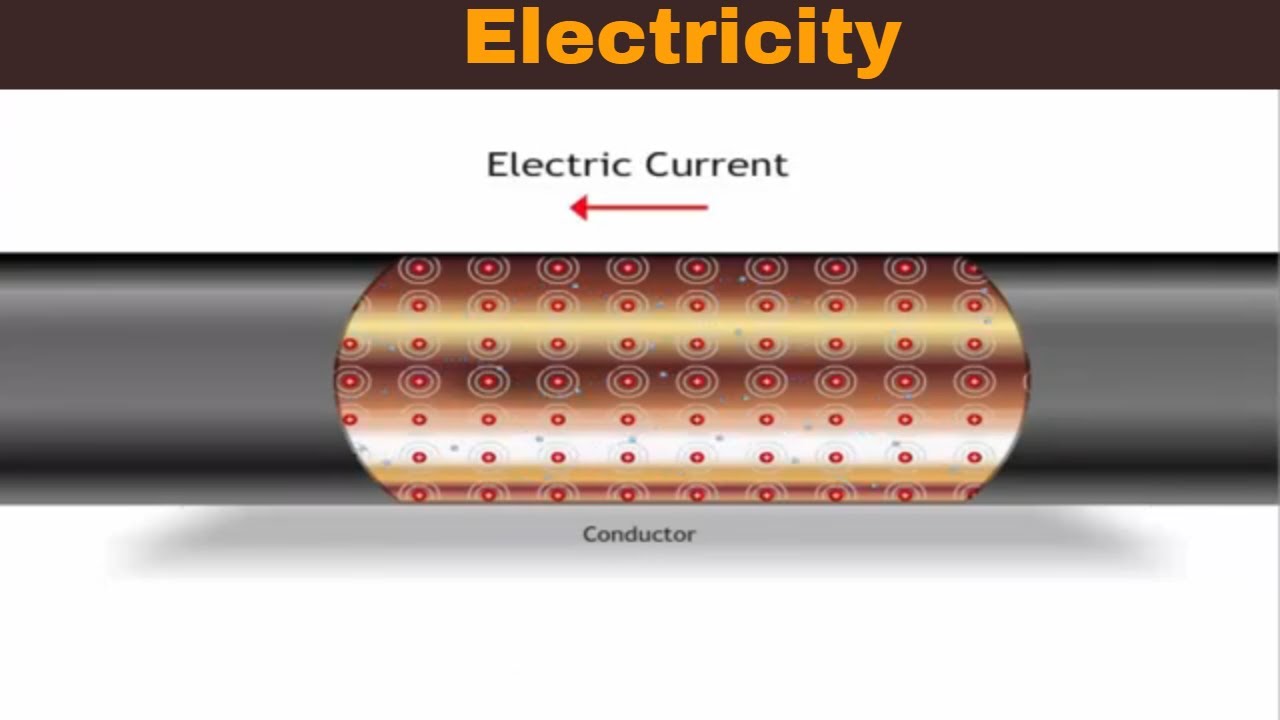

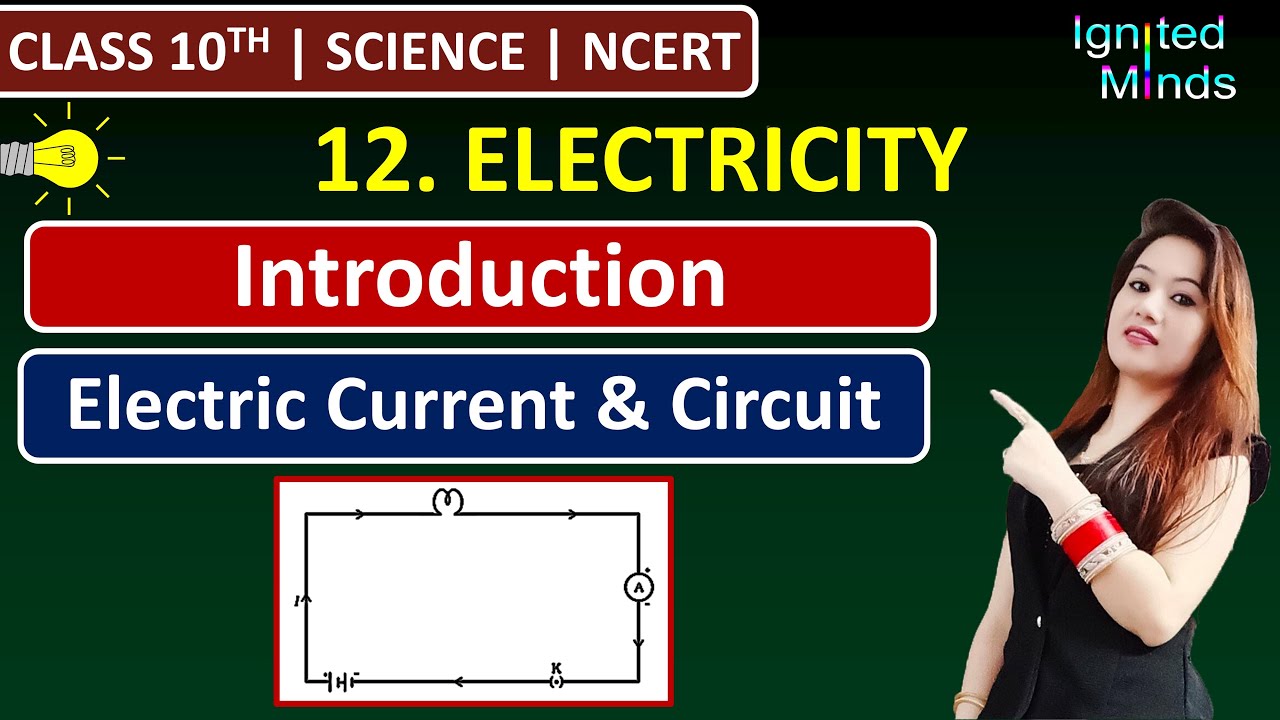

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Electric Current
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
We are familiar with air current and water current. We know that flowing water constitute water current in rivers. Similarly, if the electric charge flows through a conductor (for example, through a metallic wire), we say that there is an electric current in the conductor. In a torch, we know that the cells (or a battery, when placed in proper order) provide flow of charges or an electric current through the torch bulb to glow.
Detailed Explanation
Electric current is akin to a flow of water in a river. Just as water moves in a current, an electric current flows when charged particles move through a conductor like a wire. When you turn on a torch, it essentially completes a circuit, allowing the electric current from the battery to flow to the bulb, causing it to light up.
Examples & Analogies
Imagine filling a bucket with water from a hose. The flow of water through the hose represents electric current, and the bucket is like a device (like a torch) that uses that current to perform work, such as lighting up.
Electric Circuits
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A continuous and closed path of an electric current is called an electric circuit. Now, if the circuit is broken anywhere (or the switch of the torch is turned off), the current stops flowing and the bulb does not glow.
Detailed Explanation
An electric circuit forms a path for the current to flow, much like a racetrack for cars. If there's a break in that track (like a cut wire or a turned-off switch), the cars (or current) can't complete the circuit, just as cars would stop if the track were interrupted.
Examples & Analogies
Think of a light bulb in a room. When you flip the switch off, it's like closing a door that prevents anyone from moving through a hallway—no one can get through, so the light goes out.
Measuring Electric Current
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
How do we express electric current? Electric current is expressed by the amount of charge flowing through a particular area in unit time. In circuits using metallic wires, electrons constitute the flow of charges. However, electrons were not known at the time when the phenomenon of electricity was first observed.
Detailed Explanation
Electric current is measured by the amount of electric charge that flows through a conductor over time, typically in coulombs per second, or amperes (A). While we now know that it’s primarily electrons moving, early definitions didn’t account for this as electrons were not discovered then.
Examples & Analogies
Consider a water pipe. The amount of water passing a certain point in a second represents how much water is flowing—just like the current tells us how much electric charge is moving through a wire.
Unit of Electric Charge and Current
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The SI unit of electric charge is coulomb (C), which is equivalent to the charge contained in nearly 6 × 10^18 electrons. The electric current is expressed by a unit called ampere (A). One ampere is constituted by the flow of one coulomb of charge per second, that is, 1 A = 1 C/1 s.
Detailed Explanation
Electric charge is quantified in coulombs, representing a large number of electrons. When we talk about current, one ampere means that one coulomb of charge moves past a point in a circuit each second. This is a vital measurement that helps in designing electrical devices.
Examples & Analogies
Picture a moving conveyor belt in a factory. If one box (or coulomb of charge) arrives at the exit every second, the speed of the conveyor belt represents one ampere of current.
Ammeter and Circuit Configuration
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
An instrument called ammeter measures electric current in a circuit. It is always connected in series in a circuit through which the current is to be measured. A schematic diagram of a typical electric circuit comprising a cell, an electric bulb, an ammeter and a plug key is illustrated.
Detailed Explanation
An ammeter is a specific tool used to measure electric current, and it must be connected in series within the circuit to accurately measure the current flowing through it. This means that all the current must pass through the ammeter for it to provide a reading.
Examples & Analogies
Think of a traffic camera positioned on a single-lane road; it only measures the cars (current) that actually drive past it (the current flowing through the circuit). If the road were wider (parallel), it wouldn’t capture every car accurately.
Calculating Charge Flow
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Example: A current of 0.5 A is drawn by a filament of an electric bulb for 10 minutes. Find the amount of electric charge that flows through the circuit.
Detailed Explanation
To calculate the charge flowing through the circuit, use the equation Q = I × t, where I is current (in amperes), and t is time (in seconds). In this case, a 0.5 A current over 600 seconds (10 minutes) results in a total charge of 300 coulombs.
Examples & Analogies
Imagine you are filling a water tank (the charge). If a hose (current) flows at a steady rate for a certain time (minutes), you can easily calculate how much water (charge) fills the tank during that period.
Key Concepts
-
Electric Current: Measured in amperes, representing the flow of charge.
-
Potential Difference: Measured in volts, indicating the energy per charge.
-
Resistance: The opposition to flow in a conductor measured in ohms.
-
Ohm's Law: V = IR; relationship between current, voltage, and resistance.
-
Measurement Instruments: Ammeters measure current; voltmeters measure voltage.
Examples & Applications
When current passes through a light bulb, it heats the filament, producing light.
Using a battery to supply potential difference in powering a flashlight.
An ammeter connected in series to measure the current flowing in a circuit.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
To find V, I, and R, stick with the plan, V equals I times R, that’s the Ohm’s law span.
Stories
Imagine a water park where a pump represents the battery, pushing water (electric charge) through slides (the circuit) where resistance affects how fast water flows!
Memory Tools
For current, remember A for Amperes, V for Volts, and R for Resistance; 'A Very Relevant Trio!'
Acronyms
C - Current, P - Potential difference, R - Resistance, E - Electrical devices = C-P-R-E!
Flash Cards
Glossary
- Electric Current
The flow of electric charge through a conductor, measured in amperes (A).
- Potential Difference
The energy required to move a unit charge between two points, measured in volts (V).
- Resistance
A material's opposition to the flow of electric current, measured in ohms (Ω).
- Ohm's Law
The relationship between voltage, current, and resistance, stated as V = IR.
- Ammeter
An instrument used to measure electric current in a circuit.
- Voltmeter
An instrument used to measure electric potential difference between two points.
