Understanding the Heating Effect
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we are going to explore the heating effect of electric current. Who can tell me what happens when current flows through a resistor?
Does it produce heat?
Exactly! This phenomenon is known as Joule's heating. It occurs when electrical energy is transformed into thermal energy as current flows through a conductor. Can anyone explain under what circumstances does more heat get produced?
I think it occurs with higher current and higher resistance?
Correct! The heat produced is directly proportional to the square of the current, to the resistance, and to the time the current flows, which we represent with the formula H = IΒ²Rt. Remember, 'Heat rises, Resistance remains!' Thatβs an acronym I just made up to help you recall this.
So, if the current doubles, the heat produced increases by four times?
Absolutely right! Let's continue with practical applications of this effect.
Applications of Joule's Heating
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, letβs talk about the real-world applications of heating caused by electric current. Can someone name an appliance that utilizes this effect?
An electric toaster!
Great example! Electric toasters convert electric energy into heat, to brown the bread. What about another appliance?
Electric heaters?
Exactly! Electric heaters use Joule's heating to warm up spaces. There are also safety devices like fuses that rely on heating effects. Can someone explain how a fuse works?
A fuse melts if too much current flows through it due to heat, which protects the circuit.
Perfect! The fuse prevents overheating and potential fires. 'Melting equals safety!' Let's keep that in mind when we discuss household electrical systems.
Safety and Material Properties
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Moving onto the materials, why do you think tungsten is commonly used for bulb filaments?
Because it has a high melting point?
Exactly! Tungsten can withstand high temperatures without melting. This is crucial in light bulbs where high temperatures are regular. Now, what happens if the filament gets too hot?
It melts and the bulb doesnβt work anymore.
Right! So know the properties of materials used in electrical devices can affect their performance and safety. Who can summarize the main points weβve discussed?
The heating effect happens when current flows and can be utilized in devices like heaters and toasters, and safety measures like fuses help prevent damage!
Excellent recap! Always keep the link between heating effects and practical applications in mind, itβs crucial for understanding electrical technology!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses Joule's law, explaining how electric current generates heat in resistors and detailing applications of this phenomenon, including devices like electric heaters, toasters, and fuses. Understanding these principles is crucial for comprehending electrical energy consumption and safety in electrical systems.
Detailed
Detailed Summary
The heating effect of electric current, often referred to as Jouleβs heating or Ohmic heating, is a fundamental principle in the study of electricity. As current flows through a resistor, electrical energy is converted into thermal energy, creating heat. The relationship between heat produced (H), current (I), resistance (R), and time (t) is described by Jouleβs law, which states:
- The heat produced in a resistor is directly proportional to the square of the current flowing through it, the resistance of the conductor, and the time for which the current flows.
- Mathematically, this is represented as: H = IΒ²Rt.
This heat generation has practical applications in everyday electrical devices. For instance, electric appliances like irons, heaters, and toasters utilize this heating effect to perform their functions efficiently. Moreover, safety mechanisms like fuses rely on this principle to protect circuits from overloads; when the current exceeds a preset limit, the heat generated melts the fuse wire, thereby breaking the circuit.
The section also covers the significance of the material used for electrical conducting elements, emphasizing that materials with high melting points like tungsten are used in electric bulbs to withstand extensive heat without melting. Through practical examples, students learn how different appliances use the heating effect of electric current in their operation.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Heat Generation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

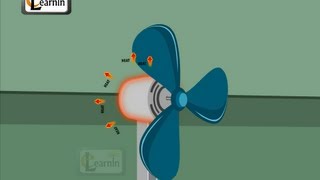

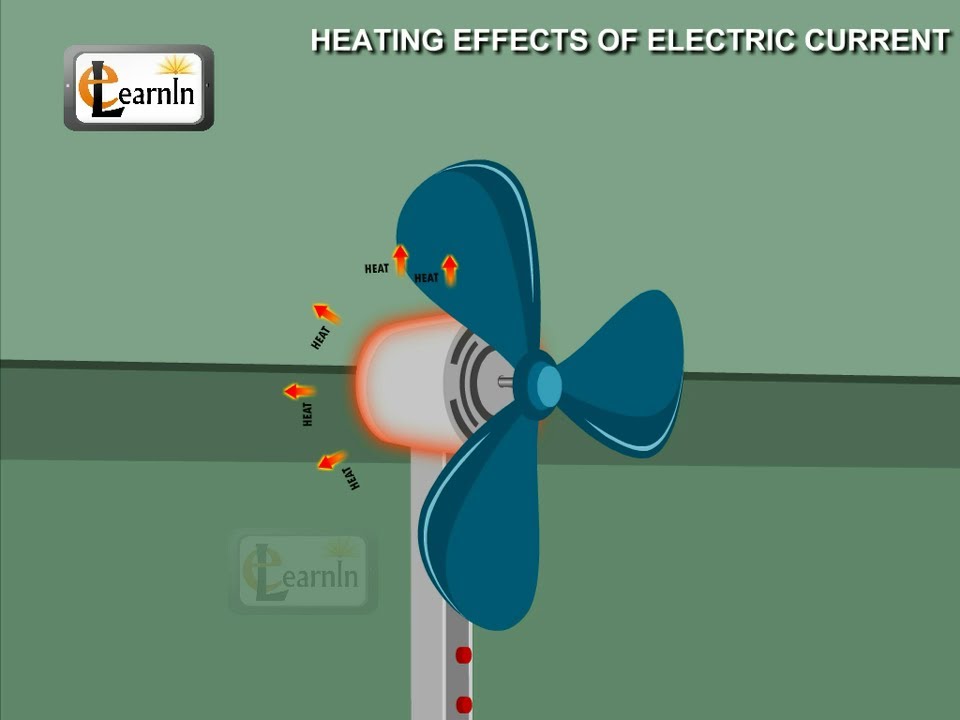

We know that a battery or a cell is a source of electrical energy. The chemical reaction within the cell generates the potential difference between its two terminals that sets the electrons in motion to flow the current through a resistor or a system of resistors connected to the battery. We have also seen, in Section 11.2, that to maintain the current, the source has to keep expending its energy. Where does this energy go? A part of the source energy in maintaining the current may be consumed into useful work (like in rotating the blades of an electric fan). Rest of the source energy may be expended in heat to raise the temperature of gadget. We often observe this in our everyday life. For example, an electric fan becomes warm if used continuously for longer time etc.
Detailed Explanation
Electric current is produced by batteries or cells, which convert chemical energy into electrical energy. When this electrical energy flows through a resistor or device, it does work, such as turning a fan. However, not all the energy turns into useful work; some is converted into heat. This is why heating appliances get warm when used over time. For instance, if a fan runs for an extended period, it heats up due to the energy lost as heat rather than doing useful mechanical work.
Examples & Analogies
Think of the electric kettle. When you boil water, the electricity flows through the heating element, making it hot. The water absorbs this heat, raising its temperature, which is an example of electrical energy converting to thermal energy.
Jouleβs Law of Heating
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

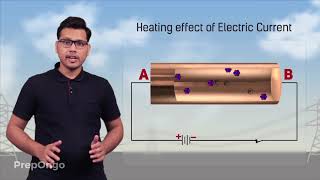

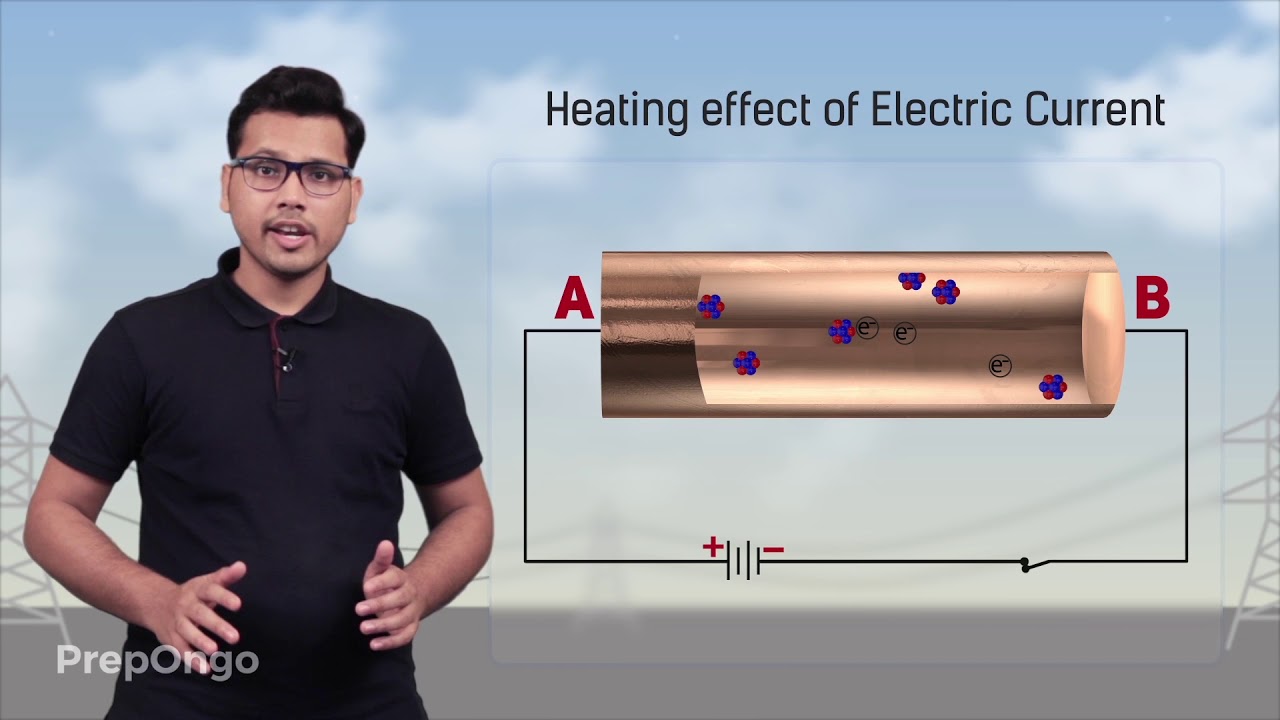

Consider a current I flowing through a resistor of resistance R. Let the potential difference across it be V (Fig. 11.13). Let t be the time during which a charge Q flows across. The work done in moving the charge Q through a potential difference V is VQ. Therefore, the source must supply energy equal to VQ in time t. Hence the power input to the circuit by the source is P=V/Q. Or the energy supplied to the circuit by the source in time t is P Γ t, that is, VIt. What happens to this energy expended by the source? This energy gets dissipated in the resistor as heat. Thus for a steady current I, the amount of heat H produced in time t is H = VIt. Applying Ohmβs law, we get H = IΒ² Rt. This is known as Jouleβs law of heating.
Detailed Explanation
Joule's Law describes how electric current generates heat. When an electric current I passes through a resistor R, it creates heat over time t. The formula H = IΒ²Rt shows that the heat produced (H) depends on three factors: the square of the current, the resistance, and the duration of the current's flow. Higher current levels or resistances lead to more heat production, which can be useful in appliances like toasters and heaters.
Examples & Analogies
Think about using a phone charger. As current flows through the charger to your phone, the charger may feel warm due to Joule's heating effect. The greater the current (especially in quick chargers), the more heat is generated, which is why they can get quite hot while charging your device.

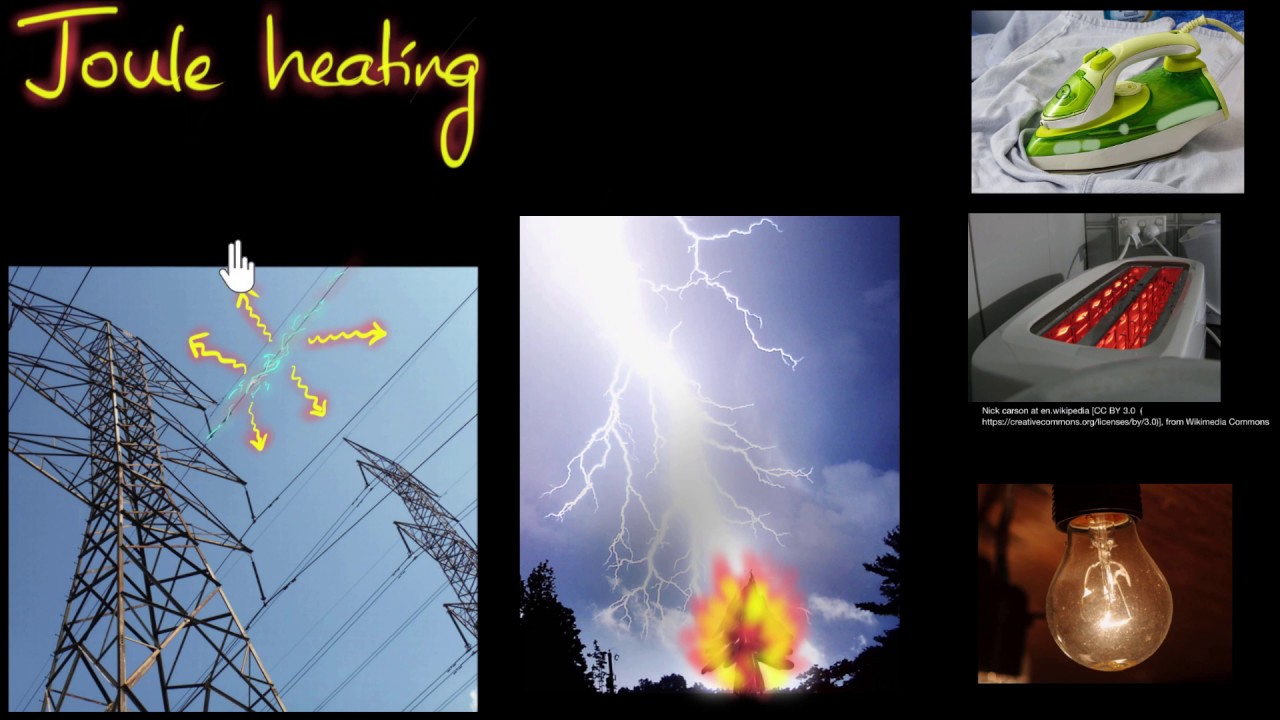

Applications of Jouleβs Heating
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

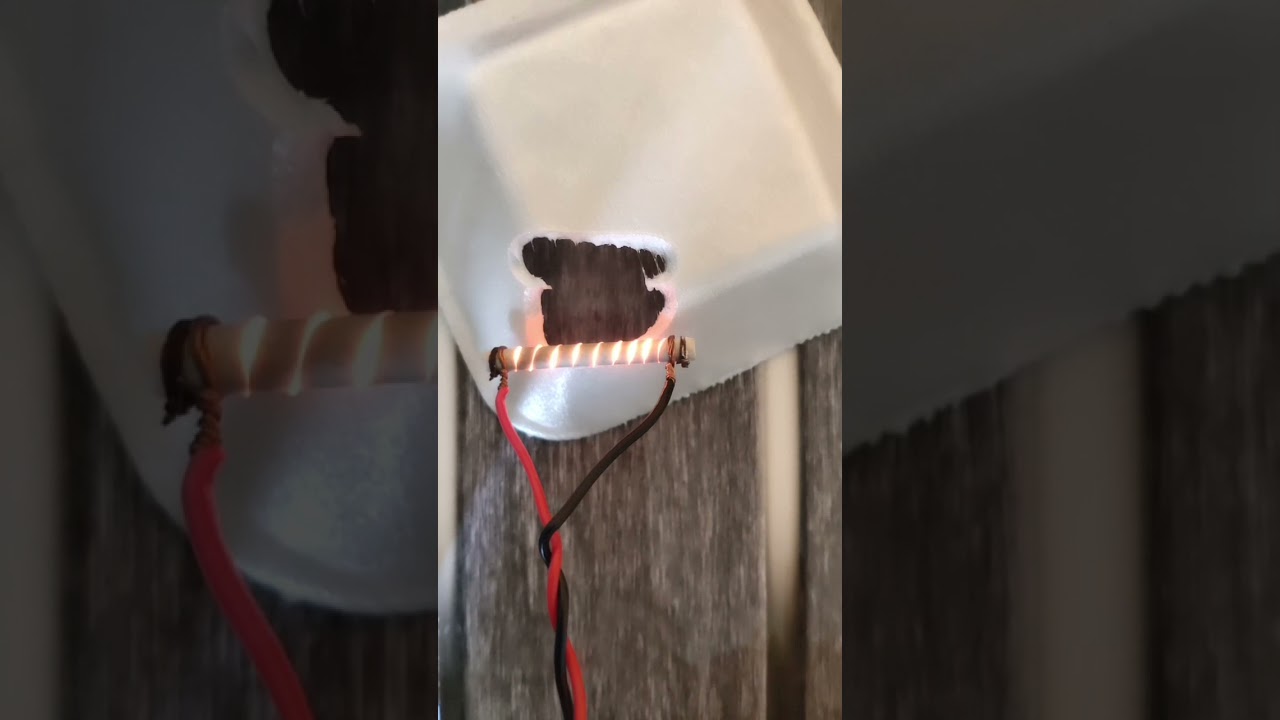

The generation of heat in a conductor is an inevitable consequence of electric current. In many cases, it is undesirable as it converts useful electrical energy into heat. In electric circuits, the unavoidable heating can increase the temperature of the components and alter their properties. However, heating effect of electric current has many useful applications. The electric laundry iron, electric toaster, electric oven, electric kettle and electric heater are some of the familiar devices based on Jouleβs heating.
Detailed Explanation
While heating caused by electric current can be problematicβit can damage circuit componentsβit is extremely useful in many household appliances. Items like electric irons, toasters, and heaters utilize the heating effect purposefully. For instance, they are designed to operate by converting electrical energy into heat energy, which can be used for cooking food or heating spaces.
Examples & Analogies
Consider an electric grill. When you turn it on, electric current heats up the grill's elements, allowing you to cook steak. Here, the heating effect is beneficial, changing electrical energy into heat for cooking.

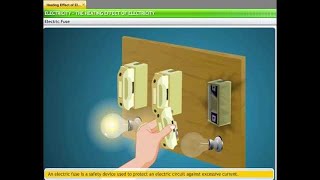

Safety Devices: Fuses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Another common application of Jouleβs heating is the fuse used in electric circuits. It protects circuits and appliances by stopping the flow of any unduly high electric current. The fuse is placed in series with the device. It consists of a piece of wire made of a metal or an alloy of appropriate melting point, for example aluminium, copper, iron, lead etc. If a current larger than the specified value flows through the circuit, the temperature of the fuse wire increases. This melts the fuse wire and breaks the circuit.
Detailed Explanation
Fuses serve as safety devices in electrical systems, designed to protect against excess current which can cause overheating and equipment damage. They are made of materials that melt at a specific temperature. When the current exceeds a safe level, the fuse wire heats up due to Joule's heating, melts, and interrupts the circuit, preventing potential fires or damage to electrical devices.
Examples & Analogies
Think of a fuse like a lifeguard at a swimming pool. Just as lifeguards ensure swimmers don't overexert themselves to avoid drowning, fuses prevent electrical systems from overloading, effectively shutting down the circuit before damage occurs.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Heating Effect: The production of heat when electric current flows through a conductor.
-
Joule's Law: Heat produced is directly proportional to current squared, resistance, and time.
-
Applications: Uses of the heating effect in appliances like toasters, heaters, and fuses.
-
Material Properties: Importance of specific materials like tungsten for high-temperature applications.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The filament of a light bulb heats up and emits light due to Joule's heating.
-
An electric toaster generates heat to toast bread using electrical energy.
-
Fuses melt to prevent circuit damage when excessive current flows.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
When current flows, heat will rise, like toast thatβs golden by surprise.
π Fascinating Stories
-
In a small family kitchen, the toaster was famous for its golden brown slices of bread, all thanks to the electric heat it produced from that current flowing through its wires.
π§ Other Memory Gems
-
Hurricane - Heat = Heat Produces energy, resistance, and current influence.
π― Super Acronyms
HRC - Heat, Resistance, Current, summarizing the relationship in Joule's heating effect.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Joule's Law
Definition:
The principle stating that the heat produced in a resistor is directly proportional to the square of the current, the resistance, and the time.
-
Term: Resistance
Definition:
A measure of the opposition to the flow of electric current in a conductor.
-
Term: Fuse
Definition:
A safety device that melts and breaks the circuit if the current exceeds a certain limit.
-
Term: Thermal Energy
Definition:
The energy generated from heat, produced when current flows through a resistor.
