12.3.1 - Fleming's Left-Hand Rule
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Electromagnetism
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are going to explore the fascinating connection between electricity and magnetism, which is foundational in devices like electric motors. Can anyone tell me what a magnetic field is?
A magnetic field is the area around a magnet where it can exert force.
Exactly! Now, when an electric current flows through a wire, it generates a magnetic field around the wire. This is an example of electromagnetism. Can anyone guess what happens when we place a current-carrying wire inside a magnetic field?
The wire will move or experience a force?
Correct! This brings us to Fleming’s Left-Hand Rule, which helps us determine the direction of this motion.
Fleming's Left-Hand Rule Explained
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s break down Fleming’s Left-Hand Rule. Hold your left hand out: your thumb represents direction of force, your forefinger represents the magnetic field, and your middle finger represents the current. Who can explain how we might use this in a real-life scenario?
We could use it in motors to know the direction the motor will turn!
Exactly! So, if we know the direction of the current and the magnetic field, we can predict the motion's direction.
What if we reverse the current?
Good question! If we reverse the current, the direction of force will also reverse. This is crucial for controlling motor direction.
Applications of Fleming's Left-Hand Rule
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Can anyone think of devices that utilize Fleming's Left-Hand Rule?
Electric motors!
And generators, right?
Absolutely! Both electric motors and generators rely on the phenomena described by this rule. The interaction between current and magnetic fields is what allows them to function effectively.
So, understanding this rule is really important for people working with these technologies?
Exactly right! It’s a key element in many engineering fields.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses Fleming's Left-Hand Rule, which helps in determining the direction of force experienced by a current-carrying conductor in a magnetic field. It explains the interactions of current, magnetic fields, and resulting motion, indispensable in understanding devices like electric motors.
Detailed
Detailed Summary of Fleming's Left-Hand Rule
Fleming's Left-Hand Rule is a fundamental principle in electromagnetism that describes how a current-carrying conductor behaves when placed in a magnetic field. According to this rule, when you hold your left hand with the thumb, forefinger, and middle finger mutually perpendicular to one another, each digit represents a different direction:
- Thumb: Points in the direction of the force (or motion) acting on the conductor.
- Forefinger: Points in the direction of the magnetic field (from north to south).
- Middle finger: Points in the direction of the current (from positive to negative).
This rule is extremely useful in various applications, such as in electric motors, where understanding the relationship between magnetic fields and motion is crucial. The left-hand rule assists engineers and scientists to predict the behaviour of electrical devices accurately when subject to magnetic influences.

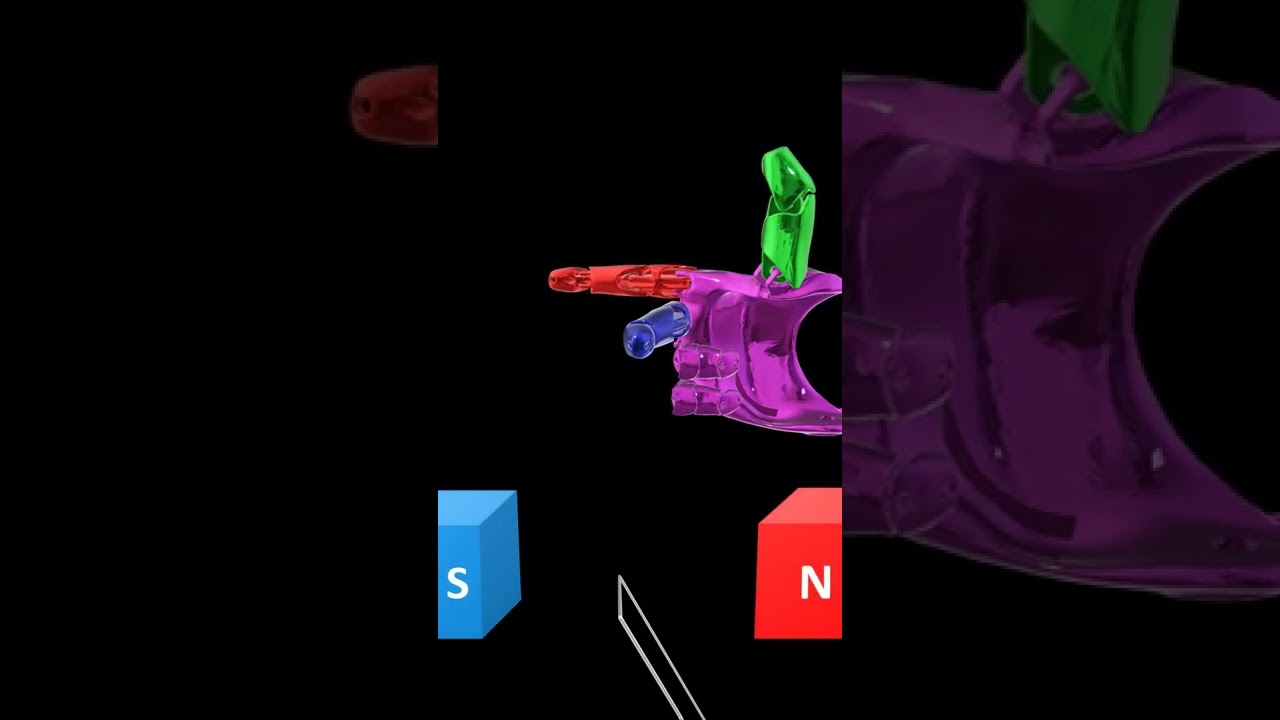

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding the Rule
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
According to this rule, stretch the thumb, forefinger and middle finger of your left hand such that they are mutually perpendicular. If the first finger points in the direction of magnetic field and the second finger in the direction of current, then the thumb will point in the direction of motion or the force acting on the conductor.
Detailed Explanation
Fleming's Left-Hand Rule helps us identify the direction of motion, current, and magnetic field. To use the rule, you position your left hand so that your thumb, index finger, and middle finger are all at right angles (perpendicular) to each other. The index finger represents the direction of the magnetic field (from north to south), the middle finger shows the direction of the current (from positive to negative), and your thumb indicates the direction of force or movement of the conductor. This visualization helps in understanding how electromagnets work and can be applied in motors and generators.
Examples & Analogies
Imagine you're playing a game where you have to direct a toy car through a maze. Your right hand could represent the magnetic field, directing the car down a path. If you have two friends helping you — one showing where to push (the current) and one keeping the direction straight (the thumb pointing to motion), then you can successfully navigate through the maze representing how Fleming's Left-Hand Rule works. This rule is crucial for understanding how motors operate, influencing everything from simple toys to complex machinery.
Applications of the Rule
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Devices that use current-carrying conductors and magnetic fields include electric motor, electric generator, loudspeakers, microphones and measuring instruments.
Detailed Explanation
Fleming's Left-Hand Rule is widely applied in various electrical devices that involve magnetic fields and currents. Electric motors convert electrical energy into mechanical energy, relying on this rule to facilitate the turning motion. Generators do the opposite, turning mechanical energy back into electrical energy. Additionally, in loudspeakers and microphones, magnetism and currents work together to produce sound waves, with the rule helping to control the motion of the system's elements. Understanding this rule is fundamental for students interested in physics and engineering as they explore how these devices operate.
Examples & Analogies
Think of a loudspeaker at a concert. When an electrical signal flows through it, the speaker’s cone moves back and forth, creating sound waves. This motion is directed by the current and magnetic fields working together, similar to conducting a music piece where each instrument needs to play its part in harmony. Fleming's Left-Hand Rule helps engineers design these systems by showing how to achieve the desired movement with the correct directions of current and magnetic fields.
Example of Application
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
An electron enters a magnetic field at right angles to it. The direction of force acting on the electron will be to the right, to the left, out of the page, or into the page depending on the current's direction.
Detailed Explanation
When an electron moves through a magnetic field at an angle, it experiences a force that is perpendicular to both its direction and the magnetic field, which can be determined using Fleming's Left-Hand Rule. By knowing the direction of the current (opposite to the electron's movement) and the magnetic field, you can predict in which direction the force will act on the particle. This principle is crucial in various physics applications, such as in the design of particle accelerators or devices like cyclotrons.
Examples & Analogies
Picture yourself riding a bike into a strong wind. As you pedal, the wind pushes against you sideways, affecting your balance and direction. In the same way, when an electron encounters a magnetic field while moving, it gets 'pushed' in a direction that can be determined by Fleming’s rule. This relationship helps scientists visualize how particles behave under different forces and aids in designing experiments that manipulate electronic behavior.
Key Concepts
-
Fleming's Left-Hand Rule: A rule determining the direction of force in a magnetic field for current-carrying conductors.
-
Magnetic Field Direction: Determined by the direction of current and magnetic field lines as per Fleming's rule.
Examples & Applications
When an electric motor is running, the current in the coils creates a magnetic field that interacts with the permanent magnets to produce rotational motion, determined by Fleming's Left-Hand Rule.
In a DC motor, if the current direction is reversed by switching the battery terminals, the motor's direction of rotation also reverses due to the application of Fleming's Left-Hand Rule.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Thumb up high, current flows nigh, forces then fly, in motion we try.
Stories
Imagine a motor powered by a magical current that flows, creating a dance with magnetic fields that push, pull, and twirl!
Memory Tools
F-L-M: Force, Left Hand, Motion - a reminder for Fleming's Left-Hand Rule.
Acronyms
F-L-H
Force-Like-Hand - remember how the left hand helps us find force direction!
Flash Cards
Glossary
- Magnetic Field
The area surrounding a magnet or a current-carrying conductor where magnetic forces can be experienced.
- Electromagnetism
The interaction of electric currents or fields and magnetic fields.
- Fleming's LeftHand Rule
A rule to determine the direction of force acting on a current-carrying conductor in a magnetic field.
