Introduction to Electrical Wiring
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's start with how electric power reaches our homes. It usually comes through overhead poles or underground cables. Can anyone tell me what the two main types of wires in our electrical system are?
Is one of them the live wire?
Correct! The live wire, typically red, carries current to the appliances. The other one is the neutral wire, usually black, which completes the circuit. The potential difference between them is generally 220 volts.
What happens at the meter-board?
Good question! At the meter-board, these wires connect to an electricity meter and pass through a fuse. This setup is crucial for measuring and controlling the current supply. Remember, 'Mains provide, Meter measures, Fuse protects'βthatβs a good acronym to remember!
Circuits in Domestic Wiring
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's talk about how circuits work within the home. We usually have separate circuits for different appliances. Can someone explain the difference between these circuits?
There are 15 A circuits for high-power appliances and 5 A circuits for lighter ones, right?
Exactly! This separation is vital for efficiency and safety. Also, we have an earth wire, which is crucial for safety. Do you all know what the earth wire does?
It prevents electric shocks by directing excess current into the ground?
Spot on! The earth wire is typically green and provides a low-resistance path for current, maintaining safety around metallic appliances. Remember, 'Earth safely grounds' to help you recall its purpose.
Importance of Fuses
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, we need to understand the importance of fuses in our circuits. What happens when too much current flows through the circuit?
It can cause overheating and damage the appliances?
Exactly! That's called overloading. When this happens, a fuse melts and stops the current flow. Does anyone remember how this process protects our devices?
It prevents short-circuits by breaking the circuit fast!
Great explanation! This can be remembered as 'Fuse breaksβsafety makes!' It highlights how a simple component like a fuse plays a significant role in protecting your home!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section details how electric power enters homes through mains, describes the purpose and color coding of different wires, the function of circuits for appliances, and the importance of fuses in protecting against electrical hazards.
Detailed
In this section, we explore the essential components of domestic electrical circuits. We begin with the sources of electrical power, typically supplied through overhead poles or underground cables. The primary wires involved are the live wire (often red) and neutral wire (often black), with a standard potential difference of 220V between them. At the meter-board, these wires go through a meter and fuse, connecting to various circuits in the home. Different appliances require specific circuits, rated for either 5A or 15A, depending on power usage. The earth wire, identifiable by its green insulation, ensures safety by directing excess current away from devices with metallic bodies, minimizing electric shock risks. Furthermore, we discuss the importance of fuses in preventing damage caused by overloading and short-circuiting. A short circuit occurs when live and neutral wires connect directly, leading to an increase in current. Fuses work by melting under these high currents, disrupting the circuit to protect appliances and wiring.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Wiring Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In our homes, we receive supply of electric power through a main supply (also called mains), either supported through overhead electric poles or by underground cables. One of the wires in this supply, usually with red insulation cover, is called live wire (or positive). Another wire, with black insulation, is called neutral wire (or negative). In our country, the potential difference between the two is 220 V.
Detailed Explanation
Electric power is supplied to our homes through either overhead poles or underground cables. The wires that bring this power have different functions and colors: the live wire, which is typically red, carries the electrical current to our devices, while the neutral wire, usually black, completes the circuit by bringing the current back. The voltage difference between these two wires is normally 220 V, which is the standard in many countries.
Examples & Analogies
Think of the live wire as a water pipe delivering water to a garden, while the neutral wire is like a drainage system that allows the excess water to flow back. If one wire (like the water) is blocked, the circuit doesn't work, just as plants don't get watered if the drainage isn't clear.
Distribution to Circuits
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

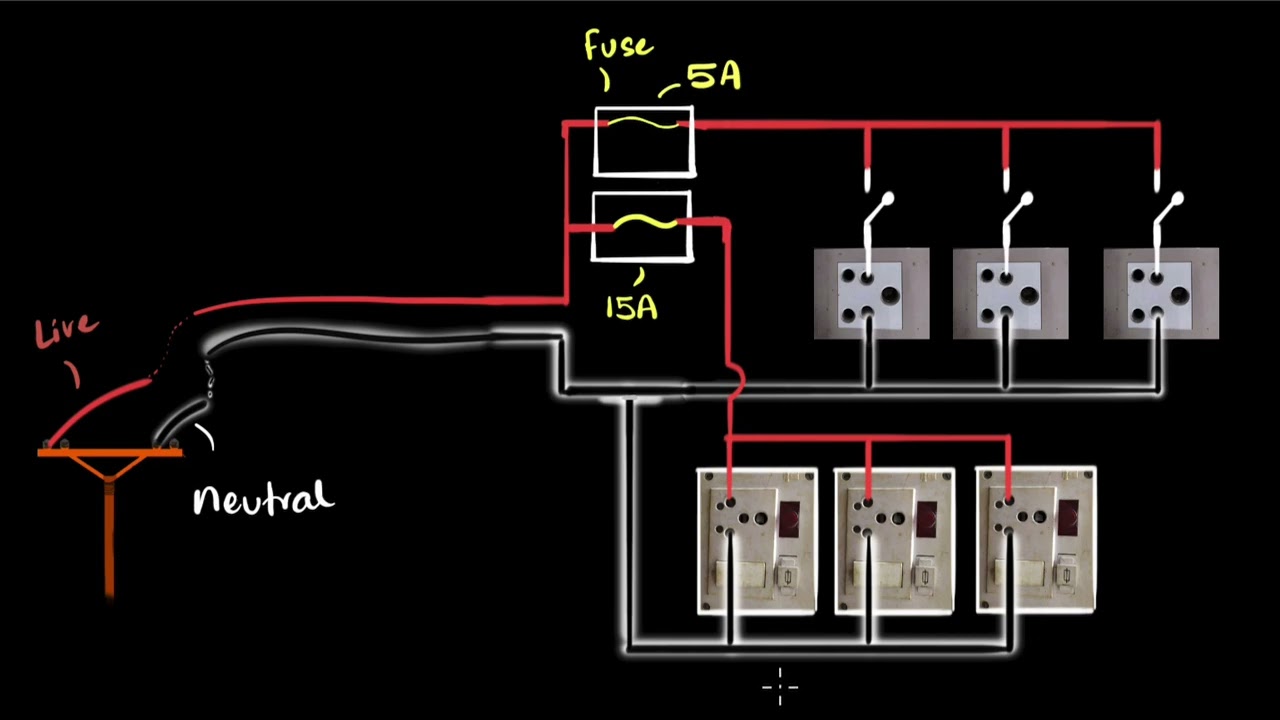

At the meter-board in the house, these wires pass into an electricity meter through a main fuse. Through the main switch they are connected to the line wires in the house. These wires supply electricity to separate circuits within the house. Often, two separate circuits are used, one of 15 A current rating for appliances with higher power ratings such as geysers, air coolers, etc. The other circuit is of 5 A current rating for bulbs, fans, etc.
Detailed Explanation
The main wires lead into a meter-board, where the electricity meter records how much electricity is being used. A fuse acts as a safety device to prevent overload. The main switch controls the connection to various circuits throughout the home. High-power devices like geysers and air coolers use a 15 A circuit, while lower-power devices like lights and fans use a 5 A circuit.
Examples & Analogies
Consider the meter-board as a traffic control center. Just as a center directs traffic to prevent accidents, the fuse and switches help manage electricity flow to avoid overloads that could cause damage.
Earth Wire and Safety
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The earth wire, which has insulation of green colour, is usually connected to a metal plate deep in the earth near the house. This is used as a safety measure, especially for those appliances that have a metallic body, for example, electric press, toaster, table fan, refrigerator, etc. The metallic body is connected to the earth wire, which provides a low-resistance conducting path for the current. Thus, it ensures that any leakage of current to the metallic body of the appliance keeps its potential to that of the earth, and the user may not get a severe electric shock.
Detailed Explanation
The earth wire, identified by its green insulation, is a critical safety feature. It connects electrical appliances to the ground, helping to prevent electric shocks. If there is a fault and electricity leaks to the appliance's metal body, the earth wire directs that electrical current safely into the ground, thus protecting anyone who touches the device.
Examples & Analogies
Think of the earth wire as a safety net for a circus performer. Just like a net catches a performer if they fall, the earth wire catches any electrical flow to the ground, ensuring no shock for the person using the appliance.
Function of Circuit Components
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Electric fuse is an important component of all domestic circuits. We have already studied the principle and working of a fuse in the previous chapter. A fuse in a circuit prevents damage to the appliances and the circuit due to overloading. Overloading can occur when the live wire and the neutral wire come into direct contact. This occurs when the insulation of wires is damaged or there is a fault in the appliance. In such a situation, the current in the circuit abruptly increases. This is called short-circuiting.
Detailed Explanation
Fuses are crucial for protecting household circuits. If too much current passes through a wire, it can cause damage. A fuse melts when thereβs an overload, breaking the circuit before it can cause harm. Overloading, like when a live wire touches a neutral wire, can lead to a dangerous short-circuit.
Examples & Analogies
Imagine a fuse as a safety cap on a soda bottle. If too much pressure builds up, instead of the bottle exploding, the cap pops off, releasing the pressure. The fuse does something similar by breaking the circuit to prevent damage.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Mains Supply: The primary source from which homes receive electric power.
-
Current Ratings: Different circuits have various ratings; typically 15A for high-power appliances and 5A for light appliances.
-
Safety Measures: The importance of using an earth wire to prevent electrical shocks.
-
Fuse Function: Fuses serve the critical function of protecting appliances from overload by breaking the circuit.
-
Short Circuit: A dangerous condition arising from direct contact between live and neutral wires.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An electric geyser requires a 15A circuit due to its high power requirement.
-
If a toaster is plugged into a 5A socket, it operates safely within the circuit's capacity.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
Live wire red, neutral black, earth keeps you safe, thatβs a fact!
π Fascinating Stories
-
Imagine a house where wires live safely; the live wire brings energy, while the earth wire keeps everything grounded, ensuring no shocks happen. They all work together to keep the house bright and safe.
π§ Other Memory Gems
-
Remember: 'LNE' for Live, Neutral, Earth - the essential wires in our homes!
π― Super Acronyms
MFE for 'Mains, Fuse, Earth' helps recall essential components of safe wiring.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Live wire
Definition:
The wire that carries electric current to appliances, typically indicated by red insulation.
-
Term: Neutral wire
Definition:
The wire that completes the electrical circuit, typically indicated by black insulation.
-
Term: Earth wire
Definition:
A safety wire that directs excess current safely into the ground, usually insulated in green.
-
Term: Fuse
Definition:
A safety device that melts and breaks the circuit when excessive current flows through, preventing circuit overload.
-
Term: Shortcircuiting
Definition:
A fault in an electrical circuit that causes current to flow along an unintended path, leading to a spike in current.
