Introduction to Electric Current and Magnetic Fields
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's start our discussion with how electric current creates a magnetic field. When an electric current flows through a conductor, like a wire, it creates a magnetic field around it. Can anyone tell me why this is important?
So we can use the magnetic fields to make things move, like in motors?
Exactly! The effect of magnetic fields on electric currents is crucial for many technologies. For example, in electric motors, the interaction between the magnetic field and the current causes the rotor to spin.
I've heard of something called 'Fleming's Left-Hand Rule'. What is that?
Great question! Flemingβs Left-Hand Rule helps us determine the direction of the force acting on a current-carrying conductor within a magnetic field. We'll explore that in detail shortly.
Fleming's Left-Hand Rule
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's dive into Flemingβs Left-Hand Rule. Remember to hold your left hand with your thumb, first finger, and middle finger perpendicular to one another. The thumb shows the direction of the force, the first finger indicates the magnetic field, and the second finger represents the current. Can anyone summarize what each finger stands for?
Thumb is for force, first finger is for the magnetic field, and middle finger is for current!
Exactly! Keep practicing that. Itβs a handy way to visualize the relationship between current and magnetic fields.
What happens if the direction of the current changes?
Good question! If you reverse the direction of the current, the direction of the force will also reverse, following Flemingβs rule.
Practical Applications of Electromagnetism
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Electromagnetism has many applications. Can anyone think of devices that use these principles?
Electric motors and generators are two, right?
Absolutely! Electric motors convert electrical energy into mechanical energy, while generators do the opposite. Theyβre both based on the principles we've discussed.
And what about safety with these electric circuits?
Safety is crucial! We have live wires, neutral wires, and earth wires to prevent electric shocks and short circuits. Fuses also play an important role in protecting circuits from overload.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section delves into the interaction between electric currents and magnetic fields, explaining how a current-carrying conductor experiences a force when placed in a magnetic field. The section highlights key principles such as Flemingβs Left-Hand Rule and introduces concepts including electromagnetism's applications and safety in domestic circuits.
Detailed
Force on a Current-Carrying Conductor
This section discusses the interaction between electric currents and magnetic fields, focusing on the force experienced by a current-carrying conductor placed within a magnetic field. According to Andre Marie Ampere, a magnetic field exerts a force on a conductor carrying an electric current. The magnitude and direction of this force depend on the direction of the magnetic field and the current itself.
Flemingβs Left-Hand Rule is introduced as a convenient method to determine the direction of the force acting on the conductor. The rule states that if the thumb, forefinger, and middle finger of the left hand are extended perpendicular to each other, where the first finger represents the magnetic field, the second finger indicates the direction of the current, and the thumb points in the direction of the motion (or force) acting on the conductor.
This principle of electromagnetic force is pivotal in understanding how electric motors, generators, and other devices operate. Additionally, the section emphasizes safety measures in domestic electrical circuits, discussing the functions of live, neutral, and earth wires, as well as the importance of fuses in preventing overload and short circuits.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Magnetic Effects
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We have learnt that an electric current flowing through a conductor produces a magnetic field. The field so produced exerts a force on a magnet placed in the vicinity of the conductor. French scientist Andre Marie Ampere (1775β1836) suggested that the magnet must also exert an equal and opposite force on the current-carrying conductor. The force due to a magnetic field acting on a current-carrying conductor can be demonstrated through the following activity.
Detailed Explanation
This chunk introduces the fundamental relationship between electricity and magnetism. When an electric current passes through a conductor, it creates a magnetic field around the conductor. This magnetic field can interact with magnets, influencing their position and motion. The key claim is that if an electric current and a magnetic field interact, they exert forces on each other. This foundational concept is vital for understanding how electric motors and other electromagnetic devices work.
Examples & Analogies
Think of it like a dance between electricity (the conductor) and magnetism (the magnet). When electricity flows, it creates an invisible force that can move things just like a dancer can pull or push their partner during a dance performance.
Activity to Observe the Force
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

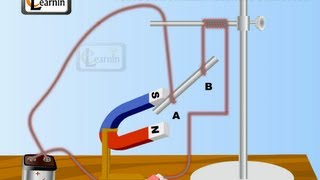

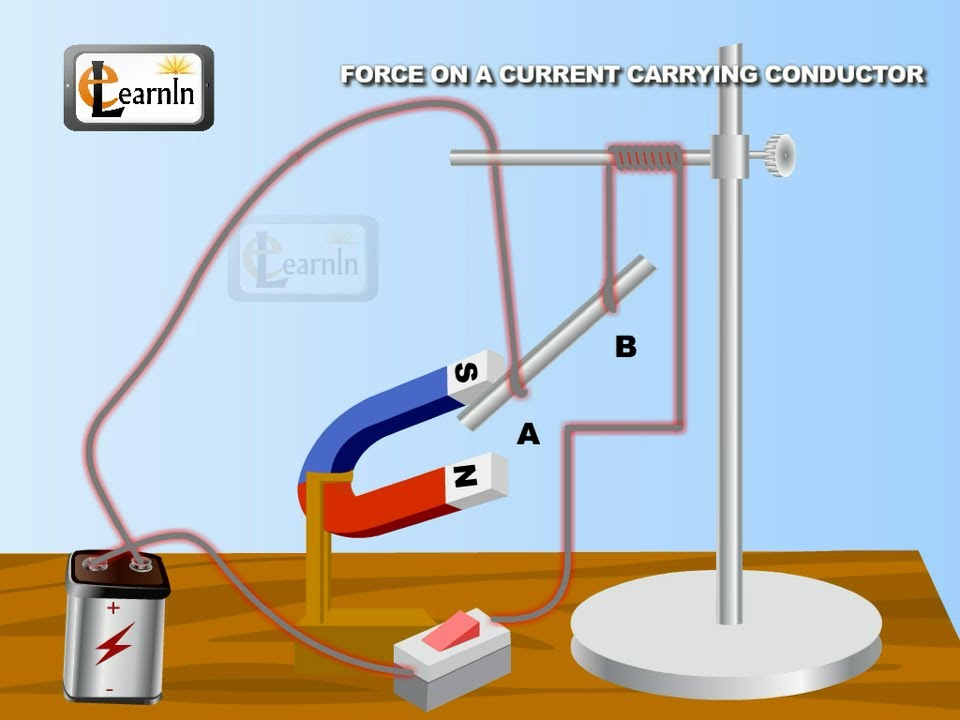

n Take a small aluminium rod AB (of about 5 cm). Using two connecting wires suspend it horizontally from a stand, as shown in Fig. 12.12.
n Place a strong horse-shoe magnet in such a way that the rod lies between the two poles with the magnetic field directed upwards. For this put the north pole of the magnet vertically below and south pole vertically above the aluminium rod (Fig. 12.12).
n Connect the aluminium rod in series with a battery, a key and a rheostat.
n Now pass a current through the aluminium rod from end B to end A.
n What do you observe? It is observed that the rod is displaced towards the left. You will notice that the rod gets displaced.
n Reverse the direction of current flowing through the rod and observe the direction of its displacement. It is now towards the right.
Detailed Explanation
This activity is designed to demonstrate the effect of a magnetic field on a current-carrying conductor. When current flows through the aluminium rod located in a magnetic field, the rod experiences a force, causing it to move. The direction of this force is dependent on both the current's direction and the magnetic field direction. When the current direction is reversed, the rod's displacement also reverses, illustrating how interdependent these forces are.
Examples & Analogies
Imagine pushing a door closed with your hand - if you push it one way, it moves in the direction you pushed. Now if you pull the doorknob instead, you can think of pulling as reversing the push you originally had. Here, the rod behaves like the door, moving in response to the forces acting upon it.
Direction of the Force Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Why does the rod get displaced? The displacement of the rod in the above activity suggests that a force is exerted on the current-carrying aluminium rod when it is placed in a magnetic field. It also suggests that the direction of force is also reversed when the direction of current through the conductor is reversed. Now change the direction of the field to vertically downwards by interchanging the two poles of the magnet. It is once again observed that the direction of force acting on the current-carrying rod gets reversed. It shows that the direction of the force on the conductor depends upon the direction of current and the direction of the magnetic field.
Detailed Explanation
This chunk emphasizes the principle that the force experienced by the rod is determined by both the direction of the current flowing through it and the direction of the magnetic field it is in. If either the current direction or the magnetic field direction is flipped, the direction of the force acting on the rod also reverses. This relationship is crucial for applications such as electric motors, where directionality is essential for movement and operation.
Examples & Analogies
Think of riding a bike in the wind. If the wind shifts direction while you are biking, it can push you off balance. Similarly, changing either the current or the magnetic field changes how the rod (like the bike) moves in response to those forces.
Flemingβs Left-Hand Rule
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Experiments have shown that the displacement of the rod is largest (or the magnitude of the force is the highest) when the direction of current is at right angles to the direction of the magnetic field. In such a condition we can use a simple rule to find the direction of the force on the conductor. According to this rule, stretch the thumb, forefinger and middle finger of your left hand such that they are mutually perpendicular. If the first finger points in the direction of the magnetic field and the second finger in the direction of the current, then the thumb will point in the direction of motion or the force acting on the conductor.
Detailed Explanation
This chunk introduces Flemingβs Left-Hand Rule, a handy tool that simplifies predicting the direction of force acting on a current-carrying conductor within a magnetic field. The rule relies on spatial orientationβthumb for motion, forefinger for magnetic field direction, and middle finger for current direction. This visualization helps students to remember and apply the relationships between these variables easily.
Examples & Analogies
Consider being in a water park, navigating through the slides. If you face one direction (magnetic field), swim in a certain direction (current), and use your arms to push (force), you can navigate your way through. Flemingβs rule is like a guide on how to align your body to get the best ride down!
Applications of Magnetic Forces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Devices that use current-carrying conductors and magnetic fields include electric motors, electric generators, loudspeakers, microphones and measuring instruments.
Detailed Explanation
This chunk highlights real-world applications of the principles discussed. Electrical devices such as motors and generators operate based on the interplay between electric currents and magnetic fields. Their functioning relies heavily on the principles of electromagnetic force discussed earlier, making the knowledge of these concepts essential for understanding modern technology.
Examples & Analogies
Consider your favorite music playing through a speaker. Inside, tiny wires carrying current create magnetic forces that move the speaker cone, producing sound waves you enjoy. This is a perfect example of how theoretical physics translates into practical, everyday technology.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Electric Current: The flow of electric charge through a conductor.
-
Magnetic Field: The area around a magnet where magnetic forces can be detected.
-
Fleming's Left-Hand Rule: A method to determine the direction of force on a current-carrying conductor in a magnetic field.
-
Applications of Electromagnetism: Understanding how electric motors, generators, and other devices operate using these principles.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When an electric current flows through a wire, it generates a magnetic field around it. This is observed by placing a compass near the current-carrying wire, where the compass needle will align with the generated magnetic fields.
-
Electric motors use the principle of the magnetic field produced by electric currents to transform electrical energy into mechanical energy, allowing the rotor to spin and perform work.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
In a field where currents flow, hold your hand, let force go!
π Fascinating Stories
-
Imagine an electric current flowing through a wire like a river, and as it flows, it creates a magnetic field around it, much like how a river carves the land.
π§ Other Memory Gems
-
LHOC: Left Hand = Opposing Current - remember the hand's positions!
π― Super Acronyms
MICE
- Magnetic field
- Current
- Force
- Electromagnetism - the basis of understanding electromagnetism.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Electric Current
Definition:
A flow of electric charge, often measured in amperes (A).
-
Term: Magnetic Field
Definition:
A vector field around a magnet where magnetic forces can be detected and experienced.
-
Term: Fleming's LeftHand Rule
Definition:
A rule to determine the direction of the force experienced by a current-carrying conductor in a magnetic field.
-
Term: Electromagnetism
Definition:
The branch of physics that deals with the interaction between electric currents and magnetic fields.
-
Term: Fuse
Definition:
A safety device that breaks a circuit if the current flow exceeds a certain level.
-
Term: Live Wire
Definition:
The wire carrying electric current in a circuit, usually identified by red insulation.
-
Term: Neutral Wire
Definition:
The wire that completes the circuit and carries current away, usually identified by black insulation.
-
Term: Earth Wire
Definition:
A safety wire that connects the metallic parts of an appliance to the ground to prevent electric shocks.
