12 - Magnetic Effects of Electric Current
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Electric Current and Magnetism
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome everyone! Today we will explore how electric current interacts with magnetism. Can anyone tell me what happens to a compass needle when it's near a current-carrying wire?
It moves, right? It points in a different direction.
Exactly! When a current flows through a wire, it creates a magnetic field around it. This was discovered by Oersted over 200 years ago. Remember, 'Electric current creates magnetic forces!' Let's see how we can demonstrate this.
What kind of activity are we doing?
We'll use a compass and a straight copper wire. Placing the compass near the wire will show the change in the needle's direction when the current flows.
What does a deflected needle mean?
Great question! It indicates the presence of a magnetic field around the wire created by the flow of electric current. Let's note this down: the compass needle deflects due to the magnetic effect of the current.
This sounds like it connects to how magnets work too!
Exactly! Their interaction will lead us into deeper concepts of electromagnetism. Remember that electricity and magnetism are two sides of the same coin. Now, let’s summarize what we learned today.
Magnetic Field Lines
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we’ve seen how electric currents create magnetic fields, let's visualize these fields. Can anyone describe what happens when we sprinkle iron filings around a magnet?
They arrange themselves in lines, showing the field pattern!
Correct! This pattern reflects the magnetic field lines. They tell us how the magnetic force is directed in space. Remember: 'Iron filings dance to the magnetic tune!' This helps us see the invisible magnetic field.
Do the lines have any specific meaning?
Yes! The lines emerge from the north pole and terminate at the south pole. The closer the lines, the stronger the magnetic field. This visual representation is crucial for understanding how magnets work in real-world applications.
Can we draw these lines ourselves?
Absolutely! We can use a compass to trace these lines around a bar magnet. Let's do it together. Remember, as you draw, ensure the lines do not cross, as that indicates the field direction at a point.
This is a really fun way to learn!
Learning through visuals can indeed make complex concepts simpler! Let’s summarize what we’ve covered today.
Right-Hand Thumb Rule and Fleming’s Left-Hand Rule
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, we’ll discuss how to determine the direction of magnetic fields created by current-carrying wires. Does anyone know the right-hand rule?
Isn't it the one where you use your right hand?
"Yes! When you hold a current-carrying wire in your right hand with your thumb pointing in the direction of current, your fingers will curl around the wire in the direction of the magnetic field.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section discusses the interaction between electricity and magnetism, focusing on how electric current passing through a wire can deflect a compass needle, illustrating the concept of a magnetic field. It also covers key historical figures, activities to visualize magnetic fields, and foundational principles, including the right-hand thumb rule and Fleming’s left-hand rule.
Detailed
Magnetic Effects of Electric Current
The section delves into the critical relationship between electricity and magnetism, illustrated by Hans Christian Oersted's discovery in 1820 that electric currents can produce magnetic fields. By conducting an activity with a compass and a current-carrying wire, we observe the deflection of the compass needle, which confirms that an electric current generates a magnetic effect. This establishes the linkage between electricity and magnetism.
We further analyze magnetic field characteristics, focusing on compass needles as small bar magnets. Distinctive properties of magnetic fields are examined through various experiments, including the arrangement of iron filings to visualize the field lines around a magnet and current-carrying wires.
Key principles like the Right-Hand Thumb Rule and Fleming's Left-Hand Rule are introduced, providing techniques to determine the directions of magnetic fields and forces in the context of electric currents. Additionally, the section touches upon electromagnetism, solenoids, and practical applications of these concepts in devices like electric motors and MRI.
In conclusion, this section equips learners with foundational understanding of how electric currents create magnetic fields, highlighting its significance in technology and everyday applications.

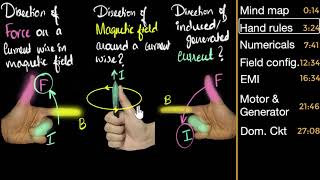

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding the Magnetic Effect of Electric Current
Chapter 1 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In the previous Chapter on ‘Electricity’ we learnt about the heating effects of electric current. What could be the other effects of electric current? We know that an electric current-carrying wire behaves like a magnet.
Detailed Explanation
This chunk introduces the concept that electric current can produce various effects, one of them being a magnetic effect. It builds on the earlier chapter's content about electricity, inviting students to consider what other effects electric currents can have, moving beyond just heating.
Examples & Analogies
Think of a wire carrying a current like a magnet that can turn on and off. Just as a magnet can attract or repel objects, a current-carrying wire can create a magnetic field that interacts with magnetic materials.
Activity: Observing Magnetic Effects
Chapter 2 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
n Take a straight thick copper wire and place it between the points X and Y in an electric circuit. The wire XY is kept perpendicular to the plane of paper. n Horizontally place a small compass near to this copper wire. n Pass the current through the circuit by inserting the key. n Observe the change in the position of the compass needle.
Detailed Explanation
This chunk outlines a simple experiment where students can see the magnetic effect of an electric current. When they place a compass near a current-carrying wire and turn on the current, they’ll observe that the compass needle moves, indicating the presence of a magnetic field around the wire.
Examples & Analogies
It's like when you walk close to a magnet and feel it pull or push you. The compass acts like a tiny magnet and shows how the current in the wire is creating a magnetic effect, letting us see something we usually can't.
Introduction to Hans Christian Oersted
Chapter 3 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Hans Christian Oersted, one of the leading scientists of the 19th century, played a crucial role in understanding electromagnetism. In 1820 he accidentally discovered that a compass needle got deflected when an electric current passed through a metallic wire placed nearby.
Detailed Explanation
This chunk provides historical context by introducing Hans Christian Oersted, who made a significant breakthrough in electromagnetism. His discovery that an electric current can affect a compass needle was crucial in linking electricity and magnetism.
Examples & Analogies
Imagine discovering something amazing while doing everyday things. Oersted was just experimenting with circuits, much like a young scientist in a lab. His 'oops' moment paved the way for technologies we use today, like radios and televisions.
Magnetic Field Concepts
Chapter 4 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The region surrounding a magnet, in which the force of the magnet can be detected, is said to have a magnetic field. The lines along which the iron filings align themselves represent magnetic field lines.
Detailed Explanation
This chunk explains what a magnetic field is and how it's represented by field lines. By visualizing these lines, which show the direction and strength of a magnetic field, students can better understand how magnetic fields function.
Examples & Analogies
Think of a magnetic field like an invisible force field that gets stronger the closer you are to its source. Iron filings act like little magnets that reveal this field, aligning in patterns that show how strong and where the magnetic force is.
Effect of Electric Current in Conductors
Chapter 5 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
We have seen that an electric current through a metallic conductor produces a magnetic field around it. In order to find the direction of the field produced let us repeat the activity...
Detailed Explanation
This chunk reinforces the idea of the relationship between electric currents and magnetic fields with activities that demonstrate how the direction of current affects the magnetic field direction.
Examples & Analogies
Picture the current like a river and the magnetic field like waves that form as the river flows. Just as the waves change direction with the river's flow, the magnetic field changes as the current's direction changes.
Right-Hand Thumb Rule
Chapter 6 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A convenient way of finding the direction of magnetic field associated with a current-carrying conductor is the right-hand thumb rule.
Detailed Explanation
This chunk explains the right-hand thumb rule, which helps students learn how to determine the direction of a magnetic field created by a current-carrying wire. By using their hand, students can visualize this direction in a memorable way.
Examples & Analogies
You can think of this rule like holding a real object. Just as your thumb points in one direction and your fingers curl naturally, the thumb represents the flow of current while your curled fingers show the direction of the magnetic field.
Magnetic Fields Created by Coils and Solenoids
Chapter 7 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
We have so far observed the pattern of the magnetic field lines produced around a current-carrying straight wire. Suppose this straight wire is bent in the form of a circular loop and a current is passed through it.
Detailed Explanation
This chunk introduces how a wire can produce a magnetic field both as a straight line and when it is formed into loops or solenoids. The patterns change, and the fields become stronger in certain areas.
Examples & Analogies
When you look at a garden hose, the water flows out straight but can also spiral out when you twist the hose in a certain way. Similarly, current-carrying wires can create different shapes of magnetic fields depending on how they are arranged.
Applications in Everyday Life
Chapter 8 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Devices that use current-carrying conductors and magnetic fields include electric motors, electric generators, loudspeakers, microphones, and measuring instruments.
Detailed Explanation
This final chunk discusses the practical applications of the principles learned throughout the chapter. It connects theory to technology in real-world devices that rely on the magnetic effects of electric currents.
Examples & Analogies
Consider your everyday interactions with devices like fans or speakers. They operate using electric current and involve interaction with magnetic fields, similar to how we interact with the environment. Understanding these principles not only makes science practical but important in our lives.
Key Concepts
-
Electric Current: Flow of electric charge that creates a magnetic field.
-
Magnetic Field Lines: Visual representation of magnetic fields, showing the strength and direction.
-
Right-Hand Rule: Helps determine the direction of magnetic fields produced by current.
-
Fleming’s Left-Hand Rule: Used to find the direction of force on current in a magnetic field.
Examples & Applications
Inserting a compass near a current-carrying wire to observe needle deflection.
Sprinkling iron filings around a bar magnet to visualize magnetic field lines.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Electricity flows, compass knows, magnetic field grows.
Stories
Imagine a wire running through a forest, and as it connects with current, it whispers to the compass, 'Come closer, follow my field!'
Memory Tools
RHTR for Right-Hand Thumb Rule – Remembering the direction of currents.
Acronyms
FLEMMING for Fleming’s Left-Hand Rule - Force, Field, Current.
Flash Cards
Glossary
- Compass Needle
A small magnet that aligns itself with the Earth's magnetic field, used to demonstrate magnetic fields.
- Magnetic Field
An invisible field around a magnet where magnetic forces can be detected.
- RightHand Thumb Rule
A rule to determine the direction of the magnetic field around a current-carrying conductor.
- Fleming’s LeftHand Rule
A rule that helps predict the direction of force acting on a current-carrying conductor in a magnetic field.
