Understanding Angular Momentum

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we are diving into the world of angular momentum. Can anyone tell me what angular momentum means in the context of physics?

Student 1
Student 1

Is it like the momentum we talk about in linear motion, but for rotating objects?

Teacher
Teacher

Exactly! Angular momentum is the rotational analogue of linear momentum. It depends on the object's mass distribution and how fast it rotates.

Student 2
Student 2

But how do we calculate it?

Teacher
Teacher

Great question! The angular momentum \( L \) of a particle is given by \( L = r \times p \), where \( r \) is the position vector and \( p \) is the linear momentum.

Student 3
Student 3

And if we sum the angular momentum for all particles in a rotating body, it gives us the total?

Teacher
Teacher

Correct! We use \( L_{total} = \sum_{i=1}^{n} \mathbf{r}_i \times \mathbf{p}_i \) to represent it. Remember, the direction of angular momentum is always along the axis of rotation, represented by the right-hand rule.

Student 4
Student 4

So can angular momentum change?

Teacher
Teacher

That's right! Angular momentum changes when an external torque is applied. Otherwise, it remains constant, which leads us to the conservation of angular momentum.

Teacher
Teacher

In summary, angular momentum is crucial for understanding rotational systems, and we will see how it applies in various physical situations.

Conservation Principle

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand angular momentum, let's discuss its conservation. What does it mean when we say angular momentum is conserved?

Student 1
Student 1

Does it mean it doesn’t change in a closed system?

Teacher
Teacher

Precisely! If the total external torque acting on a system is zero, the angular momentum of that system remains constant over time.

Student 2
Student 2

So in experiments, if we observe no external torques, we can assume total angular momentum is constant?

Teacher
Teacher

Exactly! This is seen in many scenarios like ice skaters and divers. Each time they pull in their arms, they reduce their moment of inertia and increase their rotational speed to conserve angular momentum.

Student 3
Student 3

Can we sum it up mathematically?

Teacher
Teacher

Sure! When the total external torque is zero, we can express it as: \( L_z = I \omega = constant \).

Student 4
Student 4

So, our rotational motion and behavior can be predicted using this principle!

Teacher
Teacher

Correct! Conservation of angular momentum helps us analyze not just simple systems, but complex interactions in various fields of physics.

Practical Examples

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Can anyone share examples where the conservation of angular momentum is evident?

Student 1
Student 1

Like when a diver twists in the air? They pull their limbs in to rotate faster, right?

Teacher
Teacher

Exactly! During the twist, the diver reduces their moment of inertia. What about a skater?

Student 2
Student 2

Yes! They do the same by bringing arms closer while spinning!

Teacher
Teacher

Correct! These examples show how angular motion can be influenced by applying the conservation principle. How about we look at some equations governing this?

Student 3
Student 3

Will it include calculations?

Teacher
Teacher

Yes, for rigid bodies, we employ the relation \( L = I \omega \) to solve problems involving angular motion, ensuring we remember changes in inertia affect velocity.

Student 4
Student 4

And this will help us understand collisions or interactions between rotating bodies too?

Teacher
Teacher

Absolutely! Observing how angular momentum behaves can help predict outcomes in various physical events.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section focuses on the principle of conservation of angular momentum, particularly during rotation about a fixed axis, explaining that when the total external torque is zero, the angular momentum remains constant.

Standard

In this section, we discuss the conservation of angular momentum, emphasizing its significance during rotational motion about a fixed axis. We highlight that the angular momentum of a system is conserved when the total external torque is zero, establishing the relationship between angular momentum and moment of inertia.

Detailed

Conservation of Angular Momentum

In rotational dynamics, the concept of angular momentum is crucial for understanding motion about a fixed axis. The total angular momentum of a system of particles is expressed mathematically by the equation:

$$L_{total} = \sum_{i=1}^{n} \mathbf{r}_i \times \mathbf{p}_i$$

Where \( \mathbf{r}_i \) is the position vector of the i-th particle and \( \mathbf{p}_i = m_iv_i \) is its linear momentum. The section elaborates that for any rigid body rotating about a fixed axis (typically the z-axis), the angular momentum vector can be represented as:

$$\mathbf{L} = I\mathbf{\omega}$$

where \( I \) is the moment of inertia of the body about the rotation axis and \( \mathbf{\omega} \) is the angular velocity. When there are no external torques acting on the system, the angular momentum remains constant:

$$\frac{dL_z}{dt} = external ~ torque = 0 \implies L_z = constant$$

This implies that for symmetrical rigid bodies where pairs of particles have equal and opposite velocities, the angular momentum remains balanced.

Importance

This principle is not only foundational in physics but also observable in daily scenarios, for instance, in ice skating where a skater pulls their arms in to spin faster or a diver rotating while in mid-air. The overall takeaway is that the conservation of angular momentum allows for various applications in dynamics and mechanics, revealing the interplay between torque, moment of inertia, and angular motion.

Youtube Videos

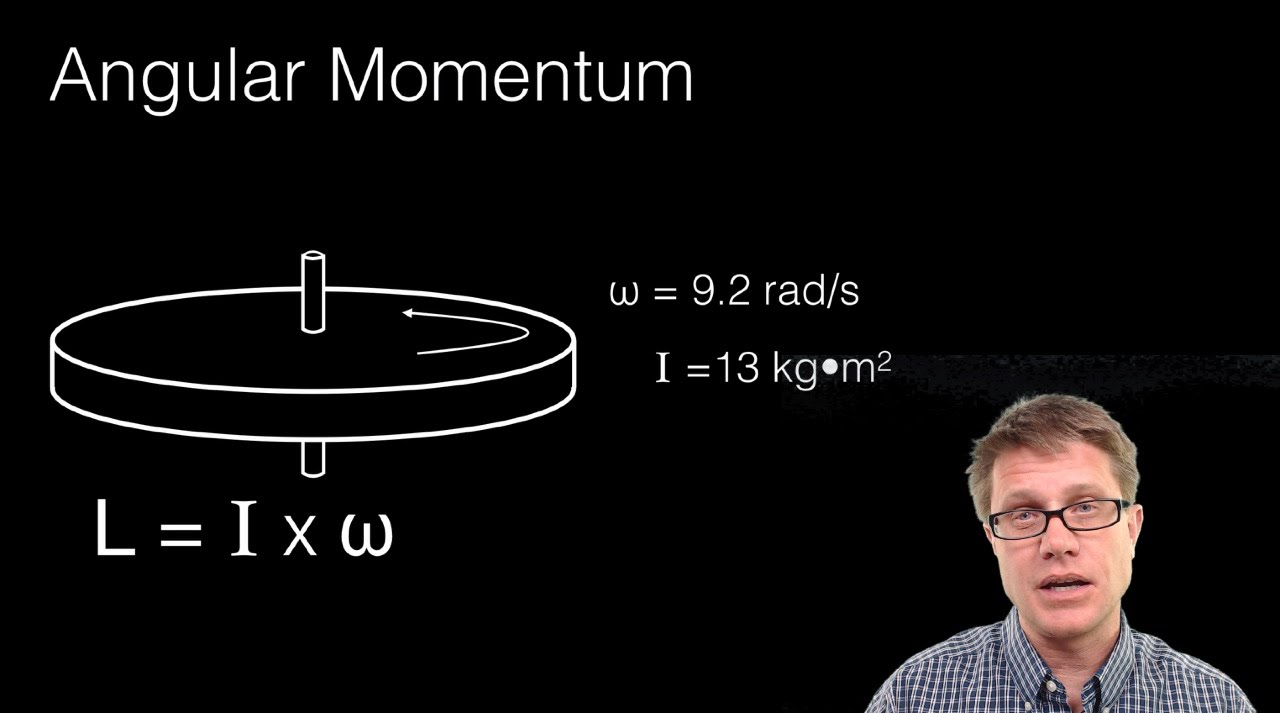

Conservation of Angular Momentum
Conservation of Angular Momentum

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Principle of Conservation of Angular Momentum

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We are now in a position to revisit the principle of conservation of angular momentum in the context of rotation about a fixed axis. From Eq. (6.43c), if the external torque is zero, Lz = Iω = constant (6.44). For symmetric bodies, from Eq. (6.42d), Lz may be replaced by L .(L and Lz are respectively the magnitudes of L and Lz.)

Detailed Explanation

The principle of conservation of angular momentum states that the total angular momentum of a rotating system remains constant if no external torque acts on the system. Here, Lz represents the angular momentum about a fixed axis, and I is the moment of inertia of the object around that axis. When no external forces are acting (torque = 0), the product of the moment of inertia and angular velocity (Iω) remains constant throughout the motion. This reflects that systems exhibiting symmetry will conserve angular momentum more explicitly.

Examples & Analogies

Consider a figure skater who pulls in her arms during a spin. As she brings her arms close to her body, she reduces her moment of inertia. Because of the conservation of angular momentum, her speed increases, allowing her to spin faster. This visual and practical example illustrates how the principle of angular momentum conservation works in real-life scenarios.

Zero External Torque Implications

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

This then is the required form, for fixed axis rotation, of Eq. (6.29a), which expresses the general law of conservation of angular momentum of a system of particles. Eq. (6.44) applies to many situations that we come across in daily life.

Detailed Explanation

In the absence of external torque, the equation Lz = Iω indicates that any changes to the angular momentum of a system are closely tied to its moment of inertia and angular velocity. For example, if a wheel rotates without any outside interference (like friction or additional forces), its angular momentum remains consistent. This conservation law is closely observed not only in theoretical physics but also in various mechanics applications in everyday life.

Examples & Analogies

Think of a spinning merry-go-round. When no one pushes or pulls it (no external torque), it will continue spinning at the same rate. If a child jumps on or off, they redistribute the moment of inertia, but the overall angular momentum of the system remains constant if we neglect the frictions and air resistance.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Conservation of Angular Momentum: The principle that states angular momentum remains constant when no external torque acts on a system.

  • Torque: A rotational force which leads to changes in angular momentum.

  • Moment of Inertia: A measurement of an object's resistance to changes in its rotational motion.

  • Angular Momentum: The rotational counterpart of linear momentum, dependent on mass distribution and velocity.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A figure skater pulling in arms to spin faster, demonstrating conservation of angular momentum.

  • A diver twisting in the air reduces their moment of inertia by pulling in their limbs, speeding up their rotation.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When things start to spin, hold tight within, momentum stands strong, as forces act long.

📖 Fascinating Stories

  • Imagine a twirling dancer who spins faster when they pull their arms in. This represents how conservation of angular momentum works – lesser distance from the center leads to increased speed.

🧠 Other Memory Gems

  • Think of 'LION' to remember: L = Iω (Angular Momentum = Moment of Inertia times Angular Velocity).

🎯 Super Acronyms

Remember 'ACT' for Angular momentum Conservation

  • A: - Angular
  • C: - Conservation
  • T: - Torque.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Angular Momentum

    Definition:

    A measure of the rotational motion of a body, dependent on the distribution of mass and angular velocity.

  • Term: Conservation of Angular Momentum

    Definition:

    The principle stating that the total angular momentum of a closed system remains constant if no external torques act upon it.

  • Term: Torque

    Definition:

    A measure of the rotational force applied to an object, causing it to rotate about an axis.

  • Term: Moment of Inertia

    Definition:

    A property of a body that quantifies its resistance to angular acceleration, depending on mass distribution relative to the axis of rotation.
