Introduction to Torque

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will begin with the concept of torque, often referred to as the moment of force. Can anyone tell me how we can define torque?

Student 1
Student 1

Is it the force that causes rotation?

Teacher
Teacher

Good! Torque is indeed what makes a body rotate. It is defined as the product of the distance from the pivot point to where the force is applied, multiplied by the force itself. Mathematically, we express this as τ = r × F.

Student 2
Student 2

So, what do 'r' and 'F' represent in that equation?

Teacher
Teacher

Excellent question! Here, 'r' is the position vector pointing from the pivot point to the place where the force is applied, and 'F' is the force applied. Remember, torque is maximized when the force is applied perpendicularly to the lever arm.

Student 3
Student 3

Does that mean if the force is applied parallel to the lever, there would be no torque?

Teacher
Teacher

Exactly! In that case, the torque would be zero. Always remember that the angle matters, which we can relate to through the sine function in torque calculations.

Student 4
Student 4

Can you give us a practical example of torque?

Teacher
Teacher

Sure! Think about opening a door. The farther from the hinges you push, the easier it is to rotate the door. That's torque in action. To recap, torque depends on both the force applied and the distance from the pivot to the point of application.

Importance of Torque

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand what torque is, let's discuss why it's so important in dynamics.

Student 1
Student 1

Is it because it affects how fast something rotates?

Teacher
Teacher

That's correct! Torque is directly related to angular acceleration, which is vital for understanding how quickly a body rotates. According to Newton's second law for rotation, τ = Iα, where I is the moment of inertia.

Student 2
Student 2

Can you explain what the moment of inertia means?

Teacher
Teacher

The moment of inertia is a measure of how mass is distributed relative to the axis of rotation. The greater the distance of the mass from the axis, the larger the moment of inertia and, as a result, the harder it is to change the rotation of that body.

Student 3
Student 3

So a heavier or poorly distributed mass will rotate slower?

Teacher
Teacher

Exactly! A larger moment of inertia means it takes more torque to achieve the same angular acceleration.

Student 4
Student 4

That makes sense! So torque isn’t just about the force but also about how that force is applied.

Teacher
Teacher

Yes! Remember to consider both factors when analyzing rotational motion. Let's summarize: Torque is crucial because it dictates how efficiently a force can change a body's rotation, influenced by both the magnitude of the force and how it's applied.

Applications of Torque

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s explore how torque is applied in real-life scenarios.

Student 1
Student 1

Like when we use a wrench to tighten a bolt?

Teacher
Teacher

Exactly! The longer the wrench, the greater the distance from the pivot point. Hence, applying a force further from the bolt maximizes torque.

Student 2
Student 2

What about in vehicles? Do they use torque too?

Teacher
Teacher

Yes, torque is crucial in vehicles! The engine generates torque to turn the wheels. The greater the torque, the easier it is for a vehicle to start moving or to climb an incline.

Student 3
Student 3

And how does it connect to the concept of angular momentum?

Teacher
Teacher

Good connection! Torque affects the angular momentum of a body. If a net torque is applied, it changes the angular momentum, which leads to new rotational speeds.

Student 4
Student 4

What happens if internal torques are also acting on the body?

Teacher
Teacher

Internal torques will cancel out because of Newton's Third Law, leaving only external torques to affect the rotation. This is essential in systems that operate under multiple forces.

Teacher
Teacher

To wrap up, remember that torque is not only a concept of physics but highly applicable in engineering and mechanical systems.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section covers the concept of torque and its significance in rotational motion, explaining how torque relates to the moment of force and dynamics of rigid bodies.

Standard

Torque, or moment of force, is defined as the rotational analogue of linear force, determining how effectively a force induces rotational motion about an axis. It is described mathematically as τ = r × F and is essential for understanding the dynamics of rigid bodies. The section presents various examples and explains the relationship between torque, angular acceleration, and angular momentum.

Detailed

Moment of Force (Torque)

In rotational dynamics, the concept of torque is pivotal as it represents the effectiveness of a force to cause rotation. Torque, denoted as τ, can be understood mathematically as the vector product of the position vector (r) from the pivot to the point of application of the force and the force vector (F) itself:

$$
τ = r × F
$$

This expression demonstrates that torque not only depends on the magnitude of the force but also on the distance from the pivot (r) and the angle at which the force is applied (θ). The effectiveness of the force to cause rotational motion is maximized when the force is applied perpendicular to the arm (r) of the lever.

In addition to torque being a pivotal concept, this section also elucidates the relationship between the moment of force and angular acceleration. As per Newton's second law for rotational motion:

$$
τ = Iα
$$

where I represents the moment of inertia of the rotating body and α denotes the angular acceleration. This fundamental relationship shows how the distribution of mass (moment of inertia) along the rotational axis impacts the acceleration a body experiences when a torque is applied.

Understanding torque is essential for analyzing any rigid body's motion, as it influences not only the angular acceleration but also overall angular momentum, making it a cornerstone concept in the study of rotational dynamics.

Youtube Videos

What is Torque #physics #class11physics #rotationalmotion #science #torque #physcis
What is Torque #physics #class11physics #rotationalmotion #science #torque #physcis
System of Particles & Rotational Motion One Shot | Class 11 Physics with Live Experiment by Ashu Sir
System of Particles & Rotational Motion One Shot | Class 11 Physics with Live Experiment by Ashu Sir

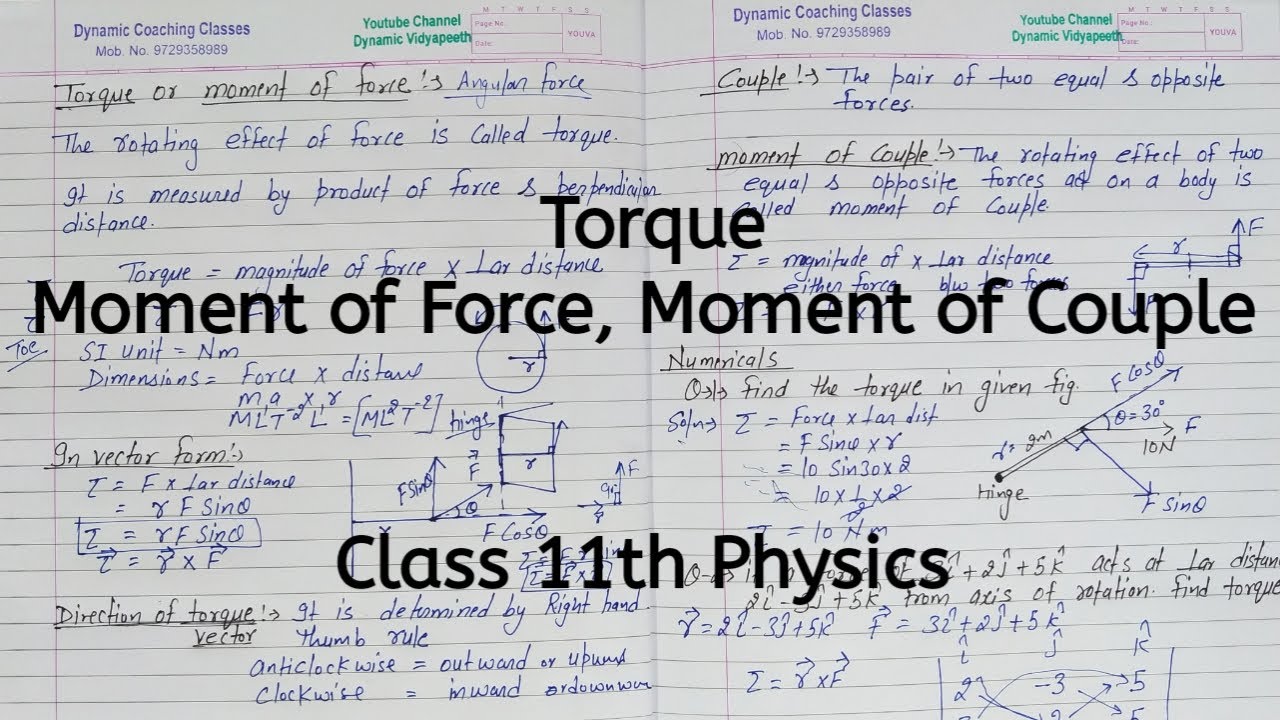

Torque | Moment of Foce | Moment of Couple | Chapter 6 | System of Particles nd Rotational Motion 11
Torque | Moment of Foce | Moment of Couple | Chapter 6 | System of Particles nd Rotational Motion 11
System of Particles and Rotational Motion | Class 11 Physics Chapter 6 One Shot | New NCERT CBSE
System of Particles and Rotational Motion | Class 11 Physics Chapter 6 One Shot | New NCERT CBSE
Class 11th – Torque | System of Particles and Rotational Motion | Tutorials Point
Class 11th – Torque | System of Particles and Rotational Motion | Tutorials Point

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Understanding Torque

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We have learnt that the motion of a rigid body, in general, is a combination of rotation and translation. If the body is fixed at a point or along a line, it has only rotational motion. We know that force is needed to change the translational state of a body, i.e. to produce linear acceleration. We may then ask, what is the analogue of force in the case of rotational motion?

Detailed Explanation

In rotational motion, just as a force is needed to change the motion of an object moving in a straight line, a torque (or moment of force) is necessary to cause a change in the rotational motion of a body. Torque considers not just the size of the force applied but also where and how it is applied in relation to the pivot point. This concept is analogous to the linear concept of force, which directly causes linear acceleration.

Examples & Analogies

Think of opening a door: If you push directly at the hinges (the pivot point), the door won't move. However, if you push at the outer edge of the door, it swings open easily. This demonstrates how the point of application of a force relative to an axis of rotation determines the effectiveness of the force in producing rotational motion.

Definition of Torque

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

To look into the question in a concrete situation let us take the example of opening or closing of a door. A door is a rigid body which can rotate about a fixed vertical axis passing through the hinges. What makes the door rotate? It is clear that unless a force is applied the door does not rotate. But any force does not do the job. A force applied to the hinge line cannot produce any rotation at all, whereas a force of given magnitude applied at right angles to the door at its outer edge is most effective in producing rotation.

Detailed Explanation

The torque τ (tau) on the door when a force F acts at a distance r from the axis of rotation can be expressed as τ = r × F. This means the torque depends on both the force applied and the perpendicular distance from the axis of rotation to the point where the force is applied. Torque is a vector quantity, meaning it has both a magnitude and a direction, which is determined by the direction of the applied force and its distance from the pivot.

Examples & Analogies

Consider using a wrench to tighten a bolt. The longer the wrench (greater r), the more torque you apply for the same force. If you use a short wrench, it’s much harder to tighten the bolt because you don’t have enough leverage. This helps visualize how torque works—longer distances or angles of application result in more effective rotational force.

Calculating Torque

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The moment of force has dimensions M L² T -². Its dimensions are the same as those of work or energy. The SI unit of moment of force is newton meter (N m). The magnitude of the moment of force may be written τ = r F sinθ, where θ is the angle between the position vector r and the force vector F.

Detailed Explanation

When calculating the magnitude of torque, you consider not only the force exerted but also the distance from the pivot (the line of action of the force) and the angle at which the force is applied. For maximum torque, the force should be applied perpendicular to the lever arm, meaning θ = 90°, which gives sinθ = 1. If the force is applied parallel to the lever arm, sinθ = 0, and therefore no torque is produced.

Examples & Analogies

If you’re trying to unscrew a tight lid, pushing down straight doesn’t help—there’s no torque if you apply force directly along the line connecting your hand and the center of the lid. But, if you apply a force at an angle, or at the edge of the lid while using a bigger lever like a spoon, you effectively increase the torque.

Torque and Angular Acceleration

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The moment of a force is a vector quantity. The symbol τ stands for the Greek letter tau. Just as force leads to linear acceleration (F = ma), torque leads to angular acceleration. Therefore, for rotational motion about a fixed axis, we can relate torque τ with angular acceleration α through the moment of inertia I of the body, represented as τ = Iα.

Detailed Explanation

This relationship shows us how much torque is needed to produce a certain angular acceleration in a rigid body. The moment of inertia, which depends on the mass and its distribution with respect to the axis of rotation, plays a crucial role in determining how easily an object can be rotated. A higher moment of inertia means more torque is required to achieve the same angular acceleration.

Examples & Analogies

Think of two different objects: a flywheel and a solid sphere. The flywheel, which has most of its mass distributed away from the center, requires more torque to change its rotational speed compared to a solid sphere with mass evenly distributed. This is why flywheels are used in machinery to maintain steady speeds.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Torque: The vector product of the position vector and the force vector, measuring the effectiveness of the force in causin rotation.

  • Moment of Inertia: A quantitative measure of an object's resistance to angular acceleration based on its mass distribution relative to the rotational axis.

  • Angular Acceleration: The rate of change of angular velocity indicating how quickly a body spins faster or slower.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of using a wrench: The longer the wrench from the bolt, the greater the torque applied with the same force.

  • The torque applied by an engine in a vehicle affects its ability to move and change speed.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • To make it spin, just know the key, torque is how you get the spree!

📖 Fascinating Stories

  • Once in a land of gears and wheels, there was a hero named Torque who could spin anything with just the right push, teaching the villagers how the right angle can lead to a powerful rotation.

🧠 Other Memory Gems

  • TAM = Torque = Arm length × Force × Angle sin(θ).

🎯 Super Acronyms

To Remember Torque

  • F.A.R. - Force
  • Arm length
  • Right angle.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Torque

    Definition:

    A measure of how effectively a force causes an object to rotate, calculated as the product of force and the distance from the pivot point.

  • Term: Moment of Inertia

    Definition:

    A scalar quantity that measures how mass distributes around an axis of rotation, affecting the resistance to angular acceleration.

  • Term: Angular Acceleration

    Definition:

    The rate of change of angular velocity over time, indicating how quickly an object begins to rotate faster or slower.
