6.8.1 - Principle of moments
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to the Principle of Moments
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome class! Today we're going to learn about the Principle of Moments. Can anyone tell me what happens when you try to lift something with a long lever?
It gets easier to lift!
Is that because of the distance from the pivot?
Exactly! The farther the force is applied from the fulcrum, the easier it is to lift the load. This is a direct application of the Principle of Moments.
So, if I apply a smaller force farther away, it will balance a larger force that's closer to the pivot?
Yes! That's the balance of moments. It can be expressed as the sum of clockwise moments equals the sum of counterclockwise moments. Can anyone give me the formula for this?
$d_1F_1 = d_2F_2$!
Great job! Let's explore more applications of this principle.
Applications of the Principle of Moments
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we've covered the principle, how do you think it applies in everyday life?
Like on a seesaw?
Or in a balance scale where weights are placed on either side?
Exactly! In a seesaw, if one child is heavier, they need to sit farther from the pivot to balance lighter children sitting closer in. Can anyone think of other examples?
What about a bottle opener? It uses a lever!
Spot on! Bottle openers use the lever principle to amplify force. It’s all about how we apply the force at different distances from the pivot.
So, if the effort arm is longer, I don't need to apply as much force to open the bottle?
Exactly! That's mechanical advantage. You all are grasping this quickly!
Mathematical Representation of Moments
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s take a moment to derive the principle mathematically. If we have two forces, $F_1$ and $F_2$, acting at distances $d_1$ and $d_2$ from the fulcrum, what does the equilibrium condition look like?
It would be $d_1F_1 = d_2F_2$.
But what about when the forces are not perpendicular?
Good question! We account for that by using the sine of the angle. So in those cases, moments can be expressed as $dF ext{sin}( heta)$.
That's useful for more complex scenarios, right?
Absolutely! Many mechanical systems work on this principle to maintain balance and stability.
So knowing this principle can help in designing things like bridges and cranes?
Correct! The applications are endless.
Real-World Implications of Moments
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Can anyone connect what we learned about moments to engineering and design?
Engineers need to know how to balance forces on structures!
And how levers can amplify force to lift heavy objects.
Exactly! When engineers design buildings or supports, they apply the principle of moments to ensure that everything is stable and secure.
So, is the same principle behind how elevators work?
Yes! Elevators work by counterbalancing weights, making it easier to lift people or goods up and down.
That’s pretty cool! It shows how physics is in everything we use.
Exactly! Understanding the Principle of Moments helps us in many aspects of life, from simple tools to complex machines.
Summary and Review
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's summarize what we've learned about the Principle of Moments. Who can recall how we represent equilibrium mathematically?
It's $d_1F_1 = d_2F_2$.
And we can also consider angles with $dF ext{sin}( heta)$!
Right! And why is this principle important in real-life applications?
It helps ensure structures are stable and allows us to lift heavy objects easily.
Excellent! Remember, the Principle of Moments underpins much of the mechanics that we encounter in engineering and daily life.
Thanks for the great session!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses the Principle of Moments and its application in understanding levers in static equilibrium. It explains how distances from a pivot and the forces acting on an object influence its rotational equilibrium, providing the foundational concept needed for analyzing systems in equilibrium.
Detailed
Principle of Moments
The Principle of Moments is a fundamental concept in physics that explains the conditions under which a lever or any body can achieve rotational equilibrium. It states that for an object to be in static equilibrium (i.e., not rotating), the sum of the clockwise moments about the pivot point (fulcrum) must equal the sum of the counterclockwise moments. This is mathematically expressed as:
$$ d_1F_1 - d_2F_2 = 0 $$
where:
- $d_1$ and $d_2$ are the perpendicular distances from the pivot to the points where forces $F_1$ and $F_2$ act.
- $F_1$ is often the load being lifted, and $F_2$ is the applied effort.
This principle has many practical applications, especially in designing tools and understanding mechanical advantages. The relationship can also be expressed as:
$$ d_1F_1 = d_2F_2 $$
Indicating that a longer effort arm allows a smaller force to lift a larger load. When forces are applied at angles, the principle still holds by considering the perpendicular components of the forces acting at the distance from the pivot. Understanding this principle is essential for analyzing various mechanical systems and is commonly illustrated through everyday examples like seesaws and balance scales.

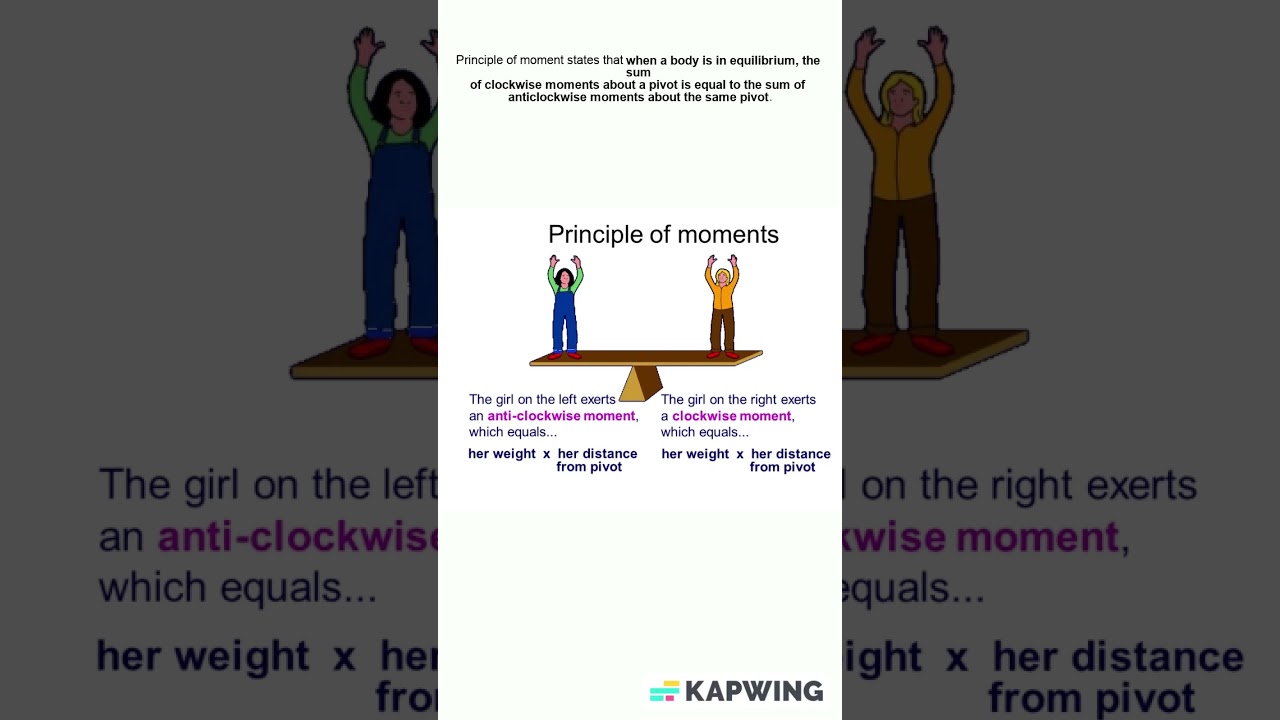

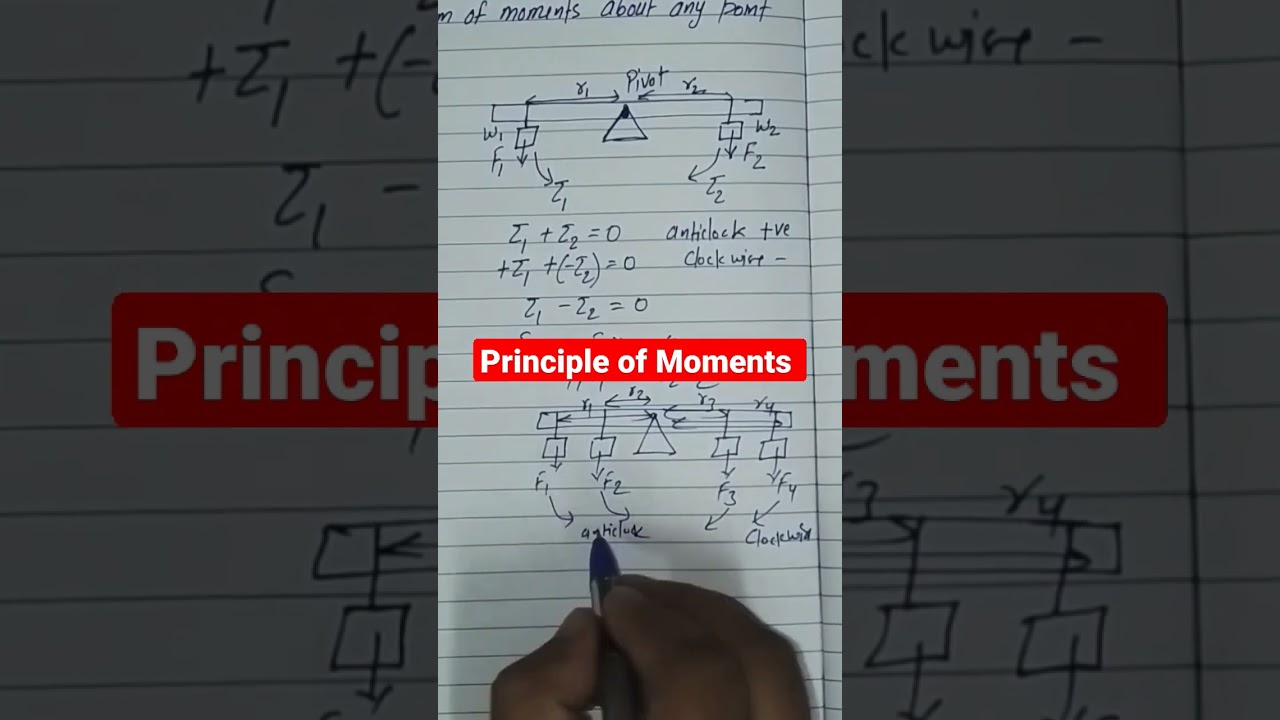

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Lever
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
An ideal lever is essentially a light (i.e. of negligible mass) rod pivoted at a point along its length. This point is called the fulcrum. A see-saw on the children’s playground is a typical example of a lever. Two forces F1 and F2, parallel to each other and usually perpendicular to the lever, as shown here, act on the lever at distances d1 and d2 respectively from the fulcrum.
Detailed Explanation
A lever is a simple machine consisting of a rod that can rotate around a fixed point (the fulcrum). When we apply force on one end (F2), it can lift a weight on the other end (F1). The distances from the fulcrum to where the forces are applied (d1 and d2) determine how effectively the lever works, based on the principle of moments.
Examples & Analogies
Think of a see-saw. When a heavier person sits farther away from the fulcrum than a lighter person, the see-saw balances out because the longer distance (load arm) from the fulcrum creates a greater moment, which can counteract the weight of the heavier person.
Equilibrium Conditions
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The lever is a system in mechanical equilibrium. Let R be the reaction of the support at the fulcrum; R is directed opposite to the forces F1 and F2. For translational equilibrium, R – F1 – F2 = 0. For considering rotational equilibrium we take the moments about the fulcrum; the sum of moments must be zero, d1F1 – d2F2 = 0.
Detailed Explanation
In order for the lever to be in equilibrium, the force acting upward at the fulcrum (R) must equal the total downward force (F1 + F2). Additionally, the moments or torques produced by these forces about the fulcrum must balance out; meaning the counterclockwise moments must equal the clockwise moments (d1F1 must equal d2F2). This ensures that the lever does not rotate.
Examples & Analogies
Consider trying to lift a heavy box using a lever. If you place the box closer to the fulcrum (d1 is smaller but F1 is larger), you will find it harder to lift it with a smaller effort (F2) further away unless you adjust your forces properly. The balance of forces and distances is critical in achieving the desired result.
The Principle of Moments
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In the case of the lever, force F1 is usually some weight to be lifted. It is called the load and its distance from the fulcrum d1 is called the load arm. Force F2 is the effort applied to lift the load; distance d2 of the effort from the fulcrum is the effort arm. This can be written as d1F1 = d2F2.
Detailed Explanation
The principle of moments states that for a lever to be in equilibrium, the moments (calculated as force multiplied by distance from the fulcrum) on either side of the fulcrum must be equal. This can be expressed mathematically as d1F1 = d2F2, meaning the product of load distance and force must equal the product of the effort distance and effort.
Examples & Analogies
Think of using a crowbar to lift a heavy rock. You apply force (F2) at the end of the crowbar which has a certain arm length (d2). The rock (load) which is directly under the fulcrum has a load force (F1) at a shorter distance (d1). Due to the longer distance where you apply the effort, you can lift the heavier rock using less effort than if you tried to lift the rock directly.
Key Concepts
-
Equilibrium: A condition where forces and moments sum to zero at a pivot point.
-
Moment of a Force: Calculated as the product of the force and the distance from the pivot.
-
Mechanical Advantage: A principle deriving from the lever system enabling a small force to lift larger loads depending on distances from the fulcrum.
Examples & Applications
A seesaw in a park where children of different weights help each other balance by sitting at varying distances from the fulcrum.
A bottle opener leverages force to easily open a tightly sealed bottle cap.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When balancing your load, measure the gain, moments in harmony, helps us refrain!
Stories
Imagine two kids on a seesaw, one heavier than the other. The heavier one sits far from the center, while the lighter one adjusts their position to find balance. This simple play illustrates the Principle of Moments.
Memory Tools
FLOP stands for 'Force times Lever = Offset Pivot' to remember how moments work.
Acronyms
MAL - Moments Always Level
helping you remember that moments must balance to achieve equilibrium.
Flash Cards
Glossary
- Moment
The tendency of a force to cause rotation about a pivot point.
- Fulcrum
The pivot point around which a lever rotates.
- Equilibrium
A state where the sum of forces and the sum of moments acting on a body are zero.
- Mechanical Advantage
The ratio of the load force to the effort force in a lever system.
- Torque
A measure of the force that can cause an object to rotate about an axis.
