6.1.1 - What kind of motion can a rigid body have?

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Types of Motion - Overview

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to discuss the different types of motion that a rigid body can undergo. Can anyone tell me what a rigid body is?

Student 1
Student 1

Isn't it something that keeps its shape and size when forces are applied?

Teacher
Teacher

Exactly! A rigid body maintains the distances between its particles. So, what types of motions do you think we can classify?

Student 2
Student 2

I think there are translational motions and maybe rotational motions?

Teacher
Teacher

Great! We’ll dive deeper into pure translational motion first. In this case, all particles move at the same speed and in the same direction.

Student 3
Student 3

Like a block sliding down a slope?

Teacher
Teacher

Exactly! The block is in pure translational motion down the slope, sharing the same velocity at all points.

Teacher
Teacher

So, let’s summarize: A rigid body can either be in pure translational motion or engage in rotational motion.

Understanding Rolling Motion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's discuss rolling motion. Can someone give me an example?

Student 4
Student 4

What about a cylinder rolling down a hill?

Teacher
Teacher

Perfect! In this case, the cylinder has translational motion since it moves from the top to the bottom of the incline, but it also rotates. Each point on the cylinder moves with different velocities. Can anyone identify which part of the cylinder moves the slowest?

Student 1
Student 1

The point that's in contact with the ground is at rest, so it doesn't move at all.

Teacher
Teacher

Exactly! This is a crucial concept in understanding rolling motion.

Teacher
Teacher

So remember: rolling motion combines both translation and rotation, and this is different from pure translation.

Constraints and Rotation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s look at what happens when a rigid body is constrained. Who can tell me what that means?

Student 2
Student 2

Does it mean that the body cannot move freely and is fixed in some direction?

Teacher
Teacher

Great insight! When a rigid body is constrained, it is compelled to rotate about a fixed axis. Why do you think this is important?

Student 3
Student 3

Because understanding this helps us analyze how objects like door hinges work?

Teacher
Teacher

Exactly! Fixed conditions allow us to simplify the complex dynamics of objects. Let's review the concept of rotation about a fixed axis.

Real-Life Examples of Motion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s connect our discussion with some real-life examples. Can anyone think of everyday items affected by different motions?

Student 4
Student 4

A ceiling fan rotates about its axis.

Teacher
Teacher

Exactly! And what kind of motion might the blades of the fan exhibit?

Student 1
Student 1

They rotate, and they may also move up and down slightly if the fan wobbles.

Teacher
Teacher

Well done! Understanding these applications helps solidify the concepts.

Summary of Key Points

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

As we wrap up, let's summarize what we learned today! We discussed that a rigid body can exhibit pure translational motion and rolling motions, as well as rotation around a fixed axis.

Student 2
Student 2

And we learned about examples like a sliding block and a rolling cylinder!

Teacher
Teacher

Right! Remember, understanding the center of mass is crucial in distinguishing these movements.

Student 3
Student 3

This really helped me see how physics applies in real life!

Teacher
Teacher

I’m glad to hear that! Keep asking questions as we explore these concepts further.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the types of motion that a rigid body can exhibit, including pure translational motion and rotation about a fixed axis.

Standard

The section explains that a rigid body can have various modes of motion. It can move wholly in a straight line (pure translational motion) or roll (combination of rotational and translational motion). If constrained, it can only rotate about a fixed axis. The importance of understanding the concept of the center of mass in analyzing these motions is also highlighted.

Detailed

Detailed Summary

In this section, we uncover the different types of motion a rigid body can exhibit. By definition, a rigid body maintains its shape under the influence of forces, and thus the distances between its particles remain constant. There are two primary types of motion a rigid body can demonstrate:

  1. Pure Translational Motion: This occurs when all the particles of the body move together in the same direction at the same speed. An example of this kind of motion is a block sliding down an inclined plane, where every particle shares the same velocity.
  2. Rolling Motion: This is a combination of translational and rotational motion, as seen in a rolling cylinder. Here, different particles move with varying velocities—specifically, the point in contact with the plane has zero velocity if the rolling is without slipping.
  3. Rotational Motion: If a rigid body is fixed along a straight line, it can only rotate around a fixed axis. This rotation involves every particle of the body describing a circle in a plane perpendicular to the axis of rotation. Common examples include ceiling fans and merry-go-rounds.
  4. Precession: In cases where the axis of rotation is not fixed, like a spinning top, the axis itself may also move, describing unique patterns.

This section aids in building a foundation for understanding more complex rotational dynamics and emphasizes the significance of the center of mass in these types of motion.

Youtube Videos

Kinds of Motion of a Rigid Body - Systems of Particles and Rotational Motion | Class 11 Physics
Kinds of Motion of a Rigid Body - Systems of Particles and Rotational Motion | Class 11 Physics

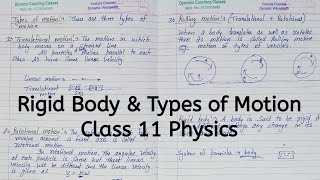

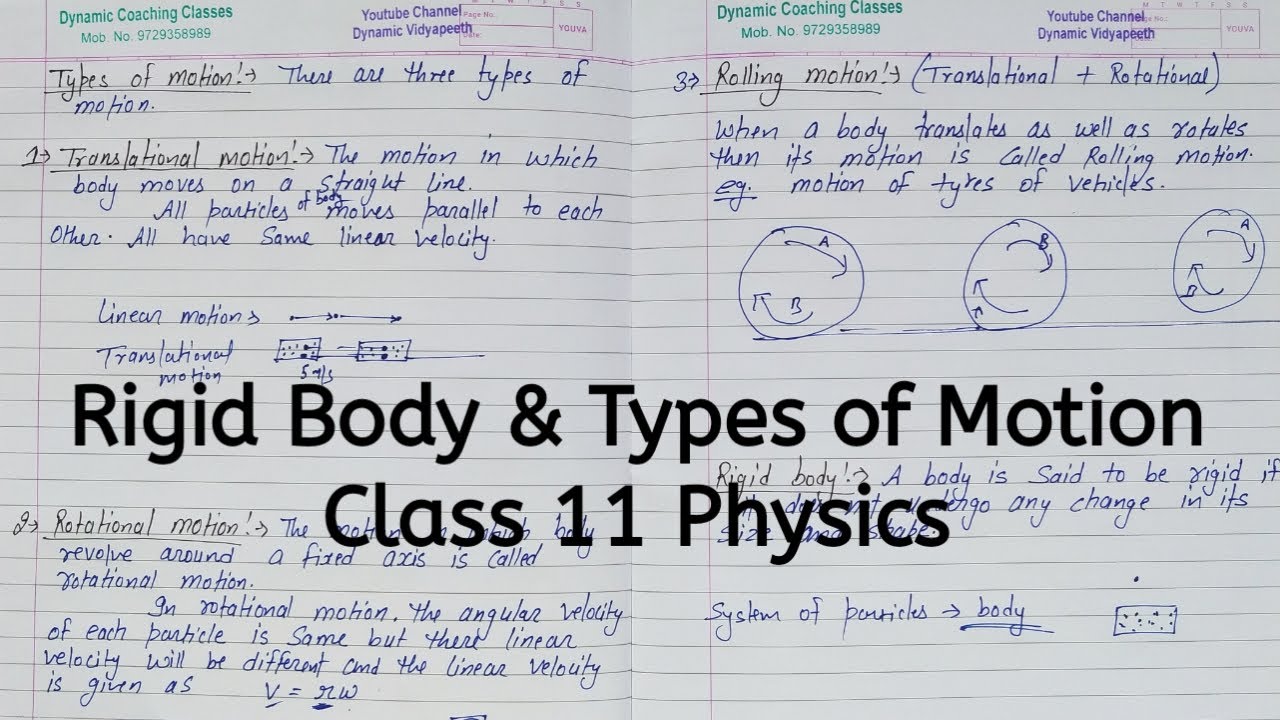

Rigid Body | Types of Motion | Chapter 6 | System of Particles and Rotational Motion | Class 11
Rigid Body | Types of Motion | Chapter 6 | System of Particles and Rotational Motion | Class 11
System of Particles and Rotational Motion | Class 11 Physics Chapter 6 One Shot | New NCERT CBSE
System of Particles and Rotational Motion | Class 11 Physics Chapter 6 One Shot | New NCERT CBSE
Class 11 physics | system of particles | ~ centre of mass /Rigid body#class11
Class 11 physics | system of particles | ~ centre of mass /Rigid body#class11
System of Particles & Rotational Motion Full Chapter in 60 Minutes⏳ | Class 11 Physics Chapter 6
System of Particles & Rotational Motion Full Chapter in 60 Minutes⏳ | Class 11 Physics Chapter 6
System of Particles & Rotational Motion One Shot | Class 11 Physics with Live Experiment by Ashu Sir
System of Particles & Rotational Motion One Shot | Class 11 Physics with Live Experiment by Ashu Sir

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Translational Motion of a Rigid Body

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Let us try to explore this question by taking some examples of the motion of rigid bodies. Let us begin with a rectangular block sliding down an inclined plane without any sidewise movement. The block is taken as a rigid body. Its motion down the plane is such that all the particles of the body are moving together, i.e. they have the same velocity at any instant of time. The rigid body here is in pure translational motion.

Detailed Explanation

In this chunk, we learn about translational motion, which occurs when a rigid body moves so that every particle within it has the same velocity throughout its movement. An example is given where a rectangular block slides down an inclined plane without any sideways movement. Because all parts of the block are moving together uniformly, this is considered pure translational motion. When analyzing such motion, it is common to consider the body as a single entity rather than examining the individual motions of all particles within it.

Examples & Analogies

Imagine a train moving down a track. If all the train cars are connected and moving forward together at the same speed, the entire train can be thought of as acting like a single solid object, similar to the block sliding down the incline.

Rolling Motion of a Rigid Body

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider now the rolling motion of a solid metallic or wooden cylinder down the same inclined plane. The rigid body in this problem, namely the cylinder, shifts from the top to the bottom of the inclined plane, and thus, seems to have translational motion. But as the cylinder rolls, all its particles are not moving with the same velocity at any instant. The body, therefore, is not in pure translational motion. Its motion is translational plus ‘something else.’

Detailed Explanation

In this chunk, we explore rolling motion, which combines both translational and rotational elements. When a cylinder rolls down an incline, its center (which moves translationally) does not reflect the speeds of all particles on the cylinder because the particles on the bottom are in contact with the surface and do not move relative to it momentarily. This creates a complex type of motion, as the cylinder shifts down the incline while also rotating around its axis.

Examples & Analogies

Think of a ball rolling on the ground. While the center of the ball moves forward (translational motion), various points on the surface of the ball rotate around the center. If you watch a ball closely, points in contact with the ground momentarily have zero velocity relative to the ground, illustrating the combined nature of rolling motion.

Rotational Motion of a Fixed Rigid Body

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In order to understand what this ‘something else’ is, let us take a rigid body so constrained that it cannot have translational motion. The most common way to constrain a rigid body so that it does not have translational motion is to fix it along a straight line. The only possible motion of such a rigid body is rotation.

Detailed Explanation

This chunk discusses situations where a rigid body can only rotate instead of translating. For example, if a door is attached to its hinges, it cannot move sideways but can freely rotate about the axis of its hinges. This rotational motion occurs around an axis, which is a fixed line or point around which the rotations happen, emphasizing that rigid bodies can exhibit pure rotational motion without any translational movement.

Examples & Analogies

Consider a potter's wheel, which is designed to spin around a fixed axis. As the wheel rotates, the clay on it shapes into a vessel purely through rotation, illustrating that the wheel itself moves as a rigid body without any translation, as it pivots around its central axis.

Characteristics of Rotational Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In rotation of a rigid body about a fixed axis, every particle of the body moves in a circle, which lies in a plane perpendicular to the axis and has its centre on the axis.

Detailed Explanation

This chunk emphasizes how each particle of a rigid body moves in circular paths when it rotates around a fixed axis. Each circle is centered on the axis of rotation, and the particles all move in parallel planes perpendicular to this axis. This description helps define the basic characteristics of rotational motion, which is distinct from linear paths taken during translational motion.

Examples & Analogies

Imagine a Ferris wheel. Each seat attached to the wheel moves in a circular path, with the center of the wheel as the pivot point, creating a clear visual of how rotation works. The seats move in parallel paths at each instant, maintaining the rotational consistency described.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Rigid Body: A body that maintains its shape under applied forces.

  • Pure Translation: All particles moving together.

  • Rolling Motion: Combination of translation and rotation.

  • Fixed Axis of Rotation: An anchor point that limits movement to rotation.

  • Center of Mass: The average position of all mass in the body.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A block sliding down an inclined plane represents pure translational motion.

  • A cylinder rolling down a ramp illustrates rolling motion.

  • A ceiling fan shows rotation about a fixed axis.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Rigid bodies move in ways that don't shift or sway, translation is direct, while rolling's at play.

📖 Fascinating Stories

  • Once in a physics class, a wheel named Rollie learned how to roll down the hill while maintaining his upright, cylindrical shape.

🧠 Other Memory Gems

  • TRACER: Translation, Rotation, Axis for motion of a Rigid body.

🎯 Super Acronyms

MR - Motion of Rigid body, for remembering the types that differ.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Rigid Body

    Definition:

    A solid body in which deformation is negligible under applied forces, maintaining constant distances between all particles.

  • Term: Pure Translational Motion

    Definition:

    Motion where all particles of a body move in the same direction and at the same speed.

  • Term: Rolling Motion

    Definition:

    Type of motion that combines both translational motion and rotation.

  • Term: Fixed Axis

    Definition:

    An axis about which a rigid body rotates without changing its position.

  • Term: Center of Mass

    Definition:

    A point that acts as if all the mass of the body were concentrated at that point for motion analysis.
