7.3 - AC VOLTAGE REPRESENTATION OF CURRENT AND VOLTAGE BY ROTATING VECTORS (PHASORS)

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Phasors

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we’ll explore phasors, which are essential in analyzing ac circuits. Can anyone tell me what an alternating current (ac) is?

Student 1
Student 1

Is it a current that changes direction?

Teacher
Teacher

Exactly! In an ac circuit, the current and voltage vary sinusoidally with time. Phasors help us visualize these quantities as vectors that rotate around an origin. Each phasor represents the amplitude of the current or voltage.

Student 2
Student 2

How do we use these phasors?

Teacher
Teacher

Great question! By using phasors, we can determine the phase relationship between voltage and current. For example, in a pure resistor, the voltage and current are in phase. How would you describe this relationship?

Student 3
Student 3

They reach their maximum and minimum values at the same time, right?

Teacher
Teacher

That’s correct! Let's make a mnemonic to remember this: 'Phasors Party Together' for in-phase relationships.

Phasor Relationships with Circuit Elements

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s talk about how phasors behave in circuits containing inductors and capacitors. Who can explain the difference?

Student 4
Student 4

I think the current will not be in phase with voltage for those components.

Teacher
Teacher

Exactly! In an inductor, the current lags behind the voltage by π/2 radians or a quarter cycle. Conversely, in a capacitor, the current leads the voltage by π/2. Can anyone remember why that happens?

Student 1
Student 1

Because the inductor stores energy in a magnetic field, and the capacitor stores it in an electric field!

Teacher
Teacher

That's a perfect explanation! Let's remember: 'Inductor Lags and Capacitor Leads'.

Analyzing Phasor Diagrams

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's draw a phasor diagram for a resistor and discuss its importance in analysis. Why do you think we need these diagrams?

Student 2
Student 2

Maybe to see how the voltage and current relate to each other visually?

Teacher
Teacher

Correct! A phasor diagram helps us visualize the magnitude and phase relationships quickly. Can someone help me draw a simple one?

Student 3
Student 3

I think we should have the voltage phasor and current phasor along the same line for a resistor.

Teacher
Teacher

Right! When analyzing these diagrams, we can see how combining different components affects the overall phase relationships in circuits.

Applications of Phasors in Circuit Analysis

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Understanding phasors is helpful beyond the classroom. Can anyone think of an application?

Student 4
Student 4

Maybe in designing electrical devices that require alternating current?

Teacher
Teacher

Absolutely! Phasors play a crucial role in designing and analyzing circuits like AC motors and transformers. How can we summarize our session today?

Student 1
Student 1

Phasors help us see how voltage and current interact in AC circuits, especially with different components!

Teacher
Teacher

Well said! Remember, understanding these tools aids in efficient circuit analysis and design.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section introduces the concept of phasors, which are used to represent ac voltages and currents, showing the phase relationships between them.

Standard

In this section, the relationship between alternating current (ac) voltage and current is explored through the use of phasors—rotating vectors that illustrate these relationships in a visually clear manner. Key concepts include how phasors help to simplify circuit analysis and how phase angles indicate the timing of voltage and current variations.

Detailed

In this section, we discuss the representation of alternating current (ac) and voltage using phasors, which are essentially rotating vectors that depict sinusoidal variations. Phasors allow for an easier analysis of circuits as they reveal important phase relationships, particularly between voltage and current. A key point discussed is that for a resistor, voltage and current are in phase, meaning they reach their maximum and minimum points simultaneously. For circuit elements such as inductors and capacitors, the relationships change distinctly: the phase angles indicate the delay or lead in current as compared to voltage. Understanding phasors simplifies the study of ac circuits significantly, paving the way for more complex analyses in upcoming sections.

Youtube Videos

Phasor diagram (& its applications) | Alternating currents | Physics | Khan Academy
Phasor diagram (& its applications) | Alternating currents | Physics | Khan Academy
Representation of AC Current and Voltage by Rotating Vectors - Phasors | Class 12 Physics Chapter 7
Representation of AC Current and Voltage by Rotating Vectors - Phasors | Class 12 Physics Chapter 7

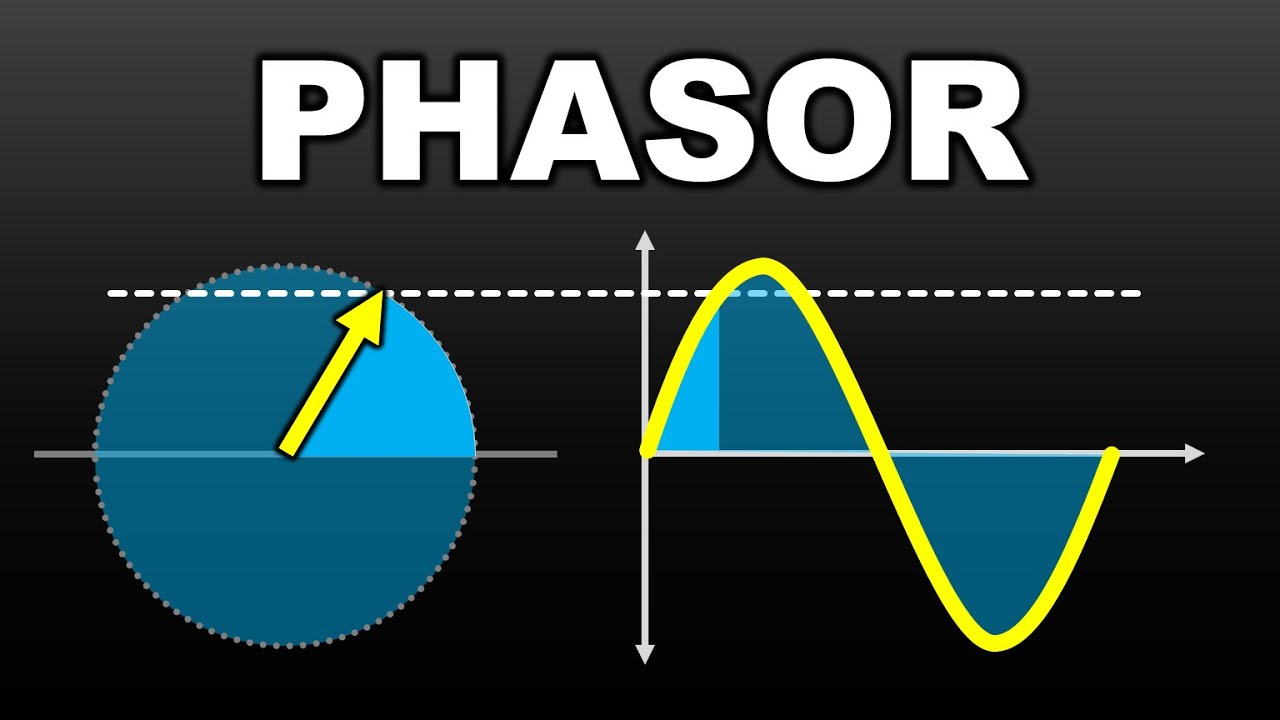

This ANIMATION shows how a ROTATING VECTOR (Phasor) creates a sin() function
This ANIMATION shows how a ROTATING VECTOR (Phasor) creates a sin() function

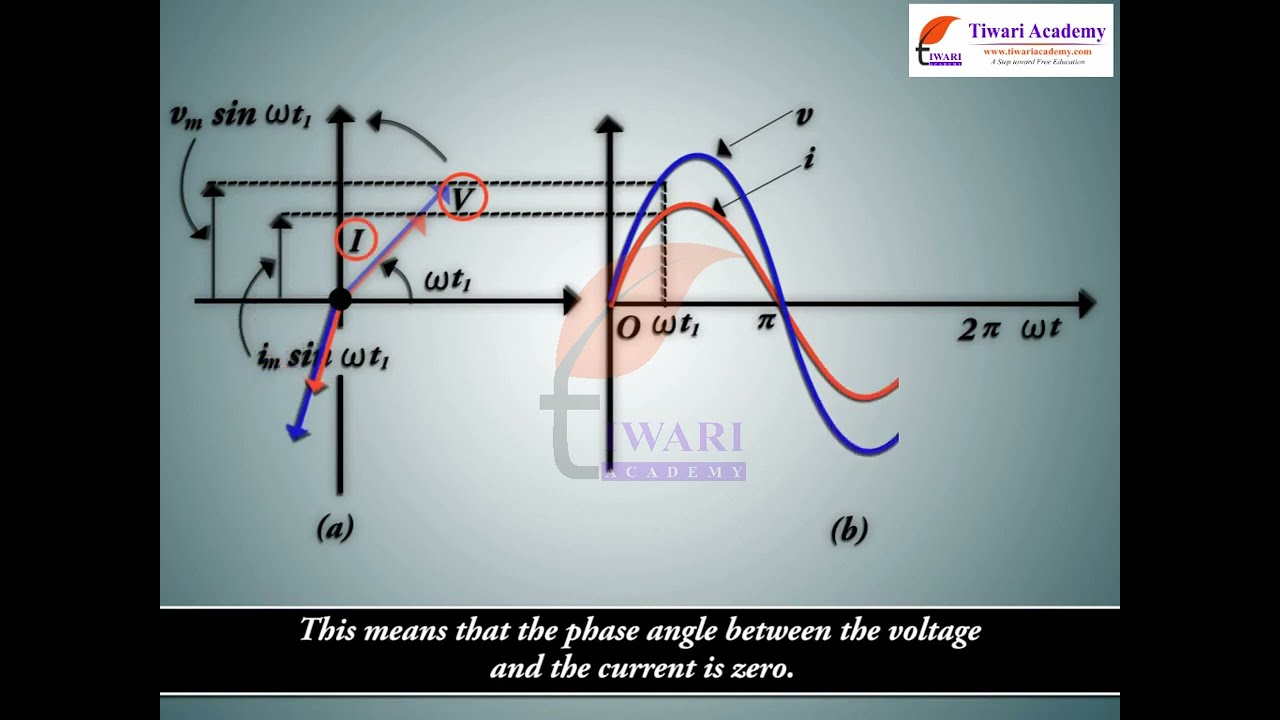

Class 12 Physics Chapter 7 Representation of AC Current and Voltage by Rotating Vectors - Phasors.
Class 12 Physics Chapter 7 Representation of AC Current and Voltage by Rotating Vectors - Phasors.
Alternating Current Class 12 Physics Chapter 7 One Shot | New NCERT syllabus CBSE | Full chapter
Alternating Current Class 12 Physics Chapter 7 One Shot | New NCERT syllabus CBSE | Full chapter
What the HECK is a Phasor? Alternating Current Explained.
What the HECK is a Phasor? Alternating Current Explained.
62. Phase and Phase Difference | Pledge 2023| Alternating Currents | CBSE | NCERT | PB 2.0 |
62. Phase and Phase Difference | Pledge 2023| Alternating Currents | CBSE | NCERT | PB 2.0 |
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
7.3 Representation of AC currents and AC voltage by rotating vectors - phasor class 12 physics
7.3 Representation of AC currents and AC voltage by rotating vectors - phasor class 12 physics
Alternating Current Class 12 Physics | NCERT Chapter 7 | CBSE NEET JEE | One Shot
Alternating Current Class 12 Physics | NCERT Chapter 7 | CBSE NEET JEE | One Shot

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Phasors

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In the previous section, we learnt that the current through a resistor is in phase with the ac voltage. But this is not so in the case of an inductor, a capacitor or a combination of these circuit elements. In order to show phase relationship between voltage and current in an ac circuit, we use the notion of phasors.

Detailed Explanation

A phasor is a graphical representation of an alternating quantity, where the length of the vector represents the amplitude of the wave, and the angle represents the phase. In circuits with resistors, the voltage and current are in phase, which means they reach their peaks at the same time. However, in circuits with inductors and capacitors, the current and voltage can be out of phase, meaning they peak at different times. Phasors help us visualize and analyze these different phase relationships.

Examples & Analogies

Think of two dancers performing a coordinated dance. If they are in phase, they move in perfect sync, just like a voltage and current in a resistive circuit. However, if one dancer leads or lags behind the other, they are out of phase, similar to the relationship between voltage and current in circuits with inductors or capacitors.

Phasor Representation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The analysis of an ac circuit is facilitated by the use of a phasor diagram. A phasor is a vector which rotates about the origin with angular speed ω. The vertical components of phasors V and I represent the sinusoidally varying quantities v and i.

Detailed Explanation

In a phasor diagram, the rotating vectors V (voltage) and I (current) keep changing their position over time as they rotate. This rotation represents the sinusoidal nature of AC voltage and current. The vertical component of the phasor points to the instantaneous value of the voltage or current at any time. This allows us to easily see how voltage and current relate to each other in terms of their phase difference.

Examples & Analogies

Imagine holding a clock with a rotating second hand. The hand represents the phasor. As the hand moves, it points to different numbers, just as the phasors point to different instantaneous voltage and current values. The angle between the hour hand (representing voltage) and the minute hand (representing current) can represent the phase difference in an AC circuit.

Phase Relationship and Implications

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

From phasor diagrams, we can determine that for a pure resistor, the phasors V and I are in the same direction, indicating that the phase angle between the voltage and the current is zero.

Detailed Explanation

When the phasors V and I are in the same direction, it confirms that there is no phase difference; they are in sync. This is crucial for understanding that in resistive circuits, the power is fully consumed and there are no reactive components affecting the current. Conversely, in inductors and capacitors, the phase angle will differ substantially, indicating a lagging or leading current relative to voltage.

Examples & Analogies

Consider a car traveling in a straight line at a constant speed. If the car is following another vehicle perfectly, they are in phase. If the car speeds up or slows down, it may lag behind or pull ahead, akin to how current can lag or lead voltage in inductive or capacitive circuits.

Summary of Key Concepts

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The magnitude of phasors V and I represents the amplitudes or the peak values of these oscillating quantities. The projection of voltage and current phasors on the vertical axis represents the value of voltage and current at that instant.

Detailed Explanation

Understanding the peak values is essential when analyzing AC circuits because it helps determine the effective (rms) values that can be applied in practical scenarios. The vertical projections give us instantaneous voltage and current values corresponding to their phasor representations, allowing us to compute power and other circuit parameters effectively.

Examples & Analogies

Imagine someone using a thermometer to measure temperature. The thermometer's measurement (the peak) represents the maximum temperature at that moment, just as the peak voltage or current at any instant can be measured from the phasor. This understanding is key to knowing how much ‘heat’ (power) is generated or transferred in circuits.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Phasors represent voltage and current in AC circuits, simplifying analysis by illustrating their phase relationships.

  • In a resistor, voltage and current are in phase, while in inductors and capacitors, there are distinct phase shifts (lagging or leading).

  • Phasor diagrams provide visual aids for analyzing complex circuits.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • For a circuit with a 220V AC source and a resistor, both voltage and current phasors rotate in the same direction and are in phase.

  • In a circuit with a 50 Hz inductor, the current phasor lags the voltage phasor by 90 degrees (π/2 radians).

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • For voltage and current, in a resistor they align; in inductors and caps, one lags, one shines!

📖 Fascinating Stories

  • Imagine a dance party where current and voltage are partners. In a resistor, they sync perfectly, moving in harmony. But invite an inductor, and suddenly, the current trails behind its partner—the voltage, creating a delay!

🧠 Other Memory Gems

  • REMEMBER: L for Lagging in inductors, C for Leading in capacitors.

🎯 Super Acronyms

PHASOR

  • Phase relationships Help Analyze Sinusoidal Oscillatory Relationships.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Phasor

    Definition:

    A phasor is a rotating vector used to represent sinusoidally varying quantities, such as voltage or current in AC circuits.

  • Term: Angular frequency (ω)

    Definition:

    The rate of rotation of a phasor, expressed in radians per second.

  • Term: Inphase

    Definition:

    When two sinusoidal functions reach their maximum and minimum values at the same time.

  • Term: Lag

    Definition:

    A situation where one quantity reaches its maximum value after another, often measured in phase angles.

  • Term: Lead

    Definition:

    A situation where one quantity reaches its maximum value before another, often measured in phase angles.
