12.3 - ATOMIC SPECTRA

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Atomic Spectra

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're discussing atomic spectra. Can anyone tell me what they think an atomic spectrum is?

Student 1
Student 1

Is it like a rainbow of colors that comes from atoms?

Teacher
Teacher

Great observation! An atomic spectrum is indeed related to colors, but it's more about specific wavelengths of light emitted or absorbed by atoms during electron transitions. Each element has a unique spectrum.

Student 2
Student 2

So, why do different elements have different spectra?

Teacher
Teacher

They have different numbers of electrons and distinct energy levels. When electrons jump between these levels, they emit or absorb light at particular wavelengths, producing the spectrum. Remember, it's like a fingerprint for each element!

Student 3
Student 3

Can we see those spectra?

Teacher
Teacher

Absolutely! An example is the emission line spectrum of hydrogen, which we'll explore further.

Student 4
Student 4

What do they look like?

Teacher
Teacher

Good question! The hydrogen spectrum appears as bright lines on a dark background, known as emission lines.

Teacher
Teacher

To summarize, an atomic spectrum consists of light emitted or absorbed at specific wavelengths, unique to each element.

Emission and Absorption Spectra

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s look at emission and absorption spectra. Can anyone explain the difference between them?

Student 1
Student 1

Isn't an emission spectrum when atoms emit light?

Teacher
Teacher

Exactly! Emission spectra show the bright lines where light is emitted by excited atoms. In contrast, absorption spectra occur when light passes through a cooler gas, and specific wavelengths are absorbed, resulting in dark lines.

Student 2
Student 2

So, do they relate in any way?

Teacher
Teacher

Yes! The dark lines in an absorption spectrum correspond to the bright lines in the emission spectrum of the same element. This shows the energies that are absorbed and emitted during transitions.

Student 3
Student 3

Can we use this to identify elements?

Teacher
Teacher

Exactly! Each element's spectrum acts as a unique signature, enabling scientists to identify elements based on their spectral lines.

Teacher
Teacher

In summary, emission spectra show light emitted by excited atoms, while absorption spectra show light absorbed by atoms, with lines that match each other.

Significance in Modern Physics

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's focus on why atomic spectra are significant in physics. Why might these spectra be important beyond simple identification?

Student 4
Student 4

Maybe they help us understand how atoms work?

Teacher
Teacher

Exactly, they reveal the internal structure of atoms and the interactions of electrons with energy levels. This understanding laid the groundwork for quantum mechanics.

Student 1
Student 1

Did they help in creating any modern theories?

Teacher
Teacher

Yes! The study of atomic spectra was crucial for developing quantum mechanics. The concepts introduced by physicists, including Bohr, were greatly influenced by spectral observations.

Student 2
Student 2

So is atomic spectra still relevant today?

Teacher
Teacher

Absolutely! Atomic spectra are used in various fields, from astrophysics to chemistry, helping us study distant stars and analyze the composition of materials.

Teacher
Teacher

To summarize, atomic spectra are vital for studying atomic structure and development in modern physics, reinforcing our understanding of energy transitions.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Each element emits a characteristic spectrum of radiation, with hydrogen exemplifying this principle through its distinct emission and absorption line spectra.

Standard

Atomic spectra are unique patterns of light emitted or absorbed by elements when excited. The emission line spectrum of hydrogen illustrates how specific wavelengths correspond to electronic transitions. These spectra serve as fingerprints for identifying elements, underlining the connection between atomic structure and light.

Detailed

Youtube Videos

Atomic Spectra || 3D Animated explanation || Class 12th physics || Atoms ||
Atomic Spectra || 3D Animated explanation || Class 12th physics || Atoms ||

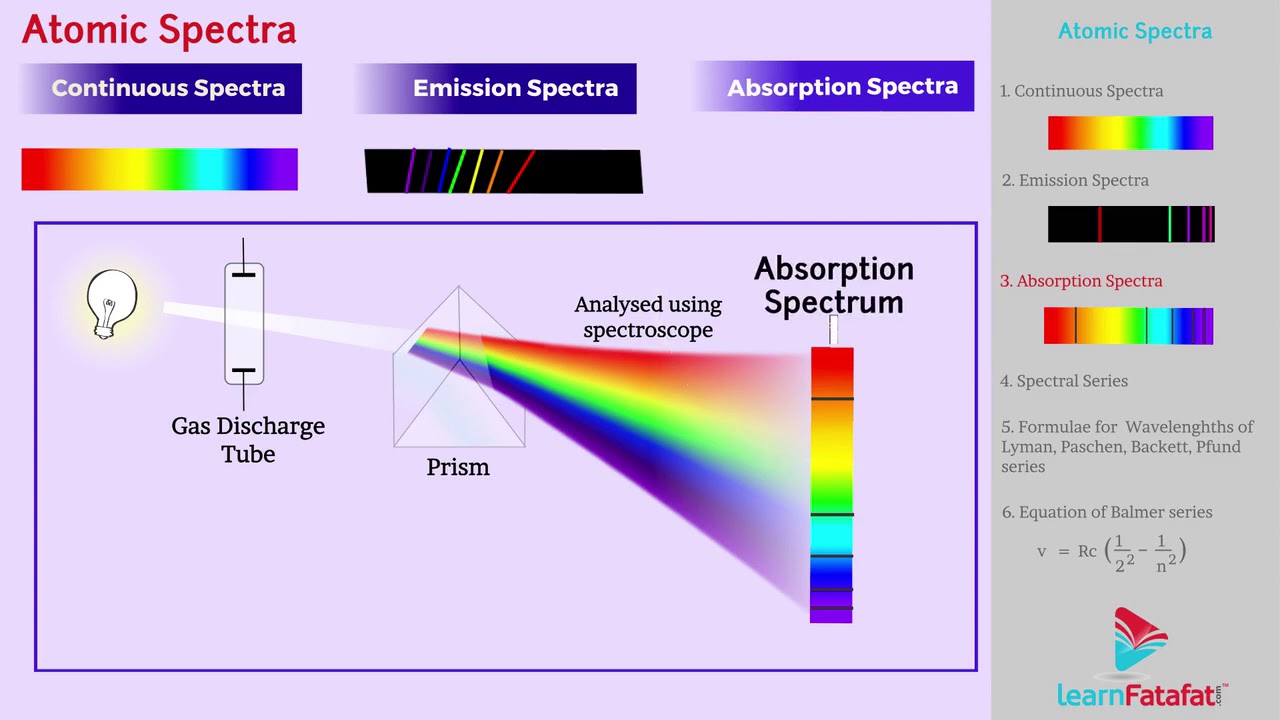

Atoms Class 12 Physics - Atomic Spectra
Atoms Class 12 Physics - Atomic Spectra
Atom in 10 mins 😱🔥 Ch 12 Physics Class 12 Boards 2024 | Score 95+ Physics | Zaki Bhaiyya
Atom in 10 mins 😱🔥 Ch 12 Physics Class 12 Boards 2024 | Score 95+ Physics | Zaki Bhaiyya
Atomic Spectra - Atoms | Class 12 Physics Chapter 12 | CBSE 2024-25
Atomic Spectra - Atoms | Class 12 Physics Chapter 12 | CBSE 2024-25
Atomic Spectra || Atoms - 4 || for Class 12 in Hindi
Atomic Spectra || Atoms - 4 || for Class 12 in Hindi
Atoms 03 : Atomic Spectrum II Emission Absorption Spectra II Lyman , Balmer Series JEE/NEET
Atoms 03 : Atomic Spectrum II Emission Absorption Spectra II Lyman , Balmer Series JEE/NEET
Atoms Class 12 Physics | NCERT Chapter 12 | CBSE NEET JEE | One Shot
Atoms Class 12 Physics | NCERT Chapter 12 | CBSE NEET JEE | One Shot

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Characteristic Spectrum of Elements

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

As mentioned in Section 12.1, each element has a characteristic spectrum of radiation, which it emits. When an atomic gas or vapour is excited at low pressure, usually by passing an electric current through it, the emitted radiation has a spectrum which contains certain specific wavelengths only. A spectrum of this kind is termed as emission line spectrum and it consists of bright lines on a dark background.

Detailed Explanation

Every element has a unique pattern of light that it emits when heated or energized, known as its spectrum. This spectrum consists of bright lines against a dark background, indicating specific wavelengths of light that are emitted based on the element's atomic structure. These bright lines are created when electrons in the element's atoms gain energy and then release it, emitting light at particular wavelengths as they return to a lower energy state.

Examples & Analogies

You can think of the atomic spectrum like a musical instrument playing its unique tune. Just as each instrument produces a distinct melody when played, each element emits a distinct set of lines in its spectrum when energized. For example, hydrogen's spectrum looks different from that of helium or neon, just as a violin's sound differs from a piano's.

Absorption Spectrum

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

When white light passes through a gas and we analyse the transmitted light using a spectrometer, we find some dark lines in the spectrum. These dark lines correspond precisely to those wavelengths which were found in the emission line spectrum of the gas. This is called the absorption spectrum of the material of the gas.

Detailed Explanation

An absorption spectrum arises when white light passes through a gas, and the atoms in that gas absorb specific wavelengths of light. The result is that certain wavelengths are missing from the spectrum, showing up as dark lines. These dark lines correlate to the wavelengths emitted by the gas when its atoms are energized, demonstrating which colors of light the atoms can absorb. This helps identify the composition of the gas.

Examples & Analogies

Imagine you are using a tinted glass to look at a rainbow. The glass absorbs certain colors while allowing others to pass through, which creates a unique pattern. Similarly, when light passes through a gas, the gas 'blocks' specific wavelengths of light, leading to dark lines in the spectrum. This is akin to how certain notes are silenced when played on different instruments.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Atomic Spectrum: Unique pattern of wavelengths emitted by each element.

  • Emission Spectrum: Bright lines indicating emitted light from excited atoms.

  • Absorption Spectrum: Dark lines indicating absorbed light when white light passes through a gas.

  • Electron Transition: Movement of electrons between energy levels leading to emission or absorption.

  • Unique Fingerprint: The unique spectral lines of an element.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • When hydrogen gas is energized, it emits specific wavelengths in a visible line spectrum, demonstrating its emission spectrum.

  • The absorption spectrum of hydrogen shows the same wavelengths as its emission spectrum but appears as dark lines against a continuous spectrum.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Light emitted, bright and clear, / An atom's song you’ll often hear. / Absorption's dark, a quiet sound, / Spectrum magic, all around.

📖 Fascinating Stories

  • Once, a hydrogen atom longed to dance, / It got excited, given the chance. / When it jumped high, bright colors shone, / In spectra’s lines, its essence was known.

🧠 Other Memory Gems

  • E.A.B. - Emission Analyzes Bright; Absorption’s Dark.

🎯 Super Acronyms

SHE - Spectra, Hydrogen Emission.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Atomic Spectrum

    Definition:

    The set of wavelengths of light emitted or absorbed by an atom as its electrons transition between energy levels.

  • Term: Emission Spectrum

    Definition:

    A spectrum of the electromagnetic radiation emitted by a source, characterized by bright lines on a dark background.

  • Term: Absorption Spectrum

    Definition:

    A spectrum produced when light passes through a gas and certain wavelengths are absorbed, appearing as dark lines in the spectrum.

  • Term: Electron Transition

    Definition:

    The movement of an electron between energy levels within an atom, involving the absorption or emission of energy.

  • Term: Unique Fingerprint

    Definition:

    The specific pattern of spectral lines characteristic of each chemical element, allowing for identification of elements.
