Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Types of Jib Cranes
Unlock Audio Lesson
Today, we will be discussing different types of jib cranes. Let's begin with articulated jib cranes. Can anyone explain what they understand by the term 'articulated jib'?
Isn't it a type of crane where the jib can move?
Yes, exactly! Articulated jib cranes have hinged jibs that allow them to reposition, meaning they can convert horizontal reach into height! This adaptability is essential for certain tasks. Can anyone guess why these cranes might be more expensive?
Maybe because they have more complex parts?
Correct! More complex mechanisms mean higher costs. Now, let's discuss another type called luffing boom cranes. Can anyone share what a luffing boom crane does?
Isn't it used to lift heavy things but can also change its angle?
That's right! Luffing boom cranes can adjust their boom's angle to handle loads effectively. Great job connecting that concept!
Erection of Tower Cranes
Unlock Audio Lesson
Next, let’s delve into how we erect tower cranes using climbing cages. Why do you think climbing cages are beneficial during this process?
Maybe they make it easier to build them higher without needing more cranes?
Exactly! Climbing cages allow cranes to extend their height progressively without relying heavily on mobile cranes after the foundation is established. Can someone outline the steps involved?
First, you set up a strong foundation, then lift the first section.
Great! After that, we need to install the turntable and climbing cage, then gradually add sections as we raise the crane's height. What happens once construction reaches the desired height?
You remove the mobile crane and continue adding sections with the climbing cage!
Exactly! Excellent understanding. Now, let’s summarize... The advantages of the climbing cage include easier assembly and the ability to self-erect after the initial stage.
Dismantling of Tower Cranes
Unlock Audio Lesson
I think with a climbing cage, it’s easier because you can use the same hydraulic system?
Yes, that's right! Without a climbing cage, you'd need to use a mobile crane for the entire dismantling process. Can someone summarize the main steps for dismantling?
First, you take off the counterweights, then the jib, and finally the operator cap?
Exactly! Good recall on that. Remember, if there's no climbing cage, each piece must come down with a mobile crane, complicating the process. Let's wrap up by reiterating...
Height Limitations for Tower Cranes
Unlock Audio Lesson
I think it's around 120 meters?
Correct! Beyond 120 meters, they need lateral bracing to ensure stability. What would be the solution if a building requires more than 300 meters of height?
Using a climbing tower crane that grows with the building?
Exactly! Climbing tower cranes are specially designed to adapt as the structure rises. Great connection! Recapping key points... maximum height limitations and climbing cranes' importance.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore various types of jib cranes such as articulated jib and luffing boom cranes. The discussion extends to the erection method using climbing cages and the implications for height limitations in tower cranes as well as the process for dismantling them.
Detailed
Types of Jib Cranes
This section details various types of jib cranes, particularly focusing on articulated jib cranes and luffing boom cranes. The articulated jib cranes feature hinged jibs that can be repositioned to convert extra horizontal reach into vertical height, which increases hook height when needed. However, these cranes are costlier due to their complex mechanisms.
Erection methods for tower cranes, notably those using a climbing cage, are also discussed. The process begins with preparing a solid foundation and erecting several sections using a mobile crane's assistance initially. Once basic structure is established, the hydraulic climbing cage allows further extension without extra crane support. The dismantling of these cranes is simpler with a climbing cage, leading to reduced time and dependency on mobile cranes. Notably, height limitations are also highlighted where cranes may stand freely up to 120 meters, beyond which they need bracing to the actual structure. In extreme cases necessitating heights above 300 meters, specialized climbing tower cranes are employed which grow alongside the buildings they support.

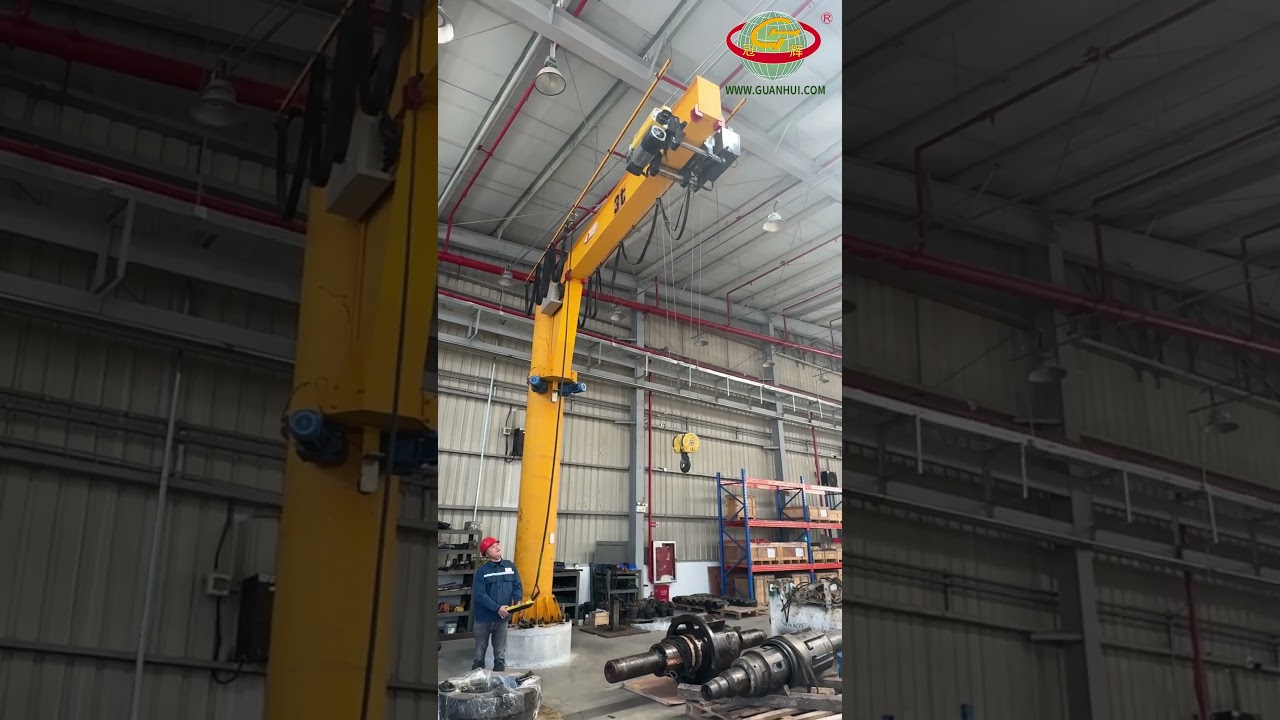

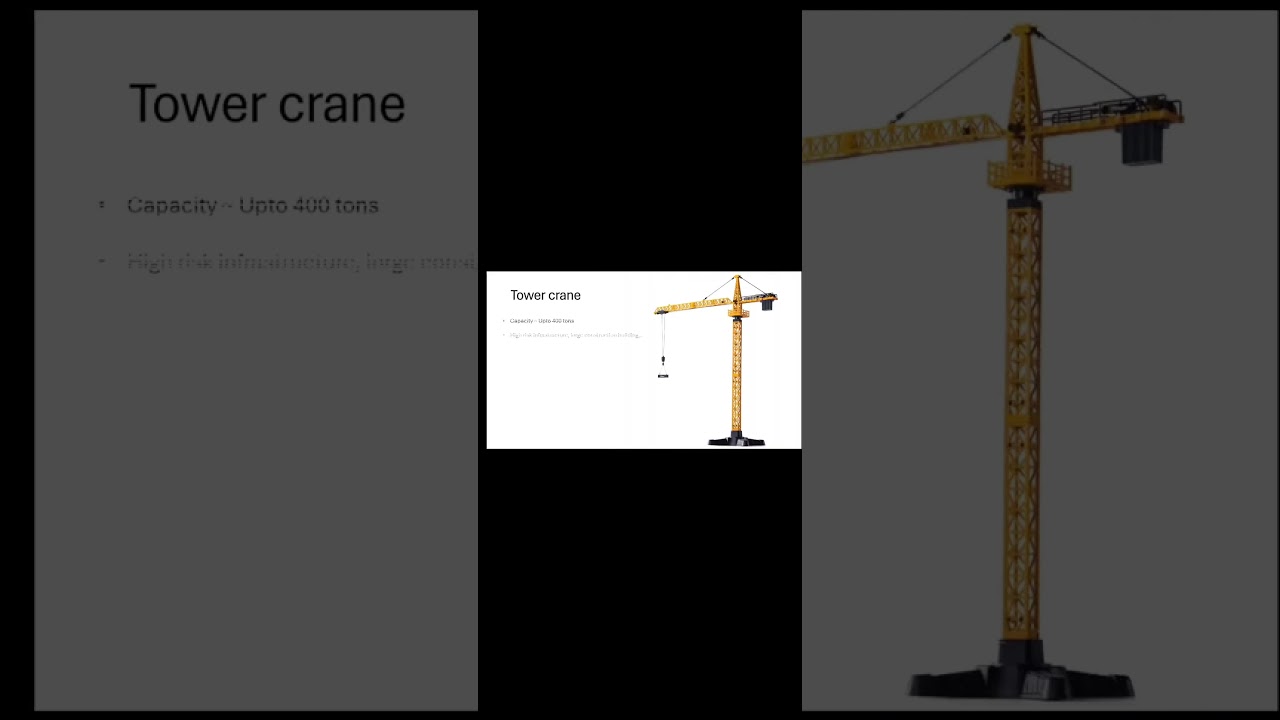

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Luffing Boom Jib Cranes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There is another type of jib apart from the horizontal boom, luffing boom. You also have this articulated jib tower crane. You can see the picture.
Detailed Explanation
Luffing boom jib cranes are designed to adjust the height of the hook while maintaining a horizontal reach. They can reposition their hinged jibs to change the horizontal reach into vertical height. This means that if the operator does not require much horizontal distance for lifting, they can angle the jib upwards to increase the hook height. This versatility is practical for various construction tasks.
Examples & Analogies
Think of a luffing boom jib crane like a baseball player using a bat. If the player holds the bat straight, they can hit the ball easily. However, if they angle the bat upwards, they can strike the ball higher, allowing for more maneuvering space but less distance. The crane works similarly - it adjusts based on the situation's needs.
Articulated Jib Cranes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
These articulated jib cranes are able to reposition their hinged jibs to convert the excess hook ridge to added hook height. You can convert the horizontal reach into vertical height.
Detailed Explanation
Articulated jib cranes feature a hinged structure that allows for repositioning, transforming extra horizontal reach into increased vertical lift. This adaptability gives them an advantage when working in areas with height restrictions or where vertical lifting is more beneficial than horizontal reach. However, these cranes tend to be more expensive due to their complex mechanics.
Examples & Analogies
Imagine trying to reach a high shelf. If you have a regular ladder, it can only go straight up. However, if your ladder could bend at the top, you could easily reach items higher up without needing to move the base. This is similar to how articulated jib cranes function; they can be adjusted to effectively access different heights without needing to move the whole structure.
Cost of Articulated Jib Cranes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
But these are also very costlier cranes articulated jibs.
Detailed Explanation
The advanced design and versatility of articulated jib cranes come with increased manufacturing and maintenance costs. While they provide unique advantages, operators must weigh these costs against their specific project needs.
Examples & Analogies
Consider purchasing a high-quality, versatile Swiss Army knife. It can perform many functions, like cutting, screwing, or opening bottles. However, its prices are higher than a simple knife that only slices. Similarly, articulated jib cranes may be pricier, but for complex construction tasks, their multifunctionality can justify the investment.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Articulated Jib Cranes: Can reposition their jibs for different lifting requirements.
-
Luffing Boom Cranes: Adapt boom angles for better lifting efficiency.
-
Climbing Cages: Increase efficiency in erecting tower cranes without reliance on mobile cranes.
-
Height Limitations: Maximum free-standing height of 120 meters; climbing tower cranes for greater heights.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An articulated jib crane can adjust its jib to reach a roof's edge for safety, maximizing efficiency on-site.
-
A climbing tower crane is used within a high-rise building during construction; it can grow with the structure without needing multiple cranes.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Cranes that climb must be so slick, they lift all day and never stick!
📖 Fascinating Stories
-
Once, there was an articulated crane named 'Artie'. Artie could stretch to great heights, helping builders reach their goals without any constant horizontal reach.
🧠 Other Memory Gems
-
Remember: 'ALC' - Articulated, Luffing, Climbing (Types of jib cranes)!
🎯 Super Acronyms
HCS - Height, Climbing, Stability (Key factors for tower cranes).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Articulated Jib Crane
Definition:
A type of crane with a hinged jib allowing repositioning to convert horizontal reach into vertical height.
-
Term: Luffing Boom Crane
Definition:
A crane that can adjust the angle of its boom, improving lift capabilities.
-
Term: Climbing Cage
Definition:
A mechanism allowing the self-erection of tower cranes by using hydraulic jacks.
-
Term: Slewing Ring
Definition:
The part of a tower crane that allows it to rotate in a horizontal plane.
-
Term: Counterweight
Definition:
Weight added to cranes to counterbalance loads and stabilize the crane.
