Introduction to Scan-Based Testing
Unlock Audio Lesson
Welcome everyone! Today, we’re diving into scan-based testing, a vital technique in Design for Testability. Who can tell me why testability in electronic circuit design is important?
It's important because it helps us find errors and ensures the design works correctly.
Exactly! Scan-based testing allows us to access internal states during testing, which is crucial for detecting faults. Now, can anyone explain what scan chains are?
Scan chains are series of flip-flops linked together to test complex circuits.
Very good! Imagine these flip-flops as a train, where you can shift signals in and out of the circuit. This is how we simplify the testing process.
So, shifting signals makes testing easier?
That’s correct! By entering the scan mode, we replace the functional data path with the scan chain to introduce test vectors. This ensures we can evaluate the internal logic effectively.
Let’s recap! Scan-based testing helps us achieve high fault coverage. Can anyone name some faults it can detect?
It can detect stuck-at faults and transition faults!
Excellent! However, remember, it also has challenges like additional hardware overhead and increased circuit complexity.
Advantages of Scan-Based Testing
Unlock Audio Lesson
Now, let’s discuss the advantages of scan-based testing in more detail. Why do you think high fault coverage is important?
It means we can find more errors before the product is released!
Exactly! The more faults we can catch, the more reliable the product will be. Plus, access to internal signals simplifies our troubleshooting process. Can someone share how this might influence time-to-market?
If we find problems early, we can fix them faster and get the product out sooner.
Right! That's key. Now, let's talk about the challenges of scan-based testing. What do you suppose happens with the additional hardware involved?
It might increase the cost and complexity of the design.
Exactly! Remember that more components can lead to power consumption issues as well. Who can summarize what we learned about the trade-offs of scan-based testing?
Scan-based testing has great advantages like high fault coverage, but we need to be careful about hardware overhead and power consumption.
Scan Mode Mechanics
Unlock Audio Lesson
Great work so far! Let’s delve into how scan mode works. Can anyone explain the transition of a system into scan mode?
The functional data path gets replaced by the scan chain right?
Spot on! Shifting test vectors in and out of the circuit illustrates how we can probe internal states. Why is this process essential in testing?
It helps test internal logic without needing to access the physical nodes which would be hard to do.
Well answered! This abstraction allows for comprehensive checks on the logic. Can anyone recall what types of faults scan-based testing can easily catch?
It can help catch stuck-at faults and transition faults!
Exactly! Those faults are critical to detect. Closing thoughts, what are the potential impacts of increased circuit complexity?
It might make the design harder to manage and potentially affect performance.
Precisely! The challenge is striking a balance between maintaining testability and managing complexity.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses scan-based testing, a widely adopted DFT strategy that uses scan chains to simplify testing of complex circuits. The implementation of scan mode enables easier access to internal signals, improving fault coverage, while also presenting challenges such as hardware overhead and increased complexity.
Detailed
Scan-Based Testing
Scan-based testing is one of the most prominent Design for Testability (DFT) techniques utilized in electronic circuit design. This method involves the integration of scan chains—sequential logic elements like flip-flops—into a circuit, providing the means to access the internal states of a system during testing. By linking flip-flops in a series (forming a scan chain), internal signals can be shifted in and out, which significantly eases the control and observation during the testing phase.
Key Components
- Scan Chains: A series of flip-flops that forms a path for shifting internal signals, which aids in testing complex sequential circuits that are difficult to access otherwise.
- Scan Mode: During testing, the circuit switches to scan mode, replacing the functional data path with the scan chain, allowing for the introduction of test vectors without physical access to internal nodes.
Advantages of Scan-Based Testing
- High Fault Coverage: It allows for the detection of various faults, including stuck-at faults, transition faults, and other common logic defects.
- Simplified Access to Internal Signals: Facilitates easier debugging and verification processes.
Challenges Faced
However, scan-based testing does come with its hurdles, such as:
- Additional Hardware Overhead: Incorporating scan flip-flops and multiplexers increases the area requirement of the design.
- Power Consumption: Increased power usage during testing activities.
- Increased Circuit Complexity: It may complicate the overall design, impacting performance.
In summary, scan-based testing enhances the testability of electronic systems significantly, making it an essential strategy for achieving higher product quality, reducing testing costs, and decreasing time-to-market.
Youtube Videos

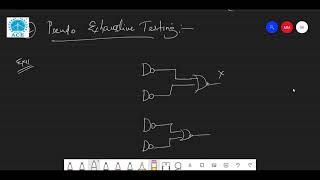

![Design for Testability in VLSI [DFT]](https://img.youtube.com/vi/j113uLGPbUg/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Scan-Based Testing
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Scan-based testing is one of the most widely used DFT techniques. It involves embedding scan chains (sequential logic elements like flip-flops) into a circuit design, allowing access to the internal states of the system during testing.
Detailed Explanation
Scan-based testing is a technique that enhances the ability to test electronic circuits effectively. Instead of only testing the inputs and outputs of a circuit, scan-based testing allows engineers to look inside the circuit to see what’s happening internally. This is done by integrating 'scan chains’ in the design, which are sequences of flip-flops that can shift data in and out during testing.
Examples & Analogies
Think of scan-based testing like a doctor having access to a patient’s internal health metrics through a monitoring device while also asking the patient how they feel. Instead of relying only on reports, the doctor can directly check vital signs to get a clearer picture of the health status.
Understanding Scan Chains
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Scan Chains: Flip-flops in the design are linked in a series (chain), and through these chains, internal signals can be shifted in and out, allowing for easier control and observation during testing. This process enables the testing of complex sequential circuits that would otherwise be difficult to access.
Detailed Explanation
Scan chains consist of multiple flip-flops connected in a linear sequence. During a test, data can be 'shifted' in and out through these chains, providing a pathway that allows testers to control and monitor the internal workings of a circuit. By accessing these internal signals, engineers can conduct thorough tests even on circuits that would otherwise be challenging due to their complexity.
Examples & Analogies
Imagine a conveyor belt in a factory where each flip-flop is like a station on the belt. Items (data) move from one station to the next, and by the end of the conveyor, you can collect and check items at every stage, ensuring the whole process is running smoothly and there are no defects.
Scan Mode Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Scan Mode: The system enters scan mode during testing, replacing the functional data path with the scan chain to shift test vectors in and out of the circuit. This makes it possible to test internal logic without accessing the internal nodes physically.
Detailed Explanation
When the circuit is in scan mode, the normal operation of the circuit is temporarily disabled, and the functioning of the internal scan chains takes precedence. This allows specific input patterns, known as test vectors, to be shifted into the circuit to evaluate its performance and behavior - effectively simulating various test conditions without needing to physically probe the internal nodes.
Examples & Analogies
Think of a sandbox where kids normally play with toys. When it's time to inspect the toys, they temporarily cover the sandbox with a clear sheet that allows them to look underneath without removing any toys. The visible sheet provides access to see all the toys’ arrangement while preventing them from physically touching every toy.
Advantages of Scan-Based Testing
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Advantages:
- High fault coverage.
- Simplified access to internal signals.
- Enables detection of stuck-at faults, transition faults, and other common logic defects.
Detailed Explanation
Scan-based testing comes with several notable advantages. First, it offers high fault coverage, meaning it can identify a vast number of potential errors within the circuit. Secondly, the ease of accessing internal signals simplifies the test process significantly. Lastly, this method is capable of detecting a variety of common faults, such as stuck-at faults (where a signal fails to change) and transition faults (issues with signal changes), which are crucial for ensuring the circuit operates correctly.
Examples & Analogies
This is similar to a thorough car inspection where mechanics can check internal engine parts easily. If they spot potential engine issues (faults), they can fix them proactively. The thoroughness of the inspection helps ensure the car runs smoothly without unexpected breakdowns.
Challenges of Scan-Based Testing
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Challenges:
- Additional hardware overhead (scan flip-flops and multiplexers).
- Power consumption due to the test activity.
- Increased circuit complexity.
Detailed Explanation
Even though scan-based testing is advantageous, it is not without its challenges. Implementing scan chains requires additional hardware, such as extra flip-flops and multiplexers, which can take up space and resources in the circuit. Additionally, the increased power consumption during tests could affect the overall efficiency of the device. Moreover, adding scan chains can complicate the design of the circuit, which may lead to other design considerations needing to be addressed.
Examples & Analogies
Consider a high-tech kitchen equipped with advanced tools for cooking multiple dishes. While these tools make cooking more efficient (similar to scan-based testing), they also take up room in that kitchen and may require more energy to operate, leading to challenges in managing space and resources.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Scan-Based Testing: A DFT technique that enables easier testing of circuits by embedding scan chains for access to internal states.
-
Scan Chains: These allow signals to be shifted in and out for testing.
-
Scan Mode: A testing mode where functional paths are replaced, enhancing access to internal logic.
-
Fault Coverage: The extent to which a technique can detect faults, crucial for product reliability.
-
Challenges: Including hardware overhead, power consumption, and increased complexity.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using scan chains to test a complex SoC design where traditional testing methods are inadequate due to the design's size and intricacy.
-
Comparing circuit fault coverage percentages before and after implementing scan-based testing to show its effectiveness in identifying defects.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
If you want to catch a fault, don’t let the signals halt; find them with the scan chain, and you will surely gain.
📖 Fascinating Stories
-
Imagine a train where each car is a flip-flop. The train takes passengers, or signals, in and out of the station, allowing testers to see every passenger's state without opening any doors.
🧠 Other Memory Gems
-
Remember 'SCAN' - S for Signals, C for Control paths, A for Accessing internal logic, N for Not needing to physically reach the nodes.
🎯 Super Acronyms
SCT - Scan Chains Transform how we test circuits.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Scan Chains
Definition:
A series of flip-flops that are linked together to allow shifting of internal signals for testing purposes.
-
Term: Scan Mode
Definition:
A testing mode where the functional data path is replaced with a scan chain to facilitate the introduction of test vectors.
-
Term: Fault Coverage
Definition:
The ability of a testing technique to identify different types of defects present in a circuit.
-
Term: Stuckat Faults
Definition:
A type of fault where a signal is stuck at a logic level, either high (1) or low (0).
-
Term: Transition Faults
Definition:
Faults that occur during a change of state in a circuit.
