19. Elevators, Lifts, Escalators (IS 3696, IS 14665)

In modern buildings—especially those intended for public use—vertical transportation systems such as elevators, lifts, and escalators play a crucial role in ensuring accessibility for all, including persons with disabilities (PwDs), the elderly, and individuals with temporary mobility impairments. Universal Design principles mandate that such systems be inclusive, safe, and convenient to use. Indian Standards like IS 14665 (Lifts) and IS 3696 (Safety in Construction) provide the legal and technical framework for design, installation, and operation. This chapter explores the design parameters, accessibility considerations, and safety measures essential in implementing barrier-free vertical transportation.

In today’s world, buildings often need to accommodate various types of people, including those with disabilities, the elderly, and those who may temporarily struggle with mobility. To effectively move people between floors, especially in public buildings, vertical transportation systems such as elevators, lifts, and escalators are essential. These systems are designed based on Universal Design principles, which aim to make them usable for everyone. The Indian Standards (IS 14665 and IS 3696) set rules for how these systems should be designed, installed, and maintained to ensure safety and accessibility for all users.

Think of a busy shopping mall. It’s important that everyone can move easily between floors—whether they’re using a stroller, a wheelchair, or simply walking. Elevators and escalators in the mall are designed to help all shoppers navigate easily, reflecting the principles of Universal Design that ensure nobody is left out.

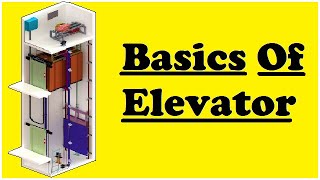

• Elevator/Lift: A permanent lifting equipment serving two or more landing levels, equipped with a car that moves vertically within guides. • Escalator: A moving staircase for transporting people between floors of a building. • Passenger Lift: Specifically designed to carry people, incorporating accessibility features as per standards. • Accessibility Lift/Platform Lift: Meant for transporting a wheelchair user and possibly an attendant. • Universal Design: Design that caters to all people, regardless of age, disability, or other factors, without the need for adaptation.

Understanding the terminology is critical when discussing vertical transport. An 'Elevator' or 'Lift' refers to a device that moves people or goods vertically between different floors. An 'Escalator' is different; it's a moving staircase that helps transport people across floors without having to climb stairs. A 'Passenger Lift' focuses on carrying people, particularly with features that make it accessible. Meanwhile, 'Accessibility Lifts' are designed for those using wheelchairs, ensuring they can move without barriers. Finally, 'Universal Design' emphasizes inclusiveness in all designs, catering to everyone’s needs without requiring modifications.

Consider being in an office building: You might see elevators for regular transportation, escalators that allow for quick movement, and specialized lifts for visitors in wheelchairs. Each component is designed to help everyone navigate the building effortlessly, demonstrating how different types of lifts can cater to different needs.

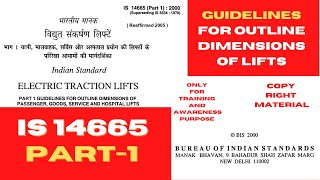

IS 14665 (Parts 1 to 5): This Indian Standard covers: • Basic requirements for the design, installation, and maintenance of lifts. • Specifications for mechanical, electrical, and safety aspects. • Requirements for lift enclosures, car dimensions, signaling, and control systems.

IS 3696 (Part 1 & 2): Pertains to safety during construction, including safe use and maintenance of temporary lifts and hoists used during building development.

Other Relevant Codes: • National Building Code (NBC) of India, 2016 (particularly Part 3 and Part 4) • The Rights of Persons with Disabilities Act, 2016 • Harmonised Guidelines and Standards for Universal Accessibility in India (2021)

To ensure safety and accessibility in vertical transportation, several Indian standards and regulations are in place. IS 14665 addresses key aspects related to elevators, such as how they should be designed, installed, and maintained, covering all safety needs—mechanical, electrical, and beyond. Another standard, IS 3696, focuses on safety during the construction phase, particularly concerning temporary lifts used at construction sites. Additionally, other important codes, like the National Building Code and the Rights of Persons with Disabilities Act, ensure that the needs of all users are considered in public spaces.

Think of building a school. The builders must follow specific codes to ensure that elevators are safe and accessible for everyone, including children with disabilities. These regulations guide the construction process, just like traffic laws guide safe driving.

19.3.1 Car Dimensions and Capacity • Standard Passenger Lift 1100 mm × 1400 mm • Wheelchair-accessible Lift 1500 mm × 1500 mm • With Attendant 2000 mm × 1100 mm or larger • Door width must be at least 900 mm to accommodate a wheelchair. • Door should remain open for a minimum of 20 seconds or be equipped with door sensors.

Accessibility specifications are critical to ensure that everyone can use elevators safely and comfortably. For example, standard passenger lifts should have a car size of at least 1100 mm by 1400 mm, while wheelchair-accessible lifts must be bigger, ensuring adequate space for users. The door width is also crucial—set at a minimum of 900 mm to allow for wheelchair access. Furthermore, doors need to stay open long enough for users to enter or exit safely. These measurements are not just numbers; they ensure that no one is left behind.

Imagine trying to enter a train with a suitcase. If the door is too narrow or closes too fast, you could struggle and miss your ride. Similarly, proper dimensions and door operations in elevators ensure that all individuals, including those with mobility devices, can use them without hassle.

• Control buttons must be placed at 900 mm to 1200 mm above the floor. • Buttons must have tactile markings and Braille inscriptions. • Auditory floor indication for visually impaired users. • Illuminated indicators for deaf or hard-of-hearing persons. • Emergency call system linked to a 24×7 helpline.

Getting into and using an elevator should be straightforward, which is why control button placement is essential. They must be between 900 mm and 1200 mm from the ground, making them accessible to both standing and wheelchair users. Tactile markings and Braille help visually impaired individuals identify buttons easily. Additionally, providing auditory indications helps those with visual impairments know when they’ve reached their desired floor. Illuminated indicators serve those who might not hear, ensuring everyone is aware of elevator status. Finally, linking to a 24/7 emergency helpline ensures users have support if something goes wrong.

Consider a movie theater. When you approach the elevator, you see buttons at your eye level—making it easy to press the one you need. Imagine if the buttons were too high or too low; it would be inconvenient for many. The correct placement and features ensure everyone can enjoy a trip in the elevator without anxiety.

• Automatic sliding doors preferred. • Must have infrared sensor or pressure-sensitive edges to prevent accidents. • Manual doors must have lever-type handles at accessible height.

The way elevator doors operate is also crucial for ensuring safety and accessibility. Automatic sliding doors are preferred as they can open without any physical effort, making it easier for users with limited mobility. Equipping these doors with infrared sensors or pressure-sensitive edges prevents accidents by stopping the door if something is in the way. For manual doors, lever-type handles should be installed at heights reachable for everyone. These features help create a smooth and safe experience while entering and exiting.

Picture a busy hospital where patients often need to go in and out of elevators quickly. Automatic doors that slide open without requiring a push allow patients on crutches or in wheelchairs to enter easily. If the doors had pressure sensors, they would stop immediately if someone got in the way, ensuring safety. This is how thoughtful design can prevent accidents and help everyone move freely.

• Accurate floor leveling mechanism to prevent tripping hazards. • Anti-slip flooring inside the lift car. • Safety gear, buffers, overspeed governor, and emergency brakes to comply with IS 14665.

Safety is paramount in any elevator system. Accurate floor leveling ensures the elevator aligns with the floor, preventing tripping hazards for all users. Furthermore, the inside of the lift car should have anti-slip flooring to enhance safety when entering or exiting. Furthermore, various safety mechanisms, such as buffers, overspeed governors, and emergency brakes, comply with Indian standards to prevent accidents and failures. These components work together to safeguard users, highlighting the importance of rigorous safety practices.

Imagine a sports arena where people rush in after a concert. If the elevator doesn’t align correctly with the floor or has slippery surfaces, it could lead to accidents. Ensuring that these safety measures are in place is like having guardrails on a highway: they protect users from potential danger.

• High-contrast, large font signage both inside and outside the lift. • Floor numbers and directional arrows with tactile and Braille equivalents. • Flashing lights in case of emergency stops or fire alerts.

Clear signage is essential for effective elevator operation. High-contrast, large font signs help everyone, including those with vision challenges, understand where to go. Tactile and Braille markings provide critical support for visually impaired users, while flashing lights serve as visual alarms for emergency situations, alerting everyone to potential dangers. This combination of elements ensures that communication is effective and that all users know how to navigate the space safely.

When you enter an unfamiliar building, clear signs direct you to the elevators or exits. If the signs are clear and easy to understand, you can find your way without confusion. Think of it like road signs that guide drivers; without them, navigating would be challenging and potentially dangerous.

Though escalators are not recommended for PwDs due to difficulty in use, their design can still incorporate Universal Design principles for wider public usability.

Escalators are a common feature in many public buildings, but they can be challenging for people with disabilities. Although they are generally not the best option for individuals requiring assistance, their design can integrate Universal Design principles to make them more usable for everyone. This may include features such as handrails, clear visibility, and appropriate signage that guide all users, ensuring escalators can still serve as a transport option where lifts are not available.

Think about using an escalator at a shopping mall. While it’s easy for most people, someone in a wheelchair might find it impossible. However, if the escalator is designed with clear warnings and nearby ramps or lifts, it ensures that everyone has an alternative route.

These are installed where spatial constraints or cost prohibit full-scale elevators. 19.5.1 Platform Lifts: • Used for vertical travel of up to 2–3 meters. • Speed: Maximum 0.15 m/s. • Should have adequate platform space to accommodate wheelchair user. • Controls accessible to seated persons. • Equipped with non-slip flooring, rails, and emergency stop.

In situations where space or budget limits the ability to install traditional elevators, platform and stair lifts provide alternatives. Platform lifts, which can lift users up to 2 to 3 meters, are designed with safety features like non-slip flooring, rails, and an accessible control panel for seated users. With a maximum speed of 0.15 m/s, these lifts offer a dependable means of transportation for wheelchair users or those with mobility limitations, making buildings more accessible.

Imagine a small community center that can’t fit a large elevator. By installing a platform lift, they provide safe access for persons using wheelchairs without the expense and space required for a full elevator. It’s like having a smaller ramp alongside stairs; it ensures that everyone can access the building comfortably.

• Lifts should not be used in case of fire unless specifically designed as firefighting lifts. • Evacuation lifts must be fire-resistant, with separate power supply and pressurized lobbies. • IS 14665 mandates fire rating for lift shaft doors and enclosures. • Refuge areas must be accessible by lifts or ramps as per NBC.

Safety during emergencies, especially fires, is crucial when considering elevator use. Generally, elevators should not be used in case of fire unless they are explicitly designed for firefighting purposes. Emergency evacuation lifts must be constructed to resist fire, equipped with a separate power supply, and situated within pressurized lobbies to ensure safe egress. Furthermore, the regulations require that access to refuge areas should be available via lifts or ramps, ensuring everyone can reach safety.

Think about a school during a fire drill. If the elevators aren’t fire-resistant, they could fail, trapping people inside. That’s why specific lifts serve as evacuation routes during emergencies, working like dedicated fire exits that help everyone escape safely.

• Routine monthly and annual inspection logs must be maintained. • Emergency rescue drills should be conducted periodically. • Preventive maintenance as per manufacturer’s guidelines. • Compliance certificates must be issued post-installation, reviewed annually.

To ensure both safety and reliability, elevators require regular maintenance and inspection. Monthly and annual inspection logs help keep track of performance and highlight any potential issues. Conducting emergency rescue drills ensures that staff is prepared for any emergencies involving the lifts. Additionally, preventive maintenance according to manufacturer guidelines helps anticipate maintenance needs before they become problems. Finally, compliance certificates issued after installation and reviewed annually confirm that all safety and operational standards are met.

Think of your car; regular checks keep it running smoothly and safely. Just like a car, elevators need consistent maintenance to ensure they function well and can safely transport people, especially in an emergency.

Architects: Incorporate lift cores, space planning, and circulation flow for inclusive access. Engineers: Ensure compliance with IS standards and NBC. Contractors: Follow installation protocols with trained staff and quality checks. Maintenance Teams: Ensure uptime, regular servicing, and emergency preparedness. Building Owners: Periodic audits, user training, signage installation.

Multiple stakeholders are involved in ensuring elevators function effectively and inclusively. Architects play a vital role in designing spaces that accommodate lifts properly. Engineers maintain compliance with safety standards. Contractors are responsible for ensuring that installation is done correctly by skilled staff. After installation, maintenance teams keep elevators running reliably and prepare for emergencies. Finally, building owners are tasked with conducting audits, offering user training, and ensuring appropriate signage so everyone can navigate the elevator system effectively.

Consider a new office building. The architect sketches the layout considering where the elevators will go, while engineers ensure they meet safety codes. Once built, maintenance teams keep the elevators running smoothly, much like how a sports team needs players in different roles to work together to achieve success.

While IS standards and NBC define minimum requirements, best practices in Universal Design go further to ensure dignity, independence, and safety for all users—especially persons with disabilities. These enhancements improve usability and reduce discrimination or segregation.

While Indian Standards (IS) and the National Building Code (NBC) set essential requirements for design and safety, Universal Design practices extend beyond those minimums. They focus on enhancing usability for all individuals, particularly for those with disabilities. This might include adding features that aren’t strictly necessary but significantly improve the user experience, ensuring that everyone has a dignified and independent way to access buildings and facilities without facing barriers.

Think of a hotel that offers a ramp and an elevator, which meets the minimum requirements. But when they also provide voice-activated lifts and easy-to-read signs, they elevate the experience for all guests. It creates an environment where everyone feels welcome and independent, like providing extra features in a smartphone that enhance user experience.

• Dual control panels in lifts (one on each side) so users with limb differences can operate them easily. • Mirror placement in lifts to help wheelchair users back out safely. • Voice command-enabled elevators for enhanced usability, particularly for blind users. • Remote call systems or app-integrated elevator panels for users with mobility or speech impairments.

To further enhance accessibility, several redundant features can significantly improve ease of use in elevators. Dual control panels allow users with physical differences to operate the lift without hassle. Strategic mirror placement enables wheelchair users to see when it's safe to back out. Voice command options empower visually impaired users to interact with elevators better. Additionally, modern remote call systems or app-integrated panels cater to users with mobility or speech impairments, ensuring that elevators serve everyone effectively.

Consider restaurants that provide both physical menus and digital orders through an app. If someone has difficulty reading or using traditional menus, they still have another option to order. Similarly, offering various accessibility features in elevators ensures that everyone can comfortably and independently use them.

• Use of color psychology for calming, visible, non-distracting interiors. • Warm lighting instead of stark white fluorescent tubes to reduce sensory discomfort. • Acoustic control inside lift cars to prevent echo, especially for hearing-aid users.

Design in elevators goes beyond functionality; aesthetics play a crucial role in creating a comfortable environment. By using color psychology, designs can promote calmness and visibility without distractions. Warm lighting helps reduce sensory discomfort compared to harsh, bright lights. Moreover, acoustics are essential in lift cars to minimize echo, making the experience more pleasant, especially for individuals using hearing aids. Together, these elements contribute to an overall welcoming environment in elevators.

Think about how you feel walking into a cozy coffee shop versus a stark, fluorescent-lit office. A warm, inviting space can put you at ease, just like carefully designed elevator interiors can improve the travel experience for everyone.

• Minimum lobby width: 1800 mm, allowing turning radius for wheelchair users. • Provision of tactile guiding paths from main entrance to lift. • Placement of directional signage at eye level and in multiple formats (visual, tactile, auditory).

Lift lobbies are the spaces where users wait for elevators, and designing them correctly is essential for accessibility. The lobby should have a minimum width of 1800 mm, which provides ample space for wheelchair users to maneuver. Additionally, tactile guiding paths help users navigate the lobby, directing them toward the lifts. Signage at eye level in various formats—visual, tactile, and auditory—provides the necessary information for all users, helping them find their way efficiently.

Imagine walking into a library where there are clear pathways to the elevator and signs at the right height that guide you. You can easily navigate your way. That’s how a thoughtfully designed lift lobby makes it easy for anyone to find their way, similar to a well-marked trail in a park.

Modern vertical transportation systems now use IoT and AI-based features to improve accessibility and efficiency. 19.11.1 Touchless Operation: • QR Code or NFC-based elevator call systems. • Mobile app integration to preselect destination floor. • Facial recognition entry (optional, with consent).

The integration of technology, such as IoT and AI, revolutionizes vertical transportation systems. For instance, touchless operation through QR codes or NFC-based calling systems allows users to call elevators without physical contact. Additionally, mobile apps provide the option to pre-select destination floors for convenience. Facial recognition is another innovative feature that could enhance security and ease of access, provided users consent, showcasing how technology is pushing the boundaries of accessibility.

In smart homes, you can unlock doors with your phone or even through a fingerprint scanner. Imagine a future where elevators operate similarly, letting you enter without pressing buttons. This level of convenience would make life easier and more efficient for everyone.

Public places like railway stations, airports, and government buildings require additional layers of inclusive design: 19.12.1 High-Usage Lift Systems: • Multiple synchronized elevators with central control systems. • Staggered or grouped lift banks with clear route demarcations.

Transport hubs have unique requirements for vertical circulation due to high foot traffic. To manage this flow, multiple elevators can be synchronized with a central control system, ensuring efficient movement. Staggered or grouped lifts create designated areas for users to queue, making it easier for them to navigate during busy times. These design features ensure that even in crowded public places, elevators can effectively meet the needs of all individuals, enhancing the overall travel experience.

Think of an airport where numerous people are trying to get to their gates. Having multiple elevators that work together prevents congestion, similar to how multiple lanes allow the traffic to flow smoothly on a highway, making the journey easier for everyone.

• Colored queuing lines and sound alerts for order and safety. • Emergency detour guidance and audible exit indicators.

In crowded environments, effective crowd management features are essential. Colored queuing lines help organize foot traffic and maintain order, while sound alerts provide auditory cues to enhance safety and awareness. Emergency detour guidance and audible exit indicators also assist individuals in navigating quickly during emergencies, ensuring that everyone knows where and how to exit safely.

Picture a concert where people need to leave quickly. Clear indicators on the ground and loud announcements guide attendees to the exits. This preparation helps everyone leave promptly and safely, reinforcing the importance of crowd management features in public spaces.

Adapting older structures to meet accessibility requirements is a key component of Universal Design. 19.14.1 Assessing Existing Systems: • Conduct access audits focusing on vertical transport points. • Identify gaps in dimensions, control systems, or signage.

Retrofitting older buildings is crucial to meet modern accessibility standards. The first step involves conducting thorough access audits, which assess how existing systems perform regarding vertical transport. This audit identifies any shortfalls in dimensions, control mechanisms, or signage that may hinder accessibility. By pinpointing these gaps, steps can be taken to enhance the current systems and align them with current standards, ensuring all users can navigate these spaces effectively.

Consider an old theater building that lacks elevators. By auditing its layout, the building can be modified to include lifts, ensuring all patrons, including those with disabilities, can enjoy performances, similar to how an old car can be upgraded with new technology to meet today's safety standards.

Environmental sustainability is now central to building design, including elevators and escalators. 19.15.1 Green Building Standards: • Regenerative drives that convert descending car energy into electricity. • LED-based lighting with motion sensors inside lift cars. • Use of low-emission materials in interiors.

Sustainability is becoming increasingly relevant in modern building designs, including elevators and escalators. Green building standards advocate incorporating features like regenerative drives, which convert the energy generated during the descent of a lift into electricity for reuse, thereby reducing energy consumption. Moreover, using LED lights equipped with motion sensors not only lowers energy use but also enhances safety. Employing low-emission materials contributes further to environmentally friendly practices within buildings.

Imagine a gym that uses energy from people exercising on stationary bikes to power the lights. Similarly, elevators can harness energy during operation, making them more sustainable. This shows how thoughtful design can contribute to a more energy-efficient world.

--
