21.3. Classification of Faults

Faults are classified based on the relative motion of rock masses and the orientation of the fault plane.

Faults can be categorized in two major ways: by the direction of displacement (how the blocks of rock move in relation to each other) and the orientation of the fault plane (the angle and direction of the fault surface relative to horizontal). This classification is essential for understanding the type of fault involved and predicting its behavior during seismic events.

Think of a fault like a sliding door. Depending on how the door opens (up, down, or sideways), we can understand how it might behave in different situations. Similarly, by classifying faults, geologists can predict how they will move during an earthquake.

a. Dip-Slip Faults Movement is predominantly vertical along the dip of the fault plane.

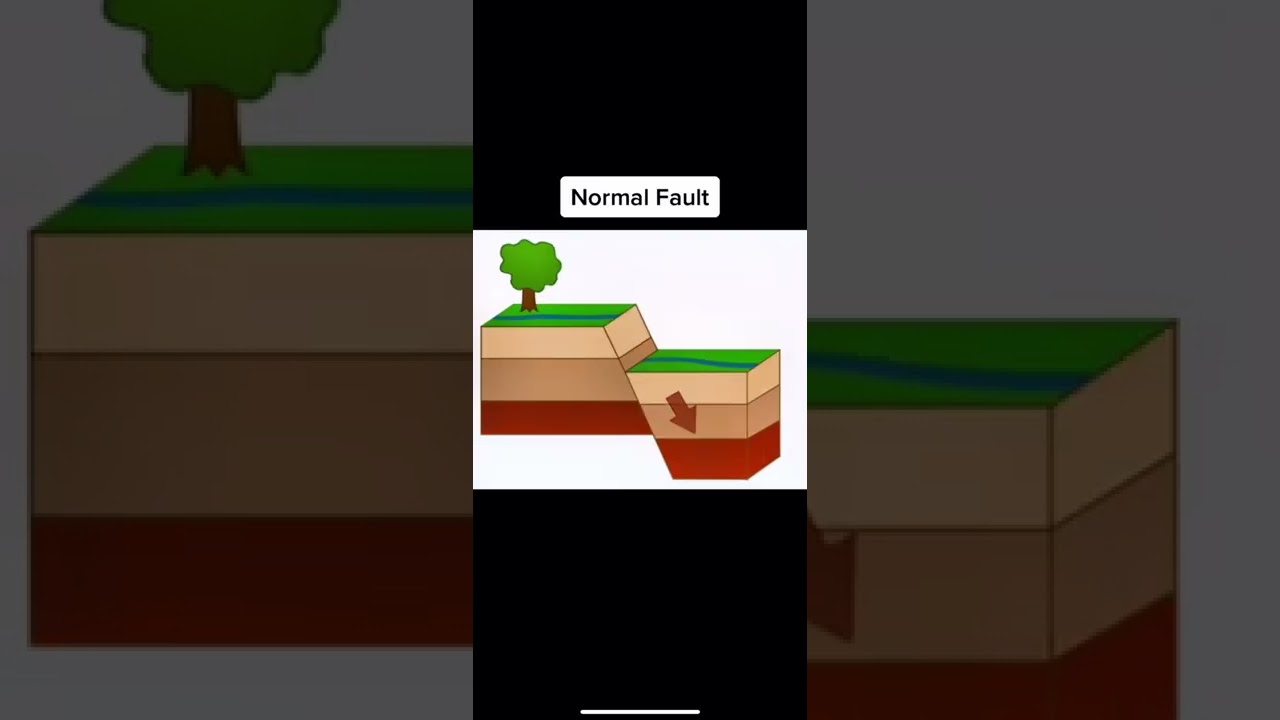

• Normal Fault: Hanging wall moves downward relative to the footwall due to extensional forces. Common in divergent plate boundaries.
• Reverse Fault: Hanging wall moves upward relative to the footwall due to compressive forces. Often found in convergent zones.
• Thrust Fault: A low-angle reverse fault (dip < 45°). Causes large-scale crustal shortening.

Dip-slip faults are characterized by vertical movement. In a normal fault, the hanging wall (the block above the fault) moves downwards, which typically occurs in areas where the Earth's crust is being pulled apart. In contrast, a reverse fault has the hanging wall moving upwards, common in areas where the crust is being compressed. A thrust fault is similar to a reverse fault but occurs at a smaller angle, causing significant shortening of the crust.

Imagine you have a stack of books. If you pull the books apart (like in a normal fault), the top books might slip down on the bottom books. If you push the books together (like in a reverse fault), the top books might move upward. This is similar to how the earth's crust behaves in these fault types.

b. Strike-Slip Faults Movement is primarily horizontal along the strike of the fault plane.

• Right-Lateral (Dextral): Opposite block appears to move to the right.
• Left-Lateral (Sinistral): Opposite block appears to move to the left.

Strike-slip faults function mainly through horizontal movement. When observing these faults, if you stand on one side and see the other side moving to the right, it is known as a right-lateral fault. Conversely, if the opposite side moves to the left, it is a left-lateral fault. These movements are due to shear stresses in the Earth's crust and are often associated with transform plate boundaries.

Picture standing on a sidewalk, holding a piece of chalk. If you push the chalk to the right while standing still, that movement is like a right-lateral fault. If the chalk moves left, it's like a left-lateral fault. These horizontal shifts can be tricky to detect, but they are key to understanding the fault's movements.

c. Oblique-Slip Faults Movement occurs both vertically and horizontally. This is a combination of dip-slip and strike-slip displacements.

Oblique-slip faults exhibit both vertical and horizontal movement, integrating characteristics of both dip-slip and strike-slip faults. This complexity can arise in areas where different tectonic forces are acting on the same fault line, resulting in mixed types of displacements.

Imagine a piece of paper on a table. If you push down and to the side at the same time, the paper shifts both upwards and sideways—similar to how oblique-slip faults move. Understanding this kind of movement helps scientists predict how earthquakes might behave along such faults.

--
